S 81 CEN - Loudspeaker JAMO - Free user manual and instructions

Product Type	Center Channel Speaker
Brand	Jamo
Model	S 81 CEN
Recommended Use	Home Theater Center Channel
Impedance	8 Ohms
Sensitivity	90 dB
Power Handling (RMS)	100 Watts
Recommended Amplifier Power	20 – 150 Watts
Speaker Wire Connection	Binding posts
Placement Options	Shelf, table, or wall mount (bracket not included)
Cleaning Instructions	Use a dry cloth only
Ventilation	Do not block ventilation openings
Heat Sources	Keep away from radiators, stoves, etc.
Water Resistance	Not waterproof; avoid moisture
Compliance	CE, WEEE
Safety Features	No user-serviceable parts; refer servicing to qualified personnel

Frequently Asked Questions - S 81 CEN JAMO

How do I connect the Jamo S 81 CEN speaker to my amplifier?

Connect speaker wires from the amplifier's speaker outputs to the binding posts on the rear of the S 81 CEN. Ensure correct polarity (red to positive, black to negative).

What is the impedance of the S 81 CEN?

The impedance is 8 Ohms, making it compatible with most home theater receivers.

Can I mount the S 81 CEN on the wall?

Yes, you can wall-mount the S 81 CEN using an optional bracket. Follow the placement guidelines in the manual for optimal sound.

How should I clean the speaker?

Clean with a dry cloth only. Do not use any liquids or cleaners, as they may damage the finish.

What is the recommended amplifier power for the S 81 CEN?

A recommended amplifier power range is 20 to 150 Watts RMS per channel.

What are the dimensions and weight of the S 81 CEN?

Typical dimensions for a center channel speaker like the S 81 CEN are approximately 16.5 x 5.9 x 8.3 inches (419 x 150 x 211 mm), with a weight of about 8.6 lbs (3.9 kg).

Is the S 81 CEN magnetically shielded?

The S 81 CEN is typically designed to be magnetically shielded to prevent interference with CRT televisions, though confirmation should be made with Jamo support.

Can I use the S 81 CEN as a rear surround speaker?

While primarily designed as a center channel, the S 81 CEN can be used as a rear speaker if paired with similar speakers, but it is optimized for dialog reproduction.

What is the warranty on the Jamo S 81 CEN?

Warranty details vary by region. Please contact Jamo customer support or refer to the original purchase documentation for warranty information.

How should I dispose of the S 81 CEN at end of life?

Do not dispose of with household waste. Follow local regulations for electronic waste recycling, as indicated by the WEEE symbol on the product.

USER MANUAL S 81 CEN JAMO

Line drawing of a multi-tiered JAMO speaker system with multiple speakers and large speakers (no text or symbols)

	Note!Bemaerk!Achtung!	A noterAttentie!Obs!	¡Atención!Attenzione!Atenção!	Huomaa!* *Прогохή!	Внимание!Megjegyzés!Uwaga!	Dikkat!Upozornění!Pozor!	əa!
	WrongForkertFalsch!	FauxFout!Fell!	¡Incorrecto!Sbagliato!Errado!	Väärin!错误!Λάθος!	Неправильно!Hibás!Nieprawidlowo!	Yanlış!Špatně!Nesprávne!	ično!
	CorrectKorrektRichtig!	VraiGoed!Rätt!	¡Correcto!Giusto!Correto!	Oikein!* *Σωστό!	Правильно!Megfelelő!Prawidlowo!	Doğru!Správně!Správne!	io!
[x3w5]	ListenLytHören!	Ecoutez!Luister!Lyssna!	¡Escuche!Ascoltare!Ouça!	Kuuntele!* !Акоúστε!	Слушайте!Hallgassa meg!Sluchaj!	Dinle!Poslouchejte!Počúvajte!	šajte![B285]

IMPORTANT SAFETY INSTRUCTIONS!

1. READ these instructions.
2. KEEP these instructions.
3. HEED all warnings.
4. FOLLOW all instructions.
5. DO NOT use this apparatus near water.
6. CLEAN ONLY with dry cloth.
7. DO NOT block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. ONLY USE attachments/accessories specified by the manufacturer.

10. USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11. DO NOT expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the apparatus.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain or moisture.

WARNING: No naked flame sources – such as candles – should be placed on the product.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified service personnel.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union EMC Directive 2004/108/EC.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

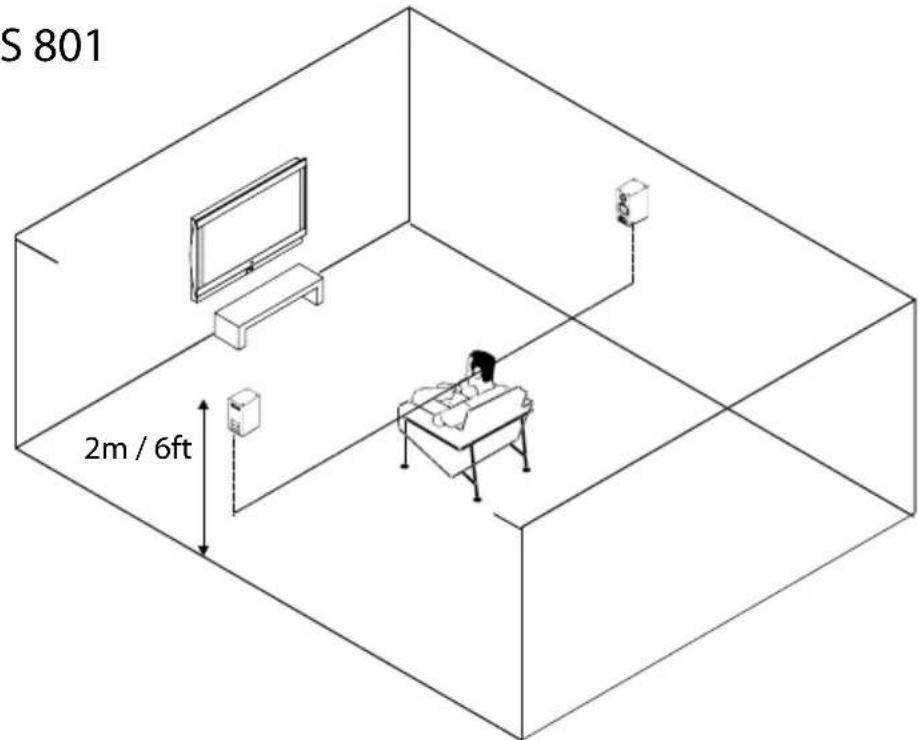

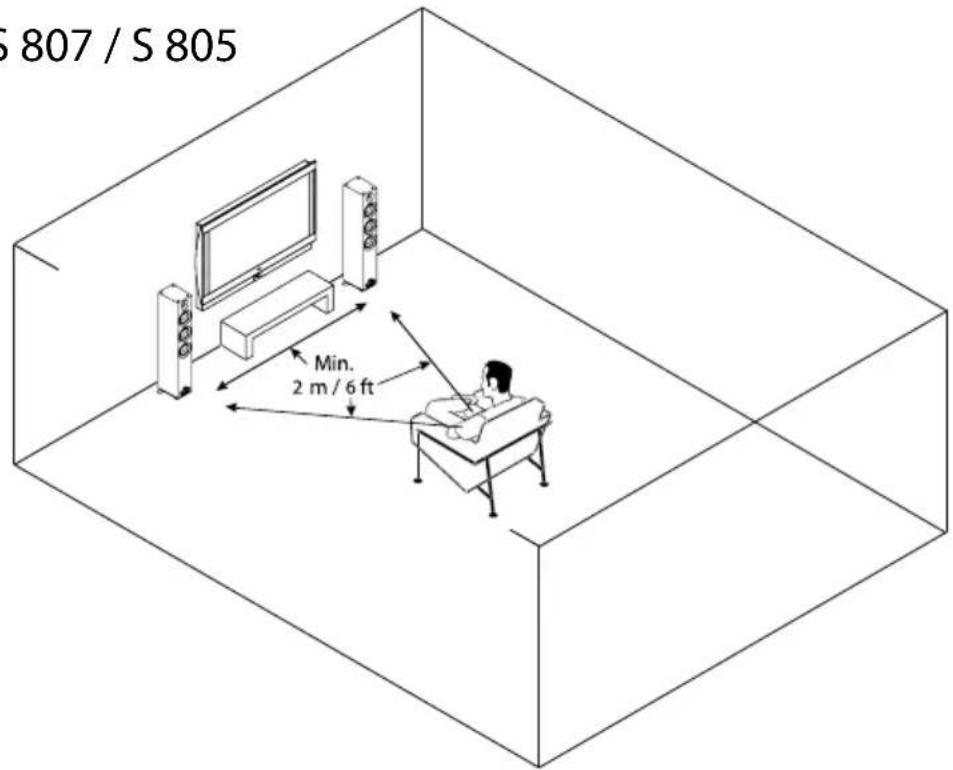

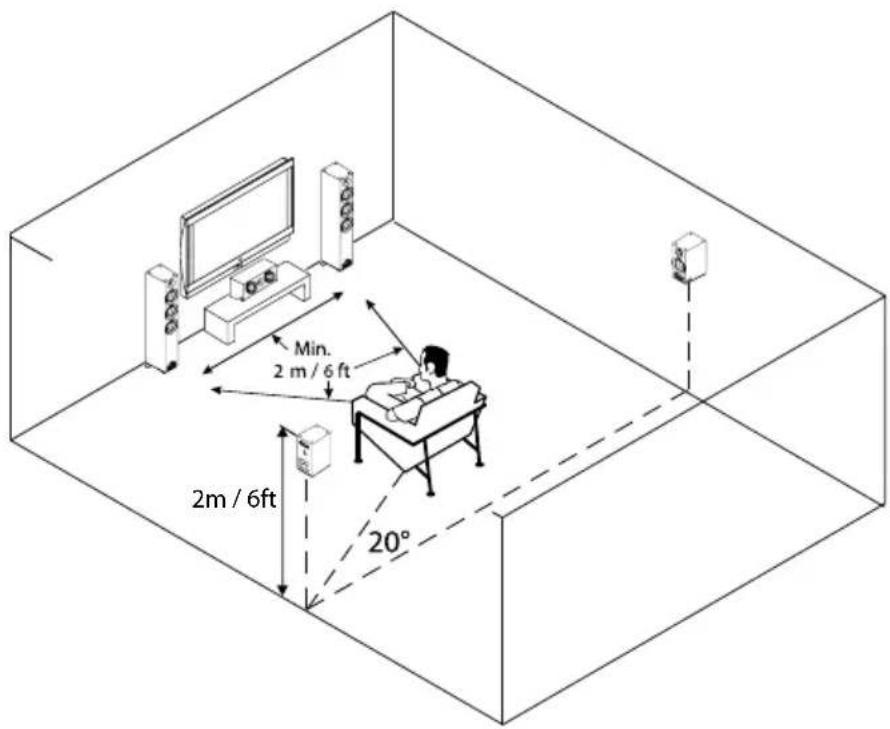

1 Placement

S 809 / S 807 / S 805

S 803 / S 801

S 803 / S 801

S 83 CEN / S 81 CEN

S 809 / S 807 / S 805

Diagram of a mechanical component with a threaded shaft and curved cable, labeled with number 5 (no text or symbols on the diagram itself)

S 809 / S 807 / S 805

S 803 / S 801

Pure electrical outlet diagram showing two socket connectors connected to a power strip, with no text or symbols present.

Simple line drawing of a device with two connectors and wiring, no text or symbols present

S 83 CEN / S 81 CEN

Line drawing of a rectangular device with two connectors and wiring, no text or symbols present

3 System Connection

S 809 / S 807 / S 805 S 809 / S 807 / S 805

S 803 / S 801 S 803 / S 801

S 809 / S 807 + S 8 ATM

Line drawing of two identical cylindrical storage units with base supports and a central top cover, showing an upward arrow (no text or symbols)

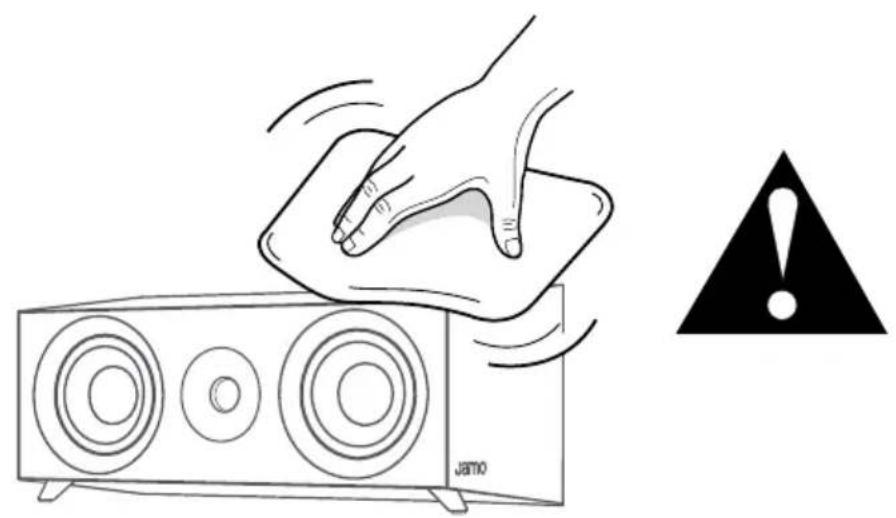

4 Care

Jamo®

Jamo Corporate Office: 3502 Woodview Trace, Indianapolis, IN USA 46268-1104

A wholly-owned subsidiary of VOXX International Corporation

jamo.com 1-800-554-7724

©2013 Klipsch Group, Inc. All Rights Reserved.

Jamo is a registered trademark of Klipsch Group, Inc.

Engineered by Klipsch Group, Inc., USA. Made in China

CE
