| Product Type | Range Hood |
| Brand | Ardo |
| Model | IT60INOX |
| Width | 600 mm |
| Depth | Approx. 500 mm |
| Height | Adjustable (min. 65 cm above cooking surface) |
| Weight | Approx. 15 kg |
| Power Supply | 220-240 V, 50 Hz |
| Motor Power | 150 W (typical) |
| Lighting Power | 2 x 20 W (typical) |
| Installation Types | Ducting (air exhaust to outside), Filtering (recirculation), External motor |
| Control Types | Electronic or Mechanical (depending on version) |
| Speed Settings | 3 speeds + Intensive speed (10 min) |
| Timer | Automatic stop after 15 minutes |
| Clean Air Function | Automatic 10 min operation every hour at low speed |
| Filter Saturation Indicator | Yes (flashing light for cleaning or replacement) |
| Anti-grease Filters | Washable (every 2 months), dishwasher safe |
| Carbon Filters | Replaceable (every 4 months, for recirculation mode) |
| Safety Features | Automatic shut-off, overload protection, minimum distance 65 cm from hob |
| Electrical Class | Class II (double insulated, no earth wire required) |
| Spare Parts Availability | Filters, bulbs, motor components (contact manufacturer) |
Frequently Asked Questions - IT60INOX Ardo
User questions about IT60INOX Ardo
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual IT60INOX - Ardo and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IT60INOX by Ardo.
USER MANUAL IT60INOX Ardo
Fig.2
Fig.3
Fig.5 Fig.6
Fig.9
Fig.10
Fig.11
Fig.12
Fig.14
Fig.15
Fig.18 Fig.19
Fig.20 Fig.21
GENERAL
Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed for use in the ducting version (air exhaust to the outside - Fig.1B), filtering version (air circulation on the inside - Fig.1A) or with external motor (Fig.1C).
SAFETY PRECAUTION
- Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on the air in the environment and are supplied by other than electrical energy, as the cooker hood removes the air from the environment which a burner or fireplace need for combustion. The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood.
Follow the local laws applicable for external air evacuation.
Before connecting the model to the electricity network:
- control the data plate (positioned inside the appliance) to ascertain that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.
- WARNING!
In certain circumstances electrical appliances may be a danger hazard.
A) Do not check the status of the filters while the cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or straight after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker hood
D) Avoid free flame, as it is damaging for the filters and a fire hazard
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young children or infirm persons without supervision
H) Young children should be supervised to ensure they do not play with the appliance
I) There shall be adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions
This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health.
The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point.
Follow local guidelines when disposing of waste.
For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased.
INSTALLATION INSTRUCTIONS
Assembly and electrical connections must be carried out by specialised personnel.
• Electric Connection
The appliance has been manufactured as a class II, therefore no earth cable is necessary.
The connection to the mains is carried out as follows: BROWN = L line
BLUE = N neutral
If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the plug is easily accessible.
An omnipolar switch with a minimum opening of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.
- The minimum distance between the support surfaces of the cooking pots on the cooker top and the lowest part of the cooker hood must be at least 65 cm.
If a connection tube composed of two parts is used, the upper part must be placed outside the lower part.
Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

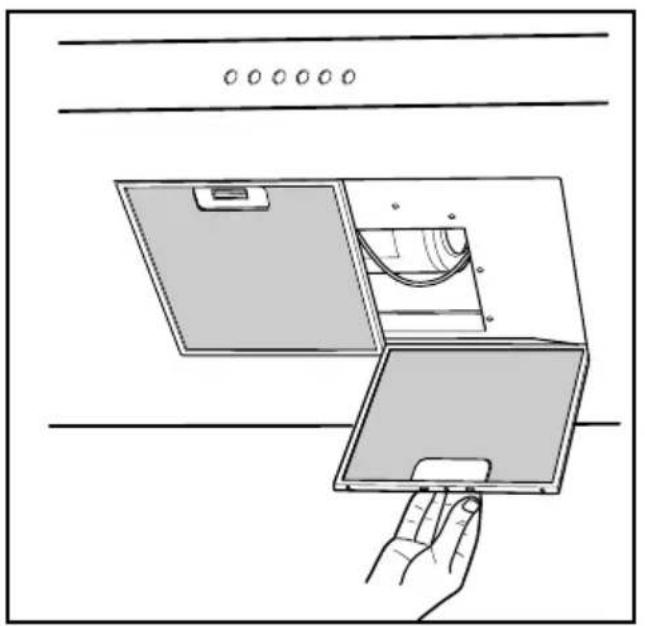

Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.16) so that the unit is easier to handle.
In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.
- Hood assembly
Remove the structure from the packaging and remove the 2 screws A to separate the upper part from the lower part (fig.2).
- Position hole template on the ceiling paying attention that the arrow is positioned on the same side as the appliance controls (Fig.3).
Make 4, ∅8 holes in the ceiling and drive in 3 screws without completely tightening them. Pay attention not to insert the screw into the hole marked with an X on the hole template (the screws and expansion plugs must be suitable for the type of wall).

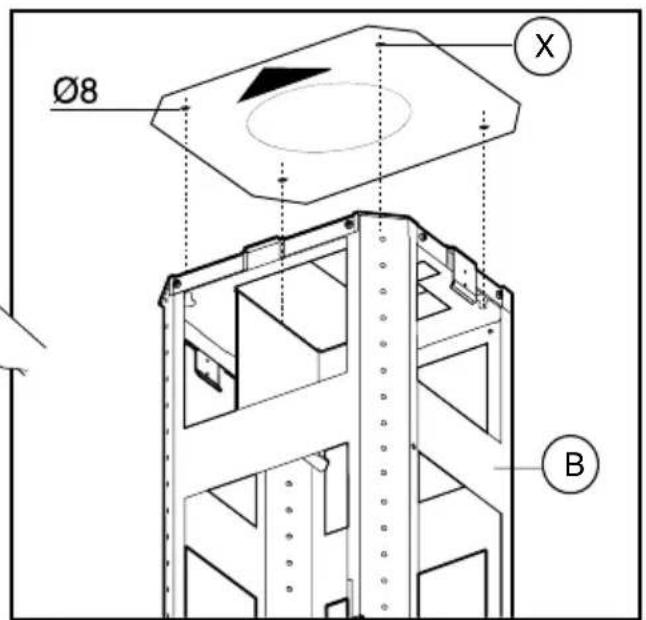

- Take the upper part of the structure B (fig.4) and insert the 3 slots onto the 3 screws that are not completely tightened.
Rotate slightly to fit (fig.4).
Drive in the fourth screw X and tighten the remaining 3 to allow definitive blocking of the upper part of structure B
- Take the lower part of the telescopic structure C and insert it into the upper structure B (fig.5).

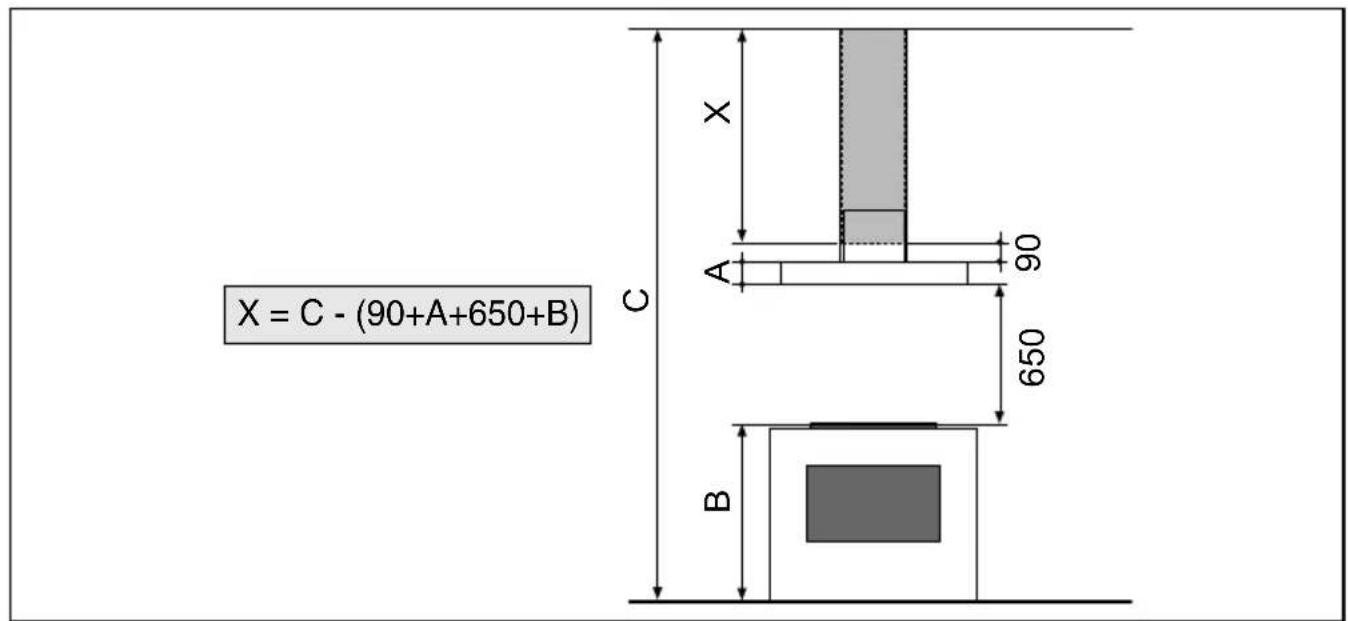

Adjust the height by referring to the amounts indicated in (fig.15) and block it using the 8 screws G that are supplied (fig.6).
- Suction version: fix the flexible pipe to the prepared air evacuation hole (fig 7).
- Filtering version: fix the flexible pipe to the deflector M and fix screw I as indicated in (Fig.8), the active carbon filters must be applied to the suction unit positioned inside the hood (Fig.17).

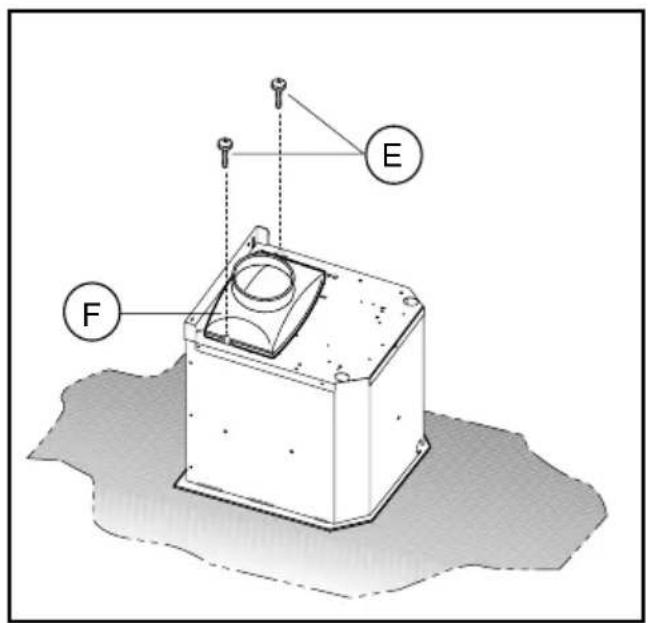

- Mount the connecting flange F in the upper part of the hood's suction unit using the 2 screws E (fig.9).
- Take the upper chimney piece and fix it to the structure using the 2 screws A (Fig.10).
Join the lower chimney piece with the upper one and fix it carefully using adhesive tape L (Fig.11a).
- Unscrew the 2 screws O, max 3 mm (Fig.11a).
Insert the suction unit inside the structure paying attention that the previously unscrewed screws O, hook into the slots in the lower part as indicated in (Fig.11b).
Drive in the 3 screws N (supplied) and tighten the 2 screws O (Fig.11b).
- Fix the air evacuation pipe H (not supplied) onto the connection flange F (Fig.12)

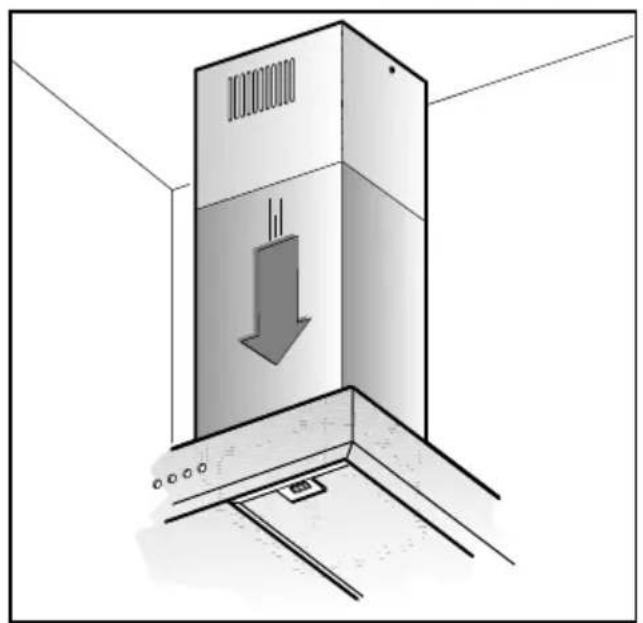

- Remove adhesive tape L and rest the lower chimney piece above the cooker hood (Fig.13).
-If the cooker hood is supplied with a lower chimney
piece that must be fixed to the hood body with screws, remove the anti-grease filters from the hood by acting on the relevant handles (Fig.16). Then screw the lower chimney piece pipe to the inside of the hood, using screws P (Fig.14). Re-locate the filters in their seat.
USE AND MAINTENANCE
- It is recommended to operate the appliance prior to cooking.
It is recommended to leave the appliance in operation for 15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours.
The proper function of the cooker hood is conditioned by the regularity of the maintenance operations, in particular, the active carbon filter. - The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to clean the filter at a maximum of 2 months by carrying out the following instructions: - Remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher. The aluminium panels may alter in colour after several washes. This is not cause for customer complaint nor replacement of panels.
- The active carbon filters purify the air that is replaced in the environment. The filters are not washable nor re-useable and must be replaced at maximum every four months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the type of cooking and the regularity of cleaning the anti-grease filters.
- Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.
- The illumination installation is designed for use during cooking and not for prolonged general illumination of the environment. Prolonged use of the illumination installation notably reduces the duration of the bulb.

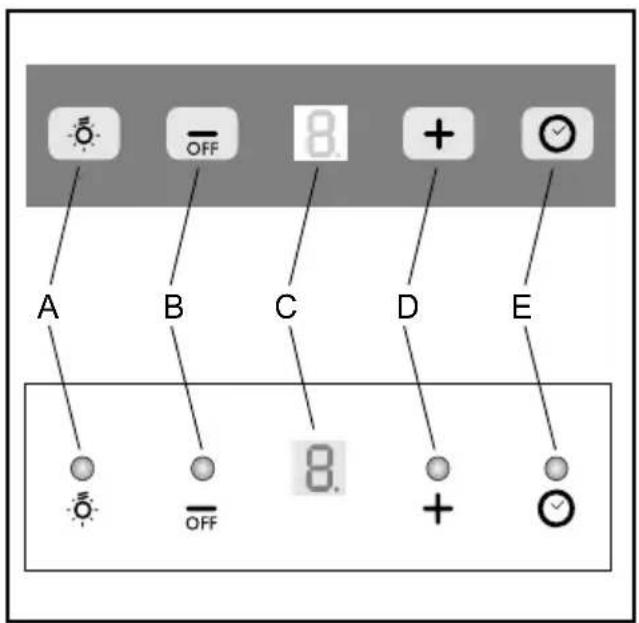

COMANDS: (Fig.18)
Push-button A = on/off lights switch
Push-button B = on/off cooker hood switch. The appliance switches on at speed level 1, If the cooker hood is on depress the push-button for 2 sec. to switch off the cooker hood. If the cooker hood is at speed level 1 it will not be necessary to depress the push-button to switch the cooker hood off. Decreases the motor speed.
Display C = indicates the motor speed level selected and activates the timer.
Push-button D = switches on the cooker hood. Increases the motor speed. Touching the key at 3rd speed, the intensive function runs for 10', then the appliance go back to work at the original speed. During this function the display blinks.
Key E = The Timer times the functions on activation for 15 minutes, after which they are switched off. The Timer is deactivated by re-pressing Key E. When the Timer is activated the decimal point must flash on the display. The Timer cannot be activated if the intensive speed is functioning.
The “clean air” function is activated by pressing key E for 2 seconds when the appliance is switched off. This switches the motor on for 10 minutes every hour at the first speed. During functioning a rotary movement of the peripheral segments must be visualised on the display. When this time has passed the motor switches off and the fixed letter “C” must be visualised on the display until the motor re-starts after 50 minutes for another 10 minutes and so on. Press any key apart from the light keys to return to normal functioning. Press key E to
deactivate the function.
• COMAND: ELECTRONIC (Fig.19):
A = LIGHT
B = OFF/SPEED I
C = SPEED II
D = SPEED III
E = AUTOMATIC STOP TIMER - 15 minutes
F = FILTER SATURATION RESET LIGHT
When the "filter saturation" light flashes, the anti-grease filters must be washed.
When the light comes on without flashing, the anti-grease filters must be washed and the carbon filters replaced (in case of operation whit the recycling version).
When this operation has been completed, press the key to reset it.
The “automatic stop timer” delays stopping of the hood, which will continue functioning for 15 minutes at the operating speed set at the time this function is activated.

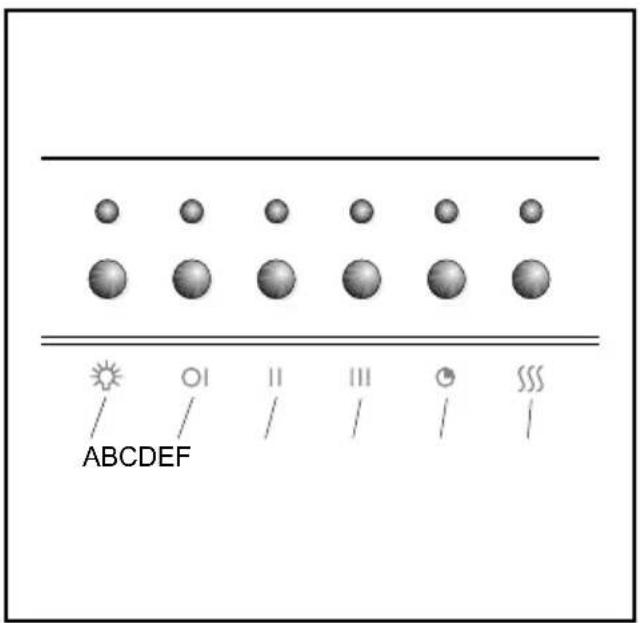

- COMAND: (Fig.20) LUMINOUS the key symbols are explained below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
F = AUTOMATIC STOP TIMER - 15 minutes
- If your appliance does not have the INTENSIVE speed function, press key E for two seconds and it will be activated for 10 minutes after which it will return to the previously set speed.
When the function is active the LED flashes. To interrupt it before the 10 minutes have expired press key E again.
- By pressing key F for two seconds (with the hood switched off) the "clean air" function is activated. This function switches the appliance on for ten minutes every hour at the first speed. As soon as this function is activated the motor starts up at the first speed for ten minutes, During this time key F and key C must flash at the same time.
After ten minutes the motor switches off and the LED of key F remains switched on with a fixed light until the motor starts up again at the first speed after fifty minutes and keys F and C start to flash again for ten minutes and so on.
By pressing any key for the exclusion of the hood light the hood will return immediately to its normal functioning (e.g. if key D is pressed the "clean air" function is deactivated and the motor moves to the 2nd speed straight away. By pressing key B the function is deactivated).
- COMANDS: (Fig.21A) MECHANICAL_(Fig.21B) Elliptic the key symbols are explained below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
G = MOTOR WORKING indicator
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
