| Product Type | Full HD LED TV with Freeview & USB Media Player |
| Screen Size (diagonal) | 32 inches (81 cm) |
| Resolution | 1920 x 1080 (Full HD) |
| Display Technology | LED |
| TV Standard | DVB-T (Freeview), Analogue PAL/SECAM |
| Connectivity | 3 x HDMI, 1 x SCART, 1 x Video, 1 x Component (YPbPr), 1 x VGA/PC, 1 x USB, 1 x Coaxial Audio Output, 1 x Headphone Jack, 1 x RF Input |
| Sound Output | 2 x 9W RMS |
| Power Supply | 110-240V ~ 50/60Hz |
| Power Consumption (typical) | Ecohome: ~150W, Max: ~200W, Standby: <0.5W |
| Dimensions (with stand) | Approx. 780 x 560 x 210 mm (W x H x D) |
| Weight (with stand) | Approx. 8 kg |
| Remote Control | Infrared with dedicated buttons for TV Guide, Source, P-Mode, etc. |
| USB Playback | Photo (JPEG, BMP), Music (MP3, WMA), Movie (MPEG, AVI, TS, MOV, DAT, MP4, VOB) |
| Special Features | Ecohome energy-saving mode, 7-day TV Guide, Sleep Timer, Parental Lock, Teletext |
| Wall Mount Compatibility | VESA 200 x 200 mm (estimated), screws included |
| Accessories Included | User Guide, Quick Start Guide, RF Cable, Remote Control, AAA Batteries, TV Stand and Screws |
| Safety and Maintenance | Do not expose to moisture; clean with soft dry cloth; keep ventilation at least 5 cm from wall; do not block ventilation openings |
| Disposal | WEEE compliant: do not dispose with household waste; recycle via local facilities |
Frequently Asked Questions - LED32-248 Technika
User questions about LED32-248 Technika
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual LED32-248 - Technika and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LED32-248 by Technika.
USER MANUAL LED32-248 Technika
Full HD LED TV with Freeview & USB Media Player
User Guide
LED32-248
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.
Warnings
- To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.
- Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.
To prevent spread of fire, keep candles or other open flames away from this product at all times
- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.
Safety
- For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection. - Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
- Never use the television if it is damaged in any way.
• Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration. - Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
- Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.
- To disconnect the apparatus from the mains, please use the all pole mains switch located on the side, underside or rear of the TV. The switch shall remain readily operable.
- Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Install the product at least 5cm from the wall for ventilation.
Maintenance
- To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
- Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.
- Never use alcohol, paint thinner or benzene to clean this unit.
- Before using a chemically treated cloth, read the instructions that came with the cloth carefully.
- To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution. - Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen. - Never use alcohol, paint thinner or benzene to clean this unit. - Before using a chemically treated cloth, read the instructions that came with the cloth carefully.
CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.
Packaging
- The safest way to transport your item is in the original box/packaging - please save your packaging for this.
- You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.
- The safest way to transport your item is in the original box/packaging - please save your packaging for this. - You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.
Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays
The extended use of fixed image program material can cause a permanent "shadow image" on the LCD panel.
This background image is viewable on normal programs in the form of a stationary fi xed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:
- Reduce the brightness/contrast setting to a minimum viewing level.
- Do not display the fixed image for extended periods of time.
- Turn the power off when not in actual use.
Examples of images that you need to watch out for are as follows (this is not an exhaustive list):
- TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen.
- Time Displays
- Teletext: Do not view a stationary page for long period of time
• TV/DVD Menus: e.g. Listings of DVD disk content - Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.
Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.
How do I dispose of this product?
UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.
ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.
Batteries
- Observe the correct polarity when inserting batteries.
- Do not use different types of batteries together or mix old and new batteries.
- Dispose of batteries in an environmentally friendly way.
- Certain regions may regulate the disposal of batteries.
Please consult your local authority.
CONTENTS
Manufacturers Guarantee Information....3
Important Safety Instructions....4-5
What is included in the box 8
Attaching/Detaching the stand and wall mounting....9
Getting Started - Initial Set Up....11
TV Buttons and Input Source Menu....12
Remote Control....13
Connections....14-15
TV Menu Operation 16-21
Channel Menu 16
Picture Menu 17
Sound Menu 18
Time Menu 19
Feature Menu 20
Setup Menu 21
PC Operation....22-23
7 Day TV Guide 24
USB Mode / Media Player 25
General Information....26-30
Operating the TV with a universal or Sky (BSKYB) remote control ..... 26
Frequently Asked Questions 27
Technical Specifications 28
Index 29
WHAT IS INCLUDED IN THE BOX
Accessories
Included with this TV are the following accessories:
1 x User Guide
1 x Quick Start Guide
1 x RF Cable
2 x AAA Batteries
1 x TV
Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.
ATTACHING/DETACHING THE STAND
Attaching the Stand
1) Insert the stand into the neck of the TV. 2) Secure the stand using the screws provided.


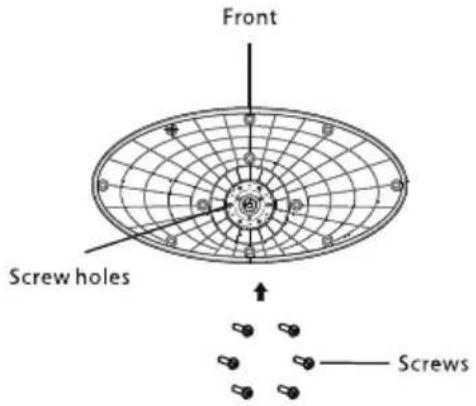

Detaching the Stand
1) To remove the base, press close and rotate 45 degrees.
2) Remove the 4 screws highlighted
3) Remove the screw/s in the neck of the stand (where fitted)
IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes. If in doubt please contact a qualified tradesman.
Wall mounting the TV
1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.
Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.
GETTING STARTED - INITIAL SET UP

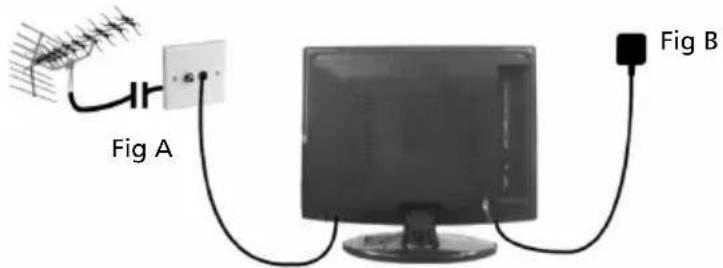

1) Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A)
2) Connect the power cable to the Electrical outlet (Fig B)

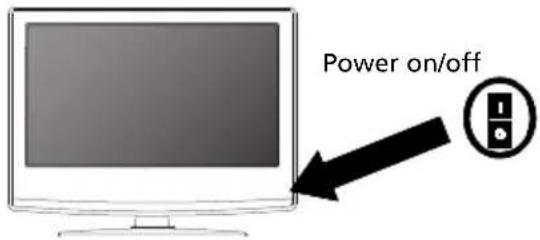

3) Switch on the television using the power on/off switch.
4) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV
5) You will now be welcomed with the initial set-up screen.
Ecohome mode: Select this mode for the most energy efficiient TV set up*
If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.
6) After tuning the following screen will appear.
If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.
As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called 'Ecohome' (you will see this during the first time installation set up). Power consumption using the Ecohome function is approximately 15% lower than some other modes. The picture brightness is reduced using the Ecohome function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please note, 'Professional' mode is for optimum default picture settings, however, power consumption is approximately 15% higher than 'Ecohome' mode)

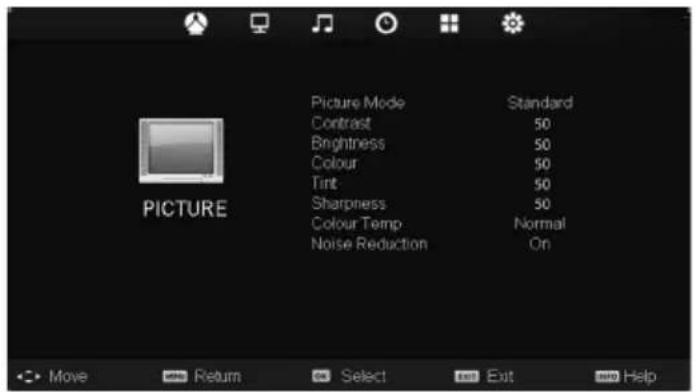

Please refer to the user guide section 'Picture settings' in order to change the mode to one that maybe more suitable for your environment. There is also a shortcut button on the remote control called 'P-Mode' should you wish to change to another mode.

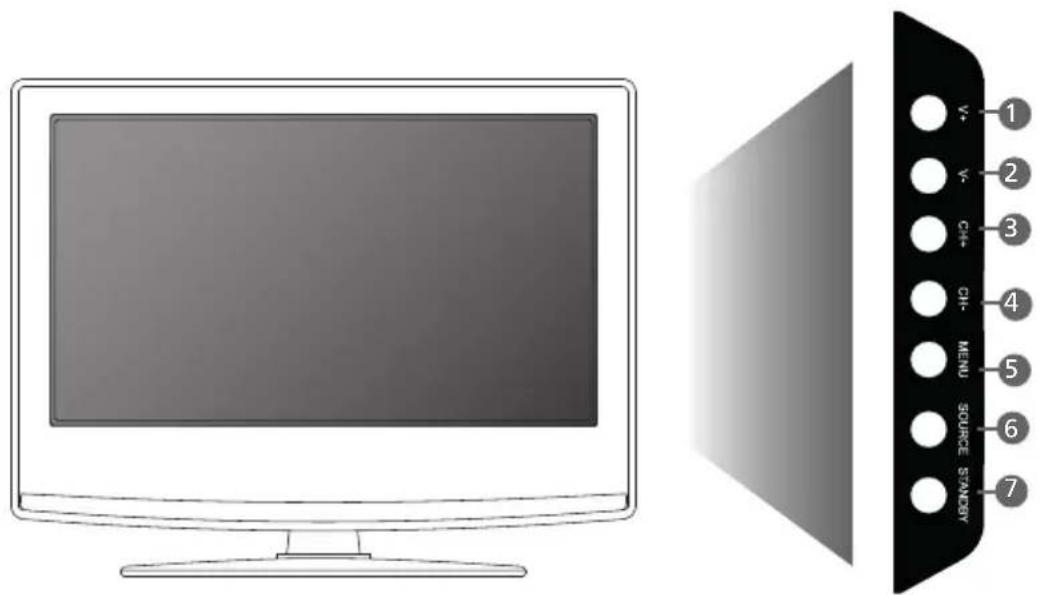

TV BUTTONS & SOURCE MENU
1 Volume up and menu right
2 Volume down and menu left
3 Programme/Channel up and menu up
4 Programme/Channel down and menu down
5 Displays Menu/OSD
6 Displays the input source menu
7 Standby Power On/Off
Choosing Mode Input/Source
To switch between the different input/ connections.
A) Using the buttons on the remote control:
1) Press [SOURCE/ AV] - The source menu will appear
2) Press [V] or [A] to select the input you require.
3) Press [OK]
B) Using the buttons on the Television:
1) Press [SOURCE]
2) Scroll up / down using CH+/CH- buttons to the input/source you require
3) Press Vol+ to change input/source to the one selected.
| Input Source |
| FREEVIEW |
| ANALOGUE |
| SCART |
| COMPONENT |
| VGA/PC |
| HDMI1 |
| HDMI2 |
| HDMI3 |
| VIDEO |
| USB MEDIA |
REMOTE CONTROL
1 STANDBY - Switch on TV when in standby or vice versa MUTE - Mute the sound or vice versa TV/RADIO - Switch to Freeview and switch between TV and radio in Freeview mode TV GUIDE - Opens the 7 Day TV Guide (Freeview mode) ATV - Switch to analogue TV source USB - Switch to USB Source
2 S.MODE - Scrolls through sound mode options
P.MODE - Scrolls through picture mode options
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
3 SOURCE/AV - To display the input/source menu
INFO - Press once for now/next channel information
Press twice for programme information about current programme

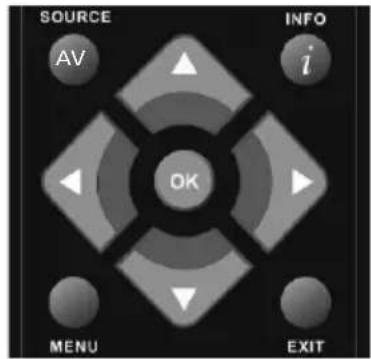

(▲/▼/◄/►/ OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference
MENU - To display OSD menu
EXIT - To exit all menus
NUMBER BUTTONS - 0 – 9 to select a TV channel directly.
→ - To return to the previous channel viewed
FAV - To display favourites menu
4 VOL ▲ To increase / decrease the sound level
SUBTITLE - To switch the dialogue at the bottom of the screen (on/off)
ASPECT - To switch the screen between the different picture formats
AUDIO - To change the audio language (if available)
SLEEP - Press repeatedly to cycle through the sleep options
CH ▲ Increase or decrease the channel being watched
5 TEXT - Teletext mode - To enter Teletext
INDEX - Teletext mode - To display the index page
REVEAL - Teletext mode - To reveal or hide the hidden words.
DISPLAY - To switch off the screen when listening to radio
SIZE - Teletext mode - To change the display size in Teletext mode
HOLD - Teletext mode - Hold current page which is displayed
Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box
TVs Input/Source should be set to SCART
CONNECTIONS
Connecting a Camcorder, Camera or Games Console
Source should be set to Video
Option 1 - via HDMI to HDMI cable
A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.
TVs Input/Source should be set to HDMI.
Option 2 - via Component cable
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).
TV Source should be set to Component.
CHANNEL MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Auto Tuning - Allows you to retune the television for all digital channels, digital radio stations and analogue channels.
Freeview Manual Tuning- Allows you to manually tune your digital signal
Analogue Manual Tuning - Allows you to manually tune your analogue signal
Programme Edit - Allows you to delete, skip and add favourite channels.
PICTURE MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Picture Mode - Choose from the following presets
| Standard | Default | settings |
| Dynamic | Recommended settings for fast moving pictures | |
| Mild | Set to be lighter in colour and less bright | |
| Personal | Lets you manually alter all the settings | |
| Ecohome | 15% less power consumption | |
Contrast - Switch the balance between black and white
Brightness - Increase or decrease the brightness of the picture
Colour - Increases the colour from black and white
Tint - Lets you increase or decrease the level of tint within the picture
Sharpness - Increase or decrease the sharpness of the picture
Colour Temperature - Choose from the following presets
| Normal | Default | settings |
| Warm | Increases red within the picture | |
| Cool | Increases blue within the picture | |
Noise Reduction - Choose from the following presets
| Off Turns noise reduction off | |
| Low Minor system adjustment | |
| Middle Medium system adjustments | |
| High Maximum system adjustments | |
| Default | Default settings |
Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'Menu Duration' section.
SOUND MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Sound Mode - Choose from the following presets
| Standard | Default | settings |
| Music | Emphasises music over voices | |
| Movie | Provides live and full sound for movies | |
| Personal | Selects your personal sound settings | |
| Sports | Emphasises sound for sports | |
Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.
Treble - To adjust the amount of high frequency within the sound
Bass - To adjust the amount of low frequency within the sound
Balance - To switch the sound between the left and right speakers
Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source
Digital Output - This is the digital COAX Audio output. Choose from the following options:
| Off | Off |
| Auto Selects the best settings automatically | |
| PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal) | |
AD Volume - Increase or decrease the overall volume
TIME MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Clock - Set the date and time
Off Time - Allows you to set a specific time for your TV to turn off
On Time - Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.
Time Zone - Change your current time zone
Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min
Auto standby - Toggle the Function on and off
FEATURE MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll ▲▶▶ buttons. To confirm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Schedule List - Lists your programme reminders
CI Information - Pay per view services require a "smartcard" to be inserted into the TV.
If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).
System Lock - Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◀ button to quit the password input. Use the ▶ button to clear. Default password is 0000
SETUP MENU
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Menu language - Allows you to change the language of the menu
Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs
Auo
Automatically displays the best picture format. So the picture is in the correct position. May have black lines At the top/bottom and/or sides.
Original
Will display the picture from the broadcaster without any change
Zoom
4:3
16:9
14:9
Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)
Menu Duration - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing
Reset to default
Reset Menu System - This resets the menus to factory settings.
Reset TV Channels - This clears all the TV channels from the television.
Software Update (USB) - From time to time we may release new firmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website.
USING THE TELEVISION AS A COMPUTER MONITOR
IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor.
How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)
1) Switch on your computer
2) When fi nished booting up right click your mouse anywhere on the screen
XP Screen
VISTA Screen
4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution is set to what is shown in the technical specifications section toward the rear of this user guide. To correct the resolution to that of the television move the slider.
XP Screen
VISTA Screen
3) Left click your mouse on Properties/Personalise
![文件名(N): 文件类型(T): [ ] 选择 [ ] 取消 [ ] 帮助(H) Active Window Active Path OK Cancel](/content/2026/05/1003613/images/e35d586790054b95f310415faf2d7b8b70b38f74e127bff4bdbaa83aef219f37.jpg)
XP Screen
VISTA Screen
5) Left click your mouse on Advance/Advanced Settings and left click on Monitor
XP Screen
VISTA Screen
6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise or 'fl ickering', select 50 hertz or 70 hertz.
7) Click on Apply, then click Yes and the settings will be saved.
8) Now switch off your computer and connect the television (as shown)
9) Switch on the TV, select the input/source to VGA/PC and re-start your PC.
Connecting a Laptop
In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/models, it is as per below.
1) Connect the laptop to the television
2) On the Laptop push buttons
The screen will now switch to the television.
PC SETTINGS
To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]
If you wish to make changes to any of the default settings, use the scroll ▲▶▶ buttons. To confirm any settings press [OK] button.
To exit this menu at anytime, press [EXIT] button.
Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor
H Offset - Changes the horizontal position of the picture
V Offset - Changes the vertical position of the picture
Size - increase picture size
Phase - To adjust delay time of phase in order to reduce the noise of picture
Position Reset - Changes back to the original settings
Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.
7 DAY TV GUIDE
TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.
1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.
| 7 Day TV GUIDE | ||
| 10 Years Younger: The ChallengeSeason 2Support worker Janice Cassidy's lifestyle of long working hours and a penchant for tanninghas taken its toll, while the stress of bringing up two daughters and heavy smoking hasaffected interior designer Shere Morady. Surgeon Jan Stanek and the team set out to provide | ||
| 04 Aug 2010 10:42 | ||
| BBC1 | 05:00-06:00 | 10 Years Younger: The Challenge |
| BBC2 | 06:00-06:30 | The Simpsons |
| ITV1 | 06:30-07:00 | Hollyoaks |
| Channel 4 | 07:00-08:00 | Channel 4 News |
| five | 08:00-09:00 | How to Look Good Naked |
| BBC3 | 09:00-10:00 | Newlyweds: The One Year Itch |
| BBC4 | 10:00-11:15 | Big Brother |
| ITV2 | 11:15-11:45 | The Big Bang Theory |
| RemindPrev DayNext DayMove ViewDisplay | ||
2) Navigate through the menu using
You can now:
Set a reminder by pressing GREEN
View a previous day by pressing YELLOW
View the next day by pressing BLUE
3) Press [EXIT] to exit the 7 day TV Guide.

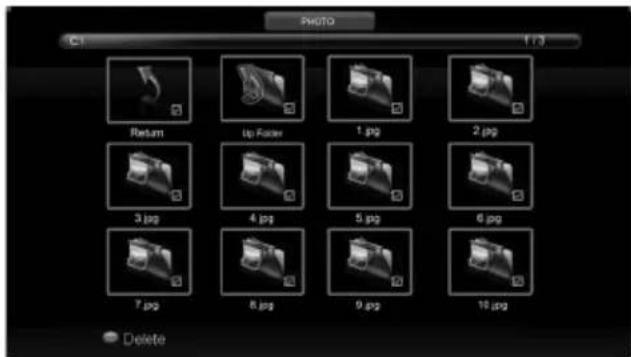

USB MODE / MEDIA PLAYER
USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.
On switching to USB source the above menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on fi le type.
1) You can navigate through the menus using the scroll ▲▼▶◀ buttons. To confirm the item you wish to play/view press [OK] button.
2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).

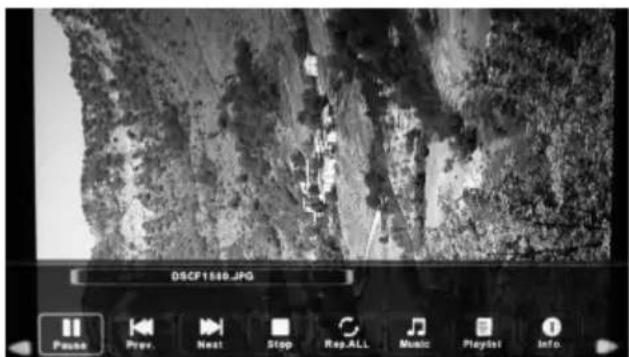

3) You can now access the item. Press OK to view. 4) While viewing you control the item using
or by pressing (i) and using ▲▼▶◀ and (OK)
OPERATING THE TV WITH A UNIVERSAL OR SKY (BSKYB) REMOTE CONTROL
Using a Universal Remote Control.
You may wish to use a Universal Remote control to operate your Television. In order to do so, you will need to enter the 'code' below into your universal remote control, to do this, please follow the instructions included with the Universal remote control. Please note that if your remote control does not accept the code, this is because the software/fi rmware installed on the remote control is too old. Please contact the manufacturer of the Universal Remote control for assistance.
Universal Remote Code - 2106 (TV functions) 2302 (DVD Functions - where included on the TV)
Using a Sky / Sky+ / Sky HD Remote Control
If you wish to use your Sky remote control to operate your Television, you need to programme a 4 digit code into your Sky, Sky+ or Sky HD remote control.
Please note that the code below will only be accepted if the Sky remote control is a Revision 9 (launched Autumn 2010) or later.
To find out which version of Sky remote you have, remove the battery cover, you should see a sticker showing the 'Rev' number.
If your Sky remote is Rev 8 or earlier, you will need to purchase a new Sky Remote control in order to operate the TV's functions. At the point of manufacture of this TV, the latest Revision 9 remote controls are only available to purchase directly from Sky, alternatively, you can purchase our versions from the helpline / website.
The very latest versions of remote controls to operate your Sky / Sky+ / Sky HD in addition to operating the functions of the Television can be purchased from the helpline or website.
www.skymediauk.co.uk
Our versions (from One for All) are slightly smaller than the regular Sky remotes and operate your Sky box the same way your current Sky remote does, in addition, our versions operate the functions of your television as they include the very latest software/fi rmware.
Please note that as we have to install the necessary software / fi rmware onto the remote control prior to shipping, you must provide us with your TV model number in order that we can do this.
If your Sky remote control is a Revision 9 or later, please follow the instructions below.
1) Switch on the TV set
2) Press the 'TV' button on the Sky Remote
3) Hold down the 'select' and 'red' buttons for 2-3 seconds until the LED blinks twice
4) Press the 'TV' button on the Sky Remote again
5) Enter the 4 digit code (see below)
6) The LED should blink twice, if not recheck the 4 digit code used and go back to step 1
7) Press the 'standby' button on the Sky Remote (The TV should go to standby)
8) Press 'select' to store this setting
Sky / Sky+ / Sky HD Remote code - 2134 (Revision 9 or later only)
FREQUENTLY ASKED QUESTIONS
| General I would like to have louder sound by connecting additional speakers | Subject to the TV model and connections, it is possible to connect the TV to an external amplifi er or surround sound (subject to connections/inputs on the device) as follows:-1) Connect a COAX cable* from the TV's COAX output to your amplifi er/ surround systems COAX input2) Connect a 3.5mm jack to L/R phono cable* from the TV's headphone socket (where fi tted) to your amplifi er/surround sound L/R input. Please note sound to the TV's speakers will be disabled.3) On selected models, it maybe possible to connect a SCART input/ output* switch with an additional L/R Phono cable* to the TV's SCART socket and to the L/R Phono Input of your amplifi er/surround sound. Please note due to copyright laws it is not possible to output video/sound from the TV on certain sources, i.e. HDMI, DVD etc.*cables and switches mentioned are available to purchase separately from your retailer. |
| General Why are some options in the menu unavailable and greyed out | Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no affect. |
| TV I have tuned in Digital TV but I am not receiving any or all of the channels and/ or the channels I receive are breaking up | 1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk.2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased. |
| TV I have re-tuned my television but when I switch it off it is not storing the channels | Complete a fi rst time installation, please refer to the set-up menu section of the manual for how to do this |
| VCR/DVD Recorder | I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording |
| Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Television | 1) Ensure the TVs source is on HDMI2) Check your settings on your PS3 are as per the PS3 instruction manual |
| Game Consoles I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound | Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the 'Connections' pages. |
| USB Mode I have inserted a USB Memory Key, but the TV does not recognise it | Ensure the USB Memory Key is formatted to type FAT32. |
| USB Mode Can I use a USB portable hard drive with my TV? | If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information. |
| System Lock I have changed the password on the television and now forgotten it | There is a master password of 4711, to gain access to the TV menu and reset the normal password |
TECHNICAL SPECIFICATION
| Model LCD 46 - 259 | |
| Screen size (diagonal) 46"/ 117cm | |
| Resolution 1920x1080 | |
| Contrast Ratio 5000:1 | |
| Brightness cd/m2 400 | |
| PC RGB Yes | |
| RF 75 ohm Antenna / PAL-SECAM | |
| Video Inputs 1 x SCART, | 1 x Video, 1 x Component (YPbPr - 1080p),3 x HDMI (up to 1080p) |
| Sound Inputs 1 x 3.5mm | jack for PC audio input, 1 x pair RCA Audio input shared for Video and YPbPr (component) |
| Sound Outputs 1 x Coax | Audio output, 1 x 3.5mm headphone jack |
| Sound power,watts (RMS) | 2 x 9W |
| Voltage and power consumption | 110-240V 50/60Hz 150/200 W (eco-home/max) in standby less than 0.5W |
| Dimensions including stand (mm) | 1111W x 744H x 329D mm |
| Net weight (Kgs) 22kg | |
Compatible fi les in USB Mode
| Media | File Ext. | Codec | ||
| Video | Audio | |||
| Movie | .mpg | Mpeg-1, Mpeg-2 | MP3, WMA | Max Resolution: 1920x1080Max Data rate: 40Mbps |
| .avi | Xvid, MJPEG,MPEG-4 SP/ASP | |||
| .ts | Mpeg-2 | Max Resolution: 1920x1080Max Data rate: 40Mbps | ||
| .mov | Mpeg-4 SP/ASP | |||
| .dat | Mpeg-1 | |||
| .mp4 | Mpeg-1, Mpeg-2 | Max Resolution: 1024x768Max Data rate: 40Mbps | ||
| .vob | Mpeg-2 | |||
| Music .mp3 | - | MP3 | Sample Rate | 16K-48KHzBit rate: 320Kbps |
| .wma | - | WMA | ||
| Picture .jpg | Progressive JPEG Max Resolution: 1024x768 | |||
| .jpeg | Baseline JPEG | Max Resolution: 8192x8192 | ||
| .bmp | BMP | Max Resolution: 6500x6500 | ||
INDEX
Attaching the stand 9
Aspect Ratio 21
Auto Confi guration of screen (PC) 23
Auto Tuning 16
Auto Volume Level 18
Balance 18
Bass 18
Blue Screen 21
Brightness 17
Clock 19
Colour 17
Colour Temperature 17
Common Interface 20
Connections....14-15
Contrast 17
Detaching the base/stand 10
Digital Output 18
First Time Installation 11
Frequently Asked Questions 27
Getting Started 11
Horizontal Position (PC) 23
Language 21
Manual Search 16
Noise Reduction 17
Operating the TV with a universal or
Sky (BSKYB) remote control 26
Phase (PC) 23
Picture Mode 17
Remote control 13
Reset to default 21
Sharpness 17
Sleep Timer 19
Sound Mode 18
Source Menu 12
System Lock 20
Technical Specifications 28
Treble 18
TV buttons 12
TV Guide 24
USB Mode / Media Player 25
Using the television as a computer monitor 22
Vertical Position (PC) 23
Wall mounting 9
What is included in the box 8
- IMPORTANT SAFETY INSTRUCTIONS
- Warnings
- Safety
- Maintenance
- Packaging
- Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays
- How do I dispose of this product?
- Batteries
- CONTENTS
- WHAT IS INCLUDED IN THE BOX
- ATTACHING/DETACHING THE STAND
- Attaching the Stand
- Detaching the Stand
- Wall mounting the TV
- GETTING STARTED - INITIAL SET UP
- TV BUTTONS & SOURCE MENU
- Choosing Mode Input/Source
- REMOTE CONTROL
- CONNECTIONS
- Connecting a Camcorder, Camera or Games Console
- CHANNEL MENU
- PICTURE MENU
- SOUND MENU
- TIME MENU
- FEATURE MENU
- SETUP MENU
- Auo
- Original
- Reset to default
- USING THE TELEVISION AS A COMPUTER MONITOR
- Connecting a Laptop
- PC SETTINGS
- DAY TV GUIDE
- USB MODE / MEDIA PLAYER
- OPERATING THE TV WITH A UNIVERSAL OR SKY (BSKYB) REMOTE CONTROL
- INDEX
Brand : Technika
Model : LED32-248
Category : Television
