Product Type	19-inch HD Ready LCD TV with DVD player and USB PVR
Brand	Technika
Model	LCD19-220
Screen Size (Diagonal)	19" / 48 cm
Resolution	1440 x 900 pixels
Aspect Ratio	16:10
Contrast Ratio	1000:1 (typical)
Brightness	300 cd/m²
Dimensions (with stand)	457 mm (W) x 394 mm (H) x 170 mm (D)
Net Weight	5.0 kg
Power Supply	110-240 V AC, 50/60 Hz, 60 W (standby <1.5 W)
Audio Output Power	2 x 3 W RMS
Tuner	Digital Freeview (DVB-T) & Analogue
Disc Playback	DVD (Region 2), CD
USB Recording/Playback	Yes (FAT32, up to 32 GB; pause live TV, timer record)
Input/Output Ports	1x SCART, 1x Video, 1x Component (YPbPr), 1x HDMI, 1x VGA (PC), 1x RF, 1x USB, 1x CI slot; Audio: 1x Coax digital output, 1x Headphone
Wall Mount Compatible	VESA 100 (100 x 100 mm)
Remote Control	Included (batteries: 2x AAA)
Maintenance	Wipe with soft dry cloth; use eyeglass cleaner for screen; avoid alcohol, paint thinner, benzene
Safety Features	Fused mains plug; automatic standby; ventilation slots; do not expose to moisture
Spare Parts & Repairability	Replaceable fuse in plug; contact manufacturer for replacement mains cable or other parts; no user-serviceable internal parts

Frequently Asked Questions - LCD19-220 Technika

Why am I not receiving all Freeview channels?

This is usually due to weak signal strength. Check your area's Freeview coverage at freeview.co.uk or call 08701 111 270. Ensure you are using a suitable outdoor digital aerial (preferably hi-gain). You may need a signal booster between the TV and aerial socket. Signal strength should be above 85% for stable reception.

How do I pause live TV?

Insert a compatible USB memory stick (FAT32, read speed 20 MB/s, write speed 6 MB/s min) into the USB port. In Digital/Freeview mode, press the Play/Pause button on the remote control to pause live TV. Press Play/Pause again to resume. You can also fast forward/rewind while paused. Note: changing channels or putting TV into standby clears the time shift buffer.

How can I record a programme?

You can record in two ways: One Button Record - press the [REC] button while watching a channel to record the current programme until it ends. Timer Record - press [TV GUIDE], select a future programme, and press the RED button (repeat for daily/weekly/monthly). Recordings are saved to a USB memory stick. The TV has one tuner, so you can only record the channel you are watching or record one channel while in standby.

My DVD disc is not playing. What should I check?

Ensure the disc is inserted correctly with the label facing you. Check that the disc is clean and not scratched. The TV/DVD player is set to play Region 2 discs; playback of other regions may require changing the region (visit www.skymediauk.co.uk for instructions). Copied discs may not play due to copy protection.

How do I use the TV as a computer monitor?

Connect your PC via VGA cable to the VGA/PC input on the TV. Set your PC resolution to 1440x900 (for this model) and refresh rate to 60 Hz. On the TV, select the VGA/PC source. Use the PC Setup menu (Auto Adjust, Horizontal/Vertical Position, Phase, Clock) to optimise the picture.

Why do I have no sound when connecting Xbox 360 via Component?

Component cables only carry video (Red, Green, Blue). You must also connect the Red and White audio cables from the Xbox to the corresponding Red and White audio inputs on the TV (shared with Video and Component). Set the TV source to Component.

How do I reset the forgotten PIN code?

Use the master password 4711. Enter it when prompted for the PIN to gain access to the menu, then you can reset the PIN to a new one in the System Lock menu.

Can I use a USB hard drive larger than 32 GB?

Yes, but it must be formatted to the FAT32 file system. Windows can only format up to 32 GB, so you will need third-party software to format larger drives. Check the website for help. The TV supports USB memory sticks up to 32 GB natively.

How do I clean the LCD screen?

Use a soft, dry cloth to wipe the screen. For stubborn dirt, use eyeglass cleaner. Never use alcohol, paint thinner, or benzene. Avoid letting water or other liquids enter the TV through the panel surface.

What should I do if the TV does not turn on?

Check that the mains power cord is securely connected and the power outlet is working. Ensure the power switch on the side of the TV is ON. Try pressing the Standby button on the remote control or the TV itself. If the TV still does not power on, the fuse in the mains plug may need replacement (use same amperage, BSI approved). If problems persist, contact the helpline.

USER MANUAL LCD19-220 Technika

HD Ready LCD TV with Freeview, DVD & USB PVR

User Guide

Line drawing of a flat-screen computer monitor with a blank screen (no text or symbols)

Model No

LCD19-220

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Warnings

• To reduce the risk of fire, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects filled with liquids on or near the television.

Do not place the television in a confined space, ensure that nothing can obstruct the ventilation openings at the rear of the television.

Do not place naked flames on or near the television.

Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.

Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.

Never use the television if it is damaged in any way.

• Always place the television on a flat level surface avoiding anywhere which may be subject to strong vibration.

Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.

Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference away from the television.

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.
• Use eyeglass cleaner to remove stubborn dirt from the LCD/LED Screen.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface, a malfunction may occur.

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly.

IMPORTANT SAFETY INSTRUCTIONS

Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fixed image program material can cause a permanent "shadow image" on the LCD panel.

This background image is viewable on normal programs in the form of a stationary fi xed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary. Moving or low-contrast graphics are less likely to cause ageing of the screen. Time Displays•

Teletext: Do not view a stationary page for long period of time

TV/DVD Menus: e.g. Listings of DVD disk content

- Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

Observe the correct polarity when inserting batteries.

Do not use different types of batteries together or mix old and new batteries.

Dispose of batteries in an environmentally friendly way.

Certain regions may regulate the disposal of batteries.

Please consult your local authority.

Cd

CAUTION:

This caution label is located on the rear panel of the unit

THIS UNIT IS A CLASS 1 LASER PRODUCT. HOWEVER THIS UNIT USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE PLAYER CORRECTLY AS INSTRUCTED. WHEN THIS UNIT IS PLUGGED INTO THE WALL OUTLET, DO NOT PLACE YOUR EYES CLOSE TO THE OPENINGS TO LOOK INTO THE INSIDE OF THIS UNIT.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CONTENTS

Manufacturers Guarantee Information....3

Important Safety Instructions....4-5

What is included in the box 8

Attaching / detaching the stand and wall mounting....9

Getting Started - Initial Set Up....11

TV Buttons and Input Source Menu....12

Remote Control....13

Connections....14-15

TV Menu Operation 16-21

Picture Menu 16

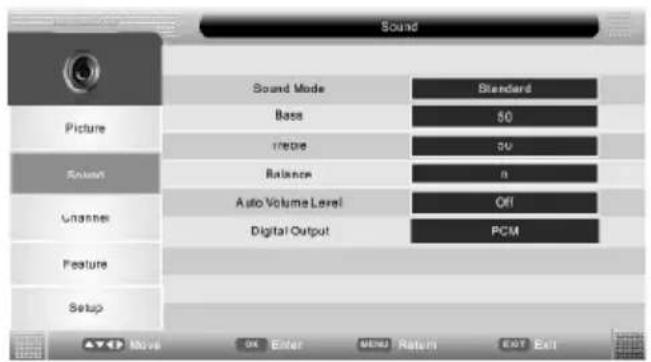

Sound Menu 17

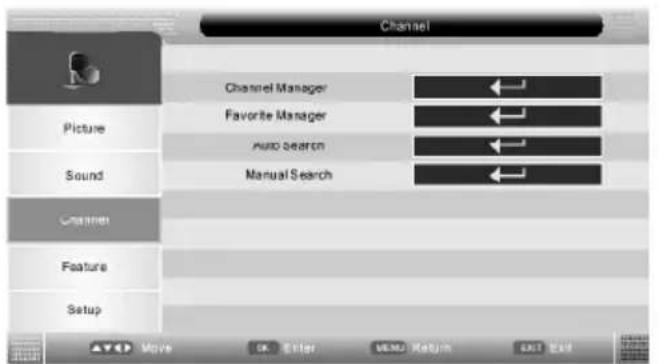

Channel Menu 18

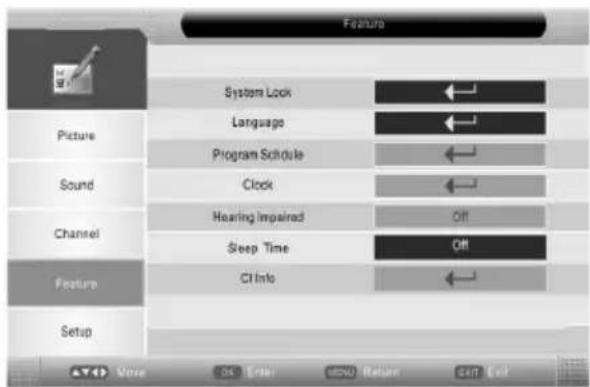

Feature Menu 19

Setup Menu 20

DVD Menu....21

PC Operation....23-24

Using the television as a computer monitor 23

PC Settings Menu 24

USB Record / 7 Day TV Guide 25-27

USB Record....25

USB Record / 7 Day TV Guide 26

USB Mode / Media Player 27

General Information....28-32

Using with Sky Digital/Virgin Media 28

Frequently Asked Questions 29

Technical Specifications 30

Index 31

Digital Switchover 31-32

WHAT IS INCLUDED IN THE BOX

Accessories

Included with this TV are the following accessories:

1 x User Guide

1 x Quick Start Guide
2 x AAA Batteries

1 x Stand

Black and white photo of a curved, abstract object with internal features (no visible text or symbols)

1 x RF Cable

Coiled black cable with connectors, no visible text or symbols

1 x Remote Control

1 x TV

Black CRT television monitor with a CD/DVD disc on the right side (no visible text or symbols)

1 x USB Memory Stick

Black USB flash drive with a metallic key (no text or symbols visible)

Please save your packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

ATTACHING/DETACHING THE STAND

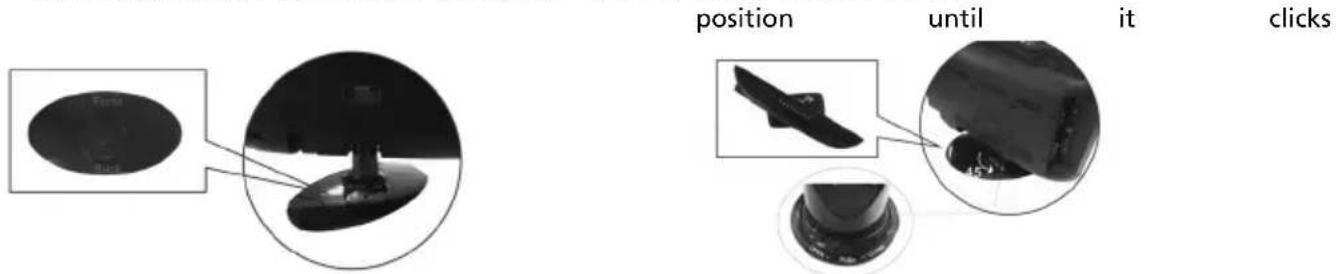

Attaching the Stand

1) Insert the TV into the stand at 45 degrees
2) Twist the TV into the CLOSE

This television requires a VESA 100 wall mount, or equivalent.

Detaching the Stand

1) To remove the base, press close and rotate 45 degrees.
2) Remove the 4 screws highlighted

Front view of a flat-screen computer monitor with visible rear latches and ventilation slots (no text or symbols)

3) Remove the screw/s in the neck of the stand (where fitted)

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Wall mounting the TV

1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

Front view of a black computer monitor with four circular buttons on the front panel (no visible text or symbols)

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'. See fig 1 and 2

Important – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

GETTING STARTED - INITIAL SET UP

1) Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig A)

2) Connect the power cable to the Electrical outlet (Fig B)

3) Switch on the television using the power on/off switch located on the side of the TV.

4) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV

5) You will now be welcomed with the initial set-up screen.

If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear.

Press OK on the remote control and tuning will start.

6) After tuning the following screen will appear.

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

Tip: If the TV fi nds some, but not all, of the Digital channels, the TV is functioning correctly but the signal being received is not strong enough. (The signal strength needs to be above 85% - you can see the signal strength the TV is receiving when you change channels/ programmes) you will need to increase the signal reception in order to receive all of the channels available. The most economical way to do this is by purchasing and connecting a 'signal booster' in between the TV and the TV aerial socket. If this does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial

TV BUTTONS & SOURCE MENU

1 Displays the input source menu
2 Displays Menu/OSD
3 Programme/Channel down and menu down
4 Programme/Channel up and menu up
5 Volume down and menu left
6 Volume up and menu right
7 Play/Pause Disc
8 Eject Disc
9 Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/ connections.

A) Using the buttons on the remote control:

1) Press [SOURCE/ AV] - The source menu will appear
2) Press [V] or [A] to select the input you require.
3) Press [OK]
B) Using the buttons on the Television:
1) Press [SOURCE]
2) Scroll up / down using CH+/CH- buttons to the input/source you require
3) Press Vol+ to change input/source to the one selected.

SOURCE MENU

ANALOGUE

FREEVIEW

USB MEDIA

HDMI

SCART

COMPONENT

VIDEO

VGA/PC

DVD

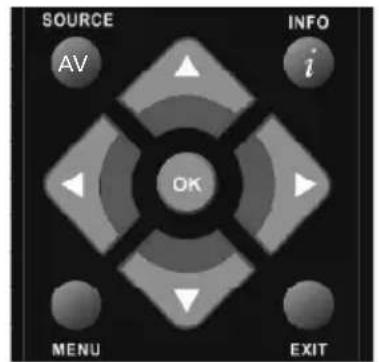

REMOTE CONTROL

1 STANDBY - Switch on TV when in standby or vice versa

MUTE - Mute the sound or vice versa

TV/RADIO - Switch to Freeview and switch between TV and radio in Freeview mode

TV GUIDE - Opens the 7 Day TV Guide (Freeview mode)

ATV - Switch to analogue TV source

USB - Switch to USB source

DVD - Switch to DVD source

EJECT - Eject disc in DVD mode

REC - To record what is currently on television

REC LIST - Opens the list of what you have previously recorded

• To restart the current chapter
• To advance forward to the next chapter
• To stop the playback
• To play in fast rewind mode
• To play in fast forward mode
• To play/pause (Pause live TV when USB Memory Stick is inserted)

2 SOURCE/AV - To display the input/source menu

INFO - Press once for now/next channel information

Press twice for programme information about current programme

(▲/▼/▲/▼/OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference

MENU - To display OSD menu

EXIT - To exit all menus

NUMBER BUTTONS - 0 - 9 to select a TV channel directly.

- To return to the previous channel viewed

FAV - To display favourites menu

VOL ▲-▼ to increase / decrease the sound level

SUBTITLE - To switch the dialogue at the bottom of the screen (on/off)

ASPECT - To switch the screen between the different picture formats

AUDIO - To change the audio language (if available)

SLEEP - Press repeatedly to cycle through the sleep options

CH ▲To increase or decrease the channel being watched

GOTO - DVD mode - To go to a specific chapter

A-B - DVD mode - Press once to set point, press a second time to return to point

ANGLE - DVD mode - Select different angle of DVD (if available)

REPEAT - DVD mode - To repeat playback

5 D.DIS - DVD mode - To display the current disc information ZOOM - DVD mode - To zoom in

SIZE - Teletext mode - To change the display size in Teletext mode

DISPLAY - To switch off the screen when listening to radio DVD SETUP/TEXT - DVD mode - To display the DVD setup menu Teletext mode - To enter Teletext

D.MENU/INDEX - DVD mode - To display the DVD disc menu Teletext mode - To display the index page

TITLE/REVEAL - DVD mode - To display the DVD title menu Teletext mode - To reveal or hide the hidden words.

HOLD - Teletext mode - Hold current page which is displayed

Solid black rounded rectangular shape with no text or symbols

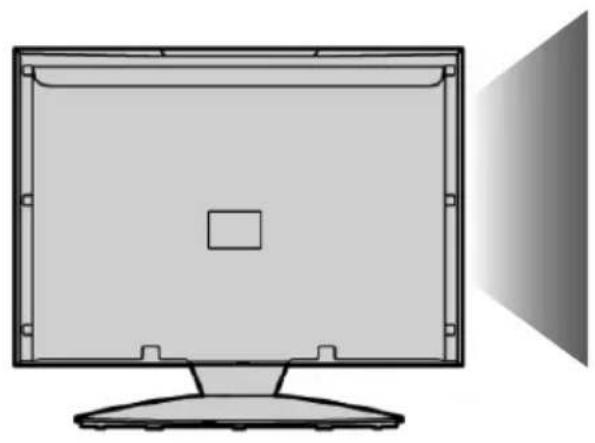

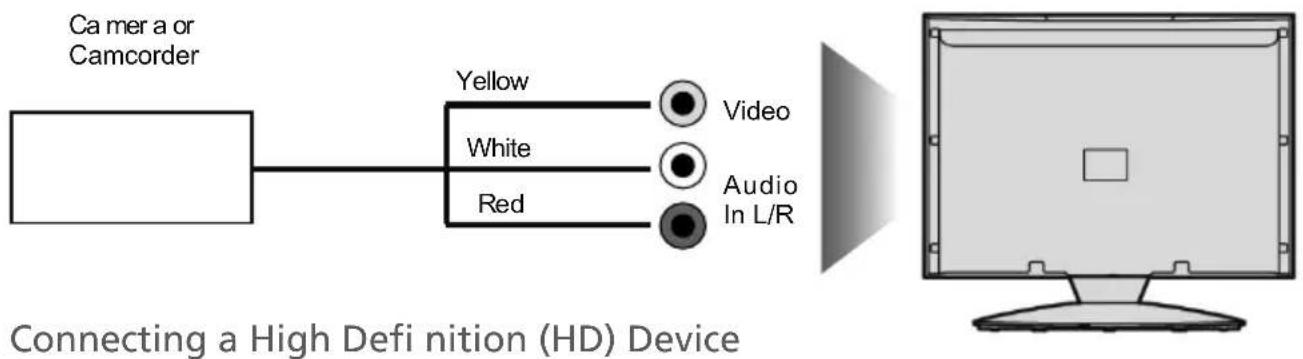

CONNECTIONS

Line drawing of a computer monitor with a blank screen and a side panel, no text or symbols present

HEAHONES 3.5mm Headphone output

RF IN RF / TV Aerial Input

AUDIO IN (R/L) Component / Video audio input

Component HD Component HD Input

VIDEO Video input

COAX Audio Out Digital Coax output

CI CARD IN Common Interface Card Input

SCARTH SCART input

VGA(PC) Audio In 3.5mm PC audio input

VGA(PC) VGA-PC input

HDMI HDMI input

USB USB port

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

TVs Input/Source should be set to SCART

CONNECTIONS

Connecting a Camcorder, Camera or Games Console

Source should be set to Video

Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

TVs Input/Source should be set to HDMI.

Option 2 - via Component cable

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component.

PICTURE MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Picture Mode - Choose from the following presets

Standard	Default	settings
Personal	Lets you manually alter all the settings
Movie	Recommended settings when watching a movie
Sport	Recommended settings when watching sport
Mild	Set to be lighter in colour and less bright
Game	Recommended settings when playing game consoles

Brightness - Increase or decrease the brightness of the picture

Contrast - Switch the balance between black and white

Sharpness - Increase or decrease the sharpness of the picture

Colour - Increases the colour from black and white

Colour Temperature - Choose from the following presets
Standard	Default	settings
Warm Increases red within the picture
Cool Increases blue within the picture

Noise Reduction - Choose from the following presets
Low Minimum reduction in interference
Middle Medium reduction in interference
High Maximum reduction in interference
Off	Off

Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' section.

SOUND MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Sound Mode - Choose from the following presets

Personal Selects your personal sound settings
Voice Emphasises voice over other sounds
Music Emphasises music over voices
Theatre Provides live and full sound for movies
Standard	Default	settings

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

Bass - To adjust the amount of low frequency within the sound

Treble - To adjust the amount of high frequency within the sound

Balance - To switch the sound between the left and right speakers

Auto Volume Level (AVL) - When 'on' is selected, the volume will stay at a constant level regardless of input/source

Digital Output - This is the digital COAX Audio output. Choose from the following options:

Off	Off
Bitstream via coax cable (True digital signal)	Select this option if you are connecting to a Dolby Digital 5.1 surround sounds amplifier
PCM Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

CHANNEL MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

▲▼▶◀ buttons. To confi rm

To exit this menu at anytime, press [EXIT] button.

Channel Manager - Allows you to lock channels, delete channels, add/remove channel skip, move channel position and rename channels.

Favourite Manager - Add and remove favourites. Up to 4 favourite lists are available

Auto Search - You can select the country and then complete re-tune of the television

Manual Search - Select the start channel (which relates to the frequency) and search manually for a channel.

Note - This only searches for channels in the current source. i.e. Freeview channels on Freeview source

FEATURE MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

System Lock - This menu allows you to lock certain features of the television so that they cannot be used or viewed. For example if you don't want certain channels viewed by children or if the television is to be used in a hotel and you want to limit the volume.

When you enter the system lock menu you will be asked for a pin code. As default it is 0000.

You now have the choice to lock any of the following:

System Lock - Switches all the locks on or off

Key Lock - Stops the buttons on the television working

Source Lock – Press [OK] to enter then apply On to lock the source so it can't be used

Channel Lock - Press [OK] to enter then apply locks to channels you wish to block. This will lock the channels of the source you using, i.e. Analogue, Freeview.

Default Source – You can set the default start up source, so when the television is turned on it goes to this source, i.e. FREEVIEW, SCART, HDMI etc

Default Channel - You can set the default start up channel, so when the television is turned on it goes to this channel.

Maximum Volume – You can limit the maximum volume

Change Pin Code – Press [OK] to enter, first enter the current code, then enter your new code and confirm your new code. Write the new code here so you don't forget it ____

Language - Lets you adjust the different language options available

Programme Schedule - Lets you manually set recording by date, time and number of recordings.

Clock - Allows you to set the clock (as default the information is taken automatically from the digital TV signal)

Hearing Impaired - You can switch on the hearing impaired feature, this provides additional information and subtitles

Sleep Timer - Lets you set the sleep timer so the television automatically switches off after a certain amount of time

Common Interface - Pay per view services require a "smartcard" to be inserted into the TV.

If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

SETUP MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll

To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

OSD Timer - Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing First Time Installation - Takes you back to the first time installation screen, so you can completely re-tune both Freeview and analogue

Aspect Ratio - Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

Auto

Automatically displays the best picture format. So the picture is in the correct position. May have black lines At the top/bottom and/or sides.

Full

Abstract diagram of five white oval shapes arranged in a grid pattern (no text or symbols)

Fills the screen, so no black lines

4:3

Geometric diagram with five circles arranged in a rectangle, no text or symbols present

Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:10 screen

16:9

Abstract diagram with six white oval shapes arranged in a rectangular pattern (no text or symbols)

Top and bottom bars are shown to fill the 16:10 screen. 4:3 pictures will be stretched

Zoom

Geometric pattern of overlapping circles and semicircles within a rectangle (no text or symbols)

The picture is the correct proportion but zoomed in to fill the screen

14:9

Abstract geometric pattern with six overlapping circles inside a rectangular frame (no text or symbols)

Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen

Blue Screen - Changes the background when there is no input between clear and a blue background (Only available on some sources)

Reset to default

Reset Menu System - This resets the menus to factory settings.

Reset TV Channels - This clears all the TV channels from the television.

Firmware Upgrade - From time to time we may release new fi rmware to improve the operation of the television (available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website.

To check your fi rmware update press menu followed by the 'i' (information) button

DVD MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

TV System - Choose from the following options

NTSC Normally used for discs from North America, Japan etc

PAL The standard for discs from UK/Europe, most of Asia, Australia etc

Auto For both NTSC and PAL

TV Type - Choose from the following options

4:3PS Traditional picture format, often used on old fi lm

4:3 LB Traditional picture which has been adapted for widescreen

16:9 Widescreen picture format

Default - This option allows you reset all DVD settings to factory settings.

Tone - Choose from the following options

+ Increases the treble (high frequency sound)

- Increases the bass (low frequency sound)

Dynamic Range - This is the difference between the quietest and loudest sounds. This setting works only with DVD discs recorded in Dolby digital.

Full Set this to listen with the range recorded on the disc

4/8 Set this to listen with a range equivalent to a normal television

2/8 Set this to listen with a smaller difference between the maximum and minimum volume

Dual Mono

Stereo Outputs 2 channels of sound both left and right

Mono L Outputs left side sound

Mono R Outputs right side sound

Mix Mono Outputs a single channel of sound but mix between right and left

Tip: This TV/DVD player is pre-set to play Region 2 DVDs. In the event you wish to use the TV/DVD in another country that uses different region discs, please visit www.skymediauk.co.uk. Select 'Product Support', 'Changing Region'.

USING THE TELEVISION AS A COMPUTER MONITOR

IMPORTANT – Before connecting the computer to the television you must ensure the computer settings are correct for the television. You MUST do this using your old monitor.

How to set up for Windows XP & Windows Vista (connecting via VGA cable to the TV)

1) Switch on your computer
2) When fi nished booting up right click your mouse anywhere on the screen

XP Screen

VISTA Screen

4) Left click your mouse on Setting/Display Settings. Ensure the screen resolution is set to what is shown in the technical specifications section toward the rear of this user guide. To correct the resolution to that of the television move the slider.

XP Screen

VISTA Screen

3) Left click your mouse on Properties/Personalise

XP Screen

VISTA Screen

5) Left click your mouse on Advance/Advance Settings and left click on Monitor

XP Screen

VISTA Screen

6) Left click on the drop down for Screen refresh rate and select 60 Hertz, if you experience picture noise or 'fl ickering', select 50 hertz or 70 hertz.
7) Click on Apply, then click Yes and the settings will be saved.
8) Now switch off your computer and connect the television (as shown)
9) Switch on the TV, select the input/source to VGA/PC and re-start your PC.

Connecting a Laptop

In addition to the above if you are connecting a laptop to the television you will also need to activate the VGA connection on the laptop. This can vary based on the brand of laptop you have, on many brands/models, it is as per below.

1) Connect the laptop to the television
2) On the Laptop push buttons The screen will now switch to the television.

Front view of a computer monitor with a blank screen and base (no text or symbols)

PC SETUP MENU

To access this menu, press [MENU] button on the remote control.

If you wish to make changes to any of the default settings, use the scroll ▲▶▶▲ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Auto Adjust - Lets you automatically confi gure the television to be used as a computer monitor

Horizontal Position - Changes the horizontal position of the picture

Vertical Position - Changes the vertical position of the picture

Phase - To adjust delay time of phase in order to reduce the noise of picture

Clock - Alter this in order to reduce the noise within the picture

Tip: If the computer is left in-active for a period of time, the television will switch into a 'sleep' state (the screen will power off to save power). To switch back on press the standby button.

USB RECORD - DIGITAL/FREEVIEW MODE

USB RECORD - DIGITAL/FREEVIEW MODE

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB Hard drive. The benefits of this are as follows:

• Pause live TV/Radio and then playback, fast forward and rewind (up to live TV)
  • One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV/Radio and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/web site. These are available in 4GB, 8GB and 16GB. (Please check the web site/helpline for latest specifications and prices)

Minimum Specification - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Setting up the USB Memory Stick

1) Insert the USB Memory Stick into the USB Port located on the side of the television.
The TV will now test the speed of the memory

2) You will then have the option to start time shift

Tip: If the TV does not recognise the USB Memory Stick, please check that it is formatted to FAT32.

Pause Live TV/Radio (Time Shift)

Pausing Live TV/Radio is very simple.

• Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
• Press fast forward to go forward in a recording (i.e. to skip adverts)
• Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the [REC] button and the programme will record until it finishes.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV/Radio mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

USB RECORD / 7 DAY TV GUIDE

Record from 7 Day TV Guide

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days, set reminders and plan your recording

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

2) Navigate through the menu using

You can now:

Record programmes by pressing RED (Press repeatedly to record daily, weekly, monthly)

Set a reminder by pressing GREEN

View a previous day by pressing YELLOW

View the next day by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

Playing Back Recorded Content

To view all your recordings, press [REC LIST]

You can then simply navigate using ▲▼▶◀ to the content you wish to watch and press [OK]

Indicates the amount of space available on the USB Memory Stick

Note: This TV is designed to operate with USB memory sticks up to 32GB. It is possible to use either a USB memory stick or a USB portable Hard Drive of a larger capacity, however, it must be formatted to the FAT32 file system in order to operate correctly. At the time of printing this user guide, Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger USB drives/hard drives to FAT32. Additional help and support is available from the web site.

USB MODE / MEDIA PLAYER

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

On switching to USB source the above menu screen will appear. The content will be divided into Movies, Music, Photos and Recorded Programmes based on file type.

You can navigate through the menus using the scroll ▲▼▶◀buttons. To confirm the item you wish to play/view press [OK] button.

USING WITH SKY DIGITAL / VIRGIN MEDIA

You may wish to use your TV with Sky Digital, Virgin Media or another cable or Satellite box. There are a number of connection options, the best being connecting via SCART cable.

Connecting via SCART

1) Connect the SCART cable from the Cable/Satellite Box to SCART of the TV
2) Press [SOURCE]
3) Press [V] or [A] to select SCART
4) Press [OK]

The channel your Cable/Satellite box is displaying will now be shown on the TV.

Connecting via RF

You may wish to share your Sky Digital signal around the home by using an RF connection.

1) Connect the RF cable from the RF output socket of the sky/cable box to the 'RF IN' of the TV.
2) Switch the TV to analogue TV mode
3) Press [MENU] to enter menu
4) Press [V] twice to select Channel Menu
5) Press [>] to enter menu
6) Press [V] to select Auto Search
7) Press [OK] and then select Start

Once tuning is complete the first channel will appear. Press [CH+] to move through the channel until you find the Sky channel. The channel can then be moved if you wish, please refer to the Channel Menu, Channel Manager section of this user guide.

USING WITH SKY DIGITAL REMOTE CONTROL (BSKYB) OR UNIVERSAL REMOTE CONTROL

You may wish to use your Sky Digital or a universal remote control to operate some of the functions of this TV. For this you require a 'code' that needs to be programmed into your Sky Digital or universal remote control.

For codes for universal remote controls, please visit our website where you will find the very latest information and codes. For codes for Sky/Sky+/Sky HD, please note that at the point of manufacture, BSkyB have not launched the code required for this model of TV. They are due to launch a new remote control which should include the necessary code to operate the functions of the TV during 2010 (called revision 9).

Please check our website for updates, alternatively, see some alternative options of remote controls that are available.

The One for All remote controls shown on the right will operate all of the functions of the Sky box in the same way the original remote control will, in addition, they will also operate the functions of this model of TV. The One for All versions shown are only available to purchase from the helpline/website. When you order, we will need to know the model and serial number of your TV in order that we can include the necessary software/code for your particular TV.

The original Sky remotes are shown for comparison purposes only.

FREQUENTLY ASKED QUESTIONS

TV I have tuned in Digital TV but I am not receiving any or all of the channels and/ or the channels I receive are breaking up	1) Check you are in an area that can receive Freeview. Visit www.freeview. co.uk or call 08701 111 270.2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.
DVD I have inserted a disc but it is not playing	1) Ensure you have inserted put the disc in facing the correct way forward2) Ensure the disc is clean and is not scratched3) Some copied discs will not play.4) Check the DVD is a region 2 disc – to change the region of the DVD player, refer to section 'Changing Regions'.
Game Consoles I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my Console	1) Ensure the TVs source is on HDMI2) Check your settings on your PS3 are as per the PS3 instruction manual
Game Consoles I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the 'Connections' pages.
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording
General I would like to have louder sound by connecting additional speakers	There are 2 options:1) Use Digital COAX output that can be connected to an amplifi er/surround sound systemoutput and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system2) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi er/surround sound system
General Why are some options in the menu unavailable and greyed out	Some options are only available in certain sources, i.e. HDMI, PC/VGA.They are unavailable in the other sources where they have no affect.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it	Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive	If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 fi le system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
USB Record / TV	I can not change the channel, access the menu or use the red button
USB Record / TV	When using the USB to record the picture 'breaks up' or experience loss of sound.
System Lock I have changed the password on the television and now forgotten it	There is a master password of 4711, to gain access to the TV menu and reset the normal password
TV I have re-tuned my television but when I switch it of it is not storing the channels	Complete a fi rst time installation, please refer to the set-up menu section of the manual of how to do this

TECHNICAL SPECIFICATION

Model LCD 19-220 LCD 22-220
Screen size (diagonal) 19"/48cm	22"/56cm
Resolution 1440 x 900 1680 x 1050
Contrast Ratio 1000:1 1000:1
Brightness cd/m2 300 300
PC RGB Yes Yes
RF 75 ohm Antenna / PAL-SECAM
Video Inputs 1 x SCART, 1 x Video, 1 x Component (YPbPr - 1080i)
Sound Inputs	1 x 3.5mm jack for PC audio input, 1 x pair RCA shared for Video & YPbPr (component) audio input
Sound Outputs 1 x Coax Audio output, 1 x Headphone output
HDMI	1 (up to 1080i)
Watts (RMS)	2 x 3
Voltage	110-240v 50/60Hz 1.5A 60W (standby 1.5W)	110-240v 50/60Hz 1.5A 70W (standby 1.5W)
Dimensions including stand (mm)	457W x 394H x 170D	527W x 426H x 170D
Net weight (Kgs) 5.0	5.5

INDEX

Attaching the base/stand 9
Aspect Ratio 20
Auto Confi guration of screen (PC) 24
Auto Volume Level 17
Auto Search 18
Balance 17
Bass 17
Blue Screen 20
Brightness 16
Changing DVD Regions 21
Channel Manager 18
Clock 19
Clock (PC) 24
Colour 16
Colour Temperature 16
Common Interface 18
Connections....14-15
Contrast 16
Detaching the base/stand 9
Digital Output 17
Digital Switchover 31-32
Dual Mono (DVD) 21
Dynamic Range (DVD) 21
Favourites Manager 18
Firmware Update 20
First Time Installation 20
Frequently Asked Questions 29
Getting Started 11
Hearing Impaired 19
Horizontal Position (PC) 24
Language 19
Manual Search 18
Noise Reduction 16

On Screen Display Timer 20
One Button Record 25
Pause Live TV / Radio (Time Shift) 25
Phase (PC) 24
Picture Mode 16
Remote control 13
Reset to default 20
Returning to Default (DVD) 21
Sharpness 16
Sleep Timer 19
Sound Mode 17
Source Menu 12
System Lock 18
Technical Specifications 30
Tone (DVD) 21
Treble 17
TV buttons 12
TV Guide 26
TV System (DVD) 21
TV Type (DVD) 21
USB Mode / Media Player 27
USB Record 25
Using with Sky Digital / Virgin Media 28
Using the television as a computer monitor 25
Vertical Position (PC) 24
Wall mounting 9
What is included in the box 8

DIGITAL SWITCHOVER

Television in the UK is going digital, bringing us all more choice and new services. Starting late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

How the switchover affects your TV equipment.

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply connecting it into your aerial socket (you can check if you can get digital TV through your aerial now or whether you will have to wait until the switchover at www.digitaluk.co.uk)

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels and also to pick up new ones. Digital UK, the body leading the digital switchover, will advise you when you need to retune during the switchover.

How to retune.

Retuning your TV is a very quick and simple process. We recommend that you retune every few months to ensure you are receiving the very latest TV and radio channels that are broadcast.

1) On the remote control press [MENU] followed by 8 - 8 - 8 - 8 (so the number 8 button four times)

2) The First Time Installation menu will appear. Press [OK] and tuning will take place.

For help and support regarding the digital switchover, please contact Digital UK:

Telephone: [phone] (calls charged at local call rate, approx 3p per minute daytime or 1p per minute evenings from a BT landline)

Digital UK website: www.digitaluk.co.uk

When does switchover happen?
