Product Type	Built-in Electric Oven
Brand	Euromaid
Model	CS90S
Category	Oven
Overall Dimensions (H x W x D)	595 mm x 595 mm x 545 mm
Weight	Approx. 30 kg
Power Supply	220-240 V, 50/60 Hz, 3000 W
Energy Rating	A+
Functions	Conventional, Fan Forced, Grill, Pizza, Defrost
Temperature Range	50°C – 275°C
Interior Capacity	65 L
Interior Coating	Enamel with catalytic panels
Cleaning	Catalytic self-cleaning
Control Type	Mechanical dials with digital timer
Display	LCD
Safety Features	Cool touch door, child lock, automatic shut-off
Installation	Built-in under worktop
Door Type	Drop-down, double glazed
Shelves	2 chrome shelves
Spare Parts Availability	Through Euromaid service centres
Repairability Index	8.5 / 10

Frequently Asked Questions - CS90S Euromaid

How do I set the timer on my Euromaid CS90S oven?

Turn the timer dial clockwise to set the desired cooking time. The digital display will show the countdown. When time elapses, an alarm will sound.

What is the best way to clean the catalytic liners?

Catalytic liners are self-cleaning: they absorb grease and burn it off at high temperatures. Run the oven empty at 250°C for 30 minutes to refresh them. Wipe any residue with a damp cloth after cooling.

Why is my oven not heating up?

Check that the power supply is connected and the circuit breaker is on. If the oven still does not heat, the heating element may be faulty. Contact Euromaid service for replacement.

Can I use aluminum foil on the bottom of the oven?

No, do not line the oven floor with foil as it can trap heat and damage the enamel. Use a baking tray on a shelf instead.

How do I replace the oven light bulb?

Disconnect power, remove the glass cover by turning counterclockwise, and replace with a G9 halogen bulb rated for ovens (max 25W). Refit cover and restore power.

What do the error codes E01 or E02 mean?

E01 indicates a faulty temperature sensor. E02 indicates a communication error. Try resetting the oven by turning off power for 1 minute. If persists, call service.

Is the Euromaid CS90S suitable for a 60 cm cutout?

Yes, the CS90S is designed for standard 60 cm (600 mm) wide cutouts. Ensure the cutout height is at least 590 mm and depth 560 mm.

How do I activate the child lock?

Press and hold the lock button for 3 seconds until a key icon appears on the display. To deactivate, press and hold again.

Can I use my oven to grill meat?

Yes, select the grill function and place food on the top shelf. Preheat for 5 minutes with the door slightly ajar for grilling.

Where can I purchase spare parts for my oven?

Spare parts are available through Euromaid authorized service centers and selected retailers. Use the model number CS90S when ordering.

USER MANUAL CS90S Euromaid

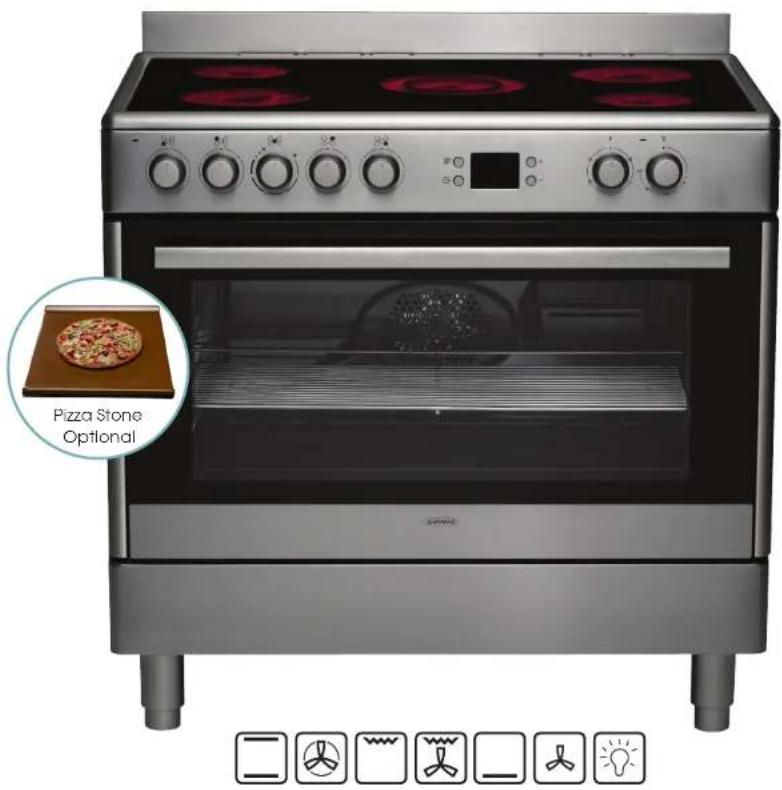

900mm Ceran Electric Upright Cooker

Euromaid

made for you.

Features

Electric oven and grill + ceramic cooktop

6 Function Oven : fan forced, conventional, fan grill,

grill, bottom element, defrost, light

113 litre gross oven capacity

5 Cooking zones with centre double zone

Programmable clock

Square line commercial design

Telescopic runner

Storage compartment

Full glass double glazed door

Child safety lock and automatic switch off

European made

Burners Output

Rear Right: 1700W

Front Right: 1200W

Middle Dual Cooking Plate: 2200W

Front Left: 1700W

Rear Left: 1200W

Total Power

Oven Capacity: 105L

Connected Load: 10.9 kW

CS90S

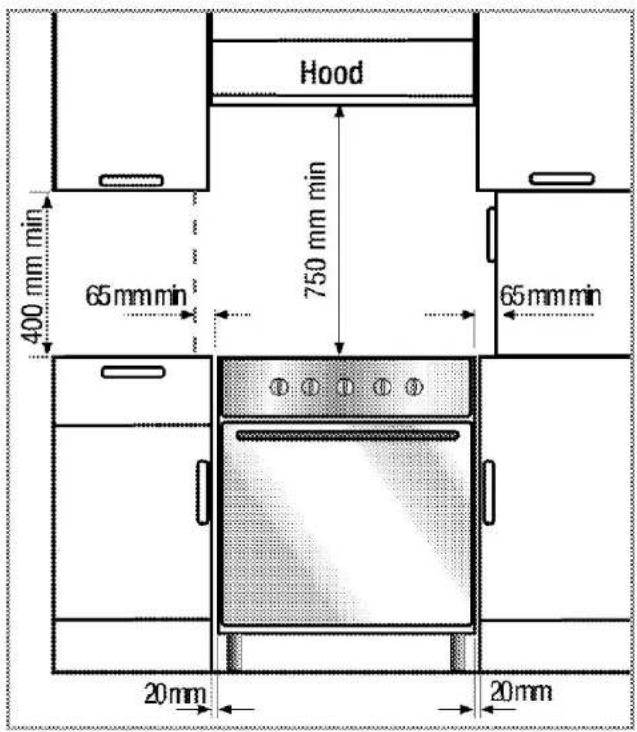

Dimensions & Installation

Euromaid

made for you.

Product Dimensions

900mm (W) x 600mm (D) x 865 - 920mm adjustable (H)

Warranty
2 year Parts and Labour
