PCX 125 (2018) - Scooter Honda - Free user manual and instructions

Product Type	Scooter
Brand	Honda
Model	PCX 125 (2018)
Engine Displacement	125 cc
Engine Type	4-stroke, liquid-cooled, OHC
Fuel System	PGM-FI electronic fuel injection
Transmission	V-Matic belt drive (CVT)
Power Output	Approx. 11.0 hp (8.2 kW) @ 8,500 rpm
Top Speed	Approx. 95 km/h (59 mph)
Fuel Consumption	Approx. 2.4 L/100 km (98 mpg)
Fuel Tank Capacity	8.0 L
Dimensions (L x W x H)	1917 x 740 x 1090 mm
Wheelbase	1315 mm
Seat Height	764 mm
Ground Clearance	135 mm
Curb Weight	Approx. 131 kg (289 lbs)
Front Tire Size	90/90-14
Rear Tire Size	100/90-14
Brakes	Front: 220 mm disc; Rear: 130 mm drum (CBS)
Suspension Front	Telescopic fork, 89 mm travel
Suspension Rear	Twin shock, 88 mm travel
Lighting	Full LED headlight and taillight
Underseat Storage	Approx. 37 L (fits one full-face helmet)
Dashboard	Digital speedometer, fuel gauge, odometer
Idling Stop System	Yes, start-stop function
Maintenance	Oil change every 4,000 km, valve clearance every 16,000 km

Frequently Asked Questions - PCX 125 (2018) Honda

What type of fuel does the Honda PCX 125 (2018) require?

The Honda PCX 125 (2018) requires unleaded gasoline with a minimum octane rating of 91 (RON). Use of lower octane may cause engine knocking.

How often should I change the engine oil?

Engine oil should be changed every 4,000 km (or every year) for normal riding. Use SAE 10W-30 or 10W-40 API SJ or higher.

Does the PCX 125 have an automatic transmission?

Yes, it features a V-Matic continuously variable transmission (CVT), which is automatic and maintenance-free.

What is the seat height of the PCX 125 (2018)?

The seat height is 764 mm, making it accessible for riders of average height.

How much fuel does the tank hold?

The fuel tank capacity is 8.0 liters. The low fuel warning light activates when approximately 1.3 liters remain.

Is the PCX 125 equipped with ABS?

No, the 2018 model uses Combi Brake System (CBS) linking the front and rear brakes. Some markets may offer an ABS version, but standard is CBS.

What kind of battery does the PCX 125 use?

The scooter uses a 12V MF (maintenance-free) battery, typically rated at 12V - 6Ah or similar.

Can I store a full-face helmet under the seat?

Yes, the underseat storage compartment can accommodate one full-face helmet (size M to L). It also includes a small tray for gloves.

How do I adjust the rear suspension?

The rear twin shocks have 5 preload settings. Use the tool provided in the toolkit to turn the adjuster collar on the lower end of each shock.

What is the recommended tire pressure?

For solo riding: front 2.0 bar (29 psi), rear 2.3 bar (33 psi). For riding with a passenger: rear increase to 2.6 bar (38 psi).

USER MANUAL PCX 125 (2018) Honda

AKÜ TEHLİKE

ETİKETİ

SICAKKEN ASLA AÇMAYINIZ.

Diagram of a mobile phone control panel with two buttons and a display (no text or symbols)

Top-down and side-view technical illustration of a person riding a scooter, showing front and side views (no text or symbols)

Illustration of a person in a white helmet standing near a scooter, with a payment terminal and mirror reflection (no text or symbols)

Side view of a scooter with visible exhaust pipes and wheels (no text or symbols)

Close-up of a car's front panel with a circular dial indicator and directional arrows (no text or symbols)

Illustration of a hand using a tool to adjust or install a device (no text or symbols visible)

3

Illustration of a hand holding a small mechanical component with an arrow pointing to it (no text or symbols present)

4

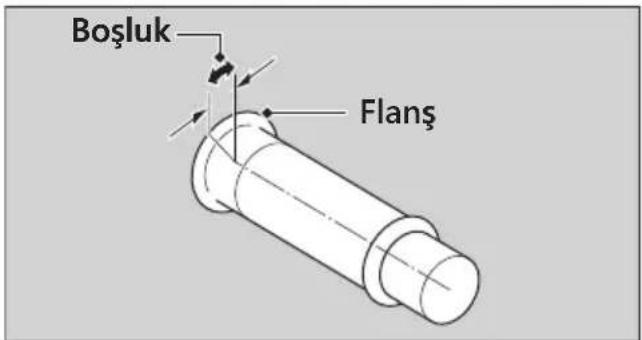

Technical line drawing of a cylindrical mechanical part with directional arrows indicating force or movement (no text or symbols)

Top-down view of a scooter's front wheel and steering wheel, showing hands adjusting the dashboard (no text or symbols visible)

Arka fren kolu
Ön fren kolu

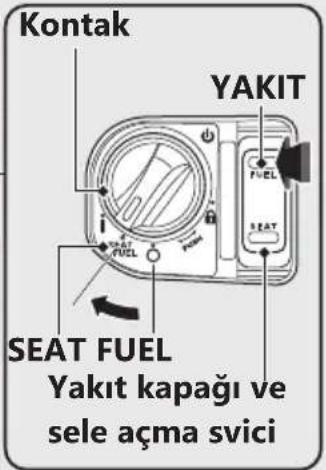

Yakıt Doldurma

Close-up of a car interior showing dashboard, steering wheel, and gear mechanism (no visible text or symbols)

Close-up of a mechanical component with a curved arrow indicating direction (no visible text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Hand holding a tool inside a battery pack, no text or symbols visible

Diagram of a plant cell with two circular structures, one showing internal structure and the other showing a labeled cell (no text or symbols present)

Diagram of a pipe or duct with internal structures and a circular outline highlighting a section (no text or symbols)

Line drawing of hands using a tool to handle a rectangular object (no text or symbols)

Takım çantası

2 - 6 mm (0.1 - 0.2 in)

Fren/Arka Lamba....115

Plaka lambasi....115

Park Lambasi....114
