ZSF6161S - Dishwasher Zanussi-Electrolux - Free user manual and instructions
Find the device manual for free ZSF6161S Zanussi-Electrolux in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Built-in Dishwasher |
| Brand | Zanussi-Electrolux |
| Model | ZSF6161S |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Weight | Approx. 35 kg |
| Power Supply | 220-240 V, 50 Hz |
| Place Settings | 12 place settings |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 287 kWh |
| Annual Water Consumption | 3080 L |
| Noise Level | 46 dB (A) |
| Cycle Programs | Eco, Auto, Intensive, Quick 30min, Glass, Pre-Rinse |
| Key Features | Adjustable upper basket, Delay Start (1-24h), Half Load, Salt and Rinse Aid indicators |
| Safety Features | Child Lock, Anti-Flood System, Waterproof casing |
| Control Panel | Electronic with LED display, buttons |
| Interior | Stainless steel tub, plastic coated racks |
| Spare Parts Availability | Genuine spare parts available for 10+ years |
| Reparability | Modular design, user-serviceable parts (filters, spray arms) |
| Certifications | CE, WEEE compliant |
| Included Accessories | Salt funnel, rinse aid dispenser, quick guide |
Frequently Asked Questions - ZSF6161S Zanussi-Electrolux
How do I install the ZSF6161S dishwasher?
Ensure the dishwasher is placed on a stable surface. Connect to cold water supply (3/4 inch thread) and electrical outlet (230V). Level the machine with adjustable feet. Refer to the manual for detailed steps.
What type of detergent should I use?
Use dishwasher detergent (tablets, powder or gel) designed for automatic dishwashers. Avoid using hand dish soap. For best results, use combined tablets with salt and rinse aid.

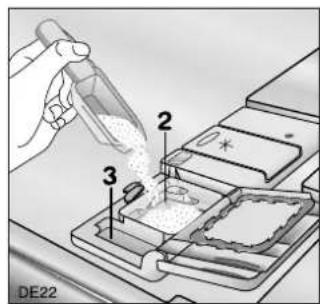

How do I add salt and rinse aid?
Salt: Open the salt container cap, fill with dishwasher salt until full, then close. Rinse aid: Adjust the rinse aid dispenser setting (1-6), fill to MAX level and close.
What does the error code E01 mean?
Error E01 indicates a water intake problem. Check if the water tap is closed or kinked in the inlet hose. Also clean the inlet filter.
How do I clean the filters?
Remove the lower basket, unscrew the fine filter assembly, rinse under running water. Clean the coarse filter and reinstall. Do this monthly for optimal performance.
Can I use half load function?
Yes, select the Half Load option (if available) on the control panel. This uses less water and energy for smaller loads.
How long is a typical cycle?
Eco cycle: ~3.5 hours; Quick 30min: 30 minutes; Intensive: ~2.5 hours. Actual time depends on temperature and soil level.
Why is there water left inside after a cycle?
Small amount of water under the filters is normal. If excessive, check drain hose for kinks or clogs. Also ensure the pump filter is clean.
How do I enable child lock?
Press and hold the Start/Reset button for 3 seconds until the indicator flashes. To disable, repeat the same operation.
Where can I find spare parts like spray arms?
Search online for Zanussi-Electrolux ZSF6161S spare parts on official websites or authorized dealers. Use the model number to find correct parts.
