Product Type	Gigabit Ethernet PoE+ Injector
Brand	Digitus
Model	DN-651114
PoE Standard	IEEE 802.3at (PoE+) / 802.3af
Power Output	30 W
Input Voltage	45 - 56 VDC
Output Voltage	42 - 54 VDC (depends on input)
Max Power Consumption	32 W
Data Speed	10/100/1000 Mbit/s
Ports	1x RJ-45 Input (Data), 1x RJ-45 Output (PoE Data+Power)
Pin Assignment (PoE)	Pin 3/6 (+), Pin 1/2 (-)
Surge Protection (DC)	8/20us DM/CM 3 kA
Surge Protection (RJ45)	10/700us DM/CM 6 kV
Operating Temperature	-40°C to +75°C
Storage Temperature	-40°C to +85°C
Storage Humidity	5% - 95% (non-condensing)
Housing Material	Slim metal design
Dimensions (WxDxH)	103 x 78 x 32 mm (without DIN rail)
Weight	295 g

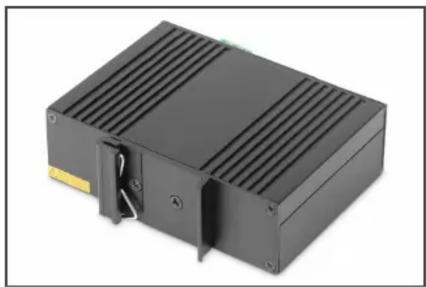

Mounting	DIN rail (adapter included)
Max Cable Distance	100 m
LED Indicators	Power input, PoE output
Application	Industrial, IP cameras, WAPs, PoE devices
Package Contents	1x injector, 1x DIN rail adapter
EAN	4016032473664
Maintenance	Disconnect power before cleaning; wipe with dry cloth.

Frequently Asked Questions - DN-651114 Digitus

What is the power output of the Digitus DN-651114 PoE+ injector?

The power output is 30 W for PoE+ (IEEE 802.3at) and 15.4 W for PoE (IEEE 802.3af).

Can I use this injector with standard Gigabit Ethernet?

Yes, the injector supports 10/100/1000 Mbit/s Gigabit Ethernet. Data and power are transmitted over a single cable.

What is the input voltage required?

The input voltage must be 45 - 56 VDC supplied via the 3-pole terminal block. The injector does not include a power supply.

How do I mount the DN-651114?

The injector is designed for DIN rail mounting. An adapter is included for easy snap-on installation.

What is the operating temperature range?

It operates from -40°C to +75°C, making it suitable for harsh industrial environments.

Does the injector provide surge protection?

Yes, it offers surge protection of up to 6 kV on the RJ45 port and 3 kA on the DC input.

What devices can I power with this PoE+ injector?

It can power PoE-compatible devices such as IP cameras, wireless access points, and IoT devices that require up to 30 W.

How long can the Ethernet cable be?

The maximum cable length is 100 meters using Cat.5 or higher twisted-pair cable.

What do the LED indicators mean?

The Power input LED indicates the presence of DC power. The PoE output LED shows when power is being delivered to the connected device.

Is the injector compatible with 802.3af devices?

Yes, it is backward compatible with IEEE 802.3af (15.4 W) devices. It automatically negotiates the required power.

USER MANUAL DN-651114 Digitus

DIGITUS Gigabit Ethernet PoE+ Injector, 802.3at, 30 W

DN-651114

EAN 4016032473664

DIN Rail PoE injector PoE 802.3af 30W

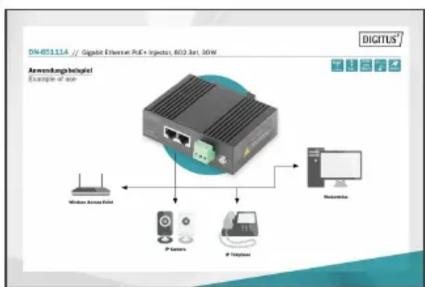

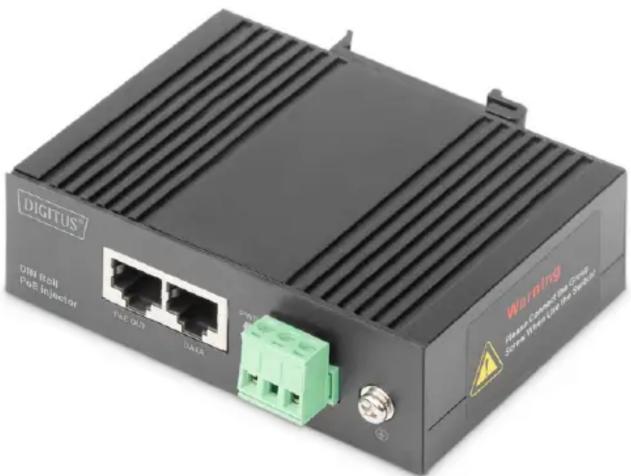

The DIGITUS® Gigabit Ethernet PoE+ Injector with a total output of 30 W is the ideal choice for industrial applications such as the connection of wireless access points, IP cameras or other PoE-compatible devices. Designed for a high temperature range, it can be used even in the most unfavorable conditions of heat or cold (-40 °C to +75 °C). It can be snapped onto the standard DIN rails and offers surge protection of up to 6 kV for connected PoE devices and 3 kA for the voltage input. The PoE+ injector spares the need to install a new power infrastructure, as data and power can be transmitted via a network cable. In this way, you can effortlessly extend existing networks by up to 100 m, even if no conventional AC or DC power supply is available there. Trust in the reliable and secure connection of industrial IT components – even via existing Ethernet infrastructures with Cat. 5 network cable standard or higher.

Ideal PoE+ injector for industrial applications with high temperature ranges, DIN rail installation and power supply via terminals

• PoE standard: IEEE802.3at PoE+ (30 W) / IEEE802.3af (15.4 W)
• Input: 1x RJ-45 (Data)
  • Output: 1x RJ-45 PoE (Power & Data)
  • Data output: 10/100/1000 Mbit/s Gigabit
• Suitable for PoE power supply of up to 100 m
  • PIN assignment RJ45: Pin 3/6 (+), Pin 1/2 (-)
  • LED displays: Power input / PoE output

• Power supply: 3-pole terminals
- Input voltage: 45 - 56 VDC
- Power consumption: 32 W max. (30 W PoE / 2 W internal consumption)
• Power output: 30 watts
- Output voltage: 42 - 54 V DC (depending on the input voltage)
- Surge protection DC connection: 8/20us DM/CM 3KA
- Surge protection RJ45 connection: 10/700us DM/CM 6KV
- Operating temperature range: -40 °C to +75 °C
- Storage temperature: -40 °C to +85 °C
• Storage humidity: 5% - 95% (non-condensing)
• Housing: Slim metal design
- Dimensions: 103 mm x 78 mm x 32 mm (WxDxH) without DIN rail mount
- Weight: 295 g
- Ethernet speed: Gigabit
- Industrial usage: yes
• Number of ports: 1
- PoE Power budget: 30 W
• Power output: Depending on power supply
- PoE standard: IEEE802.3at (PoE+)

Package contents

Package contents

• 1 x Gigabit Ethernet PoE+ Injector, 802.3at, 30 W
- 1 x DIN rail adapter

Logistics
	Number(pcs)	Weight(kg)	Depth(cm)	Width(cm)	Height(cm)	cm3
Packaging Unit Carton 36 15.00	33.00 35.00 39.00	45,045.00
Packaging Unit Inside 1 0.42 5	00 13.00 17.00 1,105.00
Packaging Unit Single 1 0.42 5	00 13.00 17.00 1,105.00
Net single without Packaging 1 0.00	0.00 0.00 0.00 0.00 0.00
