Evolution TR350-CXi - Loudspeaker JL Audio - Free user manual and instructions

Product Type	3.5" 2-Way Coaxial Speaker
Brand	JL Audio
Model	Evolution TR350-CXi
Power Handling (RMS)	45 Watts
Power Handling (Peak)	90 Watts
Impedance	4 Ohms
Frequency Response	80 Hz - 22 kHz
Sensitivity	87 dB @ 1W/1m
Woofer Cone Material	Mica-Filled Polypropylene
Tweeter Type	0.75" Silk Dome
Magnet Material	Ferrite
Overall Diameter	4.1" (104 mm)
Cutout Diameter	3.1" (79 mm)
Mounting Depth	1.5" (38 mm)
Weight	0.5 lbs (0.23 kg)
Warranty	1 Year (Parts & Labor)

Frequently Asked Questions - Evolution TR350-CXi JL Audio

What are the dimensions of the JL Audio Evolution TR350-CXi speaker?

The overall diameter is 4.1 inches (104 mm), cutout diameter is 3.1 inches (79 mm), and mounting depth is 1.5 inches (38 mm).

What is the power handling of this speaker?

It handles 45 watts RMS and 90 watts peak power.

What is the impedance of the TR350-CXi?

The impedance is 4 ohms.

Is this speaker compatible with my car?

It fits most vehicles with a 3.5-inch speaker opening. Check your car's factory speaker size or mounting depth before purchase.

Does it come with mounting hardware and grilles?

Yes, the package includes mounting brackets, screws, and wire connectors. Grilles are also included.

What is the frequency response?

The frequency response ranges from 80 Hz to 22 kHz.

How do I connect the speaker wires?

Use the included push terminals: connect positive wire to the (+) terminal and negative to (-). Ensure proper polarity for best sound.

What is the sensitivity rating?

Sensitivity is 87 dB @ 1W/1m, which is typical for efficient speakers.

Can I use this speaker in a marine application?

No, it is designed for indoor automotive use only. It is not weather-resistant.

What is the warranty on this JL Audio speaker?

JL Audio offers a 1-year warranty covering defects in materials and workmanship.

USER MANUAL Evolution TR350-CXi JL Audio

JL AUDIO LIMITED WARRANTY (USA)

Evolution Speaker Systems

JL AUDIO warrants these speakers (and crossover networks, where applicable) to be free of defects in materials and workmanship for a period of ninety (90) days from the original case of purchase. The warranty term is extended to one (1) year if installation is performed or approved by an authorized JL AUDIO dealer (proof of installation or approval required on purchase receipt).

This warranty is not transferable and applies only to the original purchaser from an authorized JL AUDIO dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction. JL AUDIO will, at its discretion, repair or replace the defective product with new or remanufactured product at no charge.

Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product, thereafter. Some stakes do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you need service on your JL AUDIO product:

Al warranty returns should be sent to JL AUDIO freight prepaid through an authorized JL AUDIO dealer and must be accompanied by proof of purchase (a copy of the original sales receipts). Direct returns from consumers or non-authorized dealers will be refused unless specifically authorized by JL AUDIO with a valid return authorization number. Warranty expiration on products returned without proof of purchase will be determined from the manufacturing date code. Coverage may be invalidated as this date is previous to purchase date. Return only defective components. If one speaker fails in a system, return only that speaker component, not the entire system. Non-defective items received will be returned freight-collect. Customer is responsible for shipping charges and insurance in sending the product to JL AUDIO. Freight damage on returns is not covered under warranty.

For Service Information in the U.S.A. please call:

JL Audio customer service: [phone]

during normal business hours (Eastern Time)

JL Audio, Inc

10369 North Commerce Pkwy.

Miramar, FL 33025

(do not send product for repair to this address)

International Warranties:

Products purchased outside the United States of America are covered only.

by that country's distributor and not by JL Audio, Inc.

TR350-CXi

3.50-inch (90 mm) Coaxial Loudspeakers

owner's manual

Thank you for choosing JI. Audio Evolution TR Coaxials for your automotive sound system. With proper installation, your new speakers will deliver years of listening pleasure.

We strongly recommend that you have your new Evolution speakers installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble your interior panels, install your new speakers and reassemble your vehicle properly. Also, keep in mind that your warranty coverage doubles to 2 years if your system is installed by your authorized JL Audio dealer. If you prefer to perform your own installation, please read this instruction manual completely before beginning the process.

TR350-CXI SPECIFICATIONS:

Woofers: Injection-molded, mica-illed, polypropylene core body. 0.75-inch (19mm) voice coil, symmetrical-roll spider, polyether foam surround.

Tweeters: 0.5-inch (12 mm) textile dome tweeter with integral phase plug, neodymium magnet, ferrofluid cooled and damped.

Continuous Power Handling:

25 Watts (RMS Method)

Frequency Response: 130 Hz - 22 KHz (± 3 dB)

Efficiency @ 1W/1m: 83.0 dB

Nominal Impedance: 4 ohrs

Included Components and Parts:

• Two TR350-CXI 3.5-inch (90mm)
Coaxial loudspeakers
• Four #8 x 1 inch (25mm) sheet metal screws
• Four Mounting Clips
- Two 5.2 mm female crimpable connectors
- Two 2.8 mm female crimpable connectors

GETTING STARTED:

• Turn off the audio system. It is also advisable to disconnect the negative ( ) terminal of your vehicle's battery whenever performing installation work.
• Before cutting, drilling or inserting any screw, check clearances on both sides of the planned mounting surface. Also check for any potential obstacles, such as window tracks and motors, wiring harnesses, etc. Check both sides of the car, many cars are not symmevical!
  • Always wear protective eyewear.

INSTALLING YOUR TR350-CXI

COAXIALS IN FACTORY LOCATIONS:

If you will be using the factory speaker wires, it may be necessary to change the terminations. This may be accomplished by using an adaptor plug or simply by cutting the factory connector of and using the supplied crimp connectors to terminate the speaker wires. The large connector is for the positive terminal and the small connector is for the negative terminal of each TR350-CXI. You may also choose to run new speaker wires...refer to the custom installation section for details. Whichever method you choose, observe correct polarity in your connections. If you are unsure about any of these issues, contact your JL AUDIO dealer for installation assistance.

Your new speakers have been designed to install, without modifications, into most vehicles that accept a 3.5-inch speaker. Most factory 3.5-inch speakers use two mounting screws which will line up with the mounting holes on your TR350-CXI speakers.

It is absolutely vital that the speaker frame fits into the mounting hole cleanly. This must be checked prior to tightening the screws. Do not force the frame into a hole that is too small. Do not tighten the speaker onto an uneven surface! This will damage your speakers. The speaker should also fit so that no air leaks around the mounting flange. Air leaks will cause a severe degradation in sound quality. Seal any air leaks with silicone, rope caulk or similar sealant material.

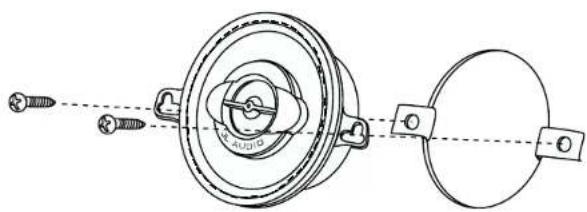

Install as shown in the diagram here. Use the supplied mounting clips unless the factory holes already feature threaded inserts. Hand-tighten the screws evenly to avoid bending the speaker frame!

INSTALLING YOUR TR350-CXI

COAXIALS IN CUSTOM LOCATIONS:

Run speaker wire to the desired mounting location. If you are running wires into a door, use existing factory wiring boots whenever possible. If you are drilling new holes file their edges and install rubber grommets into each hole. Then cover the wires with a protective PVC sleeve and run them through the door jamb. Make sure that the wires will clear door hinges and other structures in the door. If you are unsure about any part of this process, please contact your JL AUDIO dealer for installation help.

Double check the clearance for both speakers before proceeding.

Cut a 3/16-inch (81mm) diameter hole. Before drilling or cutting, use a utility knife to cut any fabric, vinyl or learner from hole locations. These materials can easily be snagged by a drill or a saw, causing damage to the panel and possible bodily injury. Then, using a saber saw, hole saw or nibbler; make the circular cut out for the speaker. File any rough edges.

Once the hole is cut, place the speaker into the hole and mark the screw positions through the mounting tabs. Drill two 1/8" (3 mm) holes for the speaker's mounting screws at the positions you have marked.

Insert the mounting clips with the flat side towards the speaker as shown in the diagram.

It is absolutely vital that the speaker frame its into the mounting hole cleanly. This must be checked prior to tightening the screws. Do not force the frame into a hole that is too small. Do not tighten the speaker onto an uneven surface! This will damage your speakers. The speaker should also fit so that no air leaks around the mounting flange. Air leaks will cause a severe degradation in sound quality. Seal any air leaks with silicone, rope caulk or similar sealant material.

Connect the speaker wires, observing correct polarity, and install the speaker as shown. Hand-tighten the screws evenly to avoid bending the speaker frame!

Because 3.5-Inch speakers are rarely used for custom mounting, grilles are not supplied with the TR350-CXi speakers. Should you need them, you will need to purchase aftermarket grilles separately.

Technical line drawing of a mechanical assembly with screws, concentric rings, and a circular component (no text or symbols)
