USER MANUAL GSC309 MICROWAVE WHIRLPOOL

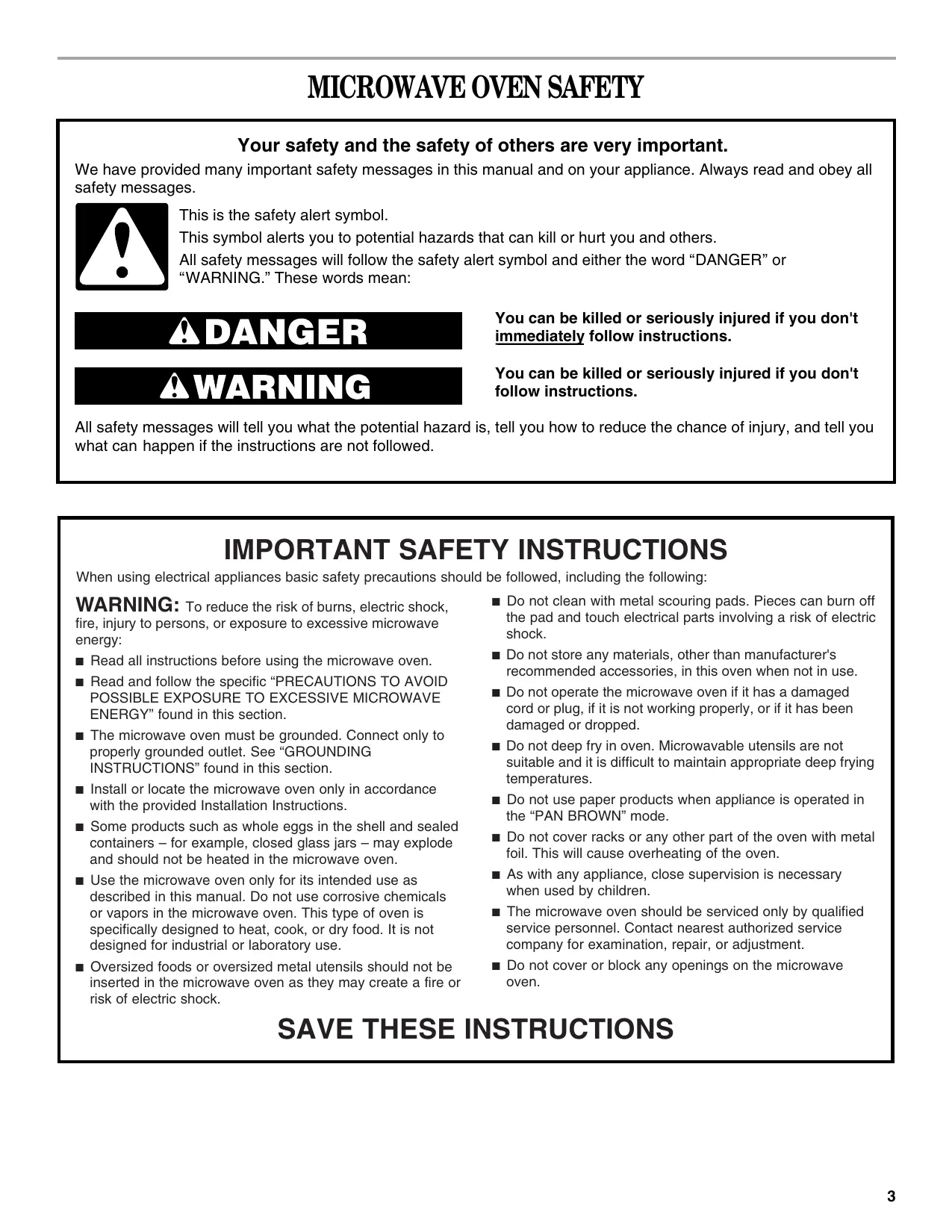

MICROWAVE OVEN SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: You can be killed or seriously injured if you don't immediately follow instructions. You can be killed or seriously injured if you don't follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: ■ Read all instructions before using the microwave oven. ■ Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section. ■ The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section. ■ Install or locate the microwave oven only in accordance with the provided Installation Instructions. ■ Some products such as whole eggs in the shell and sealed containers – for example, closed glass jars – may explode and should not be heated in the microwave oven. ■ Use the microwave oven only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. ■ Oversized foods or oversized metal utensils should not be inserted in the microwave oven as they may create a fire or risk of electric shock.

Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts involving a risk of electric shock. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use. Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not deep fry in oven. Microwavable utensils are not suitable and it is difficult to maintain appropriate deep frying temperatures. Do not use paper products when appliance is operated in the “PAN BROWN” mode. Do not cover racks or any other part of the oven with metal foil. This will cause overheating of the oven. As with any appliance, close supervision is necessary when used by children. The microwave oven should be serviced only by qualified service personnel. Contact nearest authorized service company for examination, repair, or adjustment. Do not cover or block any openings on the microwave oven.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS ■

Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: – Do not overheat the liquid. – Stir the liquid both before and halfway through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the microwave oven for a short time before removing the container. – Use extreme care when inserting a spoon or other utensil into the container.

Do not store the microwave oven outdoors. Do not use this product near water - for example, near a kitchen sink, in a wet basement, or near a swimming pool, and the like. See door surface cleaning instructions in the “Oven Care” section. To reduce the risk of fire in the oven cavity: – Do not overcook food. Carefully attend the microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. – Remove wire twist-ties from paper or plastic bags before placing bags in oven. – If materials inside the oven should ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. – Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.

SAVE THESE INSTRUCTIONS PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Electrical Requirements The microwave oven is connected to a 110 volt side of the 240 volt circuit required for the lower oven. If the incoming voltage to the microwave oven is less than 110 volts cooking times may be longer. Have a qualified electrician check your electrical system.

GROUNDING INSTRUCTIONS For a permanently connected microwave oven: The microwave oven must be connected to a grounded, metallic, permanent wiring system, or an equipment grounding conductor should be run with the circuit conductors and connected to the equipment grounding terminal or lead on the microwave oven.

SAVE THESE INSTRUCTIONS This device complies with Part 18 of the FCC Rules.

A B C A. Turntable B. Hub C. Support and rollers

The turntable rotates in both directions to help cook food more evenly. For best cooking results, do not operate the microwave oven without having the turntable in place. See “Assistance or Service” to reorder any of the parts. The raised, curved lines in the center of the turntable bottom fit between the 3 spokes of the hub. The hub turns the turntable during microwave oven use. The rollers on the support should fit inside the turntable bottom ridge.

The convection grid provides optimal heat circulation for highspeed cooking and convection cooking.

Grids will become hot. Always use oven mitts or pot holders when handling.

To avoid damage to the microwave oven, do not allow the grids to touch the inside cavity walls, ceiling or floor.

Always use the turntable.

Do not store the grids in the oven. Damage to the oven could result if someone unintentionally turns on the microwave oven.

Do not use another metal object with the grids.

Two-level cooking is not recommended.

For best results, do not place popcorn bags on the grids.

The grids are designed specifically for this oven. For best cooking results, do not attempt to use any other rack in this oven.

See “Assistance or Service” section to reorder.

Crisper Pan and Handle

The crisper pan, with its nonstick surface and detachable handle, has been specifically designed for microwave use, and is ideal for pan-frying (pan-browning) foods in the microwave oven. ■ The crisper pan will become hot. Always use the handle and oven mitts or pot holders when handling. Place gripping end on the edge of pan, squeeze handle, and lift pan. ■

To avoid damage to the microwave oven, do not allow the crisper pan or handle to touch the inside cavity walls, ceiling or floor.

Do not place crisper pan on the convection grid. Always use the turntable as a support for the crisper pan.

To avoid damage to the microwave oven, do not use another metal object with the crisper pan.

To avoid damage, do not place hot Crisper Pan directly on heat sensitive surfaces.

The crisper pan is designed specifically for this oven. Do not use it in any other oven.

Use only wooden or plastic cooking utensils to help avoid scratches.

See “Assistance or Service” section to reorder.

Broiling Grid (long legs)

The broiling grid places food close to the broil element, making it ideal for fast browning of small amounts of food. Use for broiling only.

Convection Grid (short legs)

ELECTRONIC OVEN CONTROL A G A. Lower oven display B. Number pads C. Control lock D. Upper oven display E. Timer F. Clock G. Lower oven selectors (see separate Use and Care Guide)

H. Quantity I. Lower oven light J. Microwave popcorn K. Microwave cooking power L. Microwave reheating M. Broiling

B C H I D E F J K L MNO P Q R S N. Microwave defrosting O. Crisping P. High speed cooking Q. Convection cooking R. Upper oven start and Add a Minute S. Upper oven cancel

Display(s) When power is first supplied to the appliance, everything on the display(s) will light up for 5 seconds. Then, “PF id = 27” or “PF id = 30” will appear. Touch LOWER OVEN OFF/CANCEL or UPPER OVEN OFF/CANCEL to clear display(s). Any other time “PF id = 27” or “PF id = 30” appears, a power failure occurred. Touch LOWER OVEN OFF/CANCEL or UPPER OVEN OFF/CANCEL and reset the clock if needed.

Upper Oven Cancel The UPPER OVEN OFF/CANCEL pad stops any upper oven function except for the Clock, Timer and Control Lock. The oven will also turn off when the door is opened. When the door is opened, the element(s) and fan will turn off, but the oven light will remain on. Close the door and touch START to resume the cycle.

Lower Oven Display When the lower oven is in use, this display shows the lower oven temperature, heat source(s) and start time. During lower oven Timed Cooking, this display also shows a vertical bar and minute time countdown and the stop time (if entered). If “Err” appears on the display, an invalid pad was touched. Touch LOWER OVEN OFF/CANCEL and retry the entry. When the lower oven is not in use, this display is blank.

Upper Oven Display When the upper oven is in use, this display shows the upper oven heat source(s), cooking power, quantities, weights and/or help prompts. If “RETRY” flashes on the display for 1 second, an invalid pad was touched. Retry the entry. When the upper oven is not in use, this display shows the time of day or Timer countdown.

This is a 12-hour clock and does not show a.m. or p.m.

To Set: Before setting, make sure the ovens, Timer and Timed Cooking are off. 1. Touch CLOCK. 2. Touch the number pads to set the time of day. 3. Touch CLOCK. To remove the time of day from the display: Touch and hold CLOCK 5 seconds. To return the time of day to the display: Touch CLOCK. The time should not have to be reset.

Tones Tones are audible signals, indicating the following:

The oven is preset with shortcut number codes for High Speed and Microwave Cooking. A number code includes one or more of the following; cooking power, cook time and food quantity or weight. See the code charts in the “High Speed Cooking,” “Custom Reheating,” “Custom Defrosting” and “Popcorn” sections for additional information.

Oven is preheated Function has been entered

Start, Add a Minute The START pad controls 2 separate functions: Start and Add a Minute.

Starting The START pad begins any upper or single oven function except the Timer. If not touched within 5 seconds after pressing a pad, “START?” will appear on the display as a reminder. If not touched within 5 minutes after pressing a pad, the display will return to the time of day mode and the programmed function will be canceled. If cooking is interrupted, touching START will resume the preset cycle.

Adding Minutes During High Speed Cooking, Crisping and Broiling, touching ADD A MINUTE (START) while the oven is operating will add cook time in 1-minute increments. During Microwave Cooking, touching ADD A MINUTE while the oven is operating, or at the end of a cycle, will add cook time in 1-minute increments. During Convection Cooking, touching ADD A MINUTE will not add minutes.

Reminder, repeating each minute after the end-of-cycle tones

All Tones (combination oven models only) All of the above tones are preset on, but can be turned off. To Turn Off/On: Touch and hold TIMER OFF for 5 seconds. A tone will sound, and “Snd oFF” will appear on the lower oven display for 3 seconds. Repeat to change back to “Snd on.”

Tone Volume The volume is preset at high, but can be changed to low. To Change: Touch and hold the number pad “7” for 5 seconds. A tone will sound, and “Snd Lo” will appear on the lower oven display for 3 seconds. Repeat to change back to “Snd HI.”

Reminder tones The Timer and Timed Cooking reminder tones are preset on, but can be turned off. Reminder tones do not include end-ofcycle tones. On combination oven models, if “All Tones” have been turned off, the reminder tones cannot be independently turned on.

Timer To Turn Tones Off/On: Touch and hold TIMER SET until a tone sounds. Repeat to turn back on.

Timed Cooking To Turn Tones Off/On: Touch and hold COOK TIME until a tone sounds and the lower oven display returns to inactive mode (blank). Repeat to turn back on.

Fahrenheit and Celsius

(combination oven models only) The temperature is preset in Fahrenheit; however it can be changed to Celsius. To Change: Touch and hold BROIL for 5 seconds. A tone will sound, and “C°” will appear on the display for 3 seconds. Repeat to change back to Fahrenheit. When in Fahrenheit, “°F” follows the oven temperature. When in Celsius, only “°” follows the oven temperature.

A. Broil element B. Convection element and fan C. Dual microwave emission

The Timer can be set in minutes and seconds or hours and minutes, and counts down the set time. The Timer does not start or stop the oven.

To Set: 1. Touch TIMER SET. Touch again to switch between MIN/SEC and HR/MIN. If no action is taken after 1 minute, the display will return to the time of day mode. 2. Touch the number pads to set length of time. 3. Touch TIMER SET. If not touched within 5 seconds, the display will return to the time of day mode and the programmed function will be canceled. When the set time ends, if enabled, end-of-cycle tones will sound, then reminder tones will sound every minute. 4. Touch TIMER OFF anytime to cancel the Timer and/or stop reminder tones. Remember, touching the LOWER OVEN OFF/CANCEL or UPPER OVEN OFF/CANCEL will turn the respective oven(s) off. The time can be reset during the countdown by repeating the above steps.

Control Lock The Control Lock shuts down the control panel pads to avoid unintended use of the oven(s). When the control is locked, only the CLOCK, TIMER SET and TIMER OFF pads will function. The Control Lock is preset unlocked, but can be locked. To Lock/Unlock Control: Before locking, make sure the oven(s), Timer and Timed Cooking are off. Touch and hold the number pad 3 CONTROL LOCK until “CONTROL LOCK” and a picture of a lock appear on the display, about 3 seconds. Repeat to unlock and remove “CONTROL LOCK” from the display.

Help Prompts Help prompts are visible messages that appear on the upper oven display on combination oven models or the display on single oven models. Only Crisping and Broiling help prompts can be turned off. Before turning help prompts on/off, the oven(s), Timer and, on combination oven models, the lower oven Timed Cooking must be off. To Turn Off/On: Touch and hold the number pad “2” for 5 seconds. A tone will sound, and either “HELP OFF” or “HELP ON” will flash on the upper oven display on combination oven models or the display on single oven models for 3 seconds. Repeat for desired option.

C B High Speed Cooking uses the broil element, convection element and fan and microwaves. All cycle on and off in intervals. ■ Bakeware and the interior oven surfaces, including the door, will become hot. ■

Always use an instant read meat thermometer to determine doneness of meat and poultry.

Use nonmetallic, ovenproof glass, ceramic or plastic approved for conventional oven use.

Covers are not necessary unless recommended in recipe. If recommended, use a casserole dish and its lid for optimal results.

Do not use covers or containers made of foil, paper, waxed paper or plastic not recommended for use in a conventional oven.

When roasting, meats and poultry will spatter. Plastic oven bags designed for conventional oven use can be used for easier cleanup. Follow manufacturer’s recommendations.

When using the crisper pan or convection grid, place them directly on the turntable.

Select tender cuts of meat for optimal cooking results.

Arrange pieces of food in a single layer on the crisper pan or baking dish.

To Use: Before high speed cooking, put food in the oven and close the door. Preheating is not necessary. 1. Touch SPEED COOK control. 2. Touch the number pads to enter the food code from the chart. If “WGT” or “QTY” appears on the display, touch the number pads to enter the quantity or weight from the chart or touch 0 QUANTITY to increase the weight in increments from the chart. 3. Touch START or wait 5 seconds for oven to turn on automatically. The display will countdown the cook time. When the cycle ends, “End” will appear in the display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute. 4. Touch UPPER OVEN OFF/CANCEL or open the oven door when finished cooking to clear the display.

High Speed Cooking Chart Preset cooking times have been determined; however individual tastes vary. If cooking results are not desirable after the cycle is over, code number 69 will add 2 additional minutes of cook time. It can be used multiple times. Also, check the food a few minutes after the cycle has ended, to help avoid overcooking.

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS Biscuits, Large, Refrigerated

5 or 8. Arrange on crisper pan. Place on turntable.

Biscuits, Small, Refrigerated

6 or 12. Arrange on crisper pan. Place on turntable.

Cinnamon Rolls, Large, Refrigerated

No quantity entry required. Arrange on crisper pan. Place on turntable.

Cinnamon Rolls, Small, Refrigerated

5 or 8. Arrange on crisper pan. Place on turntable.

Orange Sweet Rolls, Refrigerated

No quantity entry required. Arrange on crisper pan. Place on turntable.

Casserole, Freshly Made

4-10 cups (1-2.5 L) in 1 cup (250 mL) increments. Place in casserole dish. Place convection grid on turntable, then casserole dish on grid.

10-45 oz (283 g-1.3 kg) in 0.5 oz (14 g) increments. Loosen plastic film covering. Place convection grid on turntable, then entrée on grid.

Lasagna, Freshly Made

No quantity entry required. Use recipe that makes about 8 cups (2 L) and an 11" x 7" (28 x 18 cm) baking dish. Place convection grid on turntable, then baking dish on grid.

Chicken Breast Tenders

5 to 20 pieces. Arrange on crisper pan. Place on turntable.

6 to 26 pieces. Arrange on crisper pan. Place on turntable.

Chicken Wings, Buffalo Hot

0.5-1.5 lbs (227-680 g) in 0.25 lb (113 g) increments. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

6.5-16.5 oz (184-468 g) in 0.5 oz (14 g) increments. Follow package instructions for venting of plastic film. Place convection grid on turntable, then dinner on grid.

1 to 8 pieces, 3 oz (85 g) each. Place egg rolls directly on convection grid, then grid on turntable.

6 to 24 pieces. Place egg rolls on crisper pan and crisper pan on turntable.

10-45 oz (283 g-1.3 kg) in 0.5 oz (14 g) increments. Loosen plastic film covering. Place convection grid on turntable, then entrée on grid.

Fish Portions, Battered

2 to 8 pieces, about 2 oz (57 g) each. Arrange on crisper pan. Place on turntable.

Fish Sticks, Breaded

No quantity entry required. Use 4 to 18 pieces. Arrange on crisper pan. Place on turntable.

3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

4-16 oz (113-454 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

6", 9" and 12" (15, 23 and 30 cm) diameter. Arrange on crisper pan. Place on turntable.

6 to 24 pieces. Arrange on crisper pan. Place on turntable.

3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

2 to 8 pieces. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

No quantity entry required. Place in 2 qt (2 L) casserole dish. Place convection grid on turntable, then baking dish on grid.

No quantity entry required. Use amount of batter for a 9" x 13" (23 x 33 cm) dish. Spray crisper pan with nonstick cooking spray and dust with dry bread crumbs. Spread batter into crisper pan. Place crisper pan on turntable.

No quantity entry required. Use amount of batter for a 9" x 13" (23 x 33 cm) dish. Spray crisper pan with nonstick cooking spray and dust with dry bread crumbs. Spread batter into crisper pan. Place crisper pan on turntable.

Cookies, Refrigerated Dough

No quantity entry required. Drop rounded teaspoonful (5 mL) of cookie dough on crisper pan. Pan will hold 12 cookies at a time. Place crisper pan on turntable.

2 or 3 qts (2 or 3 L). Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Beef Roast, Boneless

1.5-5 lbs (680-2268 g) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put roast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

No quantity entry required. Shape meat mixture into 20, 1¹⁄₂" (4 cm) meatballs. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

1.5-2 lbs (680-907 g) of meat in 0.25 lb (113 g) increments. Place meat loaf in a glass baking dish. Small in a 8.5" x 4.5" (21.5 x 11 cm) dish. Large in a 9" x 5" (23 x 13 cm) dish. Place convection grid on turntable, then baking dish on grid.

Meat Loaf and 6 Potatoes

No quantity entry required. Place meat loaf made with 1.5 lbs (680 g) of meat in an 8¹⁄₂" x 4¹⁄₂" (21.5 x 11 cm) baking dish. Place convection grid on turntable, then baking dish on grid. Prick skins of potatoes and arrange on grid around the meat loaf dish.

1-2 lbs (454 g-1 kg) in 0.25 lb (113 g) increments. Follow recipe instructions, browning meat in a skillet. Place meat in baking dish. Add other recipe ingredients to dish. Place convection grid on turntable, then baking dish on grid.

1-2.5 lbs (454 g-1 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put leg of lamb in bag and close with plastic tie. Cut 6 small slits in top of bag. Place convection grid on turntable, then baking dish on grid.

Ham, Fully Cooked, Boneless

1-4.5 lbs (454 g-2 kg) in 0.1 lb (45 g) increments . Shake 1 tbs (15 mL) of flour in oven bag. Put ham and 0.5 cup (125 mL) water in bag. Close with plastic tie and cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Pork Chops, Bone-in, ³⁄₄" (2 cm) thick

0.4-1.5 lbs (181-680 g) in 0.1 lb (45 g) increments. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Pork Chops, Boneless, ³⁄₄" (2 cm) thick

0.3-1.6 lbs (136 g-2 kg) in 0.1 lb (45 g) increments. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

2.5-4.5 lbs (1-2 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put pork roast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Pork Roast, Boneless

1-5 lbs (454 g-2 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put pork roast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Chicken Breasts, Boneless, Skinless

0.2-2 lbs (91-907 g) in 0.1 lb (45 g) increments. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Chicken Breast Tenders, Frozen

5 to 20 pieces. Arrange on crisper pan. Place on turntable.

Chicken Nuggets, Frozen

6 to 26 pieces. Arrange on crisper pan. Place on turntable.

Lamb Leg of Lamb, Boneless

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS Chicken Pieces, Bone-in, with Skin

0.5-2 lbs (227-907 g) in 0.1 lb (45 g) increments. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Chicken Wings, Buffalo Hot, Frozen

0.5-1.5 lbs (227-680 g) in 0.25 lb (113 g) increments. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

3-5.5 lbs (1.3-2.5 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put chicken in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

1.5-4.5 lbs (680 g-2 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put hen(s) in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable and baking dish on grid.

Turkey Breast, Bone-in

2-6.5 lbs (907 g-3 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put breast in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid. If dish with turkey is too tall, do not use grid.

Turkey, Whole, Unstuffed

10-12 lbs (4.5-5.5 kg) in 0.1 lb (45 g) increments. Shake 1 tbs (15 mL) of flour in oven bag. Put turkey in bag and close with plastic tie. Cut 6 small slits in top of bag. Place in baking dish. Place convection grid on turntable, then baking dish on grid. If dish with turkey is too tall, do not use grid.

Fish Fillets, ³⁄₄" (2 cm) thick

0.4-1.2 lbs (181-544 g) in 0.1 lb (45 g) increments. Spray crisper pan with nonstick cooking spray. Place fish on crisper pan and crisper pan on turntable.

Fish Portions, Battered, Frozen, about 2 oz (57 g) each

2 to 8 pieces. Arrange on crisper pan. Place on turntable.

Fish Steaks, 1" (2.5 cm) thick

0.3-1.3 lbs (136-590 g) in 0.1 lb (45 g) increments. Spray crisper pan with nonstick cooking spray. Place fish on crisper pan and crisper pan on turntable.

Fish Sticks, Breaded, Frozen

No quantity entry required. Use 4 to 18 pieces. Arrange on crisper pan. Place on turntable.

Shrimp, Raw, Shelled

0.25-1 lbs (113-454 g) in 0.25 lb (113 g) increments. Spray crisper pan with nonstick cooking spray. Place shrimp on crisper pan and crisper pan on turntable.

Baked Potatoes, Large, White

1 to 8 potatoes. Pierce skins. Place on convection grid and grid on turntable.

Baked Potatoes, Small-Medium, White

1 to 8 potatoes. Pierce skins. Place on convection grid and grid on turntable.

Baked Sweet Potatoes, Large

1 to 6 potatoes. Cut off thin, dried ends. Pierce skins. Place on convection grid and grid on turntable.

Baked Sweet Potatoes, Small-Medium

1 to 6 potatoes. Cut off thin, dried ends. Pierce skins. Place on convection grid and grid on turntable.

French Fries, Frozen

3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

4-16 oz (113-454 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

Potato Mixes, Dry, Scalloped or Au Gratin

No quantity entry required. Follow package directions. Place convection grid on turntable, then baking dish on grid.

Potato Nuggets, Frozen

3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

No quantity entry required. Bake 1.5 lbs (680 g) potatoes. Scoop out insides leaving a 3/8" (1 cm) shell. Brush both sides with butter. Place skins on crisper pan and crisper pan on turntable. With 1 minute of cooking time remaining, add toppings if desired.

Potato Wedges, Frozen

3-12 oz (85-340 g) in 1 oz (28 g) increments. Arrange on crisper pan. Place on turntable.

FOOD CODE QUANTITY OR WEIGHT — INSTRUCTIONS Roasted Potatoes, Coating Mix, 3¹⁄₂ cups (875 mL) cubed potatoes

No quantity entry required. Follow coating mix package directions. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

2-8 cups (500 mL-2 L) in 1 cup (250 mL) increments. Cut fresh vegetables in bitesize pieces. Toss with olive or cooking oil and seasonings. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

Cook 2 minutes longer

No quantity entry required. Gives 2 more minutes of cooking time. Use this code to finish cooking foods not done to your liking. May be used more than once.

2 to 10 pieces, 0.1 lb (45 g) each. Arrange on crisper pan. Place on turntable.

No quantity entry required. Use 8 oz (227 g) chips, salsa, cheese and other toppings to create your own nachos. Place in baking dish. Place convection grid on turntable, then baking dish on grid.

1 to 4 pieces. Place pizza slices on crisper pan and crisper pan on turntable.

MISCELLANEOUS MICROWAVE OVEN USE A magnetron in the microwave oven produces microwaves which reflect off the metal floor, walls and ceiling and pass through the turntable and appropriate cookware to the food. Microwaves are attracted to and absorbed by fat, sugar and water molecules in the food, causing them to move, producing friction and heat which cooks the food. ■ To avoid damage to the microwave oven, do not lean on or allow children to swing on the microwave oven door. ■ ■ ■

To avoid damage to the microwave oven, do not operate when it is empty. Baby bottles and baby food jars should not be heated in microwave oven. Clothes, flowers, fruit, herbs, wood, gourds, paper, including brown paper bags and newspaper, should not be dried in microwave oven. Paraffin wax will not melt in the microwave oven because it does not absorb microwaves. Use oven mitts or pot holders when removing containers from microwave oven. Do not overcook potatoes. At the end of the recommended cook time, potatoes should be slightly firm. Let potatoes stand for 5 minutes. They will finish cooking while standing. Do not cook or reheat whole eggs inside the shell. Steam buildup in whole eggs may cause them to burst, requiring significant cleanup of microwave oven cavity. Cover poached eggs and allow a standing time.

Food Characteristics When microwave cooking, the amount, size and shape, starting temperature, composition and density of the food affect cooking results.

Starting Temperature Room temperature foods will heat faster than refrigerated foods, and refrigerated foods will heat faster than frozen foods.

Composition and Density Foods high in fat and sugar will reach a higher temperature, and will heat faster than other foods. Heavy, dense foods, such as meat and potatoes, require a longer cook time than the same size of a light, porous food, such as cake.

Cooking Guidelines Covering Covering food helps retain moisture, shorten cook time and reduce spattering. Use the lid supplied with cookware. If a lid is not available, wax paper, paper towels or plastic wrap approved for microwave ovens may be used. Plastic wrap should be turned back at one corner to provide an opening to vent steam. Condensation on the door and cavity surfaces is normal during heavy cooking.

Stirring and Turning Stirring and turning redistribute heat evenly to avoid overcooking the outer edges of food. Stir from outside to center. If possible, turn food over from bottom to top.

Arranging If heating irregularly shaped or different sized foods, arrange the thinner parts and smaller sized items toward the center. If cooking several items of the same size and shape, place them in a ring pattern, leaving the center of the ring empty.

The more food heated at once, the longer the cook time needed. Check for doneness and add small increments of time if necessary.

Before heating, use a fork or small knife to pierce or prick foods that have a skin or membrane, such as potatoes, egg yolks, chicken livers, hot dogs, and sausage. Prick in several places to allow steam to vent.

Smaller pieces of food will cook more quickly than larger pieces, and uniformly shaped foods cook more evenly than irregularly shaped food.

Use small, flat pieces of aluminum foil to shield the thin pieces of irregularly shaped foods, bones and foods such as chicken wings, leg tips and fish tail. See “Aluminum Foil and Metal” first.

Standing Time Food will continue to cook by the natural conduction of heat even after the microwave cooking cycle ends. The length of standing time depends on the volume and density of the food.

Cookware and Dinnerware Cookware and dinnerware must fit on the turntable. Always use oven mitts or pot holders when handling because any dish may become hot from heat transferred from the food. Do not use cookware and dinnerware with gold or silver trim. Use the following chart as a guide, then test before using.

Always use the turntable.

To avoid damage to the microwave oven, do not allow contact with another metal object during microwave cooking.

Do Not Use Metal cookware and bakeware, gold, silver, pewter, nonapproved meat thermometers, skewers, twist ties, foil liners such as sandwich wrappers, staples and objects with gold or silver trim or a metallic glaze should not be used in the microwave oven.

MATERIAL RECOMMENDATIONS Aluminum Foil, Metal

See “Aluminum Foil and Metal” section.

Bottom must be at least 3/16" (5 mm) above the turntable. Follow manufacturer’s recommendations.

Ceramic Glass, Glass

PERCENT/NAME NUMBER USE Follow manufacturer’s recommendations.

China, Earthenware Melamine

Follow manufacturer’s recommendations.

Quick heating convenience foods and foods with high water content, such as soups, beverages and most vegetables.

Paper: Towels, Dinnerware, Napkins

Use nonrecycled and those approved by the manufacturer for microwave oven use.

Plastic: Wraps, Bags, Covers, Dinnerware, Containers

Use those approved by the manufacturer for microwave oven use.

Cooking small, tender pieces of meat, ground meat, poultry pieces and fish fillets. Heating cream soups.

Follow manufacturer’s recommendations.

Follow manufacturer’s recommendations.

Heating rice, pasta or stirrable casseroles. Cooking and heating foods that need a cook power lower than high. For example, whole fish and meat loaf.

Straw, Wicker, Wooden Containers

Do not use in microwave oven.

Reheating a single serving of food.

Cooking sensitive foods such as cheese and egg dishes, pudding and custards. Cooking non-stirrable casseroles, such as lasagna.

Cooking ham, whole poultry and pot roasts. Simmering stews.

Melting chocolate. Heating bread, rolls and pastries.

30%, MediumLow, Defrost

Defrosting bread, fish, meats, poultry and precooked foods.

Softening butter, cheese, and ice cream.

Taking chill out of fruit.

Microwave Cooking Power Many recipes for microwave cooking specify which cooking power to use by percent, name or number. For example, 70%=7=Medium-High. Use the following chart as a general guide for the suggested cooking power of specific foods.

To Test Cookware or Dinnerware for Microwave Use: 1. Place cookware or dinnerware in microwave oven with 1 cup (250 mL) of water beside it. 2. Cook at 100% cooking power for 1 minute. Do not use cookware or dinnerware if it becomes hot and the water stays cool.

Aluminum Foil and Metal Always use oven mitts or pot holders when removing dishes from the microwave oven. Aluminum foil and some metal can be used in the microwave oven. If not used properly, arcing (a blue flash of light) can occur and cause damage to the microwave oven.

OK for Use Racks and bakeware supplied with the microwave oven (on some models), aluminum foil for shielding, and approved meat thermometers may be used with the following guidelines: ■ To avoid damage to the microwave oven, do not allow aluminum foil or metal to touch the inside cavity walls, ceiling or floor.

Cooking To Use: 1. Touch the number pads to set a length of time to cook. If using 100% cook power, skip to Step 3. 2. Touch MICRO POWER then enter the desired power level. See “Cooking Power” chart. 3. Touch START. The display will count down the cook time. When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 4. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display and/or stop reminder tones. The cook time and cooking power can be changed after touching START without interrupting cooking. To Change Cook Time: Touch MICRO POWER. Enter the new cook time within 5 seconds. Touch START, or wait 5 seconds and the change will be entered automatically. To Change Cooking Power: Touch MICRO POWER twice. Enter the new cook power within 5 seconds. Touch START, or wait 5 seconds and the change will be entered automatically.

Cooking in Stages The microwave oven can be set to cook at different cooking powers for various lengths of time, up to 3 stages.

To Cook in Stages: 1. Touch the number pads to set a length of cook time for the first stage. 2. Touch MICRO POWER and then enter a cook power (if other than 100%) from the Cook Power Chart. 3. Touch MICRO POWER to start programming next stage. 4. Repeat the above steps for second- and third-stage programming. The numbers “1,” “2” and/or “3” will appear in the upper oven display during programming. 5. Touch START when cook times and cook powers have been entered. The upper oven display will count down each of the cook times. The numbers “1,” “2” or “3” will appear in the display during their respective stages. When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. Cook time may be changed during any cycling stage by touching MICRO POWER once, and then entering the new time within 5 seconds. Time may be added in one-minute increments by touching ADD A MINUTE (START) during the cycling stage.

Crisper Pan Frying When the crisper pan is used with microwaves, it is like a frying pan or griddle, ideal for French toast, burgers, eggs, stir-frying and sautéing. See “Crisper Pan and Handle” section first before using.

To Use: Before crisper pan frying, brush crisper pan with 1/2 tsp (3 mL) of oil or spray with nonstick cooking spray. Arrange food on crisper pan. Place pan on turntable. 1. Touch the number pads to set a length of time to cook. 2. Touch START. The display will countdown the cook time. When the cycle ends, “End” will appear in the display. If enabled, end-of-cycle tones will sound, then reminder tones will sound every minute. 3. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display and/or stop reminder tones.

CRISPER PAN FRYING CHART Times are approximate and may be adjusted for individual tastes.

FOOD COOKTIME INSTRUCTIONS Bacon, Canadian 2¹⁄₄" (6 cm) thick slices

Turn slices over on crisper pan after cooking.

45 sec to 1 min 2 to 3 min

Mix 1 tbs of water per egg and pour into preheated pan.

French Toast, Pancakes, Waffles, 4 Frozen

Turn halfway through cooking.

Ground Beef, 1 lb (454 g)

Crumble meat before cooking. Stir halfway through cooking. Make sure no pink center.

Ground Beef Patties, two 4 oz (113 g) patties

Side 1: 2 min Side 2: 2-4 min

Cook completely, no pink center.

Pizza Dough, uncooked 9" and 12" (23 and 30 cm)

Sprinkle with corn meal. Press dough into pan. After precooking dough, add sauce and toppings.

Vegetables, stir-fry, 2 cups (500 mL)

Cut vegetables in equal sizes. Stir after 2 minutes.

6. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display and/or stop reminder tones.

Reheat Times and cooking powers have been preset for reheating 8 food types. Use the following chart as a guide.

Beverage 1 Coffee 2 Tea 3 Hot Chocolate

Serving Temperature 1 Warm 2 Hot 3 Very Hot

*Four tones will sound at the midpoint of the reheat cycle, and “STIR” will appear in the display. Stir food if desired, close door, and touch START.

To Reheat Foods: 1. Touch REHEAT. Touch number pad to select food type from the Custom Reheat chart. or Touch REHEAT repeatedly to scan and select food settings. For example, to select the Bread setting, REHEAT must be touched twice. 2. Touch number pads to enter quantity (in servings, slices or cups) or Touch QUANTITY (number pad “0”) to scan and select quantities. For example, to select the quantity of 2 servings, QUANTITY must be touched twice. 3. Touch START or wait 5 seconds and the microwave oven will start automatically. The upper oven display will count down the reheat time. When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 4. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display and/or stop reminder tones.

To Reheat Beverages: 1. Touch REHEAT. 2. Touch number pad “8” or Touch REHEAT repeatedly until the Beverages setting, “BEVRG-8” is reached. 3. Touch number pad from chart to select beverage type. 4. Touch number pad from chart to select serving temperature.

5. Touch START or wait 5 seconds and the microwave oven will start automatically. The upper oven display will count down the reheat time. When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. IMPORTANT: Heated liquids can splash out during and after heating. A wooden stir stick placed in the cup or bowl during heating may help avoid this. 6. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display and/or stop reminder tones. For more information on reheating different foods using the manual microwave function, see “MICROWAVE CUSTOM REHEAT CHART” at the end of the “MICROWAVE OVEN USE” section.

Defrost The Defrost feature can be used, or the microwave oven can be manually set to defrost by using 30% cook power. ■ Food should be 0°F (-18°C) or colder at defrosting for optimal results. ■

Unwrap foods and remove lids (from fruit juice) before defrosting.

Shallow packages will defrost more quickly than deep blocks.

Separate food pieces as soon as possible during or at the end of the cycle for more even defrosting.

Foods left outside the freezer for more than 20 minutes or frozen ready-made food should not be defrosted using the Defrost feature, but should be defrosted manually.

Use small pieces of aluminum foil to shield parts of food such as chicken wings, leg tips and fish tails. See “Aluminum Foil and Metal” first.

DEFROST CHART The Defrost system has six categories: Meat, Poultry, Fish, Bagel, Fruit Juice, and Roll/Muffin. Use the following chart as a guide.

FOOD SETTING CODE WEIGHT OR QUANTITY Meats*

0.1 to 6.6 lbs (45 g to 3 kg)

0.1 to 6.6 lbs (45 g to 3 kg)

0.1 to 4.4 lbs (45 g to 1.34 kg)

*See Preparation chart at end of “Defrost” section for cuts, sizes, and instructions. **Bagel quantity settings 1 and 2 may appear to have longer defrost times than necessary. However, longer times use less cooking power.

To use Defrost: 1. Touch DEFROST. 2. Touch the number pad from the Defrost chart to select food or Touch DEFROST repeatedly to scroll through foods.

3. Touch number pads from the Defrost chart to select the weight or quantity or Touch QUANTITY (number pad “0”) repeatedly to select quantity. 4. Touch START or wait 5 seconds and the microwave oven will start automatically. The display will count down the defrost time. For better results, a preset standing time is included in the defrosting time. This may make the defrosting time seem longer than expected.

BAG SIZE CODE TOUCH PAD

To Pop Popcorn: 1. Touch POPCORN. The microwave oven will be set to automatically begin the pop setting for the 3.5 oz (99 g) bag size.

When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 5. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display. The cook time can be changed during the defrosting cycle without interrupting cooking. To Change Defrost Time: Touch MICRO POWER repeatedly to scroll through “MORE,” “LESS” or “NORML” time.

Touch POPCORN repeatedly to scan and select bag size or Touch number pad from chart to manually select bag size. 2. Touch START or wait 5 seconds for the popping to begin automatically. The upper oven display will count down the popping time. Time may be added to popping time by touching ADD A MINUTE (START) during or after popping. When the popcorn cycle ends, “End” will appear in the display, 4 end-of-cycle tones will sound, and then reminder tones will sound every minute.

MEAT, POULTRY AND FISH DEFROST PREPARATION Use the following chart as a guide when defrosting meat, poultry, or fish. When setting the Defrost cycle, the net weight must be entered in pounds and tenths of pounds. MEAT Beef: ground, steaks, roast, stew Lamb: stew and chops Pork: chops, ribs, roasts, sausage

3. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display and/or stop reminder tones.

The narrow or fatty areas of irregular shaped cuts should be shielded with foil before defrosting. Do not defrost less than 1/4 lb (113 g) or two 4 oz (113 g) patties. Place all meats in microwavesafe baking dish.

WARNING Food Poisoning Hazard Do not let food sit in oven more than one hour before or after cooking. Doing so can result in food poisoning or sickness.

POULTRY Chicken: whole and cut up Cornish hens Turkey: breast

Place in microwave-safe baking dish, chicken breast side up. Remove giblets from whole chicken.

Hot cooked food can be kept warm in the microwave oven. ■ Cover plates of food.

Place in microwave-safe baking dish.

FISH Fillets, Steaks, Whole, Shellfish

Do not use regular paper bags or glassware.

Pop only one package of popcorn at a time.

Follow manufacturer’s instructions when using a microwave popcorn popper.

Listen for popping to slow to 1 pop every 1 or 2 seconds, then stop the cycle. Do not repop unpopped kernels.

Use fresh bags of popcorn for optimal results.

Cooking results may vary by brand and fat content.

Cover foods that were covered while being cooked.

Do not cover baked goods such as pastries, pies, turnovers, etc.

1. Set desired keep-warm time. 2. Set cook power at 10% (number pad “1”). 3. Touch START. The display will count down the warming time. When the cycle ends, “End” will appear in the display, 4 end-of-cycle tones will sound, and then reminder tones will sound every minute. 4. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display. To program keep-warm at the end of a cooking cycle, set the desired time and set the cook power (10%) as the last cooking stage. See “Cooking in Stages” section.

Popping time has been preset based on commercially packaged microwave popcorn. The oven is preset for the 3.5 oz (99 g) size, but can be changed. Use the following chart as a guide.

Crisp The Crisp feature uses the broil element and microwaves to crisp and brown foods. Crisp can be used to saute meats and vegetables, pan-fry bacon and eggs, and to crisp and brown pizza and cheese sandwiches. Always use the crisper pan. See the “Crisper Pan and Handle” section before using.

To Crisp: Before Crisping, brush crisper pan with 1/2 tsp (3 mL) of oil or spray with nonstick cooking spray. Arrange food on crisper pan, and place pan on turntable. 1. Touch CRISP. 2. Touch the number pads to enter a length of time to cook in minutes and seconds. The time can be set up to 90 minutes. 3. Touch START. The “USE PAN” prompt will appear in the upper oven display for 4 seconds, then the display will count down the cook time. Time may be added during cooking by touching ADD A MINUTE ( START). When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 4. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display. The “USE PAN” prompt may be disabled by touching and holding the number pad “2” for 5 seconds. Repeat to re-enable.

CRISPING CHART Times are approximate and may be adjusted for individual tastes.

FOOD COOK TIME Pizza, refrigerated or fresh 12" (30 cm) 9" (23 cm)

Avoid opening the door often.

For even browning, turn food over halfway through cooking.

Before Broiling: The turntable hub must be removed to keep the turntable from rotating during broiling. See “Turntable” section for hub location. Remove the turntable, lift out the hub, and then replace the turntable on the support. The turntable must be in place during broiling, but it should not rotate.

To Broil: 1. Preheat the broil element by touching BROIL and setting a broil time of 2-3 minutes. 2. After preheating, place food on the grid and position the grid on the turntable so that all of the food is directly under the broil element. 3. Touch BROIL. 4. Touch the number pads to enter a length of time to broil in minutes and seconds, up to 90 minutes. 5. Touch START. The “USE GRID” prompt will appear in the upper oven display for 4 seconds, then the display will count down the cook time. Time may be added during cooking by touching ADD A MINUTE (START). When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 6. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display. The “USE GRID” prompt may be disabled by touching and holding the number pad “2” for 5 seconds. Repeat to re-enable.

Sprinkle crisper pan with corn meal. Add additional time for thick crust and reduce time for thin crust.

BROILING CHART Place turkey in center of crisper pan. Internal temperature should be 170°F (77°C).

Puff Pastry Fruit 10-12 min Turnovers, 4 Frozen Turkey Breast, boneless

Times are approximate and may be adjusted for individual tastes.

FOOD COOK TIME Garlic Toast or Open Face Sandwiches

Steaks, 2 top sirloin, 3/4" (2 cm) thick, 8 oz (227 g) portions

Medium doneness Side 1: 10 min Side 2: 8 min

A B C D A A. Broil element B. Convection fan C. Convection element (on some models) D. Convection grid

B C A. Broil element B. Broiling grid C. Crisper pan

Trim excess fat and score edges. Let stand 1 min before serving.

Broil The Broil feature uses the broil element to cook and brown 1 to 4 small pieces of food at a time. Always use the broiling grid. The Crisper Pan may be used with the Broil function to catch drippings from the food. See “Grids” section before using.

PREPARATION Convection cooking uses the convection element (on some models) and the fan. Hot air is circulated throughout the oven cavity by the fan. The constantly moving air surrounds the food to heat the outer portion quickly. The convect function may be used to cook small amounts of food on a single rack. ■ Always use the convection grid. ■ Do not cover turntable or convection grid with aluminum foil. ■

Do not use light plastic containers, plastic wrap or paper products. All heatproof cookware or metal utensils can be used in convection cooking, but metal utensils cannot be used in microwave cooking. Round pizza pans are excellent for convection cooking. Use convection cooking for items such as souffles, breads, cookies, angel food cakes, pizza, and most meats and fish. No special techniques are needed to adapt standard oven recipes to convection cooking, although some temperatures might need to be reduced, and some cooking times might need to be shortened. This oven may be preheated in the same way that standard oven is preheated. (Most recipes for baked goods call for preheating.)

To Convect Cook with Preheat: 1. Position convection grid on turntable in microwave oven and close the door. 2. Touch CONVECT twice. “PREHEAT” will appear in the upper oven display. Touch the number pads to set a temperature other than 325°F (162°C). The cook temperature setting may be changed as desired from 170°F to 450°F (77°C to 232°C). Celsius temperatures below 100°C must have a “0” at the beginning of their entries. For example, 77°C must be entered as 0-7-7. 3. Touch START. The upper oven display will show the “TIME” prompt. 4. Touch number pads to enter length of time to cook, in hours and minutes, up to 4 hours. 5. Touch START. “Lo” will appear in the upper oven display until the temperature reaches 170°F (77°C). When that temperature is reached, the display will show the preheating temperature in 5°F (-15°C) increments until the set cooking temperature is reached.

When preheating is complete, one tone will sound, and the display will show the set cook time. 6. Place food or bakeware on convection grid and close the door. 7. Touch START. The upper oven display will count down the cook time. Each time the door is opened during cooking, the START pad must be touched to restart cooking. When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 8. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display.

To Convect Cook without Preheat: 1. Position convection grid on turntable in microwave oven, place food or bakeware on convection grid, and close the door. 2. Touch CONVECT once. Touch the number pads to set a temperature other than 325°F (162°C). The cook temperature setting may be changed as desired from 170°F to 450°F (77°C to 232°C). Celsius temperatures below 100°C must have a “0” at the beginning of their entries. For example, 77°C must be entered as 0-7-7. 3. Touch START. The upper oven display will show the “TIME” prompt. 4. Touch number pads to enter length of time to cook, in hours and minutes, up to 4 hours. 5. Touch START. The upper oven display will count down the cook time. Each time the door is opened during cooking, the START pad must be touched to restart cooking. When the cycle ends, “End” will appear in the display, 4 endof-cycle tones will sound, and then reminder tones will sound every minute. 6. Touch UPPER OVEN OFF/CANCEL or open the door to clear the display.

MICROWAVE COOK CHART These times are approximate and may need to be adjusted to suit individual taste.

FOOD COOK TIME (in min and sec)

COOK POWER Bacon (per slice)

Ground Beef for Casseroles (1 lb [0.45 kg])

Ground Beef Patties (2) Ground Beef Patties (4)

Side 1: 2:00, Side 2: 1:30-2:00 Side 1: 2:30, Side 2: 2:00-3:00

Meat Loaf (1¹⁄₂ lbs [0.7 kg])

Chicken Pieces Internal temperature should be 185ºF (85ºC) after standing.

6:00-9:00 per 1 lb (454 g)

Turkey Breast Internal temperature should be 185ºF (85ºC) after standing.

5:00, then 8:00-12:00

Meats, Poultry, Fish, Seafood

FOOD COOK TIME (in min and sec)

Scallops and Shrimp (1 lb [0.45 kg])

Corn on the Cob (2) Corn on the Cob (4)

4:00-9:00 6:00-16:00

Potatoes, Baked (4 medium)

Applesauce (4 servings)

Chocolate (melt 1 square)

Eggs, Scrambled (2) Eggs, Scrambled (4)

Hot Cereals (1 serving) Hot Cereals (4 servings)

Water for Beverage (1 cup [250 mL]) Water for Beverage (2 cups [500 mL])

MICROWAVE REHEAT CHART These times are approximate and may need to be adjusted to suit individual taste. If using Broil to reheat, do not cover food.

FOOD/STARTING TEMPERATURE COOK TIME (in min and sec)

COOK POWER Meat (Chicken pieces, chops, hamburgers, meat loaf slices) 1 serving, refrigerated 2 servings, refrigerated

Meat Slices (Beef, ham, pork, turkey) 1 or more servings, room temperature 1 or more servings, refrigerated

0:45-1:00 per serving 1:00-3:00 per serving

Stirrable Casseroles and Main Dishes 1 serving, refrigerated 2 servings, refrigerated 4-6 servings, refrigerated

2:00-4:00 4:00-6:00 6:00-8:00

Non-stirrable Casseroles and Main Dishes 1 serving, refrigerated 2 servings, refrigerated 4-6 servings, refrigerated

5:00-8:00 9:00-13:00 13:00-16:00

Soup, Cream 1 cup (250 mL), refrigerated 1 can (10 oz [284 mL]), room temperature

Soup, Clear 1 cup (250 mL), refrigerated 1 can (10 oz [284 mL]), room temperature

PREPARATION Cover loosely.

Cover with gravy or wax paper. Check after 30 sec per serving. Cover. Stir after half the time.

Cover with wax paper.

Cover. Stir after half the time.

Cover. Stir after half the time.

FOOD/STARTING TEMPERATURE COOK TIME (in min and sec)

COOK POWER PREPARATION Pizza (Medium slice) 1 slice, room temperature 2 slices, room temperature 1 slice, refrigerated 2 slices, refrigerated

0:15-0:25 0:30-0:40 0:30-0:40 0:45-0:55

Vegetables 1 serving, refrigerated 2 servings, refrigerated

Baked Potato 1, refrigerated 2, refrigerated

Cut lengthwise, then several times crosswise. Cover with wax paper.

Breads (Dinner or breakfast roll) 1 roll, room temperature 2 rolls, room temperature 4 rolls, room temperature

0:08-0:12 0:11-0:15 0:18-0:22

Wrap single piece in paper towel. Place several pieces on paper towel, then cover with another paper towel.

Pie Whole, refrigerated 1 slice, refrigerated

Cover. Stir after half the time.

OVEN CARE General Cleaning IMPORTANT: Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products. Soap, water and a soft cloth or sponge are suggested first unless otherwise noted. Average soil STAINLESS STEEL (on some models) ■ Mild, nonabrasive soaps and detergents: Cleaning Method: NOTE: To avoid damage to stainless steel surfaces, do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel-wool pads, gritty washcloths or some paper towels. Damage may occur to stainless steel surfaces, even with onetime or limited use. ■ Stainless Steel Cleaner and Polish Part Number 31462 (not included): See “Assistance or Service” section to order. ■

Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.

Vinegar for hard water spots.

Rinse with clean water and dry with soft, lint-free cloth. Heavy soil Mild, nonabrasive soaps and detergents:

Heat 1 cup (250 mL) of water for 2 to 5 minutes in oven. Steam will soften soil. Rinse with clean water and dry with soft, lint-free cloth. Odors Lemon juice or vinegar:

Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either lemon juice or vinegar for 2 to 5 minutes in oven.

TURNTABLE MICROWAVE OVEN DOOR EXTERIOR ■

Glass cleaner and paper towels or nonabrasive plastic scrubbing pad: Apply glass cleaner to soft cloth or sponge, not directly on panel.

Replace turntable immediately after cleaning. Do not operate the microwave oven without the turntable in place. ■ Mild cleanser and scouring pad

All-Purpose Appliance Cleaner Part Number 31662 (not included): See “Assistance or Service” section to order.

MICROWAVE OVEN CAVITY To avoid damage to microwave oven cavity, do not use soapfilled scouring pads, abrasive cleaners, steel-wool pads, gritty washcloths or some paper towels. On stainless steel models, rub in direction of grain to avoid damaging. The area where the oven door and frame touch when closed should be kept clean.

Mild cleanser and scouring sponge

TROUBLESHOOTING Try the solutions suggested here first in order to avoid the cost of an unnecessary service call. Nothing will operate ■

Has a household fuse blown, or has the circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

Is the appliance wired properly? See Installation Instructions.

Turntable rotates both directions ■

Display shows messages ■

Is the display showing “PF,” “PF id=27” or “PF id=30”? There has been a power failure. Clear the display. See “Display(s)” section. On some models, reset the clock, if needed. See “Clock” section.

Is the display showing a letter followed by a number? Clear the display. See “Display(s)” section. If it reappears, call for service. See “Assistance or Service” section.

Microwave Oven will not operate ■

Is the door completely closed? Firmly close door.

Is the electronic oven control set correctly? See “Electronic Oven Control” section.

On some models, is the Control Lock set? See “Control Lock” section.

On some models, is the Sabbath Mode set? See “Sabbath Mode” section.

On combination oven models, is the lower oven selfcleaning? The upper oven will not work during the lower oven SelfCleaning Cycle. Is the magnetron working properly? Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does not heat, call for service. See “Assistance or Service” section.

This is normal and depends on motor rotation at beginning of cycle.

Display shows time countdown, but is not operating ■

Is the Timer in use? See “Timer” section.

Tones are not sounding ■

Are tones disabled? See “Tones” section.

Smoke is coming from oven vent during broiling ■

Some smoke is normal and occurs just as in conventional broiling.

Oven makes humming noise Sparking during broiling This is normal and occurs when the transformer in the magnetron cycles on.

This is normal and occurs as fat burns off from past cooking. Sparking will stop once fat is completely burned off.

Oven door looks wavy Cooking times seem too long This is normal and will not affect performance.

Is the cooking power set properly? See “Microwave Cooking Power” in “Microwave Oven Use” section.

Are large amounts of food being heated? Larger amounts of food need longer cooking times.

Is the incoming voltage less than that specified in the “Electrical Requirements” section? Have a qualified electrician check the electrical system of the house.

Turntable will not operate ■

Is the turntable properly in place? Make sure turntable is correct side up and is sitting securely on the turntable support.

Is the turntable support operating properly? Remove turntable. Remove and replace turntable support. Replace turntable. Place 1 cup (250 mL) of water on the turntable, then restart oven. If it still is not working, call for service. See “Assistance or Service” section. Do not operate the oven without turntable and turntable support working properly.

ASSISTANCE OR SERVICE Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts If you need to order replacement parts, we recommend that you use only FSP® replacement parts. FSP® replacement parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance. To locate FSP® replacement parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A. Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Accessories Accessories U.S.A. To order accessories, call the Whirlpool Customer eXperience Center toll free at 1-800-442-9991 and follow the menu prompts. Or visit our website at www.whirlpool.com and click on “Parts & Accessories.”

Broiler Pan and Grid Order Part Number 4396923

Stainless Steel Cleaner and Polish (stainless steel models) Order Part Number 31462

All-Purpose Appliance Cleaner Order Part Number 31682

Our consultants provide assistance with: ■

Features and specifications on our full line of appliances.

Accessory and repair parts sales.

Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).

Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide afterwarranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

In Canada Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■

Use and maintenance procedures.

Accessory and repair parts sales.

Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer eXperience Centre Whirlpool Canada LP 1901 Minnesota Court Mississauga, Ontario L5N 3A7 Please include a daytime phone number in your correspondence.

Please include a daytime phone number in your correspondence.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty. ITEMS EXCLUDED FROM WARRANTY This limited warranty does not cover: 1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase. 6. Any food loss due to refrigerator or freezer product failures. 7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty. 8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance. 9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. 11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance. The cost of repair or replacement under these excluded circumstances shall be borne by the customer. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” you may find additional help by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, 9/07 call 1-800-807-6777. Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

ALIMENT CODE QUANTITÉ OU POIDS - INSTRUCTIONS Hot dogs
