WC6521 - Wine cellar Caple - Free user manual and instructions

Product Type	Wine Cabinet (Dual-zone)
Brand	Caple
Model	WC6521
Upper Compartment Temperature Range	5°C - 10°C
Lower Compartment Temperature Range	10°C - 18°C
Control Type	Touch control
Interior Light	LED, auto-off after 10 minutes (or continuous mode via hold key)
Light Source Energy Class	G
Refrigerant	R600a (flammable)
Power Supply	13 amp plug with earth wire
Ambient Operating Temperature	16°C - 32°C
Defrost System	Auto-cycle (automatic defrost)
Humidity System	Removable water reservoir for maintaining humidity
Alarm Functions	Open door alarm (after 5 min), temperature alarm (HI >23°C or LO <0°C)
Temperature Memory	Retains set temperature after power interruption
Door Reversibility	Yes, reversible hinge
Built-in Capability	Yes, requires ventilation and not flush (door opens 90°)
Shelves	Sliding shelves with notches to prevent bottle falls
Leveling Legs	Adjustable front leveling leg
Spare Parts Availability	Min. 7-10 years (depending on component)

Frequently Asked Questions - WC6521 Caple

How do I set the temperature on my Caple WC6521 wine cabinet?

Use the touch control keys: press the △ key to lower the upper compartment temperature (5-10°C) and the ▽ key to lower the lower compartment temperature (10-18°C). Each press changes by 1°C.

What do I do if the wine cabinet does not turn on?

Check that the unit is plugged in, the power is on (hold the ON/OFF key for 3 seconds), and the circuit breaker has not tripped. If the problem persists, contact Caple Service.

How can I keep the interior light on continuously?

Press and hold the key for 5 seconds until the display shows 'LP'. The light will remain on until manually switched off. To revert to auto-off, hold the key again for 5 seconds until 'LF' appears.

What does the 'HI' or 'LO' error message mean?

'HI' indicates the internal temperature is above 23°C; 'LO' indicates below 0°C. The alarm will sound. Close the door, reduce loading, and allow the cabinet to stabilize.

Can I install the wine cabinet under a counter?

Yes, the WC6521 can be built in. Ensure the hinge is aligned with the front edge of the kitchen cabinet and that ventilation openings are not obstructed. The door needs clearance to open 90°.

How do I reverse the door opening direction?

Tilt the cabinet 45°, remove the lower hinge screws, then the upper hinge. Remove the door, rotate it 180°, and transfer the magnet and location plate to the opposite side. Reattach hinges and adjust the limited block.

Why is my wine cabinet making gurgling or popping noises?

These sounds are normal. Gurgling comes from refrigerant flow; popping/crackling from expansion and contraction of inner walls. Ensure the cabinet is level to minimize vibrations.

How do I clean the wine cabinet?

Turn off and unplug. Remove all items. Wash interior with a solution of 2 tablespoons baking soda per 2 pints warm water. Clean shelves with mild detergent. Wipe exterior with warm water and mild detergent. Do not use flammable fluids.

What should I do during a long holiday?

Remove all contents, turn off the unit, clean and dry thoroughly. Leave the door slightly open to prevent odor and mold. Use a block if necessary.

Where can I find spare parts for the WC6521?

Original spare parts are available for a minimum of 7-10 years from product launch. Contact Caple Service at 0117 938 1900 or visit www.caple.co.uk.

USER MANUAL WC6521 Caple

In Column Wine Cabinet Instruction Manual

WC6511 & WC6521

Interior view of a modern kitchen with dark blue cabinets and a glass refrigerator filled with wine bottles, featuring wooden cutlery on a wooden floor (no text or symbols visible)

CONTENTS

Introduction 3

Warnings 4

Electrical Shock Hazard 5

Environmental Protection 7

Installation 8

Operating Your Wine Cabinet 10

Control Panel 11

Using the Shelves 12

Functions 13

Storage Diagram 14

How to Change the Door 15

Installation for Built-in 17

Care and Maintenance 19

Troubleshooting 21

Recommended Temperatures 23

Caple Contact Details 24

Thank you for choosing this Caple Wine Cabinet.

To ensure that you get the best results from your new wine cabinet, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble-free use.

To register ownership, please ensure you complete and return the guarantee card supplied with the appliance or visit www.caple.co.uk and register here.

This instruction manual is designed to provide you with all the required information related to the installation, use and maintenance of the appliance.

Please read this manual carefully before using your appliance. It contains important safety advice; it explains how to use and look after your appliance so that it will provide you with many years of reliable service.

Should a fault arise, please first consult the "Troubleshooting" section. You can often rectify minor problems yourself, thus saving unnecessary service costs.

Please keep this manual in a safe place and pass it on to new owners for their information and safety.

WARNINGS

• To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord and move your cabinet to its final location. Do not move your cabinet while loaded with wine as you may distort the body.
• The wine cabinet should be installed in a suitable place in order to avoid touching the compressor.
• After unpacking, make sure that the appliance is in perfect order. If you have any doubt, do not use it and contact your retailer.
• If the supply cord is damaged, it must be replaced by a Caple service agent or a similarly qualified person in order to avoid a hazard.
• This product is not designed for commercial use, it is a household appliance only.
• This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments.

Farm Houses.

By clients in hotels, motels and other residential type environments.

Bed and breakfast type environments.

- This appliance is intended to be used exclusively for the storage of wine.

IMPORTANT

Caple cannot be held liable for any non compliance with these instructions.

ELECTRICAL SHOCK HAZARD

• Read all instructions before using the wine cabinet.
• DANGER or WARNING: Risk of child entrapment.
• Before you throw away your old wine cabinet: Take off the door, leaving the shelves in place so that children cannot easily climb inside.
• Never allow children to operate, play with, or crawl inside the appliance.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• The refrigerant of this appliance is R600a, flammable and explosive articles should not be put in or near the cabinet, to avoid the risk of fire or explosion.
• Cleaning and user maintenance shall not be made by children without supervision.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Do not use plug adapter.

- Store wine in sealed bottles.

- Do not overload the cabinet.

- Do not open the door unless necessary.

- Do not cover shelves with aluminium foil or any other shelf material which may prevent air circulation.

- Should the wine cabinet be stored without use for long periods it is suggested, after careful cleaning, to leave the door ajar to allow air to circulate inside the cabinet in order to avoid possible formations of condensation, mould or odours.

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not damage the refrigerant circuit.

- Do not use electrical appliances inside the storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Symbol ISO 7010 W021

Warning; Risk of fire / flammable materials

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European Directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.

CE DECLARATIONS OF CONFORMITY CE

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY UK CA

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.caple.co.uk

WARRANTY

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you must provide the following information to your retailer in order to receive a replacement: date of purchase, model and serial number (placed on the inside of the appliance storage drawer).

Registration can also be completed online by visiting www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.

If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

BEFORE USING YOUR WINE CABINET

Remove the exterior and interior packing.

IMPORTANT

Before connecting the wine cabinet to the power source, let it stand upright for at least 12 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

Clean the interior surface with lukewarm water using a soft cloth.

Make sure to turn the unit off and unplug it from the outlet.

NOTE

To protect the appliance in transit and delivery the door is packed tightly against the cabinet. When first installed this can mean the door seal appears thinner on one side of the door due to compression, this is normal and once out of the box it will relax over a short period of time and the door will return to the normal position. If you wish to speed up the process you can gently warm the seal with a hair dryer on a low temperature setting. This can help relax the seal helping it return to normal thickness a little faster.

INSTALLATION OF YOUR WINE CABINET

Place your wine cabinet on a floor that is strong enough to support it when it is fully loaded.
To level your wine cabinet, adjust the front levelling leg at the bottom of the cabinet.
Ensure it is perfectly level, as this will minimise any vibrations.
This appliance uses flammable refrigerant. Never damage the cooling pipework during transportation.
Locate the wine cooler away from direct sunlight and sources of heat (ovens, hobs, heaters, radiators, etc.) and do not install in the same furniture housing as an oven or other heating appliance. Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. When disposing your appliance, please choose an authorised disposal site.

Avoid locating the unit in moist areas.
It is fitted with a power cord having an earth wire terminating in a 13amp plug.
Ensure the product is correctly ventilated (see page; 18).
Consult a qualified electrician or service engineer if the earthing instructions are not completely understood.
Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) pin from the plug. Any questions concerning power and/or grounding should be directed toward a certified electrician or Caple service.

WARNING

Incorrect earthing can result in the risk of electric shock.

Please use the cabinet within ambient temperatures between 16-32°C, if the ambient temperature is higher or lower than this, it will cause the temperature to fluctuate in the cabinet, possibly preventing it from reaching 5-18°C.

SETTING THE TEMPERATURE

The temperature setting is range as below:

Upper compartment: 5 - 10°C

Lower compartment: 10 - 18°C

When the system enters the temperature set up. With each press on the △ key, the temperature setting of the upper zone will decrease by 1 °C. When the temperature setting reaches the lower limit of 5°C, the temperature will return to 10°C. Each press on the ▽ and the temperature setting of the lower zone will decrease by 1°C. When the temperature setting reaches the lower limit 10°C, the temperature will return to 18°C.
If you wish to view the actual temperature inside the wine cabinet. Please press the or key and hold for 3-5 seconds. The actual temperature of the upper zone or the lower zone will be displayed on the control board. After 5 seconds the temperature will return to display the set temperature.
Flashing LED = Cabinet Temperature
Steady LED = Set Temperature

NOTE

If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the wine cabinet will not start.

When you use the wine cabinet for the first time or you restart the cabinet after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the wine cabinet has been running for a few hours everything will be back to normal.

○ Indicator light illuminates to signify the cooling mode is currently in operation

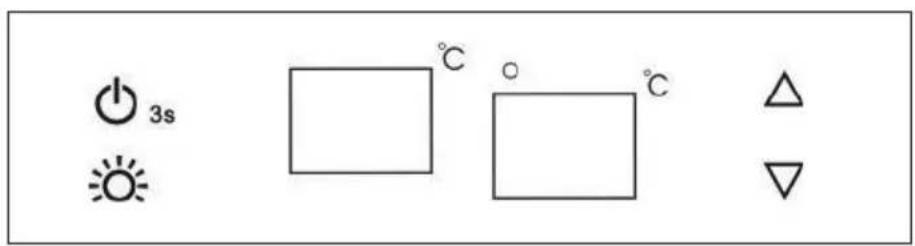

TOUCH CONTROL KEYS

Switches the interior light ON/OFF

To switch the appliance ON/OFF (press and hold this buttons for approximately 3 seconds)

This button controls the upper compartment temperature zone. Each press of the button will decrease the temperature in increments of 1^ C. When the temperature reaches the minimum 5^ C it jumps up to the maximum of 10^ C.

This button controls the lower compartment temperature zone. Each press of the button will decrease the temperature in increments of 1^ C. When the temperature reaches the minimum 10^ C it jumps up to the maximum of 18^ C.

UPPER WINDOW

Displays the temperature in the upper compartment.

LOWER WINDOW

Displays the temperature in the lower compartment.

INTERNAL LIGHT

In order to reduce energy consumption, the LED light within this wine cabinet will automatically switch off after 10 minutes. If you would prefer the LED light to remain on continuously, this is possible. Please press and hold the 🔍 key for 5 seconds, the display will show "LP". After 4 seconds the display will revert back to normal and the light will remain on until manually switched off. If you would like to revert back and conserve energy (recommended), press and hold the 🔍 key for 5 seconds, the display will show "LF". After 4 seconds the display will revert back to normal, and the light will automatically switch off when the door is closed.

LIGHT SOURCE ENERGY CLASS

This product contains a light source of energy efficiency class G.

NOTE:

The light must be replaced by qualified personnel. For instructions on how to replace the light, please contact Caple Service or visit our website.

USING THE SHELVES

To prevent damaging the door gasket, make sure to have the door fully opened when pulling shelves out of the rail compartment.

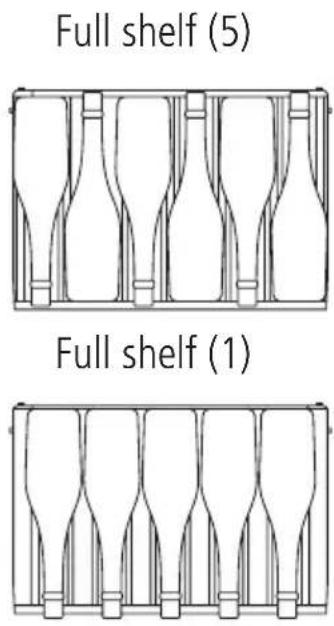

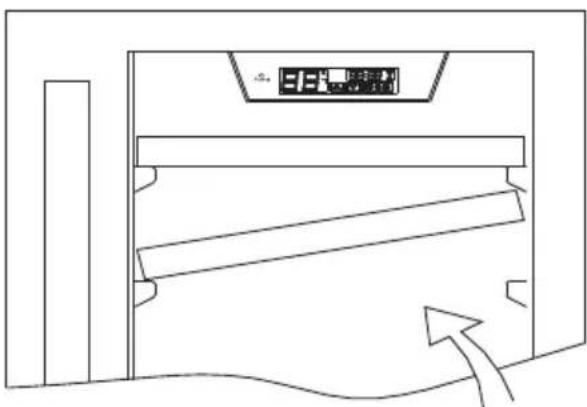

For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail compartment, however this unit was designed with a notch on each sides of the shelf tracks to prevent bottles from falling.

When removing any of these shelves out of the rail compartment, tilt the shelf as per the diagram and simply pull out, or push in the shelf until it sits on the support brackets securely.

Line drawing of a computer monitor with an open lid and scroll, showing no text or symbols

Scan the QR code below to access the 'How to video'

CAUTION

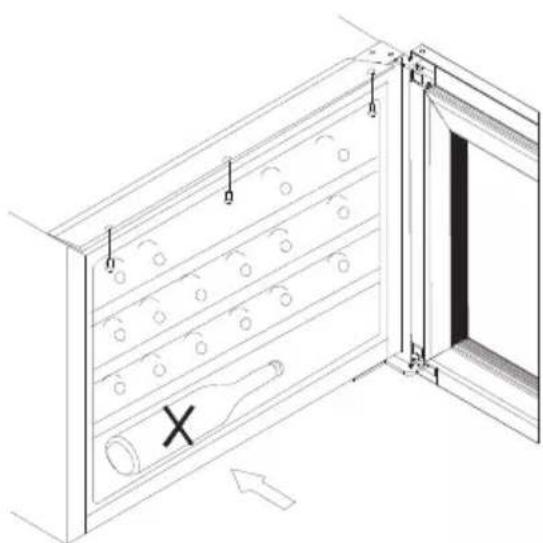

Do not store bottles crossways on the interior floor. Otherwise, bottles may fall out when the appliance door is opened and this may cause injury or material damage.

Technical line drawing of a door frame with internal compartments and a handle, showing no text or symbols

TEMPERATURE MEMORY FUNCTION

In the event of a power interruption, the wine cabinet can remember the previous temperature setting, and when the power is recovered, the cabinet temperature will go back to the same setting as when the power went off.

OPEN DOOR ALARM

When you the door is left open or the door is not closed completely, the alarm will sound after 5 minutes. Please close the door completely and avoid the loss of cold energy.

TEMPERATURE ALARM

If inner temperature is higher than 23^ C, “HI” is shown on the display panel, and the alarm will sound after one hour. It will inform that the inner temperature is too high, please check the reason. If inner temperature is lower than 0^ C, “LO” is shown on the display panel, the alarm will sound and the malfunction indicator light will be on at the same time.

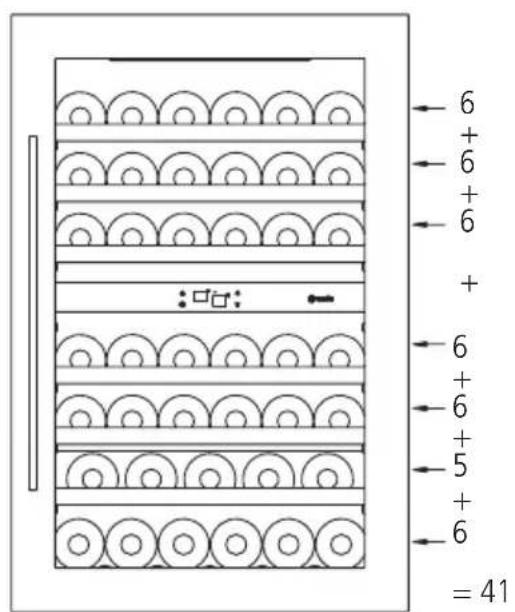

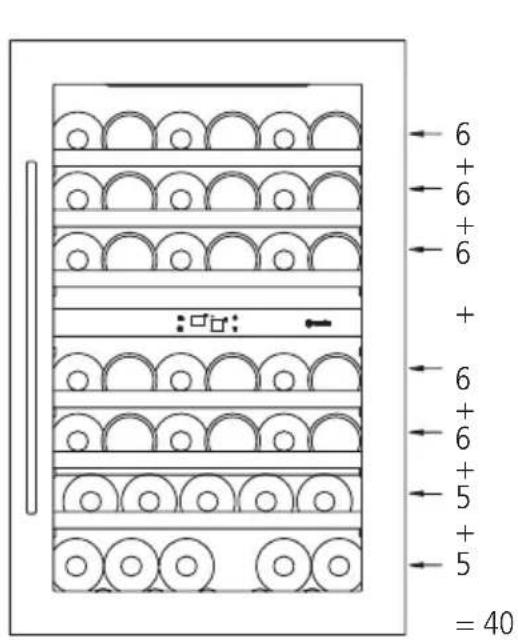

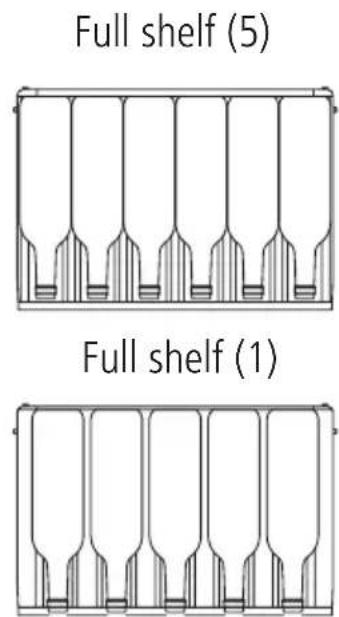

STORAGE DIAGRAM

HOW TO CHANGE THE DOOR OPENING

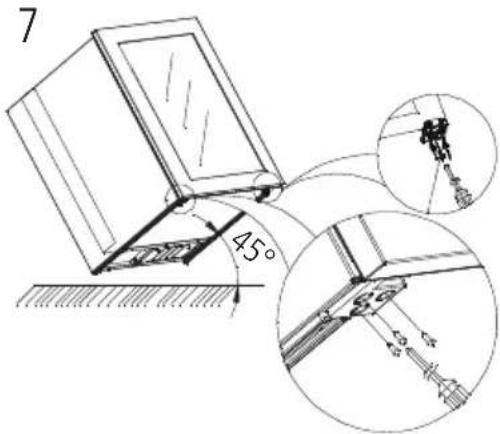

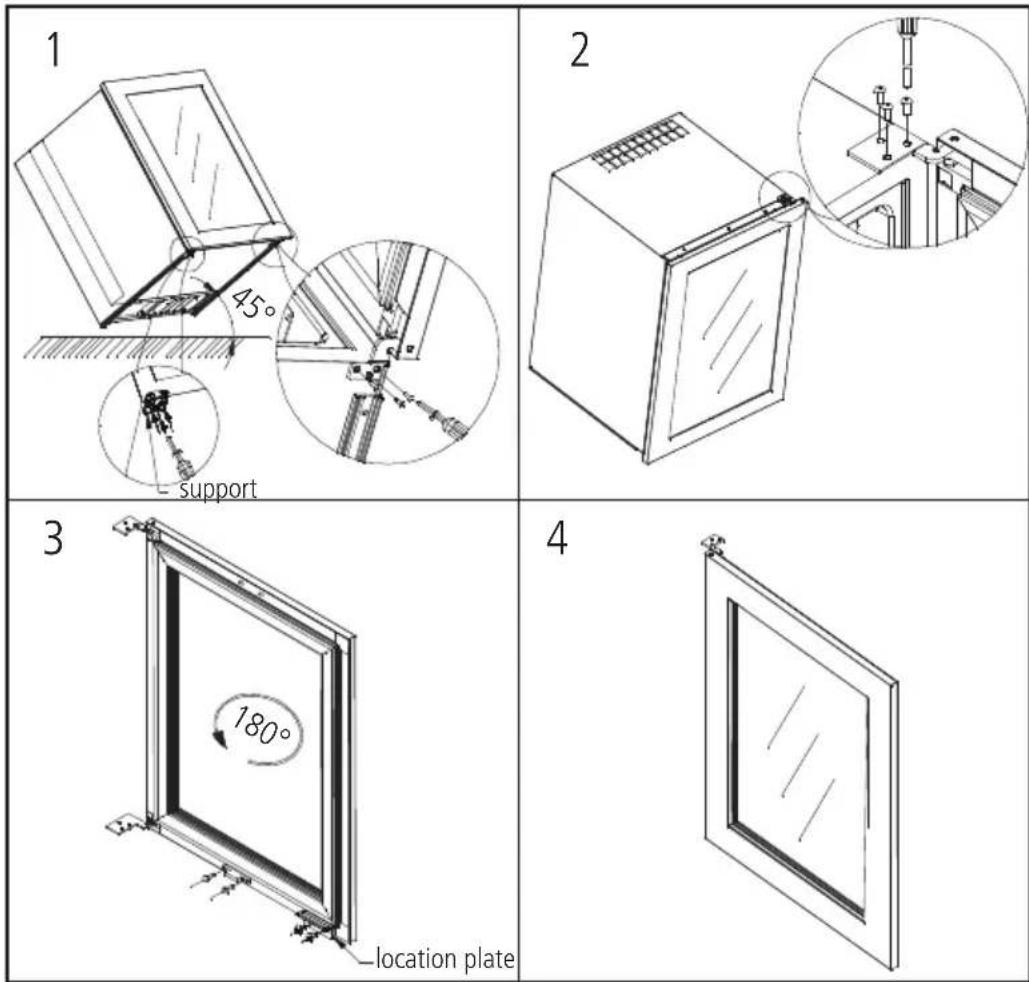

1. Incline the wine cooler with 45 degrees, take out right lower hinge's screws and supports screws with screwdriver. (Fig.1)

2. Level the wine cooler. Hold the door and take out right upper hinge's screws with screwdriver, then take out the door, put the door down safely, unscrew 2 screws at bottom and remove the magnet, then install at top of frame, and take out the location-plate's screws and fix location-plate on the other side, and rotate door at 180 degree. (Fig.2 & Fig.3 & Fig.4)

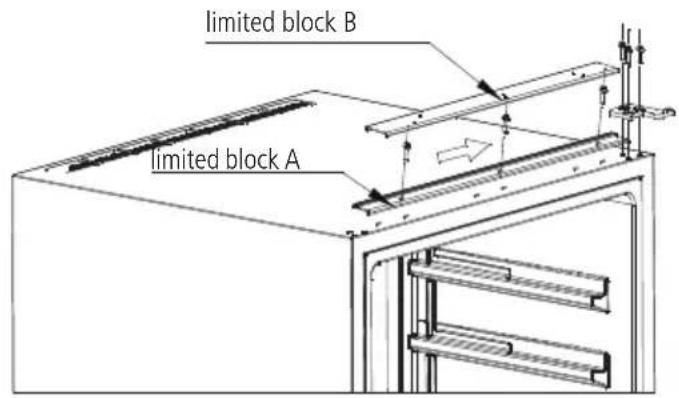

3. Remove limited block B as per the arrows in picture, then release all the screws on limited block A, and take away limited block A. Install the limited block A at the right side with screws, then install limited block B, then fit the door with screws, then fix the support on the lower right side. (see Fig.5 & Fig.6 & Fig.7)

NOTE

Once door reversal complete please check and ensure door magnet is at the bottom of door.

5

Technical line drawing of a refrigerator with an inset close-up showing internal components (no text or symbols)

INSTALLATION SPECIFICATIONS FOR BUILT-IN PURPOSES

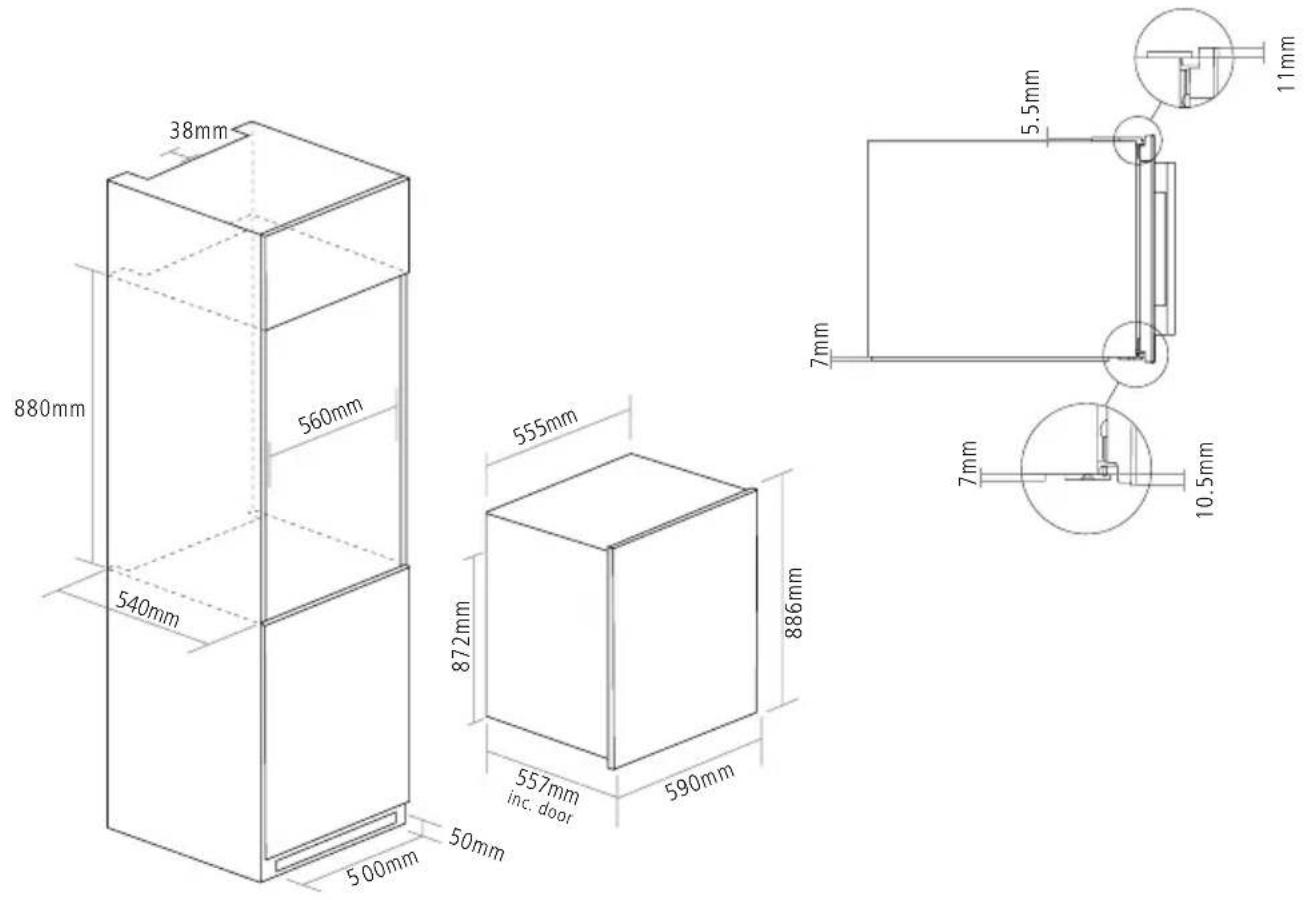

To ensure the Wine Cabinet door is able to open fully to 90 degrees, the hinge of the Wine Cabinet should be inline with the front edge of the Kitchen Cabinet shelf.

NOTE

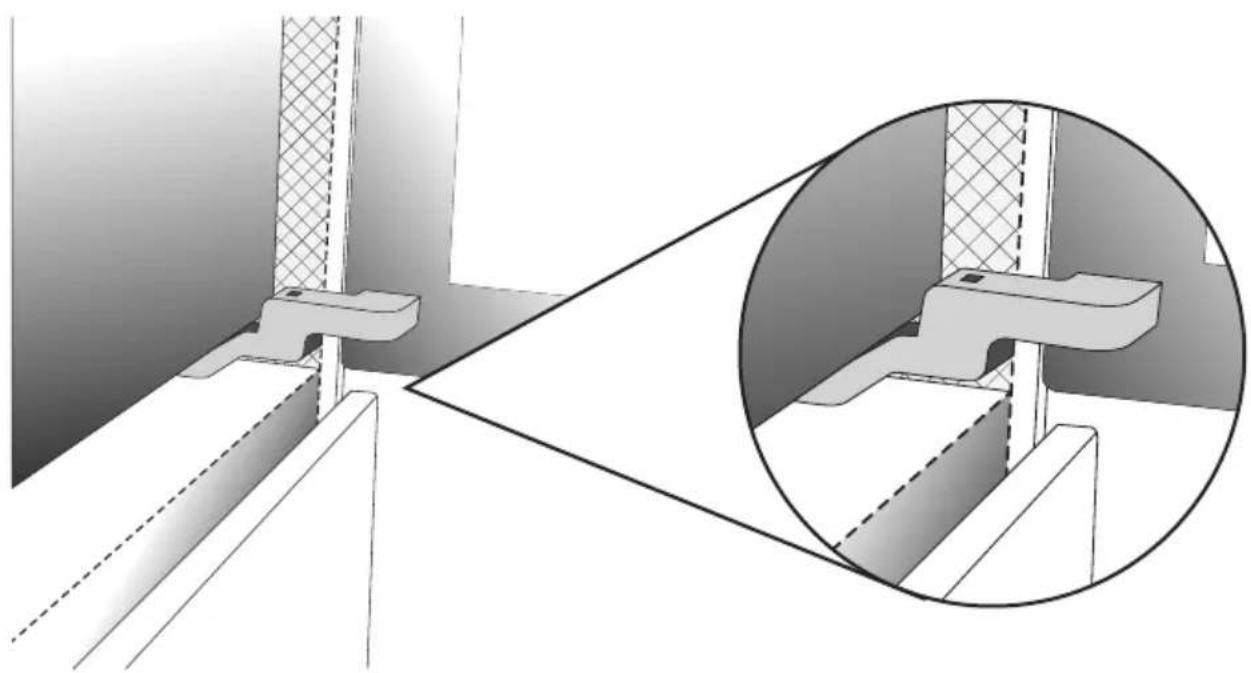

This Wine Cabinet is not designed to be fitted flush, due to the difference in kitchen furniture door depths. Pushing the Wine Cabinet too far into the kitchen cabinet will prevent the Wine Cabinet door from opening fully and may cause damage.

Technical illustration of a mechanical assembly with cross-sectional and top views (no text or symbols)

This diagram is based on the side panel and shelf of the kitchen cabinet being in line with one another.

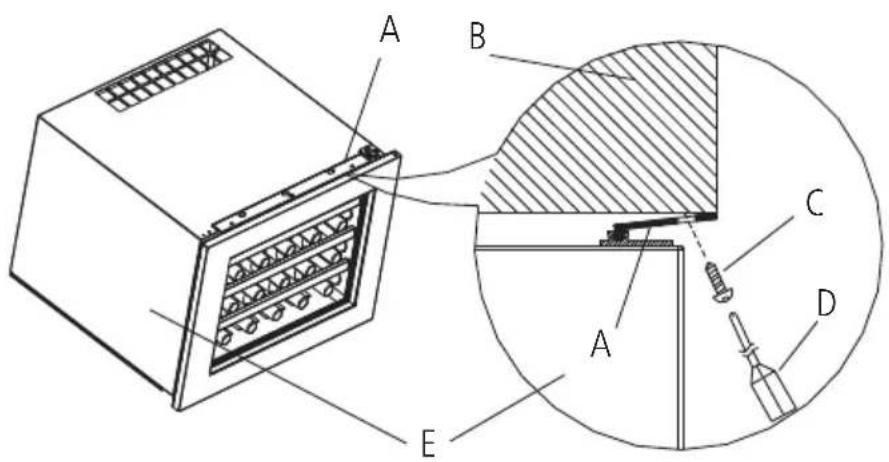

1. After installing the wine cooler into the kitchen cabinet, please adjust limited block (a) close to kitchen cabinet (b).

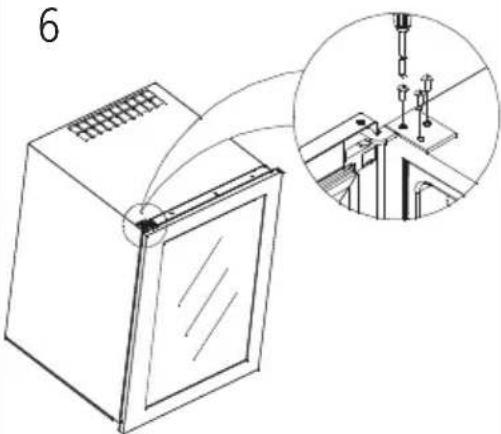

2. Please fix the 3 pcs screws through the limited block (a) screw hold into kitchen cabinet (b), please find below picture for reference.

A. Limited block

B. Kitchen cabinet

C. Screw

D. Screwdriver

E. Wine cabinet

NOTE

Ensure the product is correctly ventilated.

CLEANING YOUR WINE CABINET

Turn off the power, unplug the appliance, and remove all items including shelves and rack.
Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to 2 pints of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimise the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take the proper steps to protect your contents.

HOLIDAY

SHORT HOLIDAYS: Leave the wine cabinet operating during holidays of less than three weeks.

LONG HOLIDAYS: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly (blocking it open if necessary).

MOVING YOUR WINE CABINET

Remove all items.
Securely tape down all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

ENERGY SAVING TIPS

The wine cabinet should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

CLOSING THE DOOR

Close the door with care as slamming the door puts excess stress on the appliance and can cause the door to bounce open slightly. If this is not noticed, it can cause excess moisture to build up in the cabinet which in extreme cases can lead to the evaporation tray overflowing.

You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling Caple Service.

PROBLEM POSSIBLE CAUSE
The wine cabinet does not operate	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
The wine cabinet is not cold enough	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
The compressor turns on and off frequently	The room temperature is hotter than normal.A large amount of contents has been added to the wine cabinet.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is "OFF".
Vibrations Check that the appliance is	even
The Wine cabinet seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your wine cabinet.Contraction and expansion of the inside walls may cause popping and crackling noises.The wine cabinet is not level.
The door will not close properly	The wine cabinet is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.
Alarm / Beeping The door magnet must be at the bottom.

If the above table has not solved the problem please contact Caple Service by phone on 0117 938 7420 or by email [e-mail].

DEFROSTING/CONDENSATION

Your wine cabinet is designed with an "Auto-cycle" defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cabinet (interior rear wall) defrosts automatically. The defrosted water is channelled into a drain pan which is located at the back of the cabinet next to the compressor from where it evaporates.

HUMIDITY SYSTEM

The wine cabinet is equipped with a system for maintaining the correct level of humidity. If humidity is too low, insert the small plastic reservoir on to the top shelf. Fill this reservoir 3/4 full with water. Check the water level occasionally and refill as necessary.

SPARE PARTS AVAILABILITY

The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

For more info and to order spares, please contact Caple service or visit our website www.caple.co.uk.

RECOMMENDED STORAGE TEMPERATURES:

DRINK TYPE	RECOMMENDED TEMPERATURE
For storing all types of wines	12°C to 14°C

RECOMMENDED DRINKING TEMPERATURES:

DRINK TYPE	RECOMMENDED TEMPERATURE
Champagne NV, Sparkling 6°C
Champagne Vintage 10°C
Dry White Semillon, Sauvignon Blanc 8°C
Dry White Gewürztraminer, Riesling 10°C
Dry White Chardonnay 10°C
Vintage Chardonnay 14°C
Sweet White Sauternes Monbazillac, Late Harvest ice wine	10°C
Sweet whites vintage Sauternes 14°C
Beaujolais 13°C
Red Pinot Noir 16°C
Vintage Pinot Noir red 18°C
Red Cabernet, Merlot, French, Australian, New Zealand, Chilean, Argentinean, Italian, Spanish, Californian	18°C
Red Grenache, Syrah 16°C

caple

Caple Service

Fourth Way

Avonmouth

Bristol

BS11 8DW

T: 0117 938 1900

E: [e-mail]

www.caple.co.uk
