SB33 - Blender BLACK & DECKER - Free user manual and instructions

Product Type	Blender
Brand	Black & Decker
Model	SB33
Dimensions (H x W x D)	14.5 x 6.5 x 6.5 in (36.8 x 16.5 x 16.5 cm)
Weight	3.2 lb (1.45 kg)
Power Rating	350 watts
Voltage	120 V, 60 Hz
Jar Capacity	40 oz (1.2 L)
Jar Material	Glass
Number of Speed Settings	2 speeds plus pulse
Main Functions	Blending, pureeing, mixing, chopping
Safety Features	Locking lid, non-slip base
Blade Material	Stainless steel
Cord Length	3 ft (0.9 m)
Dishwasher Safe Parts	Jar, lid, blade assembly (top rack)
Cleaning Instructions	Wipe base with damp cloth; wash jar and lid in warm soapy water
Storage	Compact design, cord wrap
Warranty	2-year limited warranty
Replacement Parts Availability	Jar, lid, blade assembly, gasket available
Repairability	User-replaceable blade assembly and jar

Frequently Asked Questions - SB33 BLACK & DECKER

How do I clean the Black & Decker SB33 blender?

Unplug the blender. Remove the jar and lid. Wash the jar, lid, and blade assembly in warm soapy water or place on the top rack of the dishwasher. Wipe the motor base with a damp cloth. Do not immerse the base in water.

Can I crush ice with the SB33 blender?

Yes, the SB33 can crush ice using the pulse function. Add ice cubes, cover with a little water, and pulse until desired consistency.

Why is my blender not turning on?

Ensure the blender is plugged into a working outlet. Check that the jar is properly seated on the base and the lid is locked. The blender will not operate unless the lid is secured.

What is the maximum capacity for blending hot liquids?

Do not blend hot liquids above 140°F (60°C). Allow liquids to cool before blending. Never fill the jar more than halfway when blending hot ingredients.

How do I replace the blade assembly?

To replace the blade assembly, unscrew the bottom of the jar (turn counterclockwise). Remove the old blade assembly and gasket. Install the new blade assembly with the gasket and screw the bottom back on securely.

Can I use the blender to grind coffee beans or nuts?

The SB33 is not designed for dry grinding. It may damage the blades. For nuts, use small amounts with liquid. For coffee beans, consider a dedicated grinder.

What should I do if the lid leaks?

Check the lid gasket for cracks or misalignment. Ensure the lid is pressed down firmly and twisted to lock. If the gasket is damaged, replace it with a new one.

Is the blender jar microwave safe?

No, the glass jar is not microwave safe. Do not place the jar in a microwave oven.

How do I use the pulse function?

The pulse function gives short bursts of power for controlled chopping. Press and hold the pulse button for 1-2 seconds, then release. Repeat as needed.

What does the non-slip base do?

The non-slip base prevents the blender from moving on the counter during operation, providing stability and safety.

USER MANUAL SB33 BLACK & DECKER

Line drawing of a blender with a cord and handle, no text or symbols present

FirstUseSafetyRecommendation

Pleasereadthroughthisbookletforsafeandefficientuseofthe appliance.Weurgeyoutoreadthe"ImportantSafeguards" sectionandalsofollowalldetailedinstructionsevenifyouare familiarwithasimilarappliance.

Keepthisguidehandyforfuturereference.

IMPORTANTSAFEGUARDS

While using electrical appliances, inordertoreducetheriskoffire, electricshock, and/or injury topersons, basicsafety precaution should be followed, including the following:

- Readallinstructionscarefully,evenifyouarefamiliarwiththeappliance. Toprotectagainsttheriskofelectricshock,DONOTIMMERSEtheappliance, cordsetorpluginwaterorotherliquids.

- Toclean, wipethe exterior with adampcloth and then wipedry.

- Closesupervisionisnecessarywhenanyapplianceisusednearchildren, Never leaveanyapplianceunattendedwheninuse.Donotallowchildrenoranyperson unfamiliarwiththeseinstructionstousetheappliance.

- Switchoffandremovetheplugfromthepoweroutletwhennotinuse, before assemblingordisassemblingpartsorduringcleaning. Neverpullthecord.

- Donotoperateanyappliancewithadamagedcordorplug,oraftertheappliance malfunctions,orisdroppedordamagedinanymanner.Returnthecomplete appliancetoyournearestauthorizedservicefacilityforexamination,electricalrepair, mechanicalrepairoradjustmenttoavoidanyhazard.

- Theuseofanyattachmentsoraccessoriesnotrecommendedorsoldbythis appliancemanufacturermayresultinfire,electricshockorpersonalinjury.

- Donotletthecordhangovertheedgeofatable,counter,ortouchhotsurfaces. Guidethepowersupplycordneatlysoitdoesnothangovertheedgeofa workshopandcannotbecaughtaccidentallyortrippedover.

- Donotoperateorplaceanypartofthisapplianceonornearanyhotsurfaces(suchaselectricburnerorinaheatedoven)

- Donotabusethecord.Nevercarrytheappliancebythecordoryankonitto disconnectitfromtheoutlet;instead,grasptheplugandpulltodisconnect.

- Whenusinganextensioncordwithyourappliance,makesuretheextensioncordis correctlywired,andratedforitsuse.

- Donotattempttorepairtheapplianceyourself;instead,takeittoyourBlack&Decker-ownedorAuthorizedServiceCentrefor repair.

- Donotallowchildrenoranimalstocomeneartheworkareaortotouchthe applianceorpowersupplycord.

SAVETHESEINSTRUCTIONS

YourStickBlenderFeatures

• 500mlmeasuringbeakeridealfordailyusage
• Singlepulsespeedoperationforbetterspeedcontrol.
• Stainless Steel multi functional blade ensures high efficiency and easy cleaning.
• WallBracket(accessory)providesforconvenientstorage.
  •BalloonWisk(SB34/35)forwhippingoperations
• ChopperBowl(SB35)forfastandconvenientchoppingoperations
• Detachable Plastic (SB 33 / 34) Metal (SB35) stem for easy reach and blending operations.
  •300WPowermotorforperformingtoughestofallJobs.
• Softrubbergrip(SB35)foreasyandcomfortablegrip.

PartsIdentification:-

1. PulseSpeedSwitch
2. Release buttons
3. Chopperlid(SB34&SB35)
4. Chopperblade(SB34&SB35)
5. Chopperbowl(SB34&SB35)
6. Plasticstem(SB33&SB34)
7. Metalstem(SB35)
8. Measuring jug
   9.AllPurposeCuttingblade
9. Whiskingattachment(SB35)
10. WallMountingBracket

Line drawing of a hairbrush with a spool, labeled with number 10 (no text or symbols on the object itself)

IntendedUse:-

YourBlack&Deckerstickblendersethasbeendesignedforblending,whisking,beating, whippingandchoppingfoodandbeverageingredients.Thisproductisintendedforindoor householduseonly.

BeforeusingyourStickblender:-

Remove all the packaging from the set. Wipethe appliance with adrycloth before using.

Makesurethattheapplianceisswitchedoffbeforeconnectingtoordisconnecting fromthepowersupply.

Ensure that the voltage rating on the base plate corresponds to themains voltage at your home.

Fittingandremovinganattachment:-

• Usetheblendingattachmentforblendingliquidsormashingsolids.
• Use the whisking attachment form mixing, beating, whipping and creaming liquids and mixtures.
• Usethechopperbowlforchoppingvegetables, nuts, driedfruitsetc.

BlendingandWhiskingSB35

• Tofitanattachment, placeitontothe appliance.
• Presstheattachmentuntilitlocksinplace.
• Toremovetheattachment, keep the release button pressed and take it off the appliance.

Line drawing of a hairdryer with two different designs, showing mechanical components and a wire brush (no text or symbols)

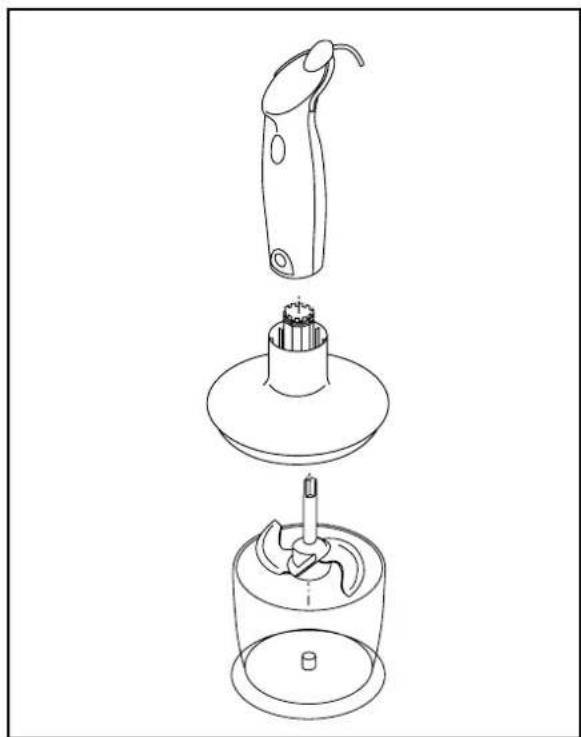

ChopperBowl:-SB34andSB35

• Holding the central plastic shaft of chopper blade carefully placethe blade over the central shaft in the bowl. Rotate the blades slightly for a proper fit on the shaft.
• Puttheingredientsintothebowl, not exceedingthe"Max"markonthe chopperbowl.
• Placethelidontothebowl
  • Fixthelidbyturningitclockwise
• Placetheapplianceontothechopperlid
• Pushtheapplianceuntililocksinplace
• Toremovetheattachment, keep the releasebuttonpressedandtakethe applianceoffthechopperassembly.
  • Toremovethelidfromthebowl, turnthe lidcounterclockwise and takeitoff.

Line drawing of a mechanical device with three views: top view, side view, and bottom view (no text or symbols)

Usage:-

Blending:-

• Placetheingredientsintothemeasuringjugorasuitablecontainer.
• Usingthestabbingmotion, pushthebladesintotheingredientsuntilthedesired consistencyisreached.
• When blending liquids or fluiding ingredients, uses hortpulse stop prevent spillage.
• Keepingthebladesubmergedwillhelptopreventspillage.
• Extracareshouldbetakenwhileblendinghotingredients
• Donotuseyourplasticstemblenderforextremelyhotingredients,asthiswill deformthestem.

Whipping:

• Placetheingredientsintothemeasuringjugorasuitablecontainer.
• Whiptheingredientsuntilthedesiredresultsareachieved.
• Keeping the whippers submerged will help to prevent spillage.
• Extracareshouldbetakenwhilewhippinghotingredients

Chopping:

• Placetheingredientsintothechopperbowl,uptothemaxlevel.
• Assemblethebowlandfitittotheappliance
• Choptheingredientsuntilthecorrectconsistencyisreached.
• Donotusethechopperperformorethanaminuteduringcontinuoususage. Keep anintervalofnearfiveminutesbetweenwoconsecutivecycles.

Refertothetableforappropriateprocessing.

	MaximumQtyPreparation	Time(s)
Meat300g(<2cmcubes)	dice15-25
Hardcheese200g(<1cmcubes)	dice20-25
Onions100g	quarter	5-10
BabyFood	170g	Cookanddice	10-20
Nuts	350g	Removeshell	8-15
Garlic	20piecesCutintopieces	10-20
DryBread	150g	Cutintopieces	10-20
Parsley	1sprig	Removestalks	1-20
Carrot	200g	Cutintopieces	10-20

Storage :-

You can store your appliance and one of the blending sticks on the wall mounting bracket provided along with the appliance.

Warning!

Do not operate the appliance continuously for more than 1 minute. After operating the appliance continuously for 1 minute,, let it cool down for atleast 5 minutes before operating it.

Some Do's and Don't

1 - Do not touch moving parts

2 – Always allow motor to stop before approaching the blades or changing any accessory.

3 – Keep your fingers, long hair, loose clothes and supply cord away from moving parts

4 - Handle the blade with care as it is sharp

5 - Never pull the power cord to disconnect the plug from the socket

6 - Keep the power supply cord away from heat, oil and sharp edges

7 - Do not place the appliance on or near heat source or in a heated oven

8 – Do not use the appliance outdoors. Always protect the motor unit from water or excessive humidity

9 - Operate the appliance only with dry hands

10- If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.

11- When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

12- Never immerse your plastic stem (SB33/34) in hot/boiling liquid.

Line drawing of a hairdryer with a whisk and plug, no text or symbols present

Line drawing of a hairdryer with a brush and straw holder, showing mechanical components (no text or symbols)

Line drawings of three different kitchen utensils or appliances, showing top, side, and bottom views (no text or symbols)

Line drawing of a handheld device with labeled ports (no text or symbols)

وصف الأجزاء:

Line drawing of a laboratory brush with a pipette and cap (no text or symbols)

Simple line drawing of a hairdryer with a whisk and bulb (no text or symbols)

الغرض من الاستعمال:

Black & Decker provides a 2 Year Warranty for this product from the date of purchase against defects due to defective materials or workmanship. Motor/element burn-outs due to voltage fluctuations are not covered under warranty. If the product should become defective within the warranty period, Black & Decker will repair or (at Black & Decker's discretion) replace it free of charge.

The warranty provisions do not cover failure due to accident, misuse, abuse, negligence or non observation of local regulations on the part of the user. Equally, the warranty provisions do not apply where the appliance has been serviced by a person not authorized by Black & Decker or serviced with non-approved parts and this has contributed to the fault of the product. Superseeded models without a replacement equivalent will either berepaired or (at Black & Decker's discretion) replaced with another product of similar retail value.

UPONPURCHASE

FillintheWarrantyRegistrationCardwiththeoriginalAuthorizedDealer'sstamp(indicatingdate ofpurchase)andattachyourpurchasereceipttoit.Retainincaseofclaimsinthefuture.

MAKINGACCLAIM

Takeyour defective product together with the Warranty Registration Card & purchase receipt to your localservice Centre. You can either do this in person or send it freight prepaid. If mailing or shipping your appliance, ensure and remove all the water and pack it carefully in asturdycarton with enough packing material to prevent damage. Include anoted describing the problem to the service Centre and besure to give your return address.

DESIGNEDFORDOMESTICPURPOSESONLY.
