USER MANUAL EDS45XS Eurom

www.euroappliances.com.au

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keep it to refer to it at a later date.
■ Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.
This user manual shall also be got from the manufacturer or responsible vendor.

1) Safety Information......1

2) Quick operation guide....2

3) Operation Instruction....3

Control Panel....3

Dishwasher Features....3

4) Prior using for the first time....4

A. Fill the Rinse Aid Dispenser....4
B. Function of Detergent ....5

5) Loading the Dishwasher Basket......7

Recommendation....7

For washing in the dishwasher the following cutlery/dishes....7

Attention before or after loading the Dishwasher Baskets....7

Removing the Dishes....7

The Method Loading Normal Dishware....8

6) Starting a washing programme....9

Wash Cycle Table....9

Turning on the Appliance....10

Change the Programme....11

At the end of the Wash Cycle....11

7) Maintenance and cleaning....11

Filtering System....11
Caring for the Dishwasher....12

8) Installation instruction....13

Positioning the Appliance....13

About Power Connection....13

Water Connection....14

Start of dishwasher....15

9) Troubleshooting Tips......16

Before calling for service....16

Error codes....17

Technical information....18

Loading the baskets according to (*AS/NZS 2007.1)

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

▲ WARNING!

■ Improper connection of the equipment-grounding conductor can result in the risk of an electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plugprovidedwiththeappliance;Ifitdoesnotfit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)
■ Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■ Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
■ When loading items to be washed:
1) Locate sharp items so that they are not likely to damage the door seal;
2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent compartment is empty after completion of the wash cycle.
- Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of the reach of children.

• Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Children should be supervised to ensure that they do not play with the appliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, since this could increase the risk of tripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
  ■ Please dispose of packing materials properly.
  ■ Use the dishwasher only for its intended function.
  ■ During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.
  ■ The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
  ■ The maximum number of place settings to be washed is 10.
  ■ The maximum permissible inlet water pressure is 1Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Quick operation guide2. Quick operation

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance	Open the door, press the On/Off button to switch on the appliance.
Fill the detergent dispenser	Compartment A:For each wash cycle.Compartment B:For programs with pre-wash only.(Follow the user instructions)
Check the rinse aid level	Mechanical indicator C.Electric indicator on control panel (if provided).
Load the baskets	Scrape off any large food particles. Soften remnants of burnt food in pans,then load the baskets. Refer to the dishwasher loading instructions.
Select a program	Close the door,press the Program Button until the selected program lights up.( See the section entitled Operation instruction )"
Running the dishwasher	Turn on the water tap and press the Start/Pause Button. The machine will start working after about10 seconds.
Changing the program	1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergentmay have already been released and the water already drained. If this is the case, the detergentdispenser must be refilled.Press the Start/Pause button then press the program button for more than 3 seconds to cancel therunning programme.Select a new programme.Restart the dishwasher.
Add forgotten dishes in thedishwasher.[XYBT]	1. Press the start/pause button to stop the machine.Open the door.Add the forgotten dishes.Close the door, then press the start/pause button, the dishwasher willstart running again	A WARNING!Open the door carefully.Hot steam may escapewhen the door is opened!
If the appl" is switchedoff during sh cycle.	If the appliance is switched off during a wash cycle, when switchedon again, please re-select the washing cycle and operate the dishwasheraccording to the original Power-on state ).
Switch appliance	When the working cycle is finished, the buzzer of the dishwasher will sound 8 times, then stop.Turn off the appliance using the On/Off Button.Since the appliance is standing by, it will power off automatically after 30 minutes without any operation.
Turn of water tap,unload the baskets	Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid scald,asthe dishes and utensils are still hot and more susceptible to break.They could also dry better.Unload the appliance, starting from the lower basket.

3. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

Control Panel Control Panel

1. On/Off Button: To switch On/Off the appliance.
2. Delay Button: Press the button to add the delay time.
3. Extra drying/ Strong wash function Button: To choose the extra drying function or the strong wash function.
4. Program Button : To Press the button to select appropriate Program.
5. Start / Pause button: To start the selected washing program or pause the washing program when the machine is working.

6. Display screen: To show the reminding time and the state(running state, delay time, error codes etc)

7. Strong wash indicators: To show when you choose the strong wash function.

8. Extra drying indicators: To show when you choose the extra drying function.
9. Program indicators: To show which program you have chose.

10. Other indicators:

11. Rinse Aid indicator: * Indicates when the dispenser needs to be refilled.

12. Water faucet indicator: 📋 Indicates when the water faucet does not open.
13. Child lock indicator:

Attention: 🔒

Child lock function: Press Delay button and Extra drying/Strong wash functionbutton simultaneously to lock the program.

Dishwasher Features Dishwasher Features

1 Top spray arm
2 Cutlery rack
3 Upper basket

4 Inner pipe
5 Lower basket
6 Dispenser

7 Cup shelf
8 Spray arms
9 Filter assembly

Close-up of a coiled cable or hose with white insulation, labeled 'Back View' and numbered 11 and 12 (no text on the hose itself)

10 Inlet pipe connector
11 Drain pipe
12 Adjuster

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Fill the rinse aid dispenser
B. Fill in detergent

A. Rinse Aid DispenserA. Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3 / 4 fu ll
1 / 2 fu ll
- 1 / 4 full - Should refill to eliminate spotting
○ Empty

How to fill the Rinse Aid Dispenser

Hand holding a circular button on a white electronic device panel, with cables and tubing in the background (no visible text or symbols)

Close-up of a medical device component with a bulb inserted, no visible text or symbols

Close-up of a hand holding a small circular device with a scroll, next to a white electronic device (no visible text or symbols)

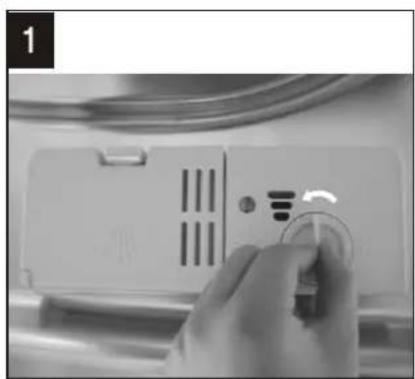

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

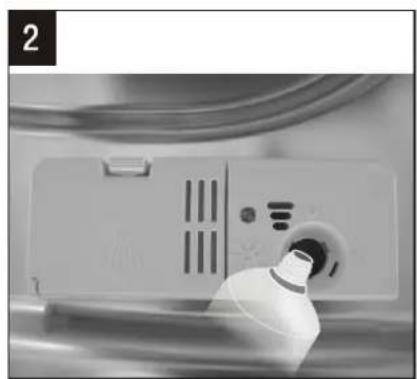

2 Pour the rinse aid into the dispenser, being careful not to overfill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention!

Clean up any rinse aid spill during filling with an absorbent cloth to avoid excess foaming during the next wash.

NOTE: NcTee up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

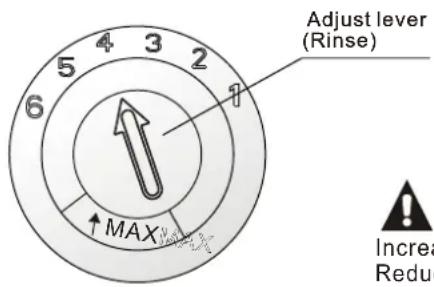

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

B. Detergent B. Detergent

Detergents have chemical ingredients that are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ Conventional, alkaline detergents with caustic components

■ Low alkaline concentrated detergents with natural enzymes

The use of normal washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes.

Adding detergent to dispenser

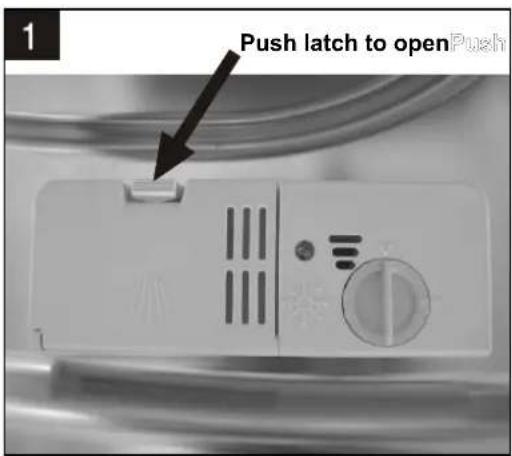

latch to open

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A For main wash detergent.

B For pre-wash detergent.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:NOTE:

■ If the lid is closed: push the latch to open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent and rinse aid for dishwasher.
■ You see information about the amount of detergent for the single programme on page 9.
■ Please be aware that soiling levels and water hardness can effect wash results.
■ Please observe the manufacturer's recommendations on the detergent packaging.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

5. Loading the Dishwasher Baskets

Recommendation Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, horn china or mother-of-pearl handles

■ Plastic items that are not heat resistant

■ Older cutlery with glued parts that are not temperature resistant

■ Bonded cutlery items or dishes

■ Pewter or copper items

■ Crystal glass

■ Steel items subject to rusting

■ Wooden platters

■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the lower basket.
  The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the DishesRemoving the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware The Method Lo

Loading the Upper Basket Loading the Loading the Lower Basket Loading the Low

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Diagram of a mechanical or electrical component with internal components and directional arrow (no text or symbols)

Illustration of a metal basket containing various cooking pots and a pot, with an upward arrow labeled 'IN' indicating direction (no text or symbols on the objects themselves)

Please be reminded that:

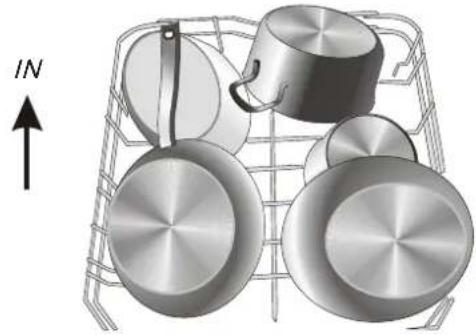

■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

Adjusting the Upper Basket

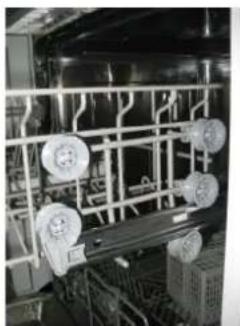

The height of the upper basket can be adjusted for order better stacking of pots and p. create more space for large utensils both fome the spiper can be folded down /lower basket. The height of the show in pphe pictu baskight. can be

adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad should be placed on the shelf so that they the rotation of the spray

Lower position Upper position

Industrial machinery setup with metal frames and rollers (no visible text or symbols)

Interior view of an industrial facility with overhead piping and circular components (no visible text or symbols)

Folding back the cup shelves

servers and knives do not obstruct arms..

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

Wheels

Cutlery Basket

Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

For a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the male face up.
■ Long utensils in the middle.

Metal grid structure with wavy internal elements, no visible text or symbols

6. Starting a washing program 6. Starting a

Wash Cycle Table Wash Cycle Table

NOTE: (Note) Means: Rinse-aid dispenser needs to be filled.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash(50°C)Wash (60°C)RinseRinseRinse(70°C)Drying	5/22.5g1 piece	170	1.4	15.5
Heavy	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.	Pre-wash(45°C)Wash (55°C)RinseRinse (65°C)Drying	5/22.5g1 piece	180	1.1	12
ECO(*AS/NZS 2007.1)	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-washWash (45°C)Rinse(45°C)Drying	5/22.5g1 piece	180	0.506	11
Glass	For lightly soiled loads, such as glasses, crystal and fine china.	Pre-washwash(40°C)RinseRinse(60°C)Drying	5/22.5g1 piece	125	0.75	12
90 min	For lightly soiled crockery and glass.	Wash(65°C)RinseRinse (65°C)Drying	27g1 piece	90	1.15	11.5
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (45°C)Rinse (50°C)Rinse (55°C)	20g	30	0.7	10	/
Soak	To rinse dishes that you plan to wash later that day..	Pre-wash	/	15	0.02	3.5	/

NOTE:NOTE:

*ASTNISp2007am is the test cycle. The information for comparability test in accordance with AS/NZS2007s1

■ Capacity: 10 settings
■ Position Upper basket: upper wheels on rails
■ Rinse aid setting: 6
■ PI:0.49w;Po:0.45w

Turning On the Appliance Turning On the Appliance

Starting a cycle wash

1 Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one (see the section entitled Loading the Dishwasher).
2 Pour in the detergent (see the section entitled 'Detergent and Rinse Aid').
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Close the door, press the On/Off button to switch on the machine.
5 Press the program button, the wash program will be changed as follows direction:

Intensive->Heavy->ECO->Glass->90 Min->Rapid->Soak;

If a program is selected, the response light will light on. Then press the Start/Pause button, the dishwasher begins to start.

When you press the Start/Pause button to pause during washing, The program light will stop blinking and the buzzer will mooing every minute unless you press the Start/Pause button to start.

Change the Program Mid-Cycle

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
2 Press the Start/Pause button, the machine will pause, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").

NOTE:NOTE:

If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

If your model has broken remember function, the machine will go on to finish the selected program after the power cut.

Forgot to Add a Dish Forgot to Add a Dish

A forgotten dish can be added any time before the detergent cup opens.

1 Press the Start/Pause Button to stop the washing.

4 Add forgotten dishes.

2 Open the door a little.

5 Close the door

3 After the spray arms stop working, you can open the door completely.

6 Press the Start/Pause Button, the dishwasher will start running at once.

At the End of the Wash Cycle At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Switch Off the Dishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the ON/OFF Button.

2. Turn off the water tap!

■ Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

! WARNING!

It is dangerous to open the door when washing, as hot water may scald you.

7. Maintenance and Cleaning

Filtering System Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being deposited on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

The dishwasher must never be used without the filters.

Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1

3D model of a mechanical component with a labeled 'Open' and internal features (no text or symbols beyond the label)

Step 1: Turn the filter in anti-clockwise direction,

2

3D rendering of a mechanical device with internal components and an upward arrow indicator (no text or symbols)

Step 2: lift the filter assy up

NOTE: Now when following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts (see page 11) and reinsert them in the dishwasher, positioning them in their seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning the Door

Interior view of a computer drive bay with an arrow pointing to a component (no visible text or symbols)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.

A abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.

About Power Connection About Power Connection

WARNING!

For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not under any circumstances, cut or remove the earthing connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

⚠️ Insure proper ground exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Line drawing of a hand holding a wrench and lever (no text or symbols)

The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused.

Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice.

1 Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
2 Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.
3 Turn water fully on before starting the dishwasher.

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sinkspray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

1 Turn off the water.
2 Release the water pressure by depressing the pressure release button. This relieves water pressure and protects you, and the room, from severe splashing.
3 Unscrew the safety supply hose from the faucet.

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

PLEASE HANG UP THE DRAIN HOSE EITHER WAY OF A, B

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Start of Dishwasher Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dishwasher is level and fixed properly
2 The inlet valve is open
3 Fill hose connections are fully tightened and not leaking
4 The wires are tightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Review the charts on the following pages may save you from calling for service.

Problem Possible Causes What to Do

Technical problems	Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
	water not pumped from dishwasher	Kink in drain hose	Check drain hose.
		Filter clogged	Check the coarse filter(see section titled " Cleaning The Filter ")
		Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
General problems	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
		Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
	Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
	There are rust stains on cutlery	The affected items are not corrosion resistant.	The items should be corrosion resistant.
Noise	Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme,and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function.if in doubt, contact a suitably qualified plumber.

Problem Possible Causes What to Do

Unsatis-factory washing result	The dishes are not clean	The dishes were not loaded correctly.	See notes in "Loading the Dishwasher Baskets".
		The programme was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted.This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cups.	Re-loading the dishes properly.
Unsatis-factory drying result	The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket.
		Wrong program has been selected	In short program the washing temperature is lower.This also lowers cleaning performance. Choose a program with a long washing time.
		Use of cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes Error Codes

In case of malfunctions, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucet is not opened, or water intake is restricted, or water pressure is too low.
E3	Not reach the setting temperature.	Malfunction of heat element
E4	Overflow.	Some element of the dishwasher leaks
E8	Failure of orientation of distributary valve.	Circuit is open or broken distributary valve.

WARNING!

If overflow occurs, turn off the main water supply before calling a service.

If the base pan overflows:

• Turn off the main water supply before calling for service
• Remove the excess water before restarting the dishwasher.

Height :	845mm
Width :	448m m
Depth :	600mm(with the door closed)
Water pressure:	0.04-1.0MPa
Power supply:	see rating label
Capacity:	10 place settings

3.Cutterly basket:

1. Lower basket:


Information for comparability tests in accordance with (*AS/NZS 2007.1)
■ Voltage:220\~240V/50Hz
■ Capacity: 10 place settings
■ Position of the upper basket: lower ■ Programme: ECO
■ Detergent(Pre/main): 5 g/22.5 g ■ Rinse aid setting: 6
■ Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)

1. Upper basket:
