Product Type	Rooftop Air Conditioner
Model Number	FACT12SA-PS
Cooling Capacity	12,000 BTU/h
Dehumidification	Approx. 2.2 pints/h
Refrigerant	R410A
Power Supply	115 V~, 60 Hz, 1 Ph
Cooling Power Consumption	Approx. 1450 W
Cooling Current	13.1 A
Dimensions (L x W x H)	34 7/8 x 27 5/8 x 13 5/8 in (886 x 701 x 346 mm)
Weight	100 lb (45 kg)
Applicable Roof Thickness	3.5 - 6 in (90 - 152 mm)
Roof Opening Required	14 1/4 x 14 1/4 in (+ 1/2 in) (362 x 362 mm)
Operating Modes	Cool, Heat (optional), Fan, Off
Temperature Setting Range	61 - 86 °F (16 - 30 °C)
Air Distribution Box	Sold separately (FACT11MA-PS/FACT11MA-BL)
Filter Cleaning Interval	Every 4 weeks or more often as needed
Filter Replacement Interval	At least every 12 months
Electrical Protection	Time delay fuse or circuit breaker required
Installation	For qualified personnel only; follow local and national codes
Warranty	Refer to warranty leaflet included
Certifications	NFPA 1192, NFPA 70 (USA); C22.1, CSA Z240 (Canada)

Frequently Asked Questions - FACT12SA-PS Furrion

How do I change the operating mode on the Furrion FACT12SA-PS?

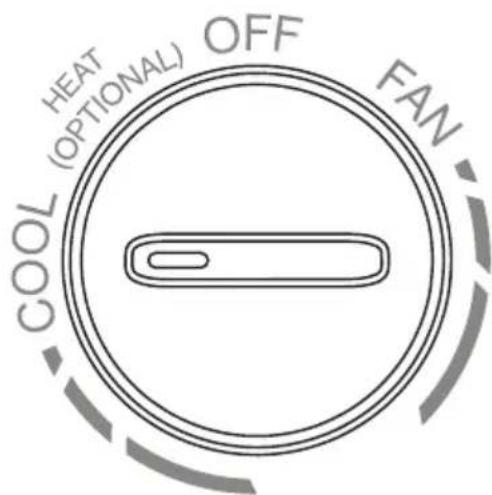

Rotate the operating mode control knob to the desired position: COOL, HEAT (OPTIONAL), FAN, or OFF.

What is the temperature setting range?

The temperature can be set from 61°F (16°C) to 86°F (30°C) in cooling mode.

How do I defrost the air conditioner if ice forms?

Rotate the operating mode knob to HIGH FAN and run for 30 minutes to melt the ice. Ensure you protect the floor from water drips.

How often should I clean the filters?

Clean the filters every 4 weeks or more often if the air conditioner is used frequently or in dusty conditions.

What should I do if the air conditioner does not turn on?

Check the power supply, ensure the fuse or circuit breaker is not tripped, and verify the voltage is adequate. If the problem persists, contact an authorized service agent.

Why is water entering the vehicle?

This may be due to clogged condensation drainage openings or damaged seals. Clean the drainage openings and inspect the seals; contact service if needed.

Can I install the air conditioner myself?

Installation should only be performed by qualified personnel familiar with local codes and safety procedures due to electrical and structural requirements.

What is the recommended roof opening size?

The required opening is 14 1/4 x 14 1/4 inches (+ 1/2 inch) (362 x 362 mm). It can be an existing roof vent or a new cut.

What type of refrigerant does the FACT12SA-PS use?

It uses R410A refrigerant. Never release refrigerant into the air; repairs must be done by certified technicians.

How do I prevent the air conditioner from freezing up?

Avoid setting the thermostat to MAX COOL at night and always keep at least 2 duct vents open while in cooling mode, especially when ambient temperature is below 78°F (25.5°C).

USER MANUAL FACT12SA-PS Furrion

FACR15SA-PS/FACR15SA-BL

Black Furrion device with red LED display and ventilation grille (no visible text or symbols on body)

Top-down view of a black square electrical outlet with two small circular cutouts (no text or symbols visible)

FACT11MA-PS/FACT11MA-BL

(Sold Separately)

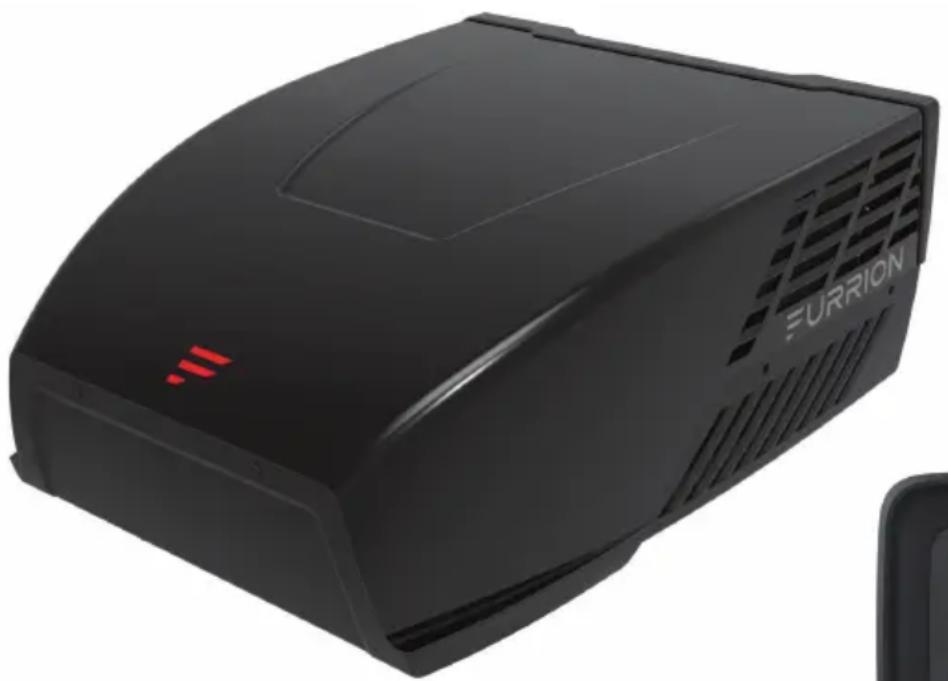

Thank you for purchasing this Furrion® Chill™ Rooftop Air Conditioner.. Before operating your new product, please read these instructions carefully. This will ensure safe use and reduce the risk of injury. This instruction manual contains information for installation, operation, maintenance of the product and safe use.

Please keep this instruction manual in a safe place for future reference. Be sure to pass on this manual to any new owners of this product.

The manufacturer does not accept responsibility for any damages due to not observing these instructions.

Contents

Contents....1

Important Safety Instructions.... 2

Handling the device....2

Handling Electrical Cables....3

Before Installing 4

What's in the Box....4

Choosing Proper Location for the Air Conditioner....4

Roof Preparation....6

Air Distribution Duct Sizing and Design....7

Air Distribution System Installation....8

Laying the Connecting Cables....9

Installation 10

Installing the Rooftop Unit....10

Installing the Air Distribution Box (for FACT11MA-PS/FACT11MA-PS models only,

same for both ducted and non-ducted models, sold separately)....10

Operation....14

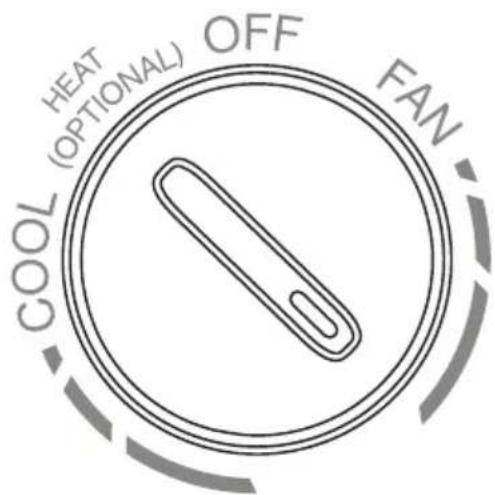

Change the Operating Mode....14

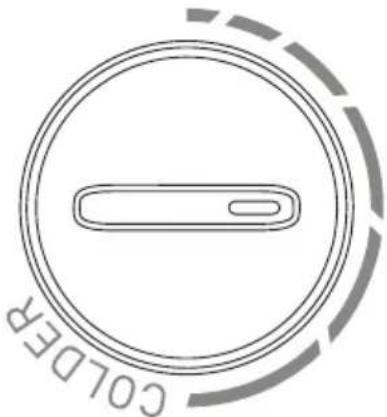

Set the Temperature....14

Defrosting & Anti-Freezing Instructions....14

Cleaning and Maintenance 16

Troubleshooting....17

Specifications.... 18

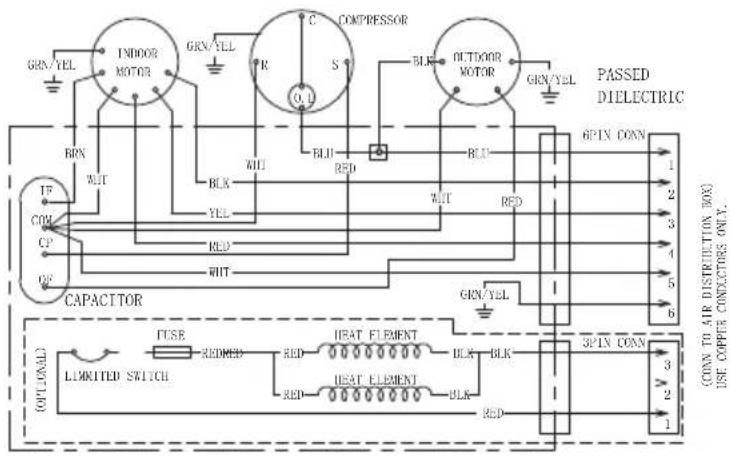

Wiring Diagram....19

Important Safety Instructions

This manual has safety information and instructions to help users eliminate or reduce the risk of accidents and injuries. Please read this instruction manual carefully before installation and start-up, and store it in a safe place for future reference. If you pass on the device to another person, hand over this instruction manual along with it.

• The manufacturer accepts no liability for damage in the following cases:
  -Faulty assembly or connection
  –Damage to the product resulting from mechanical influences and excess voltage
  -Alterations to the product without express permission from the manufacturer
  -Use for purposes other than those described in the operating manual
• The following basic safety information should be heeded when using electrical devices to protect against:
  –Electric shock
  -Fire hazards
  -Injury
• All Furrion product referenced in this manual is to be installed in accordance with local and national codes, including the latest editions of the following standards:

USA:

-NFPA 1192

-NFPA 70

Canada:

-C22.1

-CSA Z240

Handling the device

WARNING

• Installation and repair of the rooftop air conditioner must only be carried out by qualified personnel who are familiar with the risks involved and the relevant regulations. Inadequate repairs may cause serious hazards.
• Electrical devices are not toys. Keep electrical devices out of reach of children or elderly persons. Do not allow them to use electrical devices without supervision.
• Prevent inexperienced people from using the device without supervision.
• Do not undo the upper cover of the rooftop air conditioner in the event of a fire. Use approved extinguishing agents instead. Do not use water to extinguish fires.

CAUTION

- The rooftop air conditioner must be installed securely so that it cannot fall down.

- Only operate the rooftop air conditioner if you are certain that the housing and the cables are not damaged.

- Do not use the rooftop air conditioner near flammable fluids or in closed rooms.

- Make sure no combustible objects are stored or installed near the air outlet. A distance of at least 20" must be kept.

- Do not reach into air outlets or insert any foreign objects into the device.

• Only use the device as intended.
• Do not make any alterations or conversions to the device.
• If faults occur in the refrigerant circuit, the system must be checked by a certified service technician and repaired properly. The refrigerant must never be released into the air.

Handling Electrical Cables

WARNING

The electrical power supply must only be connected by a qualified electrician.

CAUTION

• Refer to NEC (National Electric Code) for proper sizing of wire gauge (awg) based on cable length and overcurrent protection rating that is suppling power to the air conditioner.
• See rooftop unit nameplate for proper overcurrent protection sizing.

• Attach and lay the cables so that they cannot be tripped over or damaged.

• Only a qualified electrician should connect the rooftop air conditioner to electrical power.

• Do not lay loose or bent cables next to electrically conductive materials.
• Do not pull on the cables.
• Use cable ducts to lay cables through walls with sharp edges.
• Refer to rooftop unit nameplate and NEC for proper power supply rating.

Before Installing

Read this installation manual completely before installing the rooftop air conditioner.

The following tips and instructions must be observed while installing the rooftop air conditioner.

What's in the Box

Open and remove the components from carton. Make sure you have all the following items included in the packaging, if any item is missing, contact your dealer.

Rooftop Air Conditioner:

• Rooftop unit x 1
• Warranty Leaflet x 1

Air Distributor Box (sold separately):

• Upper Duct Divider x 1
- Lower Duct Divider x 1
- Bolt x 4
- Mounting Frame x 1
- Control Box x 1

• Air Distribution Box (ADB) Shroud x 1
- Filter x 2
- Decoration Plate x 1
- PE Foam x 1
- Control Knob x 2
• Self-tapping Screws x 4
• Instruction Manual x 1
- Warranty Leaflet x 1

Choosing Proper Location for the Air Conditioner

IMPORTANT: The roof must be designed to support the weight of the rooftop unit and the weight of 2 installers standing on the roof.

There are two ways of installing the rooftop air conditioner:

• Using the existing roof vent opening in the vehicle roof.
• Making a new opening. In this case the opening should be reinforced by an appropriate frame as required.

Existing Roof Vent Opening

The air conditioner is designed to fit over an existing 14" roof vent opening.

New Opening

When no roof vent is available or another location is desired, the following is recommended:

• For one unit installation - the air conditioner should be mounted slightly forward of center (front to back) and centered from side to side.
• For two unit installations, install one air conditioner one third from the front of the RV and the other air conditioner two thirds from the front of the RV, aligned in the center.

It is preferred that the air conditioner be installed on a relatively flat and horizontal roof section measured when the RV is parked on a level surface.

NOTE: A 15° slant to either side or front to back is acceptable for all units. If the roof exceeds 15° please use an exterior leveling shim to make air conditioner level.

After the Location Has Been Selected:

- Check for obstructions in the area where the air conditioner will be installed.

- Check the inside of the RV for return air kit obstructions. (i.e. door openings, room dividers, curtains, ceiling fixtures, etc.) Allow 6" (152mm) space from the opening to account for any potential return air kit obstructions.

Roof Preparation

Opening Requirements - Before preparing the ceiling opening, decide on the type of system options. Read all of the following instructions before beginning the installation.

WARNING

Fire/Electric Shock Hazard

• Make sure there are no obstacles inside the RV roof, floor and walls, such as wires and pipes.
• Shut off the gas supply and disconnect the 115VAC power from the RV before drilling or cutting into the RV. Failure to obey these warnings could result in death or serious injury.

Roof Thickness

The installation of air conditioner suits for roof thickness from 3.5" (90mm) to 6" (152mm). For other thickness, please contact Furrion or Furrion authorized service agent.

Installing in an Existing Opening

1. Unscrew and remove the roof vent.
2. Remove all caulking compound around the opening.
3. If the opening exceeds 1414 " x 1414 " (+ 12 ), it will be necessary to resize the opening to 1414 " x 1414 " (+ 12 ). If the opening is less than 1414 " x 1414 " (+ 12 ), it must be enlarged.

Making a New Opening

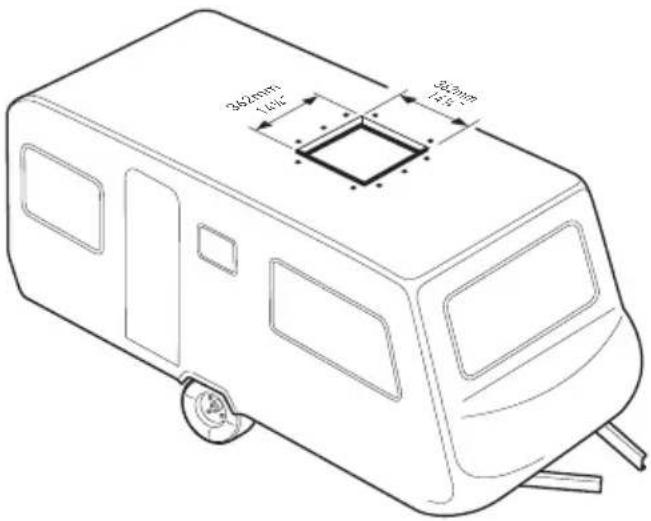

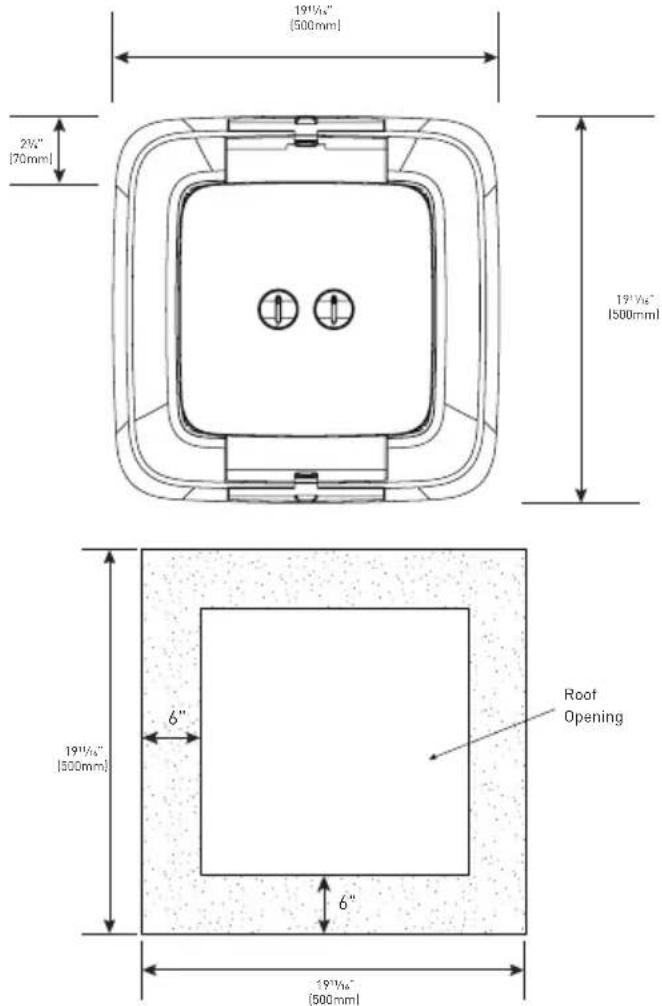

If a roof vent opening will not be used, a 14 14 " x 14 14 " (+ 12 ") (362mm x 362mm) opening must be cut through the roof and ceiling of the RV. This opening must be located between the roof reinforcing members.

The 14 ^1/4 " x 14 ^1/4 " (+ ^1/2 ") opening is part of the return air system of the air conditioner and must be finished in accordance with NFPA Standard 501C Section 2.7.2.

1. Mark a 1414 " x 1414 " (+ 12 ") square on the roof and carefully cut an opening.

1. Using the roof opening as a guide, cut a matching hole in the ceiling.

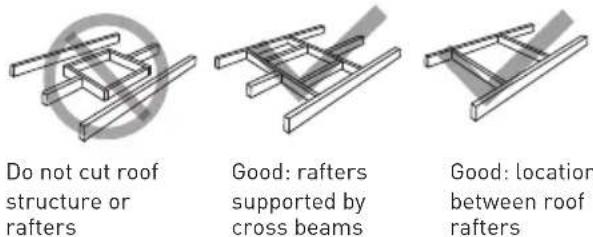

NOTE: Maintain structural integrity.

Otherwise damage to product and/or RV could occur. Always observe the following guidelines while structuring the opening.

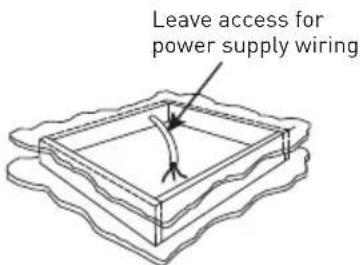

1. The opening created must be framed to provide adequate support and prevent air from being drawn from the roof cavity.
2. Lumber 34 " or more in thickness must be used. Remember to provide an entrance hole for power supplies, wall thermostat and furnace wiring for connections. Leave 15" (381mm) minimum at the front of the opening.

Air Distribution Duct Sizing and Design

The installer of this system must design the air distribution system for their particular application.

NOTE: Make sure ductwork will NOT bend or collapse during and after installation, and that it is correctly insulated and sealed. Otherwise, damage to roof structure and ceiling could occur. The following requirements must be met for properly operate the unit:

Roof Cavity Depth	3"-6" (75mm-152mm)
Duct Cross Sectional Area	21 Sq. In. Min.
Duct Size	Depth	112" Min. - 212" Max. (38mm Min. - 63.5mm Max.)
	Width	7" Min. - 10" Max. (178mm Min. - 254mm Max.)
	Total Duct Length	15Ft. Min. - 40Ft. Max. (4.5m - 13m)
	Duct Length (short run)	13 Total Duct Length
Register Requirements per A/C Unit	Number Required	4 Min. - 8 Max.
	Supply Register Free Air Area	14 Sq. In. (90 sq. cm)
	Return Register Free Air Area	40 Sq. In. (258 sq. cm)
	Distance From Duct End	5" Min. - 8" Max. (127mm Min. - 203mm Max.)
	Distance From Elbow	15" (381mm)
Total System Static Air Pressure	Blower at High Speed, Filter & Grille In Place	0.55 - 1.10 In. W.C.

- Properly insulate and seal all discharge air ducts to prevent condensation from forming on their surfaces or adjacent surfaces during operation of the unit. This insulation must be R-7 minimum.

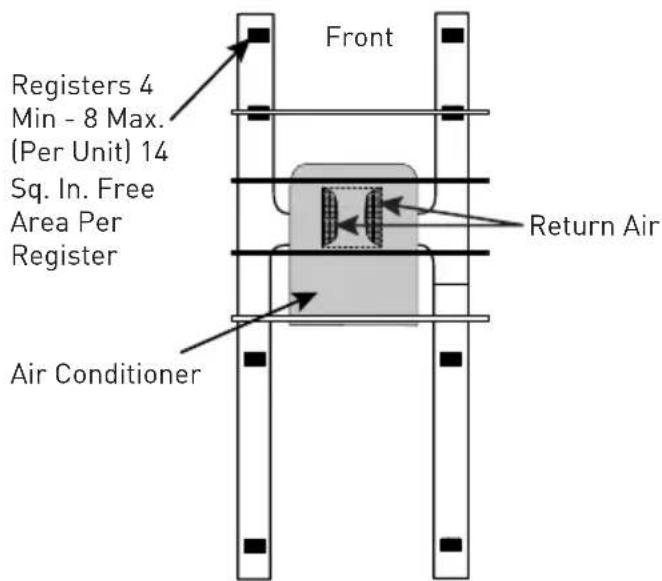

TOP VIEW (BACK OF RV)

SIDE VIEW (TOWARD BACK OF RV)

• Return air openings must have 80 square inches (516 square centimeters) minimum free area including the filter.
• Return air to the unit must be filtered to prevent dirt accumulation on the unit cooling surface.

Air Distribution System Installation

It is the responsibility of the installer to review each RV floor plan to determine the following items in conjunction with "Air Distribution Duct Sizing and Design" section on Page 8.

NOTE: Alternate configurations and methods may be used which will allow the unit to operate properly, however, these alternate configurations and methods MUST be approved by Furrion in writing.

• Duct size
• Duct layout
• Register size
• Register location
  • Thermostat location
• Indoor temperature sensor location (if applicable)

Laying the Connecting Cables

The rooftop air conditioner must be connected to an electric circuit which is able to supply the required power supply (see chapter "Specification").

NOTE: The supply wire must be located in the front portion of the roof opening. The power supply must be equipped with a time delay fuse or circuit breaker. See rooftop unit nameplate for rating.

! DANGER

Electrical Shock Hazard

• Disconnect power before servicing.
  Failure to obey this warning could result in death or serious injury.

• Provide grounding in compliance with all applicable electrical codes.
  Failure to obey this warning could result in death or serious injury.

• Refer to the applicable electric code guidelines for sizing the appropriate wire gauge, length and type.

• Route a 115VAC supply wire with ground wire from the time delay fuse or circuit breaker box to the roof opening.

NOTE: Refer to rooftop unit nameplate and applicable code for proper installation.

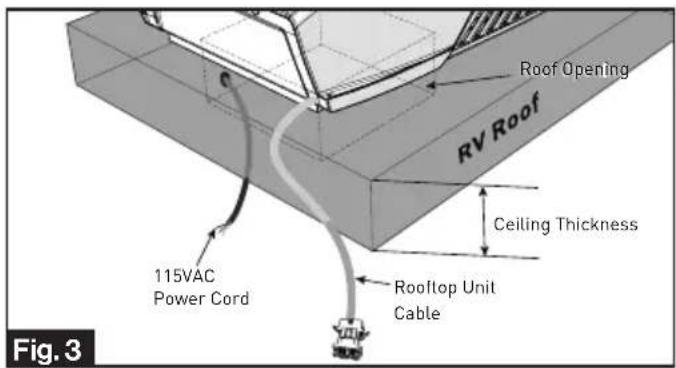

1. Use approved method to protect the wire where it passes through the opening.
2. Feed the 115VAC cable through the opening into the vehicle interior. Make sure at least 15" (381mm) of supply wire extends into the roof opening. This ensures an easy connection at the control box.

Installation

Installing the Rooftop Unit

CAUTION

• The rooftop unit weighs approximately 100 pounds (45 kg). To prevent back injury, use a mechanical hoist when lifting or moving the unit. Failure to obey this warning could result in injury.
• Do not slide unit. It may damage the gasket at the bottom of the rooftop unit and cause leakage.

• Do not grasp the ventilation slots to lift the rooftop unit up.

• Grasp the bottom of two sides of the unit, lift and position the rooftop unit into the prepared opening using the gasket at the bottom of the rooftop unit as a guide. (Fig. 1)

This completes the outside installation of the rooftop unit. Minor adjustments can be done from inside of the RV if required.

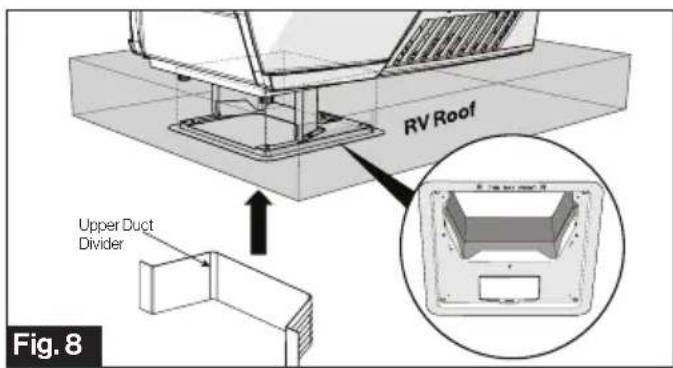

Installing the Air Distribution Box (for FACT11MA-PS/FACT11MA-PS models only, same for both ducted and non-ducted models, sold separately)

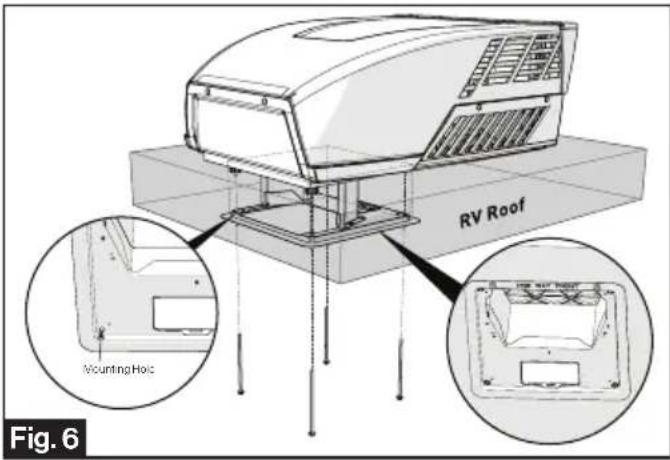

The rooftop unit is fixed on the RV roof using 4 long bolts through the mounting frame from the interior of the RV ceiling.

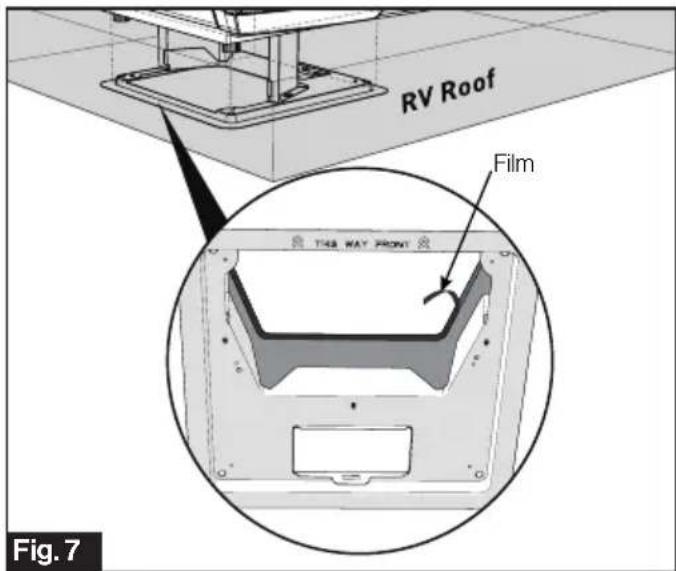

1. Check the gasket alignment of the rooftop unit inside the RV over the roof opening and adjust as necessary by lifting and moving slightly. (Fig. 2)

1. Reach up into the return air opening and pull the rooftop unit electric cord and 115VAC power cord down from the cutout area for later connection. (Fig. 3)

1. Remove the control box off the mounting frame by unscrewing the two screws on the supporters of the control box. (Fig. 4)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

1. Install the assembled mounting frame and the lower duct divider into the rooftop opening. Make sure the "THIS WAY FRONT" mark is facing front (the direction of the vehicle) while installing. (Fig. 5)

1. Fix the assembled mounting frame and lower duct divider into the rooftop unit using 4 bolts provided. (Fig. 6) NOTE: If bolts are left loose there may not be an adequate roof seal or if over tightened, damage may occur to the rooftop base or mounting frame. Evenly tighten the four bolts to a torque of 40 to 50 inch pounds. This will compress the roof gasket to approximately 12 .

1. Pull to remove the film off the double sided sticky tape on the inner side of the lower duct divider. (Fig. 7)

1. Stick the upper duct divider into the assembled mounting frame.

NOTE: Make sure the upper duct divider is pressing against the ceiling before finally sticking it. (Fig. 8)

1. Peel to remove the release paper from the PE foam, overlap the sticky side over all gaps and compress to seal and insulate the entire section. (Fig. 9)

1. Remove the cable compartment cover using a Phillips screw driver. (Fig. 10)

Technical line drawing of an electronic device housing with a base plate and mounting bracket (no text or symbols)

DANGER

Electrical Shock Hazard

• Disconnect power before servicing. Failure to obey this warning could result in death or serious injury.
• Provide grounding in compliance with all applicable electrical codes. Failure to obey this warning could result in death or serious injury.

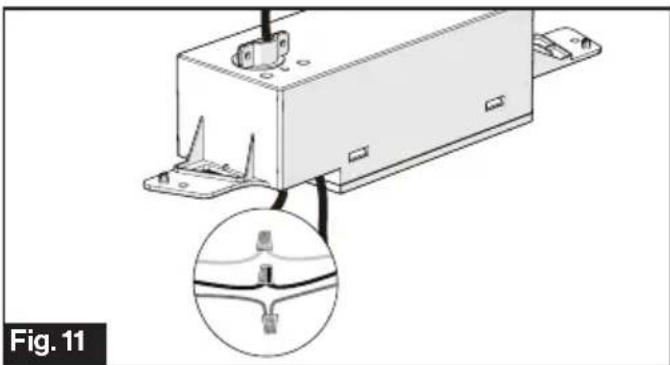

Loosen the cable clip on top of the control box and let the 115VAC power cord pass through the cable clip. Make the 115VAC power supply connection to the control box and ensure they are properly insulated by using twist caps. (Fig. 11)

NOTE: Always follow the color code while connecting the cables.

Black - Hot

White - Neutral

Green/yellow - Ground

Technical line drawing of a mechanical device with an inset close-up showing internal components (no text or symbols)

1. Tighten the cable clip until the cable is snapped tightly.

NOTE: Do not over tighten.

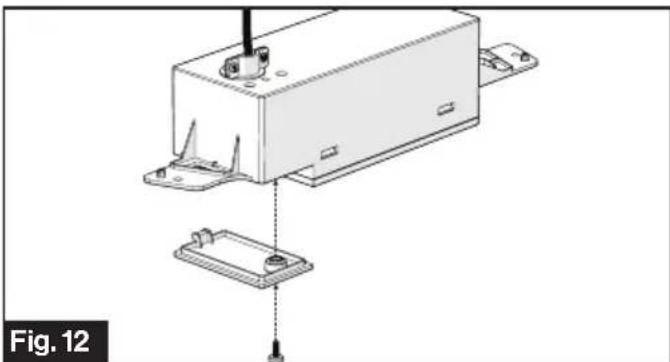

1. Fit all cables into the cable compartment and tuck any excess wires up out of the way. Tighten the cover with screw. (Fig. 12)

Technical line drawing of a mechanical assembly with a base plate and housing, no text or symbols present

1. Connect the wires of the rooftop unit cable to the control box. (Fig. 13)

-115VAC Power Cord: Connect to 115VAC power source

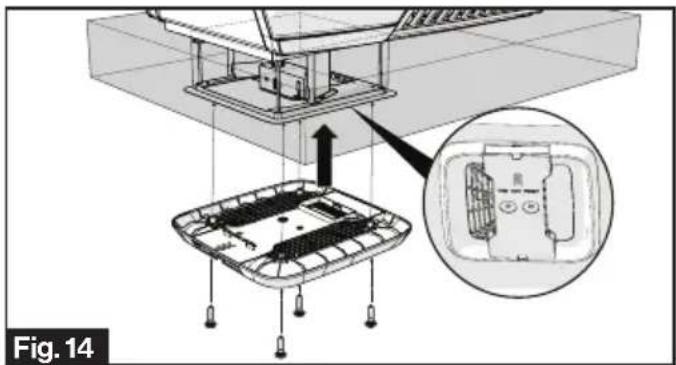

1. Install the Air Distribution Box (ADB) shroud over the mounting frame and fix with 4 self-tapping screws.

NOTE: Make sure the "THIS WAY FRONT" mark is facing front (the direction of the vehicle) while installing. (Fig. 14)

Technical diagram of a mechanical assembly with an inset close-up showing internal components (no text or symbols)

1. Align the filter tabs with mating notches and push to snap the filters into the ADB shroud. (Fig. 15)

1. Align the decoration plate tabs with the mating notches on the ADB shroud and push to snap the decoration plate into place. (Fig. 16)

1. Install the two control knobs through holes on the decoration plate and push to lock into place. (Fig. 17)

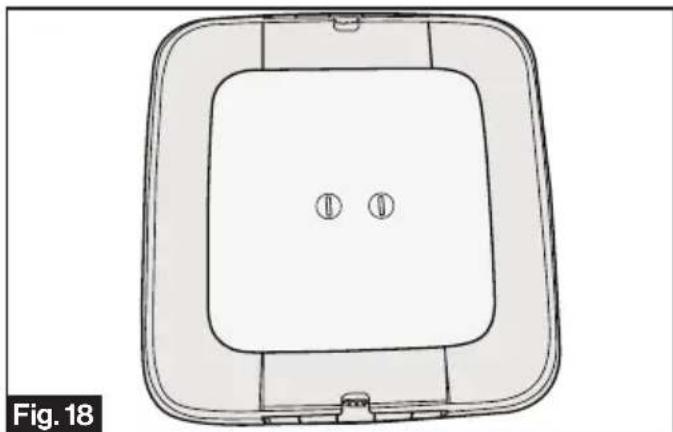

1. Your new rooftop air conditioner has now been fully installed in the RV roof. (Fig. 18)

Technical line drawing of a square frame with two circular holes and a base (no text or symbols)

Operation

Your new rooftop air conditioner is designed with 2 control knobs which allow you to set the temperature set-point and change the operating mode of the air conditioner.

Change the Operating Mode

Rotate the operating control mode knob to select the desired operating mode. There are 3 available operating modes for you to select.

COOL MODE

Rotate the operating mode control knob to the COOL position.

HEAT (OPTIONAL) MODE

Rotate the operating mode control knob to the HEAT (OPTIONAL) position.

OFF MODE

Rotate the operating mode control knob to the OFF position.

FAN MODE

Rotate the operating mode control knob to the FAN position.

Set the Temperature

Set the temperature to your comfort level by rotating the temperature control knob. The fan will run continuously to circulate the air and maintain an even temperature.

NOTE: The designed temperature setting range is 61°F (16°C) at the coldest to 86°F (30°C) at the warmest. The temperature setting mode is only available while cooling mode is selected.

Simple line drawing of a button inside a circle with partial circular arc and text 'COLOR' at bottom (no other symbols or text)

1. Rotate the operating mode control knob to the cool position.
2. Rotate the temperature control knob to your desired level.

Defrosting & Anti- Freezing Instructions

Frost or even ice formed on part of or the entire evaporator coil is not unusual under certain conditions or below combined conditions:

1. The air conditioner is operating with very cold temperature setting;
2. The air conditioner is operating at very

low Fan speed;

1. The air outlet of the air conditioner is obstructed, for example, the shutter of the cool air outlet or the ducts vents are closed, or the filters are obstructed;
2. The ambient temperature is relatively low, e.g. ≤78°F (25.5°C).

If the frosting or icing should occur, please follow below instructions to clean up the frost or ice.

How to clean up the frost or ice?

Rotate the operating mode control knob to the "HIGH FAN" mode position (as shown above), and keep the air conditioner running for half an hour. Then the frost and ice will be melted and drop down of the evaporator coil, and the air conditioner will be resumed.

WARING: During the defrosting or anti-freezing process, the frost or ice will be melted into water and might drop down from the trim kit to the floor or furnitures. Make sure you have prepared protections for your floor or furnitures in advance, or you can use a bucket to collect water.

How to operate the air conditioner after being frozen up?

Rotate the operating mode control knob to the "HIGH FAN" mode position (as shown above), and keep the air conditioner running for half an hour. Then the frost and ice will be melted and drop down of the evaporator coil, and the air conditioner will be resumed.

WARING: During the anti-freezing process, the frost or ice will be melted into water and might drop down from the trim kit to the floor or furnitures. Make sure you have prepared protections for your floor or furnitures in advance, or you can use a bucket to collect water.

How to prevent frosting or icing in the air conditioner?

Simple circular icon with a vertical line inside, surrounded by diagonal lines and partial text 'COLOR' (no readable document text or symbols)

• Do not rotate the temperature control knob to the "MAX COOL" position (as shown above) at night to prevent being frozen up.
• When the operating control mode knob is in "COOL" mode position, always keep at least 2 duct vents open to prevent being frozen up.

WARNING: The air conditioner could be frozen up when the ambient temperature is relatively low, e.g. ≤78°F (25.5°C).

Cleaning and Maintenance

A blocked filter will impair the cooling and heating performance of the unit significantly.

The filter must be cleaned periodically to ensure that it does not become clogged with dust and other particles. The state of the filter can be ascertained from its appearance. If it appears dirty or clogged then it should be cleaned.

WARNING

Airborne particles can pose a health risk, particularly to young children and the elderly. Ensure that filters are cleaned in a safe and well ventilated area.

To Clean the Filter

The filter should be cleaned every four weeks or more when in use. Prolonged use, higher concentrations of airborne particles and various other factors may result in the filters needing to be cleaned more often.

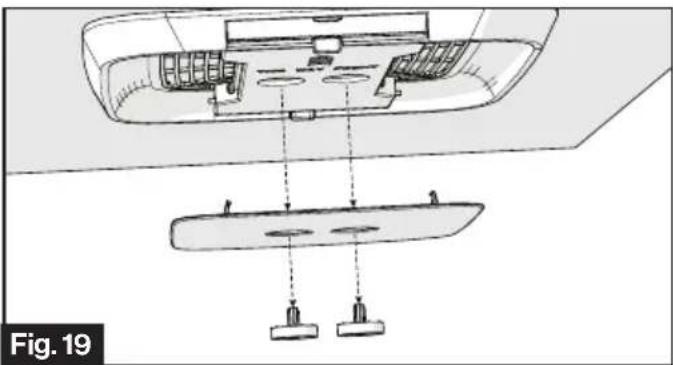

1. Pull the two control knobs to remove from the air conditioning switch. Remove the decoration plate from the air conditioning system by pushing the side tabs to release. (Fig. 19)

Technical diagram showing a mechanical assembly with two components and a base plate, labeled Fig. 19 (no text or symbols on the diagram itself)

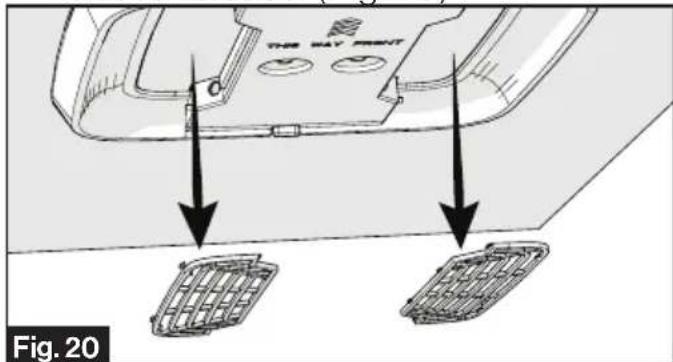

1. Remove the filters by pushing the tabs to release. (Fig. 20)

1. The filter can be washed with warm soapy water. Care must be taken to avoid ripping the fabric.

2. Replace the filters, decoration plate and control knobs by reversing the above process.

NOTE: The filter must be completely dry before re-installation.

To Replace the Filter

Filter changes should be carried out depending on the amount of use, it is recommended to change at least every 12 months. Never operate the air conditioning system without a filter, since this can decrease performance and indoor air quality.

Replacement return air filters can be ordered directly from Furrion.

Troubleshooting

Problem Cause Remedy
Rooftop air conditioner constantly switches itself off	Freeze sensor has tripped.	Outer temperature is too low or all air nozzles are closed.
Not cooling well	The rooftop air conditioner is not set to cooling.	Set the rooftop air conditioner to cooling.
	The set temperature is too high.	Select a lower temperature.
	The evaporator fan is damaged.	Contact an authorized service agent or Furrion (see the detail contact info at the back page of this manual).
	The condenser fan is damaged.	Contact an authorized service agent or Furrion (see the detail contact info at the back page of this manual).
	The air intake grilles are blocked or obstructed.	Remove any leaves and other dirt from the ventilation grilles of the rooftop air conditioner.
	The blower is defective.	Contact an authorized service agent or Furrion (see the detail contact info at the back page of this manual).
Water enters the vehicle	The condensation water drainage openings are clogged up.	Clean the drainage openings for condensation water.
	The seals are damaged.	Contact an authorized service agent or Furrion (see the detail contact info at the back page of this manual).
Rooftop air conditioner does not switch on	No supply voltage connected.	Check the power supply.
	The voltage is too low.	Contact an authorized service agent or Furrion (see the detail contact info at the back page of this manual).
	Fuse blown or circuit protector tripped.	Check the electrical fuse of the power supply.

Specifications

Specification

PERFORMANCE
Model Number	FACR13SA-PSFACR13SA-BL	FACR14SA-PSFACR14SA-BL	FACR15SA-PSFACR15SA-BL
Cooling Capacity (Btu/h) 13,500 14,500	15,500
Dehumidification (pint/h) 2.5 2.7 3.2
Applicable vehicle length (feet) 23 26 31
Refrigerant R410A R410A R410A
Charge (Oz) 15.9 19.8 23.1
Roof top Unit Dimensions (L x W x H) (inch)	3478 × 2758 × 1358 3478 × 2758 × 1358	3478 × 2758 × 1358	3478 × 2758 × 1358
ELECTRICAL
Volts/Frequency	115V~/60Hz/1Ph	115V~/60Hz/1Ph	115V~/60Hz/1Ph
Power Watts (Cooling)	1450	1620	1720
Amps (Cooling)	13.1	14.6	15.4
Power Cord Gauge Min. ( mm2 )	AWG12	AWG12 AWG12

Wiring Diagram

DANGER

Electrical Shock Hazard

• Disconnect power before servicing. Failure to obey this warning could result in death or serious injury.
• Provide grounding in compliance with all applicable electrical codes. Failure to obey this warning could result in death or serious injury.

115VAC 60HZ 1PH — — — FIELD WIRING USE COPPER — — — FACTORY WIRING CONDUCTORS ONLY ○ LINE SPLICE

Abstract black geometric shapes on white background (no text or symbols)

Furrion Innovation Center & Institute of Technology

- 52567 Independence Ct., Elkhart, IN 46514, USA - Toll free:1-800-789-3341

- Email: [e-mail]

©2007-2020 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd. and registered in the U.S. and other countries.

CN ZL201830175933.3 and other patents pending (FACR13SA-PS, FACR13SA-BL, FACR14SA-PS, FACR14SA-BL, FACR15SA-PS, FACR15SA-BL)

www.furrion.com
