MAC7030W - Air Conditioning Defy - Free user manual and instructions

Product Type	Air Conditioner
Brand	Defy
Model	MAC7030W
Color	White
Cooling Capacity	7000 BTU/h
Power Supply	220-240 V ~ 50 Hz
Power Consumption (Cooling)	650 W
Airflow (High)	250 m³/h
Fan Speeds	3 (Low, Medium, High)
Timer	24-hour programmable
Remote Control	Yes
Installation Type	Window
Dimensions (W x H x D)	450 x 350 x 400 mm
Net Weight	25 kg
Refrigerant	R32
Noise Level (Indoor)	≤ 55 dB(A)
Sleep Mode	Yes
Auto Swing	Yes (vertical)
Filter	Washable mesh filter
Maintenance	Clean filter every 2 weeks
Safety Features	Overheat protection, auto restart
Included Accessories	Remote control, filter, window kit
Repairability	User-replaceable filter; professional service for other parts

Frequently Asked Questions - MAC7030W Defy

How do I clean the air conditioner filter?

Turn off and unplug the unit. Remove the front panel and take out the filter. Wash it with warm water and mild detergent. Let it dry completely before reinstalling. Clean the filter every two weeks during heavy use.

Why is my Defy MAC7030W not cooling properly?

Check if the filter is dirty and clean it if necessary. Ensure the unit is correctly sized for the room (max ~20 m²). Verify that the thermostat is set lower than room temperature. Also, check for blocked air intake or exhaust.

How do I set the timer on the remote control?

Press the TIMER button on the remote. Use the +/- buttons to set the desired time (1-24 hours). The timer can be set for auto-start or auto-stop. Confirm by pressing the TIMER button again.

What does the 'Sleep Mode' do?

Sleep mode gradually increases the set temperature by 1°C per hour for up to 2 hours, then remains at that temperature. It also reduces fan speed for quieter operation, helping you sleep comfortably while saving energy.

My remote control is not working. What should I do?

First, replace the batteries (2x AAA). Make sure there is no obstruction between the remote and the unit's receiver. Clean the infrared sensor on both devices. If still not working, try using a smartphone camera to see if the remote emits infrared light.

How do I install the Defy MAC7030W window air conditioner?

Choose a suitable window and remove the screen. Assemble the window kit (included) to fit the window opening. Slide the unit into the frame, ensuring it is level. Seal gaps with foam or weather stripping. Secure using the provided brackets. Always follow the detailed installation instructions in the manual.

Why is water leaking from my air conditioner?

This can happen if the unit is not level. Check that the air conditioner is tilted slightly downward (5-10°) towards the outside so condensation drains properly. Also, ensure the drain hole is not blocked.

Can I use an extension cord with my air conditioner?

It is not recommended. The unit should be plugged directly into a dedicated wall outlet. Extension cords may cause voltage drop and overheating. If necessary, use a heavy-duty cord with the same rating (see manual).

What is the energy efficiency rating of the MAC7030W?

The unit typically has a EER (Energy Efficiency Ratio) of around 10.5, which is standard for a 7000 BTU window AC. For precise values, refer to the energy label on the product or the manual.

How do I switch between cooling and fan only mode?

Press the MODE button on the remote or control panel until you see the desired mode icon. Options include Cool, Fan, and possibly Dry. In Fan mode, the compressor does not run, so only air circulates.

USER MANUAL MAC7030W Defy

Line drawing of a portable air conditioner unit with a remote control unit beside it (no text or symbols)

Please read this user manual first!

Dear Customer,

Thank you for preferring a Defy product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Warning to actions that must never perform.

Warning for electric shock.

Warning for danger of fire.

Warning for hot surfaces.

This product has been produced in environmentally friendly, modern facilities

CONTENTS

1 Safety instructions 4

2 Installation instructions 5

2.1 Name of components....5

3 Instructions for use 6

3.1 Instructions for key of remote controller 6

3.2 Instructions for operation of body 7

4 Other 8

4.1 Maintenance instruction....8

4.2 Cleaning....8

4.3 Technical data 8

1 Safety instructions

Warning

Read rules for safe operation and instructions carefully.

If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Household Indoor use only.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Young children should be supervised to ensure that they do not play with the appliance.

Unplug the appliance during filling and cleaning.

Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

Correct disposal of this product

This marking indicates that this product should not be posed with other household wastes throughout the EU. To vent possible harm to the environment or human health from controlled waste disposal, recycle it responsibly to promote sustainable reuse of material resources. To return your used ice, please use the return and collection systems or contact retailer where the product was purchased. They can take this duct for environmental safe recycling.

2 Installation instructions

2.1 Name of components

1. Honeycomb filter frame
2. Pre-filter
3. Ice box
4. Water tank
5. Wheel

Foot-wheel installation

3 Instructions for use

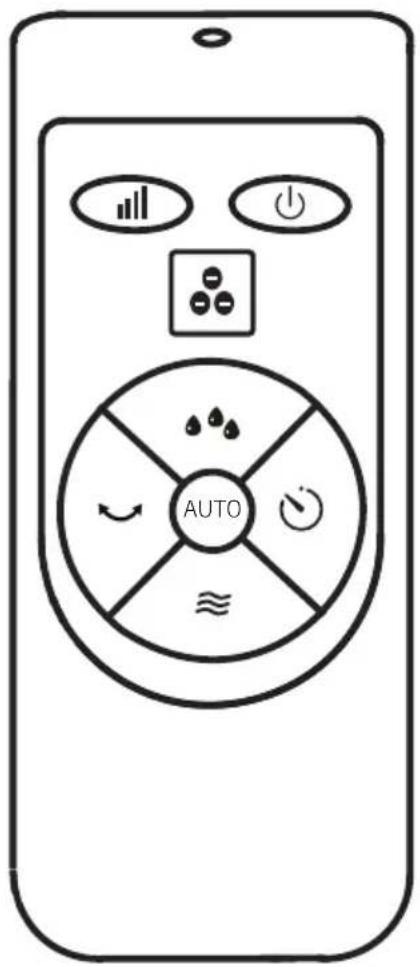

3.1 Instructions for key of remote controller

Battery installation

Considerate hint:

1. Install the battery with positive side facing up.
2. Effective range of remote control: within 5m distance and 30-degree deflection in front of product.

3 Instructions for use

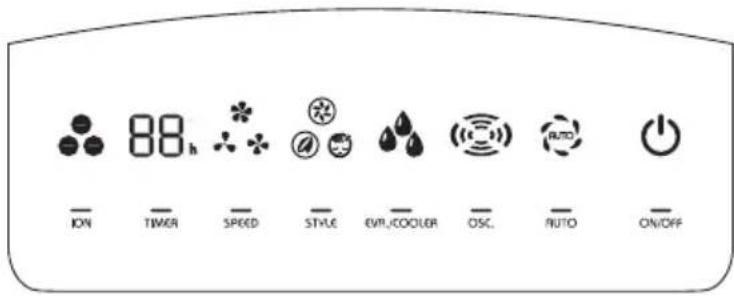

3.2 Instructions for operation of body

Press a key on the unit to activate a corresponding function.

For instance:

• Press [OSC] key to activate or deactivate swing function.
• Press [Speed] key to adjust 3 speeds of air flow.
• Press [Style] key to switch between normal, natural and sleep functions.
• Press [Timer] key to set 1-12 hour timer setting.
• Press [lon] key to activate or deactivate negative lon function.

- When [Eva./Cooler] key is pressed, the indicator lights up constantly if the operation is normal; when the indicator flashes, it denotes a water shortage, please add water immediately.

Considerate hint:

Push buttons on the unit may differ based on the actual product model.

Considerate hint:

When humidifying, water level in the water tank must remain under max indication; replenish water if level gets lower than min indication.

4 Other

4.1 Maintenance instruction

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust. Do not disassemble the fan to remove dust.
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.

4.2 Cleaning

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

4.3 Technical data

Power supply: 220V-240V, 50Hz

Technical and design modifications reserved.

Information
Description	Symbol Value		Unit
Maximum fan flow rate	F 7.5 m		^3 /min
Fan power input	P 100 W
Service value	SV 0.08 (m)		^3 /min)/W
Standby power consumption	P_SB	0.5 W
Fan sound power level L	WA	65 dB(A)
Maximum air velocity	C 27.00 meters/sec
Measurement standard for service value	IS 5801:1997

5
