Aphex Vintage - Audio-Software WAVES - Kostenlose Bedienungsanleitung

Produkttyp	Audio-Plug-in (Aural Exciter)
Modell	Aphex Vintage Aural Exciter
Formate	VST, AU, AAX (64-Bit)
Komponenten	Mono und Stereo
Betriebsarten	BP, MIX1, MIX2, AX
MIX1-Modus	Emuliert den AX-Send-/Return-Sound (Insert)
MIX2-Modus	Emuliert den MIX-Insert-Sound der Hardware
AX-Modus	Für Send-/Return-Anwendungen auf Aux-Spuren
AX MIX-Regler	0 bis 10 (Standard: 7,87)
INPUT-Regler	-18 dB bis +18 dB (Standard: 0 dB)
OUTPUT-Regler	-18 dB bis +18 dB (Standard: 0 dB)
VU-Meter	Anzeige von Eingangs-/Ausgangspegel mit Clip-LED
VU-Kalibrierung	24–8 dB Headroom (Standard: 18 dB)
NOISE-Regler	Aus / -48 dB bis 0 (Standard: Orig.)
MAINS-Regler	Aus / 50 Hz / 60 Hz (Standard: 50 Hz)
METER-Auswahl	Eingang / Ausgang / AX (Standard: Ausgang)
Systemanforderungen	Windows 10+ / macOS 11+
Lizenz	Waves-Account erforderlich
Entwicklung	Waves Audio Ltd.

Häufig gestellte Fragen - Aphex Vintage WAVES

Wie installiere ich das Aphex Vintage Aural Exciter Plugin?

Laden Sie die Software von Ihrem Waves-Konto herunter und installieren Sie sie mit dem Waves Central Installer. Verwalten Sie Ihre Lizenzen über das Waves-Konto.

Welche Modi bietet das Plugin?

Das Plugin verfügt über vier Modi: BP (Bypass), MIX1, MIX2 und AX. MIX1 emuliert den AX-Send-/Return-Sound, MIX2 den MIX-Insert-Sound der Hardware, und AX ist für Send-/Return-Anwendungen gedacht.

Was ist der Unterschied zwischen MIX1 und MIX2?

MIX1 reproduziert den Klang des AX-Modus in einer Insert-Konfiguration (Send-/Return-Emulation), während MIX2 den direkten Insert-Modus der Original-Hardware nachbildet. MIX2 kann bei höheren Einstellungen Frequenzmodulationen verursachen.

Wie verwende ich den AX-Modus?

Setzen Sie das Plugin auf einen Aux-Bus und routen Sie einen Send darauf. Stellen Sie den MODE-Schalter auf AX. Regeln Sie den Send-Pegel, um den gewünschten Mischungsgrad zu erreichen.

Was bewirkt der AX MIX-Regler?

Der AX MIX-Regler steuert die Menge des Aural Exciter-Effekts (AX), das dem Originalsignal beigemischt wird. Der Bereich reicht von 0 bis 10, wobei der Standardwert 7,87 ist.

Kann ich den analogen Rauschen einstellen?

Ja, über den NOISE-Regler. Sie können das Rauschen ausschalten, auf den Originalpegel (Orig.) setzen oder einen Wert zwischen -48 dB und 0 dB wählen.

Wozu dient der MAINS-Schalter?

Der MAINS-Schalter simuliert Netzkomponenten, die durch die Stromversorgung der Original-Hardware verursacht werden. Sie können zwischen Aus, 50 Hz oder 60 Hz wählen.

Wie kalibriere ich das VU-Meter?

Das VU-Meter hat eine kleine Schraube darunter (bei Stereo die linke). Damit stellen Sie den Headroom zwischen 24 und 8 dB ein. Der Standardwert ist 18 dB Headroom (0 dBVU = -18 dBFS).

Kann ich die Eingangsverstärkung anpassen?

Ja, der INPUT-Regler erlaubt eine Verstärkung von -18 dB bis +18 dB. Da die Eingangspegel den Klang stark beeinflussen, wird empfohlen, verschiedene Einstellungen auszuprobieren.

Welche Systemanforderungen gelten?

Das Plugin erfordert Windows 10 oder höher bzw. macOS 11 oder höher, einen kompatiblen Host (DAW) und ein gültiges Waves-Konto für die Lizenzverwaltung.

BEDIENUNGSANLEITUNG Aphex Vintage WAVES

WAVES

APHEX VINTAGE AURAL EXCITER®

USER GUIDE

Abstract black waveform pattern on white background (no text or symbols)

WAVES

TABLE OF CONTENTS

CHAPTER 1 – INTRODUCTION ....3

1.1 WELCOME....3
1.2 PRODUCT OVERVIEW....3
1.3 CONCEPTS AND TERMINOLOGY....4
1.4 COMPONENTS 6

CHAPTER 2 – QUICK START GUIDE......7

CHAPTER 3 – INTERFACE AND CONTROLS ....8

3.1 INTERFACE....8
3.2 CONTROLS....9
3.3 WAVESYSTEM TOOLBAR....10

Chapter 1 – Introduction

1.1 Welcome

Thank you for choosing Waves! In order to get the most out of your new Waves plugin, please take a moment to read this user guide.

To install software and manage your licenses, you need to have a free Waves account. Sign up at www.waves.com. With a Waves account you can keep track of your products, renew your Waves Update Plan, participate in bonus programs, and keep up to date with important information.

We suggest that you become familiar with the Waves Support pages: www.waves.com/support. There are technical articles about installation, troubleshooting, specifications, and more. Plus, you'll find company contact information and Waves Support news.

1.2 Product Overview

When it was originally introduced in the mid-1970s, the Aphex Aural Exciter® brought its distinctive sound to select sessions by leading recording artists, traveling from studio to studio as an exclusive (and expensive) rental unit.

A true groundbreaker, the original Aural Exciter was highly regarded for its ability to increase and enhance presence, brightness, and detail on vocal tracks and masters alike. It was even credited as a "session player" on popular albums by the likes of Jackson Browne, Linda Ronstadt, and James Taylor.

Modeled on one of only a few tube-powered units ever made, the new Waves Aphex Vintage Aural Exciter plugin delivers all the unique character of the rare original hardware unit, with all the advantages of software.

1.3 Concepts and Terminology

While the original 402 Aural Exciter unit we modeled has only one mix mode, the Vintage Aural Exciter plugin has two. Here's how that came about:

When we originally modeled the unit, replicating its sound in both insert and aux send/return modes, we realized that each mode had its own unique sound. This is primarily because the phase relation between the direct sound and the AX sound is reversed, and the signal that the AX is mixed with is a pure direct, while the device's BP (bypassed) signal includes its own phase response which, while not fully inverted, does affect the sound of the mix.

Producer/engineer Val Garay, one of the high-profile users who helped popularize the original Aural Exciter, listened to the plugin prototype and confirmed that the sound of our software corresponds perfectly with the hardware unit. However, he also told us that he always used the device in a send/return auxiliary setup in AX mode. Val's aux send/return setup delivers "the sound" that is forever etched on hit records of the late '70s and early '80s. Since today's users may prefer to insert the plugin directly on a track, we wanted to make this send/return sound available in insert mode. We decided to provide both sounds in insert mode for the user's convenience, by introducing an additional MIX mode. This is what we call MIX1 mode.

MIX2 mode is based on the sound of the original hardware unit's MIX mode, as an insert. While it may be “over the top” for a mastering task, it may be just the thing for a vocal track that needs enhancement or presence that cannot be achieved using EQ. Due to the processor’s unique phase behavior, modulations in frequency response may occur at certain AX MIX settings in MIX2 mode. At AX MIX settings of 1 to 4.5, the effect is very subtle; settings of 4.5 to 7.2 result in a frequency dip; settings from 7.2 to 10 bring about a pretty, not subtle sound.

To recap:

• MIX1, as an insert, recreates the hardware unit's AX mode send/return sound.
• MIX2, as an insert, recreates the hardware unit's MIX mode insert sound.
• AX mode is designed to be used for send/return auxiliary setups.

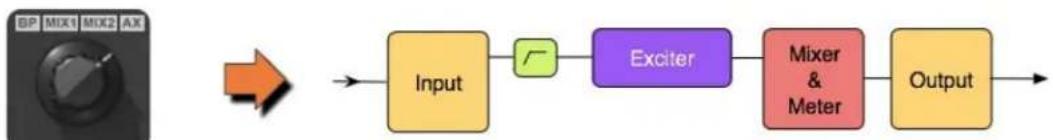

Signal Path

BP

AX

MIX1

MIX2

1.4 Components

The Aphex Vintage Aural Exciter® consists of two components:

• AphexMono
• Aphex Stere

Chapter 2 – Quick Start Guide

There are two primary ways to use the Waves Aphex Vintage Aural Exciter plugin:

1. As an insert on the track, using MIX1 or MIX2 modes.
2. As a send/return effect on an aux track, using AX mode.

MIX1/MIX2

- Insert the Vintage Aural Exciter on your track.

- Set to MIX1 or MIX2 mode.

○Adjust the AX MIX knob to blend the desired amount of effect with your dry signal.

- Adjust input and output levels as necessary.

AX

Insert the Vintage Aural Exciter on an aux bus, and route a 'send' to that bus.

○Set to AX mode.

○Adjust the 'send' to blend the desired amount of effect with your dry signal.

○Adjust input and output levels on the Aural Exciter plugin as necessary.

Please note: Since input levels have a significant impact on the sound of the plugin, we recommend experimenting in order to find your optimal input settings.

Chapter 3 – Interface and Controls

3.1 Interface

Waves Aphex Vintage Aural Exciter® User Guide

3.2 Controls

VU Meter with clip indicator displays input or output level in dBVU

Clip LED lights up when levels exceed 0 dBFS. Click to reset.

VU Calibration controls VU meter headroom calibration.

Range

24 - 8dB (16dB)

Default

18 dB of headroom (0 dBVU = -18 dBFS)

Please note: The VU Calibration control is represented by the small screw-head below the VU meter display. It does not have a visible label and, for most users, the default setting of 18 dB headroom should be the best choice. On the Stereo component, use the screw located on the left to calibrate both meters.

MODE selects the processing mode.

Range: BP, MIX1, MIX2, AX

• BP = Bypass (Please note: BP does not function as a pure bypass; the plugin models the original hardware's BP mode behavior.)
• MIX1, as an insert, recreates the hardware unit's AX mode send/return sound.
• MIX2, as an insert, recreates the hardware unit's MIX mode insert sound.
• AX mode is designed to be used for send/return auxiliary setups.

Default: MIX1

METER selects VU meter view options.

Range: Input / Output / AX

Default: Out

INPUT controls input gain.

Range: -18dB to +18db

Default: 0dB

AX MIX controls the amount of AX (aural excitement) added to the original Functional in Mix mode only.)

Range: 0 to 10

Default: 7.87

OUTPUT controls output gain.

Range: -18dB to +18db

Default: 0dB

NOISE controls the level of the modeled analog noise.

Range: Off / -48dB to 0 (0 = original HW)

Default: Orig.

MAINS controls analog characteristics caused by hum, based on the power supplies of the original units.

Range: Off / 50Hz / 60Hz

Default: 50Hz

3.3 WavSystem Toolbar

Use the bar at the top of the plugin to save and load presets, compare settings, undo and redo steps, and resize the plugin. To learn more, click the icon at the upper-right corner of the window and open the WaveSystem Guide.
