| Produkttyp | Smart App Sinuswellen-USV (Line-Interactive) |
| Modell | PR3000RTXL2U |
| Marke | CyberPower |
| USV-Topologie | Line-Interactive |
| Scheinleistung | 3000 VA |
| Wirkleistung | 3000 W |
| Eingangsspannung | 100-120 VAC |
| Ausgangsspannung (Batterie) | 100/110/120 VAC ±5% |
| Ausgangswellenform | Reine Sinuswelle |
| Anzahl Steckdosen | 9 (8x NEMA 5-20R, 1x NEMA L5-30R) |
| Batterietyp | Versiegelte Blei-Säure (12V / 9 Ah) |
| Anzahl Batterien | 4 (Hot-Swappable, benutzeraustauschbar) |
| Ladezeit | Ca. 3 Stunden |
| Laufzeit bei halber Last | 7 Minuten |
| Laufzeit bei voller Last | 1,7 Minuten |
| Überspannungsschutz | 2.430 Joule |
| Abmessungen (B x H x T) | 43,4 x 8,6 x 50,0 cm (17,1 x 3,4 x 19,7 Zoll) |
| Gewicht | 34,2 kg (75,4 lbs) |
| Betriebstemperatur | 0°C bis 40°C |
| Garantie | 3 Jahre beschränkt, lebenslange Gerätegarantie (bis 400.000 USD) |
| Zertifizierungen | UL1778, cUL107.1, FCC Klasse A, RoHS |
Häufig gestellte Fragen - PR3000RTXL2U CyberPower
Benutzerfragen zu PR3000RTXL2U CyberPower
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Wechselrichter kostenlos im PDF-Format! Finden Sie Ihr Handbuch PR3000RTXL2U - CyberPower und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. PR3000RTXL2U von der Marke CyberPower.
BEDIENUNGSANLEITUNG PR3000RTXL2U CyberPower

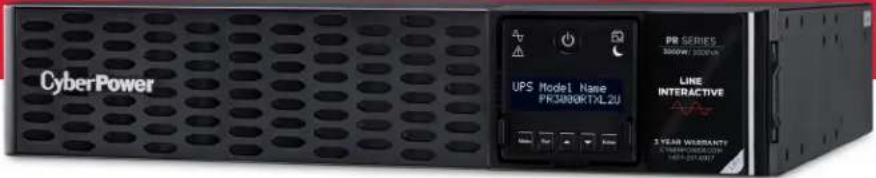

CyberPower PR3000RTXL2U SMART APP SINEWAVE UPS
Protect corporate and network servers, telecom installations, and VoIP systems.
The PR3000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The Smart App Sinewave PR3000RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The new chassis design with an easy-to-access toolless front panel, color-coded rear panel, and captive screws for battery panel access make installations and battery changes simple and fast. The PR3000RTXL2U also has a new LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
TYPICAL APPLICATIONS
- Servers
- Workstations
• Network Devices
• Telecom Equipment
FE ATURES
- 3000VA/3000W
• Line-Interactive Topology - GreenPower UPS™
• 2U Rack Mount/Tower Convertible
SPECIFICATIONS
GENERAL
| UPS Topology Line-Interactive | |
| Energy Saving | GreenPower UPSTM Bypass Technology |
| ENERGY STAR® Certified Yes | |
| Active PFC Compatible Yes | |
| INPUT | |
| Voltage 100 - 120 VAC | |
| Frequency 47 - 63 Hz | |
| Input Voltage Range 75 - 149 VAC | |
| Plug Type NEMA L5-30P | |
| Plug Style Straight, Twist Lock | |
| Cord Length 10 ft. | |
OUTPUT
| VA 3000 | |
| Watts 3000 | |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On Battery Voltage 100/110/120Vac ± 5% | |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Waveform | Sine Wave |
| Outlets - Total | 9 |
| Outlet Type | 8 x NEMA 5-20R; 1 x NEMA L5-30R |
| Outlets - Critical Load | 4 |
| Outlets - Battery & Surge Protected | 9 |
PR3000RTXL2U SMART APP SINEWAVE UPS
SPECIFICATIONS CONT.
OUTPUT CONT.
| Rated Power Factor 1 | |
| Overload Protection | Internal Circuitry Limiting/ Circuit Breaker |
| Transfer Time 4 ms typical |
BATTERY
| Runtime at Half Load (min) | 7 |
| Runtime at Full Load (min) | 1.7 |
| Battery Type Sealed Lead-Acid | |
| Battery Size 12V / 9AH | |
| Hot-Swappable Yes | |
| Replacement Battery RB1290X4J | |
| Battery Quantity 4 | |
| User Replaceable Yes | |
| Typical Recharge Time 3 hrs | |
| External Battery Pack Option | BP48VP2U02 |
SURGE PROTECTION & FILTERING
| Network Protection RJ451 - In, 1 - Out | |
| Surge Suppression | 2,430 Joules |
| EMI/RFI Filtration | Yes |
MANAGEMENT & COMMUNICATIONS
| Multifunction LCD Panel | 47 Settings (27 Setup and Control Items + 20 Status Updates and Log Menus) |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Contact Closure | Yes |
| Management Cable | USB Cable, Serial Cable,EPO Cable |
MANAGEMENT & COMMUNICATIONS
| LED Indicators | Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Software | PowerPanel® Business Edition |
| SNMP/HTTP Remote Monitoring | Yes - With Optional RMCARD205 |
PHYSICAL
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Dimensions (WxHxD) (in.) | 17.1 x 3.4 x 19.7 |
| Weight (lbs.) | 75.4 |
| Shipping Dimensions (WxHxD) (in.) | 22.1 x 10.8 x 24.4 |
| Shipping Weight (lbs.) | 89.5 |
ENVIRONMENTAL
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0 - 95% (Non-Condensing) |
| Storage Temperature 5°F to 113°F (-15°C to 45°C) | |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| AC Mode Thermal Dissipation | 120.8 BTU/hr |
CERTIFICATIONS
| Safety | UL1778, cUL107.1, FCC Class A |
| Environmental | RoHS Compliant |
WARRANTY
| Product Warranty | Three-Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $400,000 |
