GeoVision 5059 - Gps PRESTIGIO - Kostenlose Bedienungsanleitung

Produkttyp	GPS-Navigationsgerät
Marke	Prestigio
Modell	GeoVision 5059
Bildschirm	5 Zoll Touch-LCD, 480 x 272 Pixel
Prozessor	MSB2531A Cortex A7, 800 MHz
Arbeitsspeicher (RAM)	128 MB
Interner Speicher	4 GB Flash
Speichererweiterung	Micro SDHC/SDXC bis 32 GB
Akku	950 mAh, Lithium-Ionen
Abmessungen (B x H x T)	132 x 89 x 13 mm
Gewicht	200 g
Betriebstemperatur	-20 °C bis 60 °C
Stromversorgung	Autoladegerät (12 V Zigarettenanzünder) oder USB (Mini-USB)
Navigation	GPS/GLONASS
Kartensoftware	Navitel (vorinstalliert)
Online-Dienste (optional)	Navitel.Traffic, Navitel.Friends, Navitel.Events (mit Internetzugang)
Lieferumfang	GPS-Gerät, Halterung, Autoladegerät, USB-Kabel, Kurzanleitung, Garantiekarte
Sicherheitshinweise	Nur von autorisiertem Personal reparieren lassen; vor Feuchtigkeit schützen; Betriebstemperatur beachten

Häufig gestellte Fragen - GeoVision 5059 PRESTIGIO

Wie schalte ich das Gerät ein und aus?

Drücken und halten Sie die Power-Taste, um das Gerät einzuschalten. Zum Ausschalten halten Sie die Taste gedrückt und tippen Sie auf das Stromsymbol auf dem Bildschirm.

Wie lade ich den Akku vollständig auf?

Verwenden Sie das mitgelieferte Autoladegerät an der 12V-Zigarettenanzünderbuchse oder das Mini-USB-Kabel an einem Computer. Bei erster Nutzung laden Sie den Akku mindestens 8 Stunden auf. Die Ladezeit beträgt danach ca. 2 Stunden.

Wie installiere ich eine microSD-Karte?

Schalten Sie das Gerät aus und stecken Sie eine microSD-Karte (nicht im Lieferumfang) in den dafür vorgesehenen Schlitz, bis sie einrastet. Das Gerät erkennt die Karte automatisch als Standardspeicher.

Wie montiere ich das GPS-Gerät im Auto?

Befestigen Sie die Halterung an der Windschutzscheibe oder dem Armaturenbrett mit dem Saugnapf. Setzen Sie das Gerät auf die Halterung und drehen Sie den Knopf, um den Blickwinkel anzupassen. Stellen Sie sicher, dass das Gerät freie Sicht zum Himmel hat.

Wie navigiere ich zu einem Ziel?

Tippen Sie auf dem Bildschirm auf Menü > Suchen und wählen Sie die gewünschte Methode (z. B. Nach Adresse). Geben Sie die Adresse ein und tippen Sie auf Los!. Die Route wird automatisch berechnet.

Wie verwende ich die Navitel.Traffic-Funktion?

Diese Funktion erfordert eine Internetverbindung. Gehen Sie zu Menü > Einstellungen > Online-Dienste und aktivieren Sie Navitel.Traffic. Auf der Karte werden dann Staus farblich angezeigt.

Was kann ich tun, wenn kein GPS-Signal empfangen wird?

Stellen Sie sicher, dass das Gerät im Freien oder im Auto mit freier Sicht zum Himmel verwendet wird. Vermeiden Sie Abschirmungen durch Metall oder dicke Wände. Ein Neustart kann ebenfalls helfen.

Wie kann ich die Karten aktualisieren?

Über die Navitel-Software können Sie Kartenaktualisierungen herunterladen. Tippen Sie auf das Updates-Symbol im Hauptmenü, sofern eine Internetverbindung besteht.

Was tun, wenn kein Ton zu hören ist?

Erhöhen Sie die Lautstärke über das Menü oder stellen Sie sicher, dass die Tonausgabe nicht stummgeschaltet ist. Überprüfen Sie auch die Einstellungen für die Sprachführung.

Wo finde ich Garantieinformationen?

Die Garantieinformationen finden Sie auf der mitgelieferten Garantiekarte oder online unter www.prestigio.com/support/warranty-terms.

BEDIENUNGSANLEITUNG GeoVision 5059 PRESTIGIO

Prestigio

GEOVISION 5059

NAVITEL®

Unboxing

Getting started

Maps & navigation

Specifications

Troubleshooting

Safety

You may find detailed warranty information at: www.prestigio.com/support/warranty-terms.

© Copyright 2016 Prestigio. All rights reserved.

Prestigio

Unboxing

Inside your package Your device at a glance

Menu

Troubleshooting

Back

Next

Inside your package

• Prestigio GPS
• Mounting cradle

• Car charger

• USB cable

• Quick start guide
• Warranty card

Your device at a glance

1. Power button
2. Earphone jack

3. SD card slot

4. Mini USB port

5. Reset button
6. Speaker

Prestigio

Getting started

Install memory card Mount your device Charge the battery Power on your device

Menu

Troubleshooting

Back

Next

Congratulations on your purchase and welcome to Prestigio. To get the most from your product and enjoy all that Prestigio has to offer, please visit: http://www.prestigio.com/catalogue/Navigators

For more details about your product, please visit: www.prestigio.com/support

Install memory card

Before power on, please insert a microSD card (not included) into the slot until it locks in place.

The device will automatically recognize it as default storage, and save mapping data or user's music, photo or video on this card.

Mount your device

1. Install the bracket to mounting cradle.
2. Remove the protection plastic film from the suction cup, and position it on the clean windshield or dashboard.
3. Hold firmly against the surface and lock the suction cup lever. The mount will suction and stick firmly onto the surface.
4. Lock device on the bracket with bottom on the appropriate socket.
5. Rotate the knob to adjust device to desired viewing angle.

Make sure that the device has a clear view of sky to attain best GPS reception.

Prestigio

Install memory card Mount your device Charge the battery Power on your device

Menu

Troubleshooting

Back

Next

Dismount your device

1. Push the tap on top of the mounting cradle to release the device.
2. Lift the suction cup lever to easily remove the suction cup from windshield or dashboard.

Charge the battery

• Using the car charger: after vehicle engine is started, charge the device through vehicle 12V cigarette lighter, to protect the device from sudden surges in current.
  • Using mini USB cable: connect the device to AC adapter or the USB port of a computer.

• Please fully charge the battery (for at least 8 hours) before initial use. The battery status indicator glows in red color when charging, and turns bright amber color when charging is complete.
• Charging time is approximately 2 hours after initial use.
• It is not necessary to start charging the device before the battery is fully discharged.

Power on your device

Press and hold the power button to turn on your device.

To turn it off, press and hold the power button, and then tap power icon on the pop-up screen.

Prestigio

Maps & navigation

Program interface
Routing
Some additional features

Menu

Troubleshooting

Back

Next

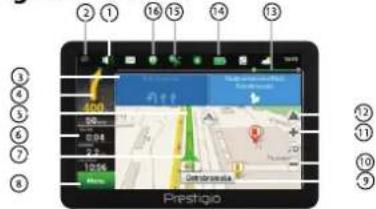

Program interface

C	Name	Function
1	Sound	Tapping on the button opens the sound menu.
2	Compass	Tapping on the button opens the context menu, which controls options of map orientation ("North up" – the map will always be oriented northwards, "Track up" – the map will always be oriented in the direction of movement along the route), type of map view (Plain view "2D", Panoramic view "3D") and skins ("Night skin", "Day skin", "Auto").
3	Road lanes	The sign displays road lanes with possible maneuvers.

4	Information panel	The sign shows the upcoming maneuver (for example, turning) and distance to the maneuver. Tapping on the sign opens the menu containing route options, for instance an option which allows stopping route guidance.
5	Route	Visualization of a current route.
6	Information panel	The panel shows current speed, the remaining time to the destination point, distance to the destination point, and estimated arrival time.
7	GPS-cursor	Indication of a current position on the map, when the GPS receiver is switched on.
8	Menu	Tapping on the button opens the main program menu.
9	Information panel	The panel shows the name of the street you are currently driving along. The information is available only if GPS/GLONASS connection is established and the map contains such information. If there is no street name, the direction will be displayed.

Prestigio

Program interface

Routing

Some additional features

Menu

Troubleshooting

Back

Next

10 Scale button	Zoom out button.
11 Scale button	Zoom in button.
12 "Navitel. Events"*	Button for controlling the "Navitel.Events" service.
13 Route progress bar	The progress bar displays the remaining route, waypoints (if any) and traffic density on the route marked by color.
14 Battery	The icon indicates the level of battery charge. Tapping on the icon shows free device memory.
15 GPS	GPS-connection indicator. Grey indicator - GPS/GLONASS-receiver is off; red - receiver is turned on, but there is no connection with satellites; yellow - bad connection; green - connection is established. The number in the icon indicates the number of satellites.

16 "Navitel.Friends"*

The icon of the "Navitel.Friends" service, tapping on which opens its menu. The service is intended for adding friends, viewing their location and exchanging messages with them.

Prestigio

Program interface
Routing
Some additional features

Menu

Troubleshooting

Back

Next

17

20

19

18

C	Name	Function
17	"Cursor" button	Tapping on the button shows the menu for operations with the point marked on the map (making it a destination point by pressing "Go!" button or proceeding to the properties screen.
18	"Save WP" button	Saves the point marked on the map as a waypoint.
19	2D/3D	Switching between the plain 2D and the panoramic 3D map formats.
20	Point on the map	Short tap on the map marks the point for further operations with it: saving as a waypoint, adding to the route or viewing the object's data, and others.

21 Updates *	Provides access to the program and map update menu screen.
22 Track recording	Button for track recording: red dot-recording is on, grey dot - recording is stopped.
23 Navitel. Traffic*	The icon displays general traffic intensity on ten-point scale. Tapping on the button shows the menu for controlling the "Navitel.Traffic" service.
24 Navitel. SMS*	The icon allows reading/sending messages and using coordinates in them. It also shows the number of unread messages.

Prestigio

Program interface
Routing
Some additional features

Menu

Troubleshooting

Back

Next

25 26

29 28 27

C	Name	Function
25	"Go!"	Tapping on the button gives a command to the program to calculate a route from the current position or the set initial point to the selected point.
26	"Set start"	Tapping on the button determines the selected point as a starting point of the route (GPS-receiver must be switched off).
27	"Set finish"	The button is active only when there is an existing route. Pressing the button continues the route up to the selected point making it the destination point of the route.

28 "Route through"	The button is active only when there is an existing route. Pressing the button marks the selected point as a point to be included in the route. The last added point becomes the first one in the route after the starting point.
29 Map	Back to map.

* – functionality is available only for devices, having access to the Internet.

Prestigio

Program interface

Routing

Some additional features

Menu

Troubleshooting

Back

Next

Routing

Route to a point selected on the map You can have a route planned to a point, which can be found and marked on the map and then set as the destination, while current position of the device, determined by the GPS system becomes the starting point. To plan a route press on the map to mark the point, select "Cursor" [1] and then "Go!" [2]. The route will be displayed on the map [3].

Fig.1

Fig.2

Fig.3

Route to an address

To have a route calculated to a point of a known address, press "Menu" in the bottom left corner of the screen [1] → "Find" [2] → "By address", then press "Select country" [3] and start entering the name of a country [4]. Press the icon in the upper right part of the screen to hide the keyboard. Select the country [5]. "Select city", "Select street" and "Select building" become active only if the previous fields were filled out [6]. When all information is entered the object will be shown in the screen [7]. Press "Go!". The program will automatically plan a route from a current location to the indicated address [8]. Now you can follow the route [9].

Fig.1

Fig.2

Fig 3

Fig.4

Prestigio

Program interface

Routing

Some additional features

Menu

Troubleshooting

Back

Next

Fig.5

Fig.7

Fig.9

Manual setting of all route points

To plan a route, where the starting and the destination points are determined manually, first mark a point on the map where you plan to start and press "Cursor" [1] to proceed to the "My route" screen. Tap on the information panel at the bottom of the screen [2]. Press "Set start" in the "Properties" screen [3]. The GPS-receiver must be switched off. The point will be marked on the map as a starting point. Select a destination point on

the map: tap on the map to mark the point, press "Cursor" [4] and then press "Go!" in the "My route" screen [5]. The program will automatically plan a route [6].

Fig.5

Fig.6

Prestigio

Program interface

Routing

Some additional features

Menu

Troubleshooting

Back

Next

Some additional features

For those devices which support Internet connection, various NAVITEL® online services, including "Navitel.Traffic" and "Navitel.Friends" are available.

Navitel.Traffic

The service provides and displays real-time information about density of traffic on the map. If a part of a road is marked green on the map this means that road traffic here is normal, if it is marked yellow – traffic is rather dense, orange – traffic is heavy, red – there is a traffic jam [1]. To set the service select "Menu" → "Settings" → "Online services".

Navitel. Friends

The "Navitel.Friends" interactive service allows viewing positions of friends on the map in real-time mode, to plan a route, using their coordinates, to share coordinates of other points and exchange messages. To turn the service on select "Menu" → "Settings" → "Online services" and set the switch in the "Turn on Navitel.Friends" field to "On" position.

Fig.1

Prestigio

Specifications

MSB2531A Cortex A7, 800 MHZ

RAM 128 MB + 4 GB Flash

Micro SDHC/SDXC ≤ 32 GB

5" touch LCD, 480*272

950 mAh

132*89*13 mm (W*H*D)

Menu

Troubleshooting

Back

Next

200 g

Prestigio

Troubleshooting

Take steps described in the tables below to solve simple problems before contacting customer service.

Immediately turn off the device and disconnect the power adapter if the device is not working properly. Never try to repair the unit without authorized professionals for it may damage the unit.

Users can't turn on the unit.

• Connect the adaptor correctly.
• Use the adaptor to supply power or charge the battery.

There is no sound.

- Turn up the volume or turn on the sound output.

There is no picture.

- Adjust the brightness of the LCD.

The unit can't receive satellite signals or can't orient.

- Make sure to use the unit out of room; if in the

vehicle, you can use the external GPS antenna to solve this problem.

The unit can receive signals now but can't then; signals received are not stable.

• Use the adaptor to supply power or charge the battery.
• Remove the veil.
• Avoid great swing of the unit.

Menu

Troubleshooting

Back

Next

Prestigio

Safety instructions

Menu

Troubleshooting

Back

Next

• To reduce the risk of electric shock, do not remove the cover (or back). Only PRESTIGIO certified technicians are qualified to repair your device.
• The manufacturer should not hold responsibility for the damage caused by any substitutions and modifications of the product without authorization from the manufacturer or authorized unit.
• To prevent fire or shock hazard, do not expose your device to rain or moisture.
• Do not put, store or leave your device near heat sources, in direct strong sunlight, or in a high temperature location.
• Maintain well-ventilated conditions around the unit to avoid overheating.
  • Operating temperature: -20°C to 60°C.
