| Produkttyp | Wärmebild-Netzwerkkamera |
| Marke | Dahua Technology |
| Modell | DH-TPC-BF5400N-B |
| Kategorie | Sicherheitskamera |
| Bildsensor | Uncooled VOx Microbolometer |
| Wärmebildauflösung | 640×480 Pixel |
| Video-Komprimierung | H.264, H.264H, MJPEG |
| Netzwerk | 10/100Base-T Ethernet, PoE (802.3af) |
| Stromversorgung | PoE oder 12V DC (Netzteil im Lieferumfang) |
| Leistungsaufnahme | < 12 W |
| Betriebstemperatur | -40°C bis +60°C |
| Schutzart | IP67 (wetterfest) |
| Abmessungen (ca.) | 295 × 90 × 90 mm |
| Gewicht (ca.) | 1,5 kg |
| Fernzugriff | Web-Browser, RTSP, ONVIF |
| Speicher | SD-Karte (max. 256 GB), NAS, FTP |
| Temperaturmessbereich | -40°C bis 600°C (umschaltbar) |
| Alarmfunktionen | Bewegung, Temperatur, Feuer, IVS (Linienkreuzung, Eindringen) |
| Sicherheit | IP-Filter, HTTPS, Benutzerkonten, 802.1x |
| Lieferumfang | Kamera, Netzteil, Montagematerial, Kurzanleitung |
| Wartung | Objektiv mit weichem Tuch reinigen, keine aggressiven Reinigungsmittel |
| Reparierbarkeit | Nur durch autorisiertes Fachpersonal |
Häufig gestellte Fragen - DH-TPC-BF5400N-B Dahua Technology
Benutzerfragen zu DH-TPC-BF5400N-B Dahua Technology
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Sicherheitskamera kostenlos im PDF-Format! Finden Sie Ihr Handbuch DH-TPC-BF5400N-B - Dahua Technology und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. DH-TPC-BF5400N-B von der Marke Dahua Technology.
BEDIENUNGSANLEITUNG DH-TPC-BF5400N-B Dahua Technology
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Version 1.0.0
Table of Contents
1 Network Config....1
1.1 Network Connection .... 1
1.2 Log in 1
2 Live....6
2.1 Encode Setup....6
2.2 System Menu....7
2.3 Video Window Function Option 7
2.4 Video Window Setup 8
2.4.1 Image Adjustment....8
2.4.2 Original Size 9
2.4.3 Full Screen....9
2.4.4 Width and Height Ratio....10
2.4.5 Fluency Adjustment....10
2.4.6 Rules Info 10
2.4.7 Realtime Report....10
2.4.8 Ray Axis Correct 10
3 Playback....12
3.1 Playback....12
3.1.1 Function of Play....12
3.1.2 Playback File 13
3.1.3 Playback Cut....16
3.1.4 Record Type 16
3.1.5 Progress Bar....17
3.1.6 Assistant Function 17
3.2 Picture Playback 17
3.2.1 Play 18
3.2.2 Playback File 18
3.2.3 Snapshot Type 20
4 Report 22
5 Setup....24
5.1 Camera....24
5.1.1 Conditions....24
5.1.2 Video 27
5.1.3 Audio 34
5.2 Network....35
5.2.1 TCP/IP 35
5.2.2 Connection....36
@jhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
5.2.2.1 Connection....36
5.2.3 PPPoE 39
5.2.4 DDNS 40
5.2.5 IP filter 41
5.2.6 SMTP (e-mail) 42
5.2.7 UPnP 43
5.2.8 SNMP 44
5.2.9 Bonjour 47
5.2.10 Multicast 47
5.2.11 802.1x 48
5.2.12 QoS 49
5.3 Event 50
5.3.1 Video detect 50
5.3.2 IVS Analyse 54
5.3.3 Temperature Alarm....61
5.3.4 Fire Alarm....62
5.3.5 Alarm 65
5.3.6 Abnomity....66
5.4 Temperature 69
5.4.1 Rule Setup....69
5.4.2 Global 73
5.4.3 Heatmap....78
5.5 Storage Management....78
5.5.1 Schedule....78
5.5.2 Destination 82
5.5.3 Record control 84
5.6 System 85
5.6.1 General 85
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Important
The following functions are for reference only. Some series products may not support all the functions listed below.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
1 Network Config
1.1 Network Connection
Network camera and PC connection mainly has two ways, see Figure 1-1 and Figure 1-2.
Figure 1-1
Figure 1-2
Before you access network camera via the Internet, you need to have its IP address. User can use quick config tool to search IP of the network camera. Please refer to Quick Configuration Tool manual.
Figure 1-3

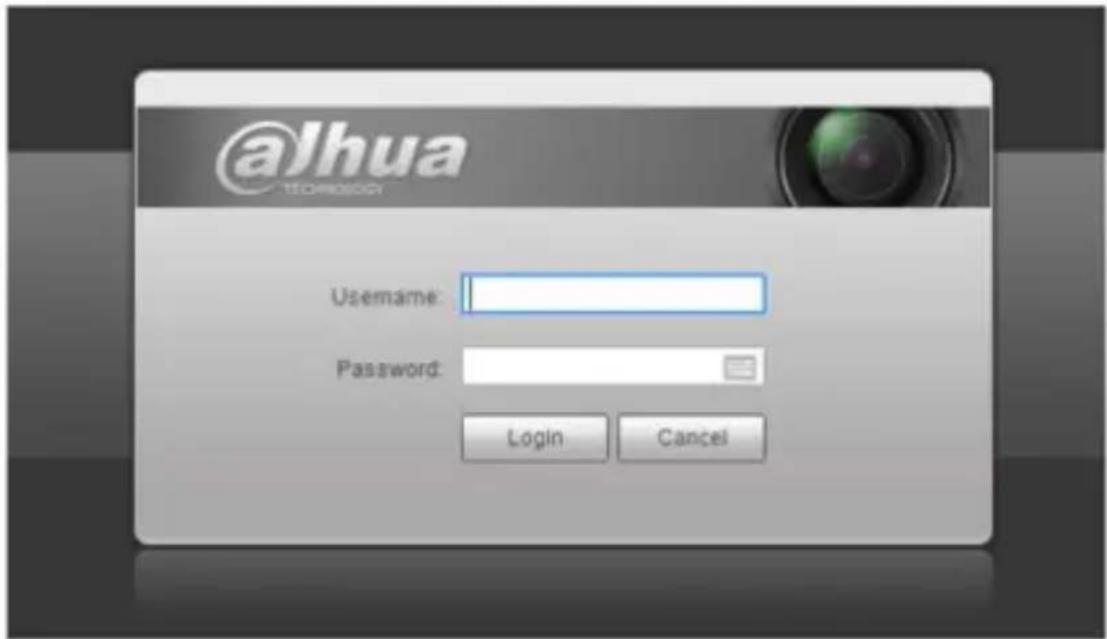

If it is your first time to login in, you may see the interface shown as in Figure 1-4.
Figure 1-4
Dahua IR
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Click on "Please click here to download and install the plug-in". The system pops up warning information to ask you whether run or save this plug-in. See Figure 1-5.
Figure 1-5

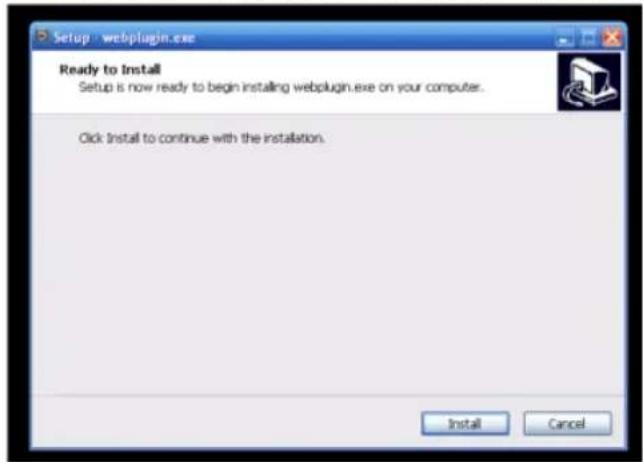

You must either run or save the file to local and install it. Follow the following steps. Click on run, you will see Figure 1-6 and Figure 1-7.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 1-6
Figure 1-7
When plug-in installation completes, the installation page closes automatically. The web-end will refresh automatically, and then you can view video captured by the camera. See Figure 1-8.
Figure 1-8
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
2 Live

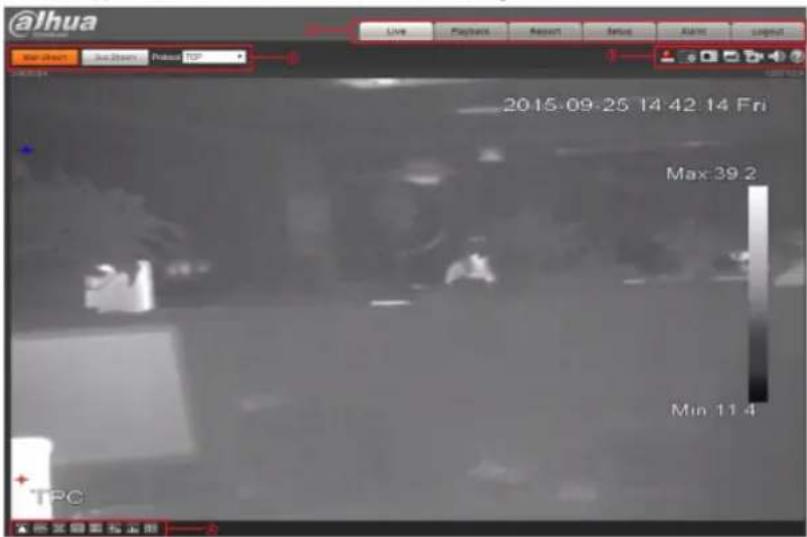

After you logged in, you can see the live monitor window. See Figure 2-1.
Figure 2-1
There are four sections:
• Section 1: Encode setup bar
Figure 2-2
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Main stream | Streaming media protocol connection, under main stream config, monitor video or not. Generally for storage and monitor. |
| Sub (Extra) stream | Streaming media protocol connection, under sub stream config, monitor video or not. When network bandwidth is insufficient, it substitutes main stream for monitoring. |
| Protocol | You can select stream media protocol from the dropdown list. There are three options: TCP/UDP/Multicast |
2.2 System Menu
System menu is shown as in Figure 2-3.
Please refer to chapter 2 Live, chapter 3 Playback, chapter 4 Setup, chapter 5 Alarm, chapter 6 Log out, for detailed information.
| Live | Playback | Setup | Alarm | Logout |
Figure 2-3
2.3 Video Window Function Option
The interface is shown as below. See Figure 2-4.
Figure 2-4
Please refer to the following sheet for detailed information.
| SN | Parameter | Function |
| 1 | Alarm output | It shows if there is any alarm output, status description is as follows:● Red: means there is alarm output.● Grey: means alarm is over.Click on the button to force alarm to be on or off. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| 2 | Zoom in | When the video is in the original status, click it you can select any zone to zoom in. In the non-original status, you can drag the zoom-in zone in specified range. Right click mouse to restore previous status.Click it: you can use the middle button of the mouse to zoom in/out the video size. |
| 3 | Snapshot | Click on the button to snapshot, save picture to path in Ch 5.1.2.5. |
| 4 | Triple snap | Click it, system can snap at 1f/s. All images are saved to path in Ch 5.1.2.5. |
| 5 | Record | Click it, system can record. All images are saved to path in Ch 5.1.2.5. |
| 6 | Audio output | Turn on or off audio when you are monitoring.Note:Only supported by the device with audio. |
| 7 | Help | Click it to open help file. |
2.4 Video Window Setup
The interface is shown as in Figure 2-5.
Figure 2-5
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 2-6
Click this button to display/hide image control interface. Click it to open picture setup interface. This interface is on the top right pane.
Please refer to the following sheet for detailed information.
| Parameter | Function | ||
| Video setup | It is to adjust monitor video brightness. | Note:All the operations here apply to WEB end only.Please go to Setup->Camera->Conditions to adjust corresponding items. | |
| It is to adjust monitor video contrastness. | |||
| It is to adjust monitor video hue. | |||
| It is to adjust monitor video saturation. | |||
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
2.4.4 Width and Height Ratio
Click it to restore original ratio or suitable window.
2.4.5 Fluency Adjustment
There are three levels of fluency for you to select (real-time, normal, fluent). The default is normal.
2.4.6 Rules Info
Click it to enable preview page to display intelligent rules, the default is on.
Note:
The function is only supported by some devices.

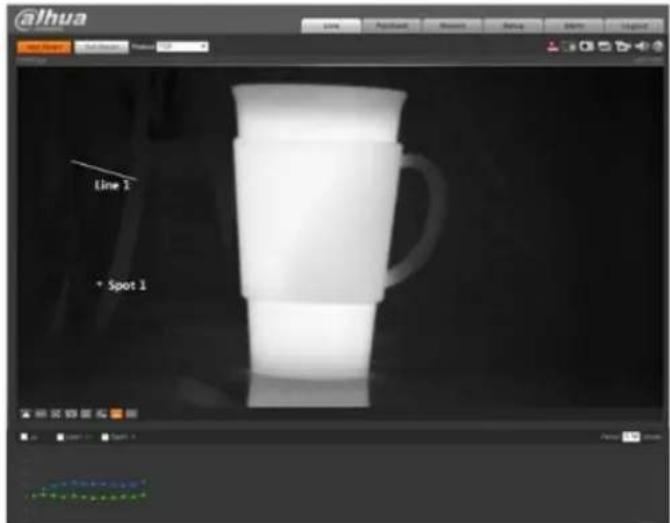

2.4.7 Realtime Report
It is to open or close temperature record interface, it mainly records the temperature change of selected spot, line and area within designated time period starting from the current time. See Figure 2-7.
Note:
The function is only supported by some devices.
2.4.8 Ray Axis Correct
It is to enable or disable ray axis correct.
Note:
The function is only supported by some devices.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 2-7
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
3 Playback
Web client playback supports video playback and picture playback.
Note:
Before playback, user shall set storage management as in Ch 5.5.
3.1 Playback
The playback interface is shown as in Figure 3-1.
Figure 3-2
| Parameter | Function |
| 1 Play | When you see this button, it means pause or not played record. Click on this button, switch to normal play status. |
| 2 Stop | Click this button to stop playing. |
| 3 Play by frame | Click on this button to go to next frame.Note:You shall pause record when you use this function. |
| 4 Slow | Click on this button to play slowly. |
| 5 Quick | Click on this button to play quickly. |
| 6 Silent | When this button displays, it means audio is silent. Click on this button to switch back to normal. |
| 7 Volume | Click on left mouse to adjust volume. |

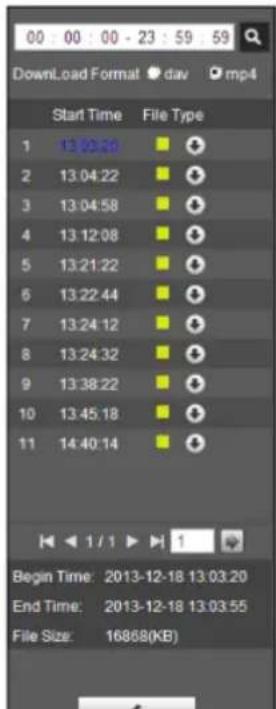

3.1.2 Playback File
In calendar, blue date represents data currently has video record or snapshot. See Figure 3-3.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 3-3
| Parameter | Function |
| File Type | Select "dav", as video playback.Select "jpg" as picture playback. |
| Data Source | Default is SD card. |
Step 1. Click on data in blue, time axis displays record file progress bar in color. While, green represents normal record, yellow represents motion detect record, red represents alarm record, and blue represents manual record.
Step 2. Click on certain time on progress bar, playback starts from this time. See Figure 3-4.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Download | Record type is "dav", click on download button to download file to local.Record type is "mp4", click on download button and download file to path in Ch 5.1.2.5.Note:System does not support download and playback of MP4 file. |
| Back | Click on back button to go to calendar interface. |
3.1.3 Playback Cut
Note:
Playback cut function will automatically pause playing record as playback cut and playback cannot be at the same time.
Step 1. Click on start time to cut on time axis. This time must be within progress bar range.
Step 2. Move mouse to cut icon 📄 You will be ask to select start time. Click on cur icon 📄 as finish cutting.
Step 3. Click on playback cut end time on time axis. This time must be within progress bar range.
Step 4. Move mouse to cut icon 📄, you will be asked to select end time. Click on cut icon 📄 as finish cutting.
Step 5. Click on Save button to save file cut to path in Ch 5.1.2.5. See Figure 3-6.
Figure 3-6
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
3.1.5 Progress Bar
Figure 3-8
| Parameter | Function |
| 24 hr 24 hours | Click on it, means video in past 24 hours. |
| 2 hr 2 hours | Click on it, means video in past 2 hours. |
| 1 hr 1 hour | Click on it, means video in past 1 hour. |
| 30 min 30 min | Click on it, means video in past 30 min. |
3.1.6 Assistant Function
Video playback assistant function is shown in Figure 3-9.
Figure 3-9
| Parameter | Function |
| Zoom in | Click on it, video in playback status if is in original size, user can zoom in any area, If it is not in its original size, click on mouse to restore its original size. |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
3
Snapshot type bar
See Figure 3-10.
Figure 3-10
3.2.1 Play
Figure 3-11
Default icon is and it means pause or not played picture. Click on play button to switch to
normal play status. Icon become
☐ Click on it to pause.

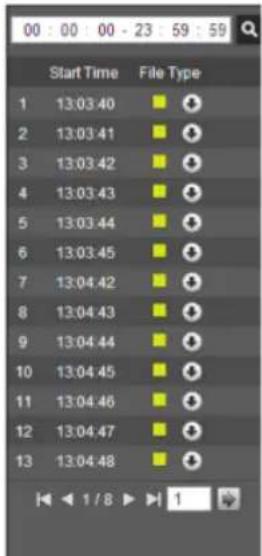

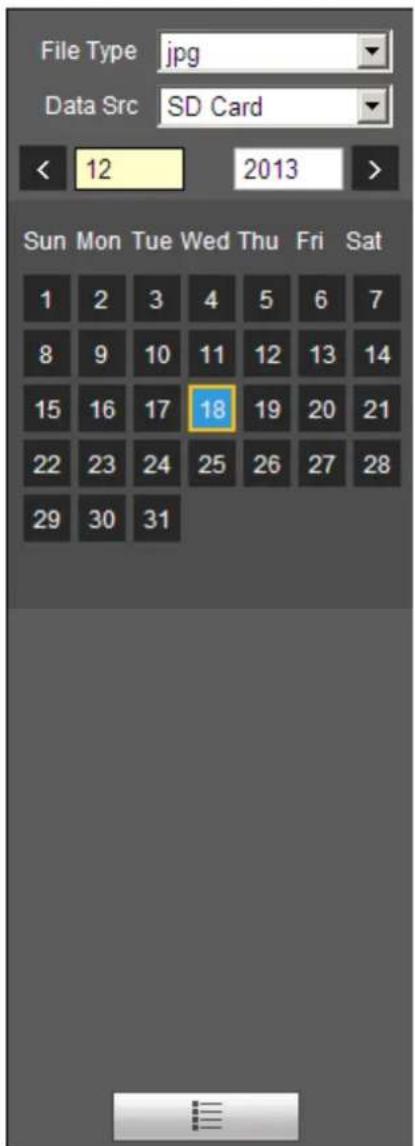

3.2.2 Playback File
Figure 3-12
Step 1. Click on file list, select snapshot file of the date.
Step 2. Double click on file in list, to play this snapshot.
| Parameter | Function |
 Search | It means all snapshot files within the start time and end time of selected date. |
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Download | Click on download button to download snapshot file to local. |
| Back | Click on back button to return to calendar interface and re-select time. |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 3-14
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
4 Report
Attention:
Currently only some models support report function.
The WEB client supports temperature data query of the spot, line and area set by users. Please refer to "5.4.1 Rule Setup" of the settings for spot, line and area.
Figure 4-1
Set query condition, click "Search" to check the temperature data within the time period, see Figure 4-2.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 4-2
5 Setup
Web client setup support camera, network, event, storage, system and system info view.
5.1 Camera
5.1.1 Conditions
Here you can view device property information. Slight differences may be found due to different network camera series. The setups become valid immediately after you set. See Figure 5-1.
Figure 5-1
Able to set indoor scene, outdoor scene, general scene, you can set and check the config and effect in the corresponding scene after selecting needed scene, please refer to the following sheet for the exact parameters.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Brightness | It is to adjust monitor window brightness. You can adjust this value if the video is too dark or too bright. The larger the number, the bright the video is. When you input the value here, the bright section and the dark section of the video will be adjusted accordingly. Please note the video may become hazy if the value is too high.The value ranges from 0 to 100. The recommended value ranges from 40 to 60. The default value is 50. |
| Sharpness | The value here is to adjust the edge of the video. The larger the value is, the clear the edge is and vice versa. Please note there is noise if the value here is too high.The value ranges from 0 to 100. The recommended value ranges from 5 to 50.The default value is 10. |
| Gamma | This threshold value mainly changes image contrast according to the relative temperature of the scene.When the threshold value is >0, it can increase the contrast of the part with higher temperature in the scene, and weaken the contrast of the part with lower temperature (such as sky and ocean).When threshold value is <0, it can weaken the contrast of the part with higher temperature, and reserve more gray level gradients to increase the part with lower temperature in the scene.The value ranges from -8 to 8. The default value is 3. |
| EZoom | It can zoom in part of the area in the scene to get clear view. |
| Smart Scene | The temperature measurement information of the image can be well saved through smart scene function for example. the gray |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Colorization | Able to add color to the IR image, there are 4 colors to select: White Hot: In grayscale image, the place is brighter with higher temperature. Black Hot: In grayscale image, the place is brighter with lower temperature. Ironbow2: Color image with high brightness and contrast. IceFire: In color image, the object with high temperature shows IR, the object with low temperature shows blue. Generally it is used as warning mode. The default is white. |
| ROI Type | Able to select such modes as: central point 25%, central point 50%, central point 75%, self-define, full screen, bottom, middle and top. |
| Mirror | Enable it then it will change the left, right direction of video monitoring image. It is disable by default. |
| Flip | Use this function to change the direction of video monitoring Image. You can select 0^ ,90^ ,180^ and 270^ . It is 0^ by Default. Note: It needs to set the video resolution as 1080P or lower when using flip mode function. |
| AGC | It is to set the image AGC; it ranges from 0 to 255. |
| AGC Max Gain | It is to set the image max AGC gain, it ranges from 0 to 255. The higher the value is, the bigger the image contrastness |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Gain Mode | There are three modes to select: low temperature, high temperature and auto, it is low temperature by default. Under auto mode, it can set the threshold of switching low temperature to high temperature, low temperature area percentage, threshold of switching high temperature to low temperature, high temperature area percentage.Low temperature mode, when the temperature exceeds "threshold of switching low temperature to high temperature" and the pixel point which exceeds threshold is bigger than "low temperature area percentage", then it will auto switch to high temperature mode.High temperature mode, when the temperature is lower than "threshold of high temperature switching to low temperature", and the pixel point which is lower than threshold is bigger than "high temperature area percentage", then it will auto switch to low temperature mode.Setting rules: the temperature threshold of low temperature switching to high temperature needs to be higher than that of high temperature switching to low temperature, the sum of two area percentage need to be bigger than 100. |
| Device Information | Display device serial number, software version and firmware version. |
Click "Restore" to make the "Camera Condition" back to original state.
5.1.2 Video
5.12.1 Video bit stream

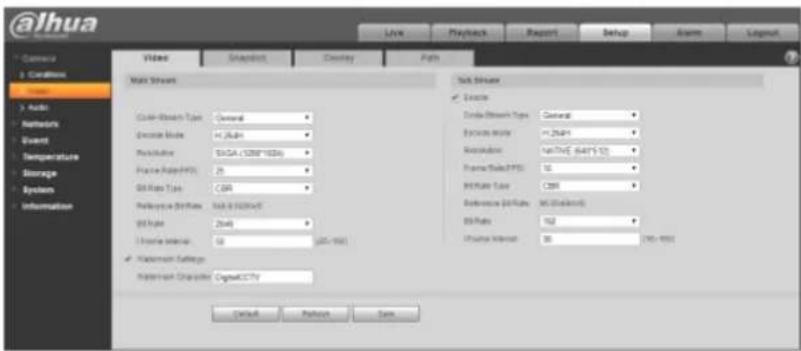

The video bit stream interface is shown as below. See Figure 5-2.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-2
Note:
Different stream may be corresponding to different default value, please refer to the actual interface for details.
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Code-Stream Type | ACF means using different fps to record.There are two options: VBR and CBR.Please note, you can set video quality in VBR mode. |
| Encode mode | There are four options: H.264 (main profile standard,H.264H (high profile standard), and MJPG encode.The H.264, H.264H both are H264 bit stream.H.264 is the Main Profile encode and you need to |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Resolution | There are multiple resolutions. You can select from the dropdown list.For each resolution, the recommended bit stream value is different.Note: When video is under rotating status, you cannot set resolution higher than 1080P (excluding 1080P). |
| Frame Rate | PAL: 1~25f/s. NTSC: 1~30f/s.The frame rate may vary due to different resolutions. |
| Bit Rate Type | There are two options: VBR and CBR.Please note, you can set video quality in VBR mode.Under MJPEG mode, only CBR is available. |
| Recommended Bit | Recommended bit rate value according to the resolution and frame rate you have set. |
| Bit Rate | In CBR, the bit rate here is the max value. In dynamic video, system needs to low frame rate or video quality to guarantee the value.The value is null in VBR mode.Please refer to recommend bit rate for the detailed information. |
| IFrame | Here you can set the P frame amount between two I frames. The value ranges from 1 to 150. Default value is 50.Recommended value is frame rate *2. |
| Watermark Settings | By calibrating watermark, to see if video is modified.Select Watermark function. Default watermark is Digital CCTV.Watermark character can only be number, letter,_,-within 128 characters. |
Figure 5-3
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Snapshot type | There are two modes: General (schedule) and Event (activation).● General: to snapshot in the area set by the schedule.● Event: to snapshot after triggering motion detect and local alarm. |
| Image size | It is the same with the resolution of snapshot (main stream or sub stream). |
| Quality | It is to set the image quality. There are six levels. |
| Interval | It is to set snapshot frequency. The value ranges from 1s to 7s. |
5.12.3 Video Overlay

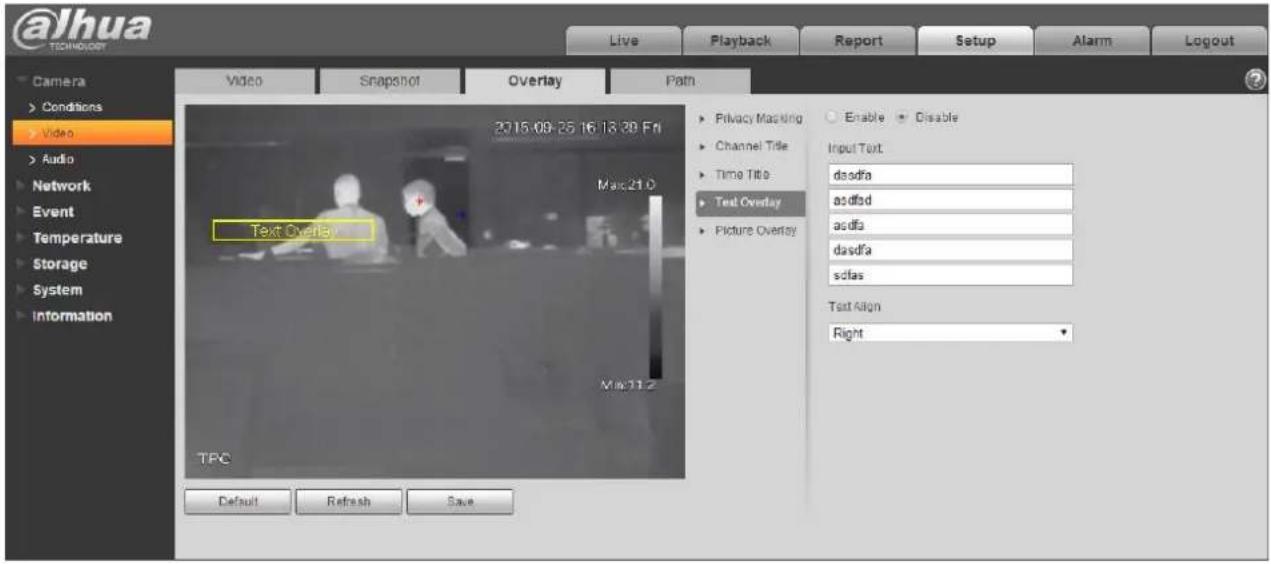

The video overlay interface is shown as in Figure 5-4.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-5
@ahua Dabua1R
Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-7
Figure 5-8
Please refer to the following sheet for detailed information.
| Parameter | Function |

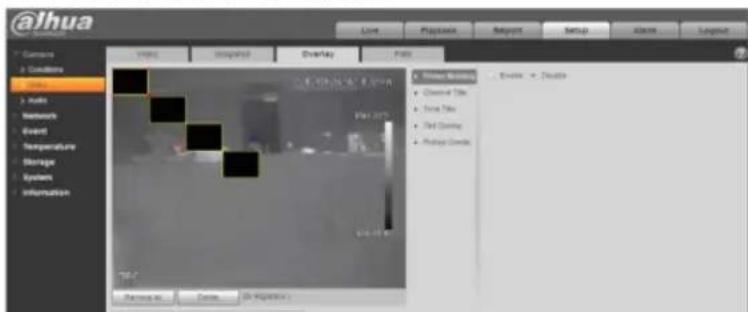

| Privacy mask | ● Here you can privacy mask the specified video in the monitor video. ● System max supports 4 privacy mask zones. |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Time Title | You can enable this function so that system overlays time information in video window.You can use the mouse to drag the time tile position. |
| Channel Title | You can enable this function so that system overlays channel information in video window.You can use the mouse to drag the channel tile position. |
| Location | You can enable this function to overlay location information in video window.You can click on setup button to set location information. You can use the mouse to drag location box to adjust its position. Alignment include align left and align right. |

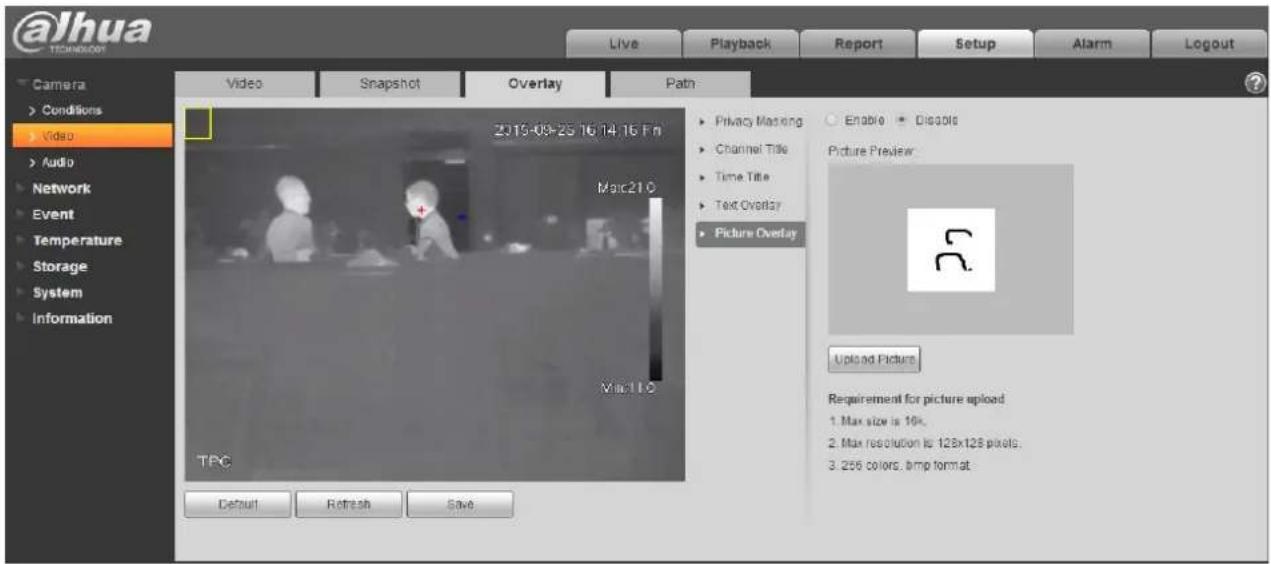

| Overlay | You can enable this function to display overlay picture.Click on disable to turn it off.Click on Upload Picture to overlay local picture into monitoring window. You can drag the yellow box to move it.Note:You cannot enable location and overlay at the same time. |
| Refresh | Set privacy mask, channel title, time title, location, overlay and save the change. You can click on Refresh to see effect. |
5.12.4 Path

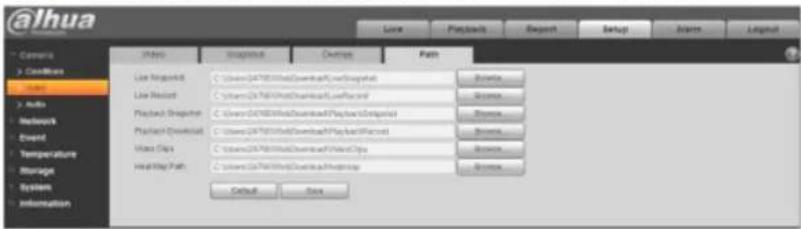

The storage path interface is shown as in Figure 5-9.
Here you can set snap image saved path and the record storage path.
- The default monitor image path is C:\Documents and Settings\Administrator\WebDownload\Snapshot.
- The default monitor record path is C:\Documents and Settings\Administrator\WebDownload\LiveRecord.
- The default playback snapshot path is C:\Documents and Settings\Administrator\WebDownload\PlaybackSnapshot.
● The default playback download path is C:\Documents and
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-9
5.1.3 Audio
Please note some series devices do not support audio function.
5.1.3.1 Audio
The audio interface is shown as below. See Figure 5-10.
Figure 5-10
Please refer to the following sheet for detailed information.
5.2 Network
5.2.1 TCP/IP
The TCP/IP interface is shown as in Figure 5-11. It supports IPv4 and IPv6. IPv4 supports static IP and DHCP. IPv6 supports static IP only. When users manually modify IP address, WEB will automatically jump to the new IP address.
Figure 5-11
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Host Name | It is to set current host device name. It max supports 15 characters. |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| IP Version | It is to select IP version. IPV4 or IPV6.You can access the IP address of these two version. |
| IP Address | Please use the keyboard to input the corresponding number to modify the IP address and then set the corresponding subnet mask and the default gateway. |
| Preferred DNS | DNS IP address. |
| Alternate DNS | Alternate DNS IP address. |
| Enable ARP/Ping set device IP address service. | You can use ARP/Ping command to modify or set the device IP address if you know the device MAC address.Before the operation, please make sure the network camera and the PC in the same LAN. This function is on by default.You can refer to the steps listed below.Step 1: Get an IP address. Set the network camera and the PC in the same LAN.Step 2: Get the physical address from the label of the network camera.Step 3: Go to the Run interface and then input the following commands.arp -s <IP Address> <MAC>ping -l 480 -t <IP Address>Such as: arp -s 192.168.0.125 11-40-8c-18-10-11 ping -l 480 -t 192.168.0.125Step 4: Reboot the device.Step 5: You can see the setup is OK if you can see there are output information such as “Reply from 192.168.0.125 ...” from the command output lines. Now you can close the command line.Step 6: Open the browse and then input http://<IP address>.Click the Enter button, you can access now. |
@jhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-12
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Max connection | It is the max Web connection for the same device. The value ranges from 1 to 20. Default connection amount is 10. |
| TCP port | Port range is 1025~65534. The default value is 37777. You can input the actual port number if necessary. |
| UDP port | Port range is 1025~65534. The default value is 37778. You can input the actual port number if necessary. |
| HTTP port | Port range is 1025~65524. The default value is 80. You can input the actual port number if necessary. |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| RTSP port | The default value is 554. Please leave blank if use default. User uses QuickTime or VLC can play the following formats. BlackBerry can play too.Real-time monitoring URL format, please require real-time RTSP media server, require channel no., bit stream type in URL. You may need username and password.User uses BlackBerry need to set encode mode to H.264B, resolution to CIF and turn off audio.URL format is:rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0 username/password/IP and port.The IP is device IP and the port default value is 554. You can leave it in blank if it is the default value.Follow standard RTP protocol and when encode mode is MJPEG, the max resolution only supports 2040*2040. |
| HTTPS Enable | Check HTTPS enable, login as https://ip:port. Protect data. Default port is https://ip . It is disabled by default. |
| HTTPS Port | HTTPS communication port, range is 1025~65534, default is 443. |
Note:
- 0\~1024, 37780\~37880, 1900, 3800, 5000, 5050, 9999, 37776, 39999, 42323 are all special ports. User cannot modify them.
- Avoid using default port value of other ports.
5.2.2.1 ONVIF
ONVIF (Open Network Video Interface Forum), this standard describes network video mode, interface, data type and data interaction mode. ONVIF Standard's aim is to achieve a network video
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-13
5.2.3 PPPoE
The PPPoE interface is shown as in Figure 5-14.
Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.
Device connects to the internet via PPPoE after reboot. You can get the IP address in the WAN from the IP address column. When PPPoE is on, please disable UPnP to avoid influence on dial-up.
When you Check PPPoE enable, please disable UPnP.
Please note, you need to go to the IP address item to via the device current device information.
You can access the client-end via this address.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
5.2.4 DDNS
The DDNS interface is shown as in Figure 5-15.
The DDNS is to set to connect the various servers so that you can access the system via the server. Please go to the corresponding service website to apply a domain name and then access the system via the domain. It works even your IP address has changed. When the device connects to WLAN, you should disable UPnP.
Figure 5-15
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Server Type | You can select DDNS protocol from the dropdown list: CN99 DDNS, NO-IP DDNS, Dyndns DDNS, QUICK DDNS, Private DDNS, the default is QUICK DDNS. |
Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Domain Name | Both auto and manual are “MAC address.s.dahuaddns.com”by default, able to set prefix manually. |
| Username | The user name you input to log in the server, optional. |

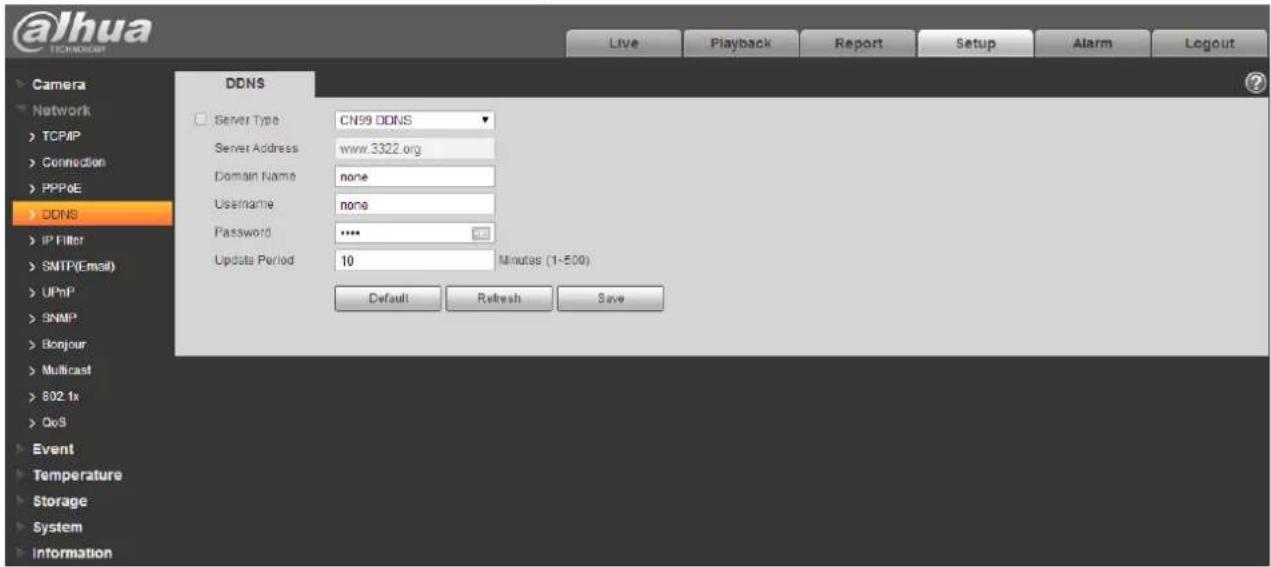

The CN99 DDNS interface is shown as in Figure 5-16.
Figure 5-16
| Parameter | Function |
| Server Type | You can select CN99 DDNS protocol |
| Server Address | Under CN99 DDNS the default server address is “www.3322.org” |
| Domain Name | Self-defined domain name |
| Username | The user name you input to log in the server. |
| Password | The password you input to log in the server |
| Refresh Period | The refresh period of the connection between the device IP and the server, default is 10 minutes. |
5.2.5 IP filter

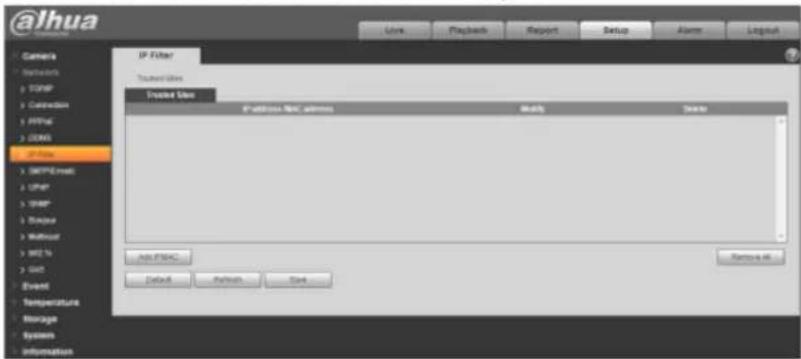

The IP filter interface is shown as in Figure 5-17.
You can enable IP filter function so that some specified IP/MAC user can access the network camera. You can add IP address or IP address section.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
If you do not check the box here, it means there is on access limit.
Here you can add IP address and MAC address. You must add these addresses before enabling the trusted sites.
Please note: You must set MAC address in the same network segment.
Figure 5-17
5.2.6 SMTP (e-mail)
The SMTP interface is shown as in Figure 5-18.
Figure 5-18
Please refer to the following sheet for detailed information.
| Parameter | Function |
| SMTP Server | Input server address and then enable this function. |
| Port | Default value is 25. You can modify it if necessary. |
| Anonymity | For the server supports the anonymity function. You can auto login anonymously. You do not need to input the user name, password and the sender information. |
| User Name | The user name of the sender email account. |
| Password | The password of sender email account. |
| Sender | Sender email address. |
| Authentication (Encryption mode) | You can select SSL, TLS or none. |
| Title (Subject) | Input email subject here. |
| Attachment | System can send out the email of the snapshot picture once you check the box here. |
| Mail receiver | Input receiver email address here. Max three addresses. |
| Interval | The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormality event activates the email, system sends out the email according to the interval you specified here. This function is very useful when there are too many emails activated by the abnormality events, which may result in heavy |
Dahua IR
Thermal Imaging Network Camera Web3.0 Operation Manual

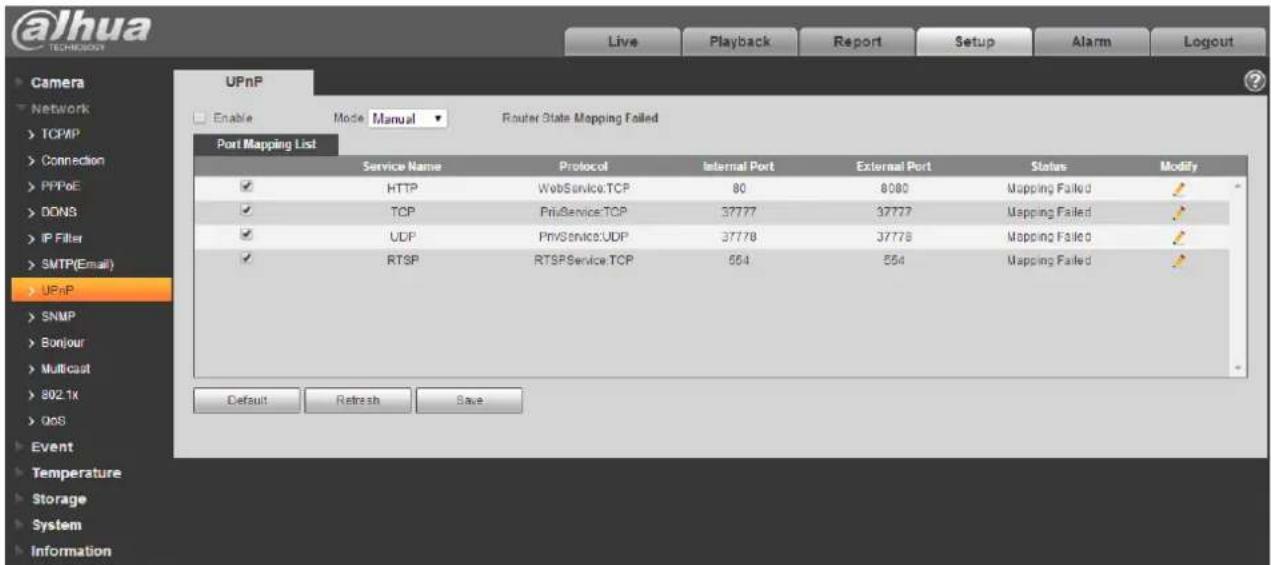

In the Windows OS, From Start->Control Panel->Add or remove programs. Click the "Add/Remove Windows Components" and then select the "Network Services" from the Windows Components Wizard. Click the Details button and then check the "Internet Gateway Device Discovery and Control client" and "UPnP User Interface". Please click OK to begin installation.
Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the network camera can auto detect it via the "My Network Places".
Under manual mode, you can modify external port. Under auto mode, select idle port for auto port mapping without user modification.
Figure 5-19
5.2.8 SNMP
The SNMP interface is shown as in Figure 5-20 and Figure 5-21.
The SNMP allows the communication between the network management work station software and the proxy of the managed device. Please install the software such as MG MibBrowser 8.0c software or establish the SNMP service before you use this function. You need to reboot the device to activate the new setup.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-20
Please refer to the following sheet for detailed information.
| Parameter | Function |
| SNMP Version | Check SNMP v1, device only process v1 info.Check SNMP v2, device only process v2 info.Check SNMP v3, can set username, password and encryption method. Server calibrate corresponding username, password and encryption method too access device and v1/v2 are unavailable. |
| SNMP port | The listening port of the proxy program of the device. It is a UDP port not a TCP port. The value ranges from 1 to 65535. The default value is 161 |
| Community | It is a string, as command between management and proxy |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Trap Port | Port which send Trap message, default is 162, range 1~65535. |
Figure 5-21
Check SNMP v3 version and SNMP port, read community, write community, Trap address, Trap port are same with SNMP v1 and SNMP v2 versions. Only when SNMP version is SNMP v3, users need to configure parameter in chart.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Encryption | Default is CBC-DES. |
| Encryption Password | Password not less than 8 characters. |
5.2.9 Bonjour
The Bonjour interface is shown as below. See Figure 5-22.
Bonjour is based on the multicast DNS service from the Apple. The Bonjour device can automatically broadcast its service information and listen to the service information from other device.
You can use the browse of the Bonjour service in the same LAN to search the network camera device and then access if you do not know the network camera information such as IP address.
You can view the server name when the network camera is detected by the Bonjour. Please note the safari browse support this function. Click the "Display All Bookmarks: and open the Bonjour, system can auto detect the network camera of the Bonjour function in the LAN.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
- Open preview, streaming media protocol, select multicast, and monitor via multicast format.
- Here you can set multicast address and port. You also need to go to Live interface to set the protocol as Multicast.
Figure 5-23
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Enable | Select to enable multicast function. Main stream and sub stream cannot be used at the same time. |
| Multicast address | Main/sub stream multicast default address is 224.1.2.4 and its range is 224.0.0.0~239.255.255.255. |
| Port | Multicast port. Main stream is 40000, sub stream is 40002 and the range is 1025~65534. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-24
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Authentication | PEAP (protected EAP protocol). |
| Username | It needs the username to login, which is authenticated by the server. |
| Password | Please input password here. |
5.2.12 QoS
The QoS interface is shown as below. See Figure 5-25.
Qos (Quality of Service) is network security mechanism. It is a technology to fix the network delay and jam problem and etc. For the network service, the quality of service includes the transmission bandwidth, delay, the market loss and etc. We can guarantee the transmission bandwidth, lower the delay, reduce
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-25
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Real-time monitor | The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets. |
| Command | The value ranges from 0 to 63. The router or the switcher can provide different service for various data packets. |
| Enable Wireless QoS | Check it to enable QoS. |
5.3 Event
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual

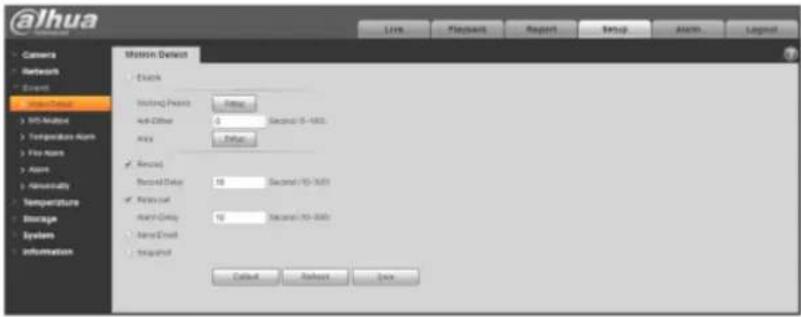

Figure 5-26
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Enable | You need to check the box to enable motion detection function. |

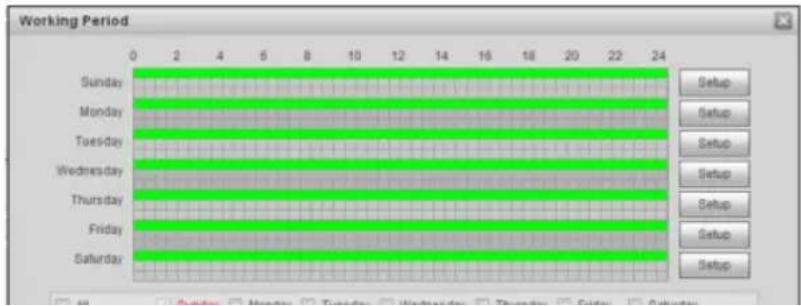

| Working Period | Here you can set arm/disarm period. Click on set button to open period setup menu.There are six periods every day for setup and you must check box in front of each period to enable it.Note: Period setup can be done by dragging mouse while not release left mouse. |
| Anti-dither | System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s. |
| Area | Here you can set motion detection region and its sensitivity and area. (The higher the sensitivity is, the easier to trigger motion detect; the smaller the area, the easier to trigger motion detect.) The default covers all regions. You must click on save before enabling your setup. |
| Record | Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface. |
| Record Delay | System can delay the record for specified time after alarm ended. The value ranges from 10s to 300s. |
| Relay out | Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | If you enabled this function, System can send out email to alert you when alarm occurs and ends. User can set email address in Network>SMTP. |
| Snapshot | You need to check the box here so that system can backup motion detection snapshot file. You shall set snapshot period in Storage>Schedule. |
See Figure 5-28.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-28
Different colors represent different areas. Each area can set different detection zones. Detection zone can be irregular and discontinuous. If device monitoring zone is large, user can sub-divide the area into several zones for better motion detect.
Please refer to the following sheet for detailed information.
Parameter Function
| Delete all | Clear all areas. |
| Delete | Delete selected area. |
5.3.2 IVS Analyse
Note:
Some models don't support IVS Analyse function. See Figure 5-29.
5.3.2.1 Tripwire
Figure 5-29
Figure 5-30
| Parameter | Note |
| Enable | Check it to enable tripwire rule. |
| Add/Clear | Clickto add rule. Click to clear rule. |
| Draw Rule | Click it to draw corresponding rule in the image. |
| Clear | Click it to clear the drawn rules. |
| Target Filter | After selecting max size or min size, click button to draw the sizemodel of filter target aiming at this rule; click button to clear the target filter model which has been drawn. |
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Working Period | It is to set the alarm period, it can enable alarm event only in the set time range.There are six periods every day for setup and you must check box in front of each period to enable it.Select days (Sunday by default, if select all the week, then it means applying the setup into the whole week; you can also check the box in front of the day and make setting for some days separately).Click "OK" button after completing setup, go back to motion detect setting page, click "OK" button to finish working period setup of motion detectNote: Period setup can be done by dragging mouse while not releasing left mouse. |
| Direction | It is to select tripwire direction, you can select A->B、B->A、A<->B |
| Record | Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface. |
| Record Delay | System can delay the alarm record for specified time after alarm ended. The value ranges from 10s to 300s. |
| Relay out | Check it to enable alarm activation output port, the system can activate corresponding alarm output device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | If you enabled this function, System can send out email to alert you when alarm occurs. User can set his email address in Network>SMTP. |
| Snapshot | You need to check the box here so that system can auto alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule. |
Dahua IR
Thermal Imaging Network Camera Web3.0 Operation Manual
5.3.2.2 Intrusion
Figure 5-31
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-32
| Parameter | Note |
| Enable | Check it to enable intrusion. |
| Add/Clear | Clickto add rule. Clickto clear rule. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Working Period | It is to set the alarm period, it can enable alarm event only in the set time range.There are six periods every day for setup and you must check box in front of each period to enable it.Select days (Sunday by default, if select all the week, then it means applying the setup into the whole week; you can also check the box in front of the day and make setting for some days separately).Click "OK" button after completing setup, go back to motion detect setting page, click "OK" button to finish working period setup of motion detectNote: Period setup can be done by dragging mouse while not releasing left mouse. |
| Direction | It is to select intrusion direction; you can select Enter, Leave, Enter & Leave. |
| Record | Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface. |
| Record Delay | System can delay the alarm record for specified time after alarm ended. The value ranges from 10s to 300s. |
| Relay out | Check it to enable alarm activation output port, the system can activate corresponding alarm output device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | If you enabled this function, System can send out email to alert you when alarm occurs. User can set his email address in Network>SMTP. |
| Snapshot | You need to check the box here so that system can auto alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule. |
5.3.2.3 Scene Change
©11th
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-34
| Parameter | Note |
| Enable | Check it to enable scene change function. |
| It is to set the alarm period, it can enable alarm event only in the set time range.There are six periods every day for setup and you must check box in front of each period to enable it. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Relay out | Check it to enable alarm activation output port, the system can activate corresponding alarm output device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | If you enabled this function, System can send out email to alert you when alarm occurs. User can set his email address in Network>SMTP. |
| Snapshot | You need to check the box here so that system can auto alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule. |
5.3.3 Temperature Alarm
Note:
Some models don't support temperature alarm function.
Figure 5-35
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Working Period | It is to set the alarm period, it can enable alarm event only in the set time range.There are six periods every day for setup and you must check box in front of each period to enable it.Select days (Sunday by default, if select all the week, then it means applying the setup into the whole week; you can also check the box in front of the day and make setting for some days separately).Click "OK" button after completing setup, go back to motion detect setting page, click "OK" button to finish working period setup of motion detectNote: Period setup can be done by dragging mouse while not releasing left mouse. |
| Anti-Dither | System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s. |
| Record | Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface. |
| Record Delay | System can delay the alarm record for specified time after alarm ended. The value ranges from 10s to 300s. |
| Relay out | Check it to enable alarm activation output port, the system can activate corresponding alarm output device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | If you enabled this function, System can send out email to alert you when alarm occurs. User can set his email address in Network>SMTP. |
| Snapshot | You need to check the box here so that system can auto alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule. |
5.3.4 Fire Alarm
@jhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-36
| Parameter | Note |
| Enable | You need to check the box to enable local config function. |
| Target Size | It is to the minimum target which can be recognized by fire alarm, it will generate alarm when exceeding target pixel. |
| Sensitivity | It is to set the alarm sensitivity, ranging from 1 to 100. The higher the sensitivity is, the easier it will generate alarm, but it may generate false alarm. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Working Period | It is to set the alarm period, it can enable alarm event only in the set time range.There are six periods every day for setup and you must check box in front of each period to enable it.Select days (Sunday by default, if select all the week, then it means applying the setup into the whole week; you can also check the box in front of the day and make setting for some days separately).Click "OK" button after completing setup, go back to motion detect setting page, click "OK" button to finish working period setup of motion detectNote: Period setup can be done by dragging mouse while not releasing left mouse. |
| Anti-Dither | System only memorizes one event during the anti-dither period. The value ranges from 0s to 100s. |
| Record | Check it and so when alarm occurs, system will auto record. You shall set record period in Storage>Schedule and select auto record in record control interface. |
| Record Delay | System can delay the alarm record for specified time after alarm ended. The value ranges from 10s to 300s. |
| Relay out | Check it to enable alarm activation output port, the system can activate corresponding alarm output device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | If you enabled this function, System can send out email to alert you when fire alarm occurs. User can set his email address in Network>SMTP. |
| Snapshot | You need to check the box here so that system can auto alarm snapshot when alarm occurs. You shall set snapshot period in Storage>Schedule. |
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
5.3.5 Alarm
Please note some series products do not support this function.
5.3.5.1 Alarm
Figure 5-37
| Parameter | Note |
| Enable | Check the box to enable relay activation. |
| Working Period | It is to set the alarm period, it can enable alarm event only in the set time range.There are six periods every day for setup and you must check box in front of each period to enable it.Select days (Sunday by default, if select all the week, then it means applying the setup into the whole week; you can also check the box in front of the day and make setting for some days separately).Click "OK" button after completing setup, go back to motion detect setting page, click "OK" button to finish working period setup of motion detect |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Relay-out | Enable alarm activation function. You need to select alarm output port so that system can activate corresponding alarm device when alarm occurs. |
| Alarm Delay | System can delay the alarm output for specified time after alarm ended. The value ranges from 10s to 300s. |
| Send Email | After this function is enabled, system can send out email to alert you when alarm occurs and ends. Users can set his own email address in "Network Setting > SMTP". |
| Snapshot | After you enabled snapshot, the system will automatically snapshot if alarm occurs. Meanwhile you have to set snapshot period of alarm in the "storage>Schedule". |

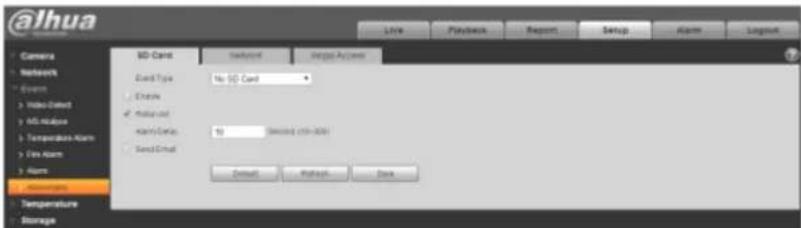

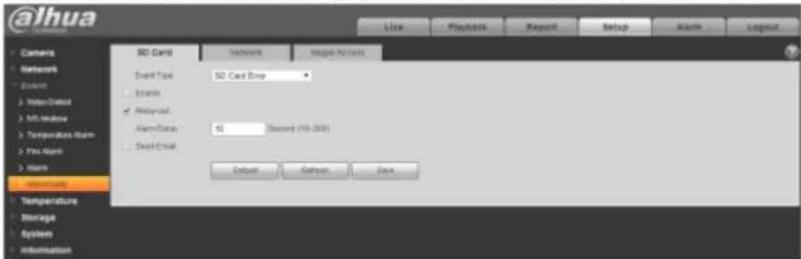

5.3.6 Abnormity
Abnormity includes No SD Card, Capacity Warning, SD Card Error, Disconnection, IP Conflict and Unauthorized Access.
Note:
Only device with SD card function has these three statuses: No SD card, capacity warning, and SD card error.
Device without SD card function does not have the above three statuses. See Figure 5-38.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-39
Figure 5-40
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Event Type | Three event types to cause SD card abnormality: No SD card, SD card capacity waming, and SD card error. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| SD Card Capacity Limit | User can set SD card capacity that is left free. When SD card space left is smaller than this limit, alarm occurs. |

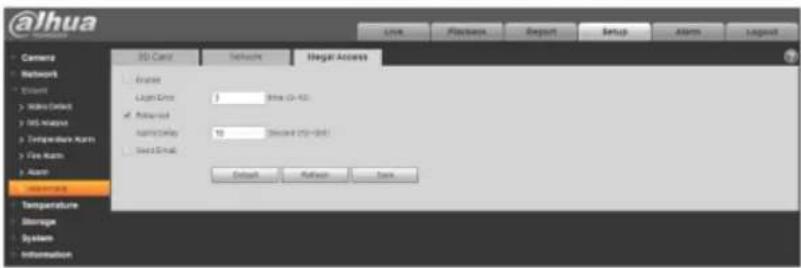

When device is offline or IP conflicts, the abnormal alarm is similar with case of SD card error.
Figure 5-41
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-43
5.4 Temperature
Note:
Some models don't support temperature measurement function.
5.4.1 Rule Setup
5.4.1.1 Parameter Config
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Measurement Items | Clickto add new spot, line and area, click corresponding to delete the measurement item. |
| Open Local Config | Check it to enable local config function. |
| Target Radiation Coefficient | It is to set the target emissivity, 0~1 optional. |
| Target Distance | It is to set the distance between camera and target, 0~1000m optional. |
| Target Reflection Temperature | It is to set the target temperature, 0~550°Coptional. |
| Relay Out | Check it to enable relay out function. |
| Alarm Result | It is to set the temperature value mode of triggering alarm.Spot: optional valueLine: able to select max, min and average.Area: able to select max, min, average, standard and middle |
| Alarm Condition | It is to set alarm condition, optional below, match and above. |
| Alarm Threshold Temperature | It is to set the threshold temperature of triggering alarm, 0~550°Coptional. |
| Temperature Error | It is to set temperature error, 0~10°Coptional. |
| Temperature Duration | It will trigger alarm when the temperature is above the alarm threshold temperature and exceed the set duration temperature. Temperature duration 0~1000s |
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-45
5.4.1.2 Temperature Contrast
Note:
The function is only supported by some models.

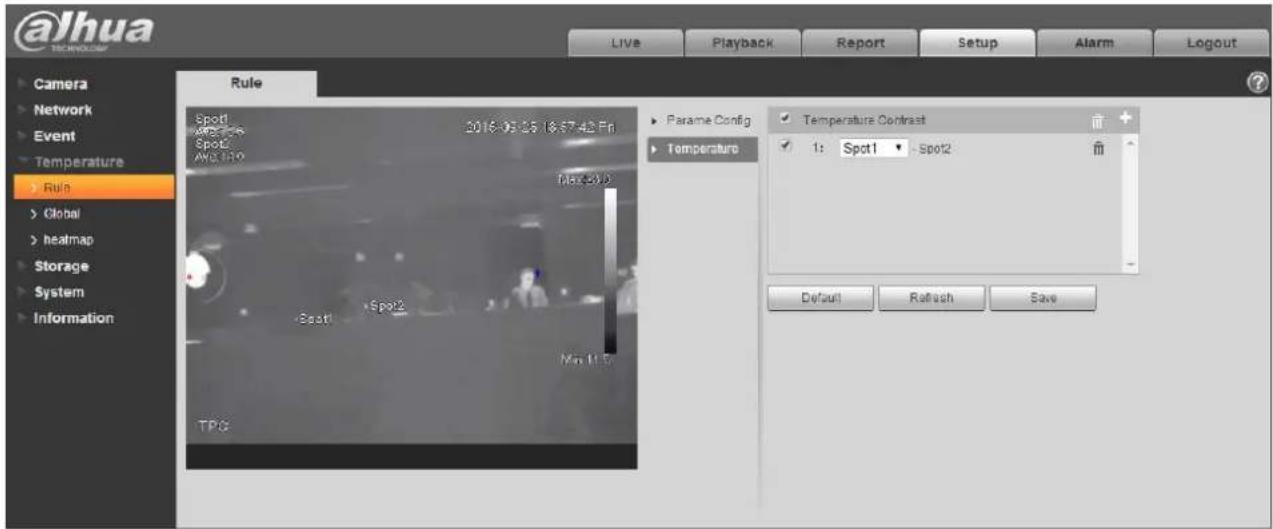

Figure 5-46
Temperature contrast function means comparing the temperature of selected spot, line or area and display the result on the preview interface, the steps are shown as follows:
Step 1 Click to add contrast record.

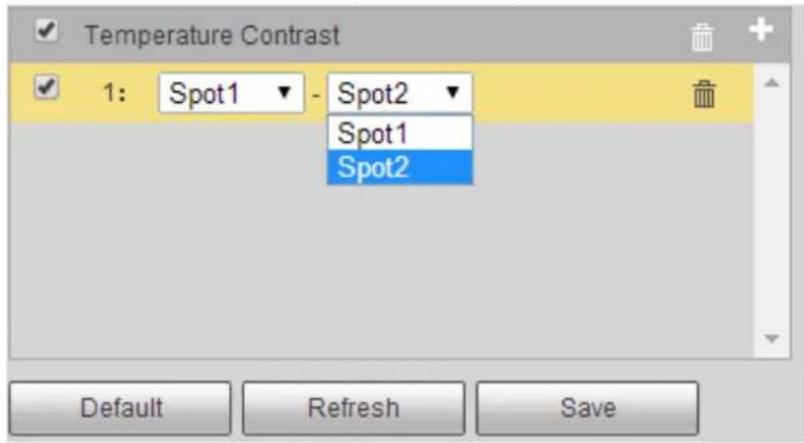

Step 2 Select the target which needs to be compared, see Figure 5-47.
Figure 5-47
Step 3 Click to save, then you can see the contrast result of the selected target on the left of preview interface, see Figure 5-48.
Figure 5-48
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual

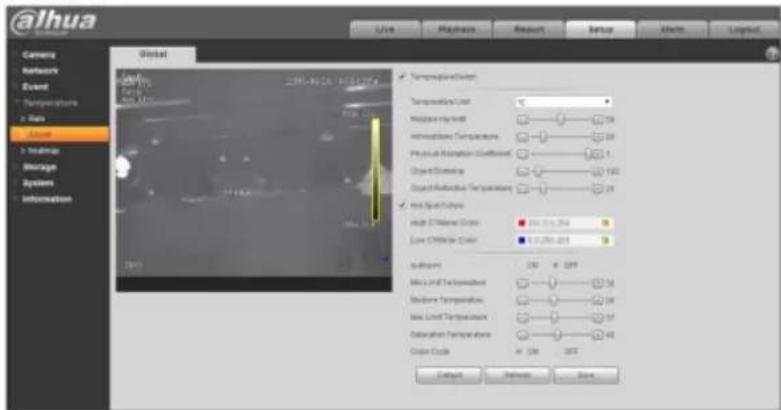

5.4.2 Global
Figure 5-49
| Parameter | Note |
| Temperature Switch | Check it to enable temperature switch function. |
| Temperature Unit | It is to set the displayed temperature unit, °C and F optional. |
| Relative Humidity | It is to set the environment relative humidity, 0~100% RH optional. |
| Atmospheric | It is to set environmental temperature, 0~100°C optional. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Note |
| Low CTMaker Color | It is to set the display temperature of low temperature. |
| Isotherm | It is to select if enable isotherm function. |
| Min Temperature | It is to set min temperature.When gain mode is under low temperature mode, it is -40°C ~ 160°C optional.When gain mode is under high temperature mode, it is -40°C ~ 600°C optional. |
| Medium temperature | It is to set medium temperature.When gain mode is low temperature, it is -40°C ~ 160°C optional.When gain mode is high temperature, it is -40°C ~ 600°C optional. |
| Max Temperature | It is to set max temperature.When gain mode is low temperature, it is -40°C ~ 160°C optional.When gain mode is high temperature, it is -40°C ~ 600°C optional. |
| Saturation Temperature | It is to saturation temperature.When gain mode is low temperature, it is -40°C ~ 160°C optional.When gain mode is high temperature, it is -40°C ~ 600°C optional. |
| Color Code | It is to select if enable color code. |
5.4.2.1 Temperature Switch
Temperature switch function is mainly used to realize real-time temperature measurement aiming at some certain spot and display the temperature on the preview interface. As it is shown in Figure 5-50, when the mouse moves to one spot, it will display the temperature of the spot.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-50
5.4.2.2 Hot Spot Follow
After enabling hot spot follow function, it will display max temperature spot and min temperature spot in the preview interface, and set the corresponding color via "High CTMaker Color" and "Low CTMaker Color" (see Figure 4-89), it will display corresponding high and low temperature color respectively, see Figure 5-51.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-51
5.4.2.3 Isotherm
Isotherm function is mainly used for the highlighted object in the high brightness image, take medium temperature as the basis, max temperature and min temperature are the floating range, display the area between max temperature and min temperature with bright color, and other areas will be displayed as black, gray and white, see Figure 4-93.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-54
5.4.2.4 Color Code
After checking color code, it will display corresponding color code on the right of the preview interface, which can be used to present the color change between min temperature and max temperature. See Figure 5-55.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual

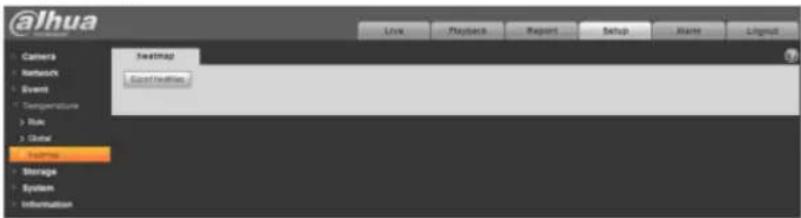

5.4.3 Heatmap
Figure 5-56
| Parameter | Note |
| Export Heatmap | Click it to export heatmap. |
5.5 Storage Management

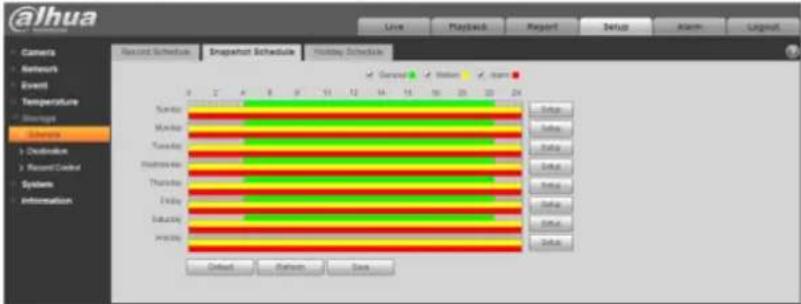

5.5.1 Schedule

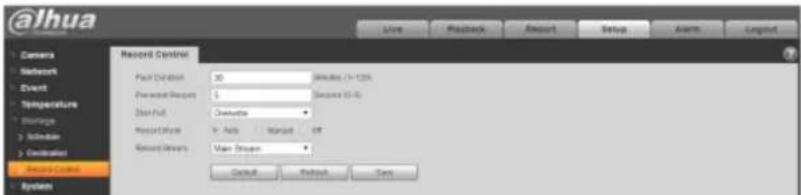

Before schedule setup, user must set record mode is auto or manual.
Note:
If record mode in record control is off, then device will not snapshot according to schedule.
5.5.1.1 Record Schedule

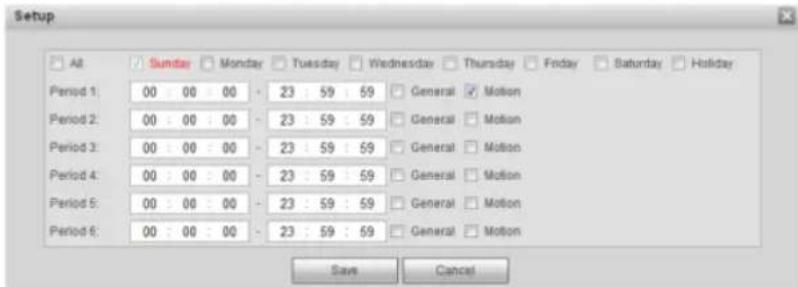

Record schedule steps:
Step 1. Click on Record Schedule, see Figure 5-57.
@lbuta
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-57
Step 2. From Monday to Sunday select record time, click on setup on the right, see Figure 5-58.
- Set period according to actual need. There are six periods available each day.
- By checking or unchecking, you can add or delete three types of record schedule: General, Motion, and Alarm.
Note:
Period setup can be done by dragging in record schedule interface while not releasing left mouse.
Figure 5-58
Step 3. Click on OK, return to record schedule interface. See Figure 5-59.
● Green color stands for the general record/snapshot.
● Yellow color stands for the motion detect record/snapshot.
● Red color stands for the alarm record/snapshot.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Step 4. In record schedule interface, click on OK. System prompts it is successfully saved.
5.5.1.2 Snapshot Schedule
Snapshot setup as:
Step 1. Click on Snapshot Schedule tab, see Figure.
Figure 5-60
Step 2. From Monday to Sunday select snapshot time, click on setup on the right. See Figure 5-61.
- Set snapshot period according to actual need. There are six periods available each day.
- By checking or unchecking, user can add or delete three types of snapshot schedule: General, Motion and Alarm.
Note: Period setup can be done by dragging in snapshot schedule interface while not releasing left mouse.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual

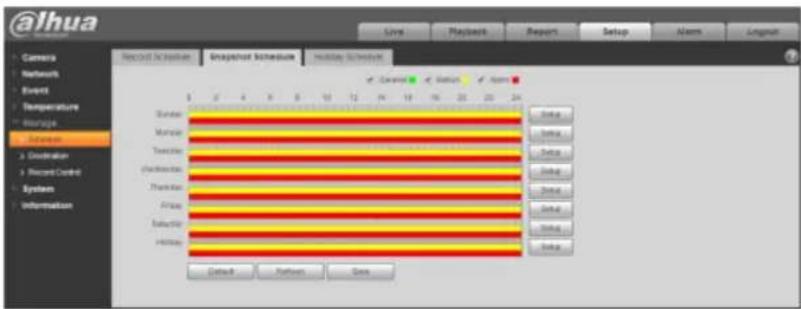

Step 3. Click on OK, return to snapshot schedule interface. See Figure 5-62.
● Green color stands for the general record/snapshot.
● Yellow color stands for the motion detect record/snapshot.
● Red color stands for the alarm record/snapshot.
Figure 5-62
Step 5. In snapshot interface, click on OK. System prompts it is successfully saved.
5.5.1.3 Holiday Schedule
Holiday schedule can set specific date as holiday.
Step 1. Click on Holiday Schedule tab, see Figure 5-63.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Step 2. Select date to set as holiday. The selected date will be highlighted in yellow.
Step 3. Check Record/Snapshot, click on Save. System prompts it is successfully saved.
Step 4. Check Record Schedule/Snapshot Schedule interface, click on setup next to Holiday, refer to setup of Monday to Sunday.
Step 5. Complete setup of holiday, then it records/snapshots according to date in holiday schedule.
5.5.2 Destination
5.5.2.1 Path
The destination interface is shown as in Figure 5-64.
Path can config record and snapshot storage path. There are three options: Local, FTP and NAS. You can only select one mode. System can save according to the event types. It is corresponding to the three modes (general/motion/alarm) in the Schedule interface. Please check the box to enable the save functions.
Note: Only device supports SD card has local.
Figure 5-64
Please refer to the following sheet for detailed information.
| Parameter | Function |
alhua Dahua 1R
Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-65
5.5.2.3 FTP
The FTP interface is shown as in Figure 5-66.
You need to check the box to enable the FTP function. When network disconnect occurred or there is malfunction. Emergency storage can save the record/snapshot picture to the local SD card.
Figure 5-66
5.5.2.4 NAS
You need to check the box to enable the NAS function. Select NAS storage, fill in NAS server address and corresponding store path, then you can store video file or pictorial information in the NAS server.
Select NAS storage as to same file to NAS disk. See Figure 5-67.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Figure 5-67
| Parameter | Function |
| Server Address | Set IP address of NAS server. |
| Remote Directory | Set storage directory, videos and pictures can be stored in to corresponding server directory. |
5.5.3 Record control
The record control interface is shown as in Figure 5-68.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Pre-record | Please input pre-record value here.For example, system can record the four seconds video in the buffer.The record begins from the fifth second.Note:Configure pre-record time, when alarm or motion detection occurs, if there is no record, system will record the preceding n seconds record. |
| Disk Full | There are two options: stop recording or overwrite the previous files when HDD is full.Stop: Current working HDD is overwriting or current HDD is full, it will stop record.Overwrite: Current working HDD is full; it will overwrite the previous file. |
| Record mode | There are three modes: Auto/manual/close. |
| Record stream | There are two options: main stream and sub stream. |
5.6 System
5.6.1 General
The General interface is shown as in Figure 5-69.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Video Standard | This is to display video standard such as PAL. |
| Language | You can select the language from the dropdown list. |
The date and time interface is shown as in Figure 5-70.
Figure 5-70
Please refer to the following sheet for detailed information.
| Parameter | Function |
| Date format | Here you can select date format from the dropdown list. |
| Time Format | There are two options: 24-H and 12-H. |
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| NTP server | You can set the time server address. |
| Port | It is to set the time server port. |
| Update period | It is to set the sync periods between the device and the time server. |
5.6.2 Account
- For the character in the following user name or the user group name, system max supports 15-digits. The valid string includes: character, number, and underline.
- Password can be 0\~32 characters in number and letter only. User can modify other user's password.
- The user amount is 18 and the group amount is 8 when the device is shipped out of the factory. The factory default setup includes two levels: user and admin. You can set the corresponding group and then set the rights for the respective user in the specified groups.
- User management adopts group/user modes. The user name and the group name shall be unique. One user shall be included in only one group.
● Currently logged in user cannot change his/her own right.
。
5.6.2.1 Username
In this interface you can enable anonymity login, add/remove user and modify user name. See Figure 5-71.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Enable anonymity login: Enable anonymity login, and input IP. No username or password is required, you can log in by anonymity (with limited rights). You can click logout to end your session.
Add user: It is to add a name to group and set the user rights. See Figure 5-72
There are four default users: admin/888888/666666 and hidden user "default". Except user 6666, other users have administrator right. The user 666666 can only have the monitor rights,.
Hidden user "default" is for system interior use only and cannot be deleted. When there is no login user, hidden user "default" automatically login. You can set some rights such as monitor for this user so that you can view some channel view without login.
Here you can input the user name and password and then select one group for current user.
Please note the user rights shall not exceed the group right setup.
For convenient setup, please make sure the general user has the lower rights setup than the admin.
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Please note, the password ranges from 0-digit to 32-digit. It shall include the number and letter only. For the user who has the account rights, he can modify the password of other users.
Figure 5-73
5.6.2.2 Group
The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 5-73.
Dahua IR
Thermal Imaging Network Camera Web3.0 Operation Manual
Add group: It is to add group and set its corresponding rights. See Figure 5-74.
Please input the group name and then check the box to select the corresponding rights. It includes:
preview, playback, record control, PTZ control and etc.
Figure 5-74
Modify group
Click the modify group button, you can see an interface is shown as in Figure 5-75.
Here you can modify group information such as remarks and rights.
Figure 5-75
@ahua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
5.6.3 Default
The default setup interface is shown as in Figure 5-76.
Please note system cannot restore some information such as network IP address.
Figure 5-76

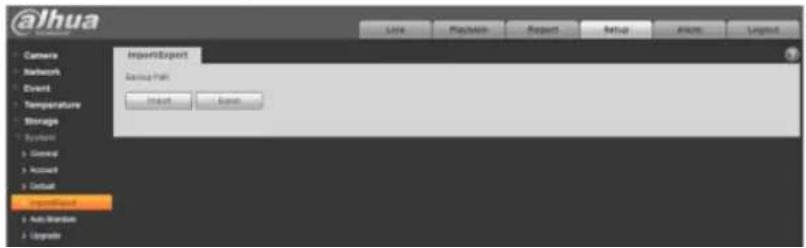

5.6.4 Import/Export
The interface is shown as in Figure 5-77.
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
Here you can select auto reboot and auto delete old files interval from the dropdown list. If you want to use the auto delete old files function, you need to set the file period.
Figure 5-78
| Parameter | Function |
| Auto Reboot | Check it and set auto reboot time. |
| Auto Delete Old Files | Check it and set period within 1~31 days. |
5.6.6 Upgrade
The upgrade interface is shown as in Figure 5-79.
Please select the upgrade file (file extension is ".bin") and then click the update button to begin firmware update.
Important
Improper upgrade program may result in device malfunction!
alhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
5.7 Information

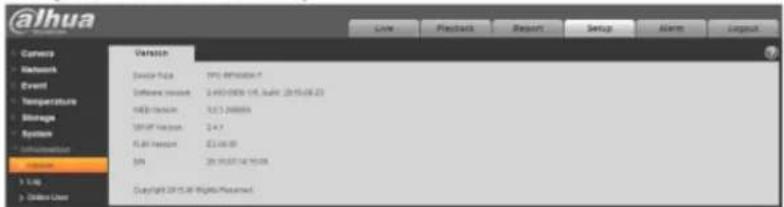

5.7.1 Version
The version interface is shown as in Figure 5-80.
Here you can view system hardware features, software version, release date and etc. Please note the following information is for reference only.
Figure 5-80

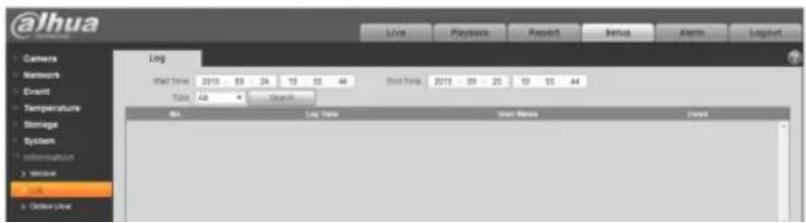

5.7.2 Log
Here you can view system log. See Figure 5-81.
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Parameter | Function |
| Start time | Set the start time of the requested log. (The earliest time is 2000/1/1) |
| End time | Set the end time of the requested log. (The latest time is 2037/12/31) |
| Type | Log type. |
| Search | You can select log type from the drop down list and then click search button to view the list.You can click the stop button to terminate current search operation. |
| Log information | You can select one item to view the detailed information. |
| Clear | You can click this button to delete all displayed log files. Please note system does not support clear by type. |
| Backup | You can click this button to backup log files to current PC. |
5.7.3 Online User
The online user interface is shown as in Figure 5-82.
Here you can view current online user, group name, IP address and login time.
@jhua
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
6 Alarm
Please note some series product does not support this function.
Click alarm function, you can see an interface is shown as in Figure 6-1.
Here you can set device alarm type and alarm sound setup.
Figure 6-1
Please refer to the following sheet for detailed information.
| Type | Parameter | Function |
| Alarm type | Motion detection | System alarms when motion detection alarm occurs. |
| Disk full | System alarms when disk is full. | |
| HDD | System generates an alarm when HDD is |
Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
| Type | Parameter | Function |
| Operation | Prompt | When alarm is triggered, there will be in main menu of alarm interface and system automatically records alarm info. The icon disappears when user click on alarm menu bar.Note:If alarm interface is displayed, when alarm is triggered, there will be no image prompt, but alarm record will be in list on the right. |
| Alarm audio | Audio | When alarm occurs, system auto generates alarm audio. The audio supports customized setup. |
| Path | Here you can specify alarm sound file. |
7 Log out
Click log out button, system goes back to log in interface. See Figure 7-1.
Figure 7-1
Note:
● This manual is for reference only. Slight difference may be found in user interface.
● All the designs and software here are subject to change without prior written notice.
- All trademarks and registered trademarks mentioned are the properties of their respective owners.
- If there is any uncertainty or controversy, please refer to the final explanation of us.
- Please visit our website for more information.
Dahua Technology Co., Ltd
Address: No.1199 Bin'an Road, Binjiang District, Hangzhou, PRC.
Postcode: 310053
Tel: +86-571-87688883
Fax: +86-571-87688815
Email:overseas@dahuatech.com
Website: www.dahuatech.com
- Dahua IR Thermal Imaging Network Camera Web3.0 Operation Manual
- Table of Contents
- Network Config....1
- Live....6
- Playback....12
- Report 22
- Setup....24
- Network....35
- @jhua
- alhua
- Important
- Network Config
- Network Connection
- Dahua IR
- @ahua
- Live
- System Menu
- Video Window Function Option
- Video Window Setup
- Width and Height Ratio
- Fluency Adjustment
- Rules Info
- Realtime Report
- Ray Axis Correct
- Playback
- Playback
- Playback File
- Playback Cut
- Progress Bar
- Assistant Function
- Figure 3-10
- Play
- Figure 3-11
- Report
- Open | Low | New
- Setup
- Camera
- Conditions
- Video
- Video Overlay
- @ahua Dabua1R
- Thermal Imaging Network Camera Web3.0 Operation Manual
- Path
- Audio
- Audio
- Network
- TCP/IP
- ONVIF
- PPPoE
- DDNS
- IP filter
- SMTP (e-mail)
- SNMP
- Bonjour
- QoS
- Event
- IVS Analyse
- Tripwire
- Intrusion
- Temperature Alarm
- Fire Alarm
- Alarm
- Abnormity
- Temperature
- Rule Setup
- Temperature Contrast
- Global
- Temperature Switch
- Hot Spot Follow
- Isotherm
- Color Code
- Heatmap
- Storage Management
- Schedule
- Record Schedule
- Snapshot Schedule
- Holiday Schedule
- Destination
- Path
- alhua Dahua 1R
- FTP
- NAS
- Record control
- System
- General
- Account
- Username
- Group
- Modify group
- Default
- Import/Export
- Upgrade
- Information
- Version
- Log
- Online User
- Alarm
- Log out
- Note:
- Dahua Technology Co., Ltd
Marke : Dahua Technology
Modell : DH-TPC-BF5400N-B
Kategorie : Sicherheitskamera
