MS-6CO - Taschenrechner CASIO - Kostenlose Bedienungsanleitung
Finden Sie kostenlos die Bedienungsanleitung des Geräts MS-6CO CASIO als PDF.
| Produkttyp | Taschenrechner |
| Marke | Casio |
| Modell | MS-6CO |
| Stromversorgung | Zwei-Wege-System (Solarzelle und Knopfbatterie LR54/LR1130) |
| Batterietyp | LR54 (LR1130) |
| Batterielebensdauer | ca. 3 Jahre (1 Stunde Betrieb pro Tag) |
| Betriebstemperatur | 0°C bis 40°C |
| Abmessungen (H × B × T) | 19,2 × 87 × 120,5 mm |
| Gewicht (mit Batterie) | ca. 70 g |
| Auto-Abschaltung | ca. 6 Minuten nach letzter Tastenbetätigung |
| Display | LCD, einzeilig |
| Grundrechenarten | Addition, Subtraktion, Multiplikation, Division |
| Steuerberechnung | Steuersatz einstellbar (0–100%), Preis mit/ohne Steuer |
| Umrechnungsfunktion | Metrische Umrechnung (Länge, Gewicht, Geschwindigkeit, Volumen) |
| Speicherfunktionen | Speicher (M+), Abruf (MRC), Löschen (MC) |
| Konstantenberechnung | Ja (automatische Konstantenerkennung) |
| Prozentrechnung | Prozentsatz, Aufschlag, Rabatt, Verhältnis |
| Reinigung | Mit weichem, trockenem Tuch abwischen |
| Batteriewechsel | Nur durch autorisierten Händler |
| Reparatur | Nicht selbst öffnen; bei Störungen C/AC zweimal drücken |
| Lieferumfang | Bedienungsanleitung, Batterie vorinstalliert |
Häufig gestellte Fragen - MS-6CO CASIO
Benutzerfragen zu MS-6CO CASIO
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Taschenrechner kostenlos im PDF-Format! Finden Sie Ihr Handbuch MS-6CO - CASIO und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. MS-6CO von der Marke CASIO.
BEDIENUNGSANLEITUNG MS-6CO CASIO
MS-6CO
User's Guide
EN
CASIO®
HDC523CE0P9
SA1612-A
Printed in China
© 2017 CASIO COMPUTER CO., LTD.
- Be sure to keep all user documentation handy for future reference.
Important Precautions
- If you suspect that the calculator is operating abnormally due to static electrical charge or some other problem, press C/AC twice to restore normal operation.
- Avoid dropping the calculator and otherwise subjecting it to severe impact.
- Never try to take the calculator apart.
- Wipe the unit with a soft, dry cloth to clean it.
- Replacing the battery or blocking the calculator from sunlight while battery power is low may cause your tax rate setting or memory contents to be changed or lost. Replace the battery as soon as possible when it becomes weak and correct the tax rate setting, if necessary.
- The contents of these instructions are subject to change without notice.
- CASIO COMPUTER CO., LTD. assumes no responsibility for any loss or claims by third parties which may arise from the use of this product.
Power Supply
Two-Way Power System provides power even in complete darkness.
• Always leave battery replacement up to an authorized dealer.
- The battery that comes with this unit discharges slightly during shipment and storage. Because of this, it may require replacement sooner than the normal expected battery life.
■Auto Power Off Function
Auto power off: Approximately 6 minutes after last key operation
Tax Calculations
- To set a tax rate
Example: Tax rate = 0% → 5%
C/AC C/AC % (SET) (Until SET appears.) TAX+ (TAX RATE)
5* % (SET)
- You can check the currently set rate by pressing C/AC twice and then TAX+ (TAX RATE).
Metric Conversion
• To enter the Metric Conversion Mode
Press CONV/M to toggle between the Metric Conversion Mode and the Memory Mode.
- The "CONV" indicator on the display indicates the Metric Conversion Mode.
• To set conversion rates
Value 1 (C1) is always 1. You can assign conversion rates to Value 2 (C2) and Value 3 (C3). Example: You can setup the conversion shown below.
1 lb (C1) = 16 oz (C2)
C/AC C/AC % (SET)(Until SET appears.) C2 16* % (SET)
C2 CONV RATE 16.
- You can check the currently set rate by pressing C/AC twice and then C2 (C3).
* For rates of 1 or greater, you can input up to six digits. For rates less than 1 you can input up to 8 digits, including 0 for the integer digit and leading zeros (though only six significant digits, counted from the left and starting with the first non-zero digit, can be specified). Examples: 0.123456, 0.0123456, 0.0012345
Specifications
Power Supply: Two-Way Power System, with solar cell and one button type battery (LR54 (LR1130))
Battery Life: Approximately 3 years (1 hour operation per day)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Dimensions: 19.2 (H) × 87 (W) × 120.5 (D) mm (3/4"H × 39/16"W × 43/4"D)
Weight: Approximately 70 g (2.5 oz), including battery
| 6 ÷ 3 × 5 + 2.4 - 1 = 11.4 2 × (-3) = -6 | C/AC C/AC6 ⊕ 3 ⊕ 5 ⊕ 2.4 ⊕ 1 ⊕2 | 0.11.4☒ 3 ⊕ ☑ |
| 1 + 5 = 6 | 5 | K | ⊕⊕1≡6. |
| 3 + 5 = 8 | 3≡ | K | 8. |
| 7 - 6 = 1 | 6 | K | ⊖⊖7≡1. |
| 2 - 6 = -4 | 2≡ | K | -4. |
| 3 × 2 = 6 | 2 | K | ☒☒3≡6. |
| 4 × 2 = 8 | 4≡ | K | 8. |
| 15 ÷ 3 = 5 | 3⊕⊕15≡ | K | 5. |
| 21 ÷ 3 = 7 | 21≡ | K | 7. |
| 100 × 5% = 5 | 100 × 5% | 5. |
| 100 + (100 × 5%) = 105 | 100 × 5% | 105. |
| 10 - (10 × 20%) = 8 | 10 × 20% | 8. |
| 30 = 60 × ?% ? = 50 | 30 ÷ 60% | 50. |
| 12 = 10 + (10 × ?%) ? = 20 | 12 ÷ 10% | 20. |
| 120 | ?(40) | 120 ± 25% | 160. |
| 100% ? ($160) | 25% | 40. |
| 8 × 9 = 72 | MRC MRC C/AC C/AC 8 × 9 M+ | M | 72. | |
| -) 5 × 6 = 30 | 5 | M | × 6 | |
| 2 × 3 = 6 | 2 | M | × 3 | |
| 48 | MRC | M | 48. |
| 2 + 3 = 6 4 | 2 | ⊕3CAC4≡ 6. |
| 2 7 = -5 ⊖ | 2 | ⊕≡7≡- |
| 99999999 + 1 = 100000000 | 999999999 ⊕ 1 ≡C/AC C/AC | E | 1.00000000. |
Tax rate = 5%
\150 → ??? \105 → ???
*1 Price-plus-tax * 2 Tax * 3 Price-less-tax
other
| Category | Value | |---|---| | C/AC | 105 | | TAX- | 100. | | TAX- | 5. | | TAX- | 100. |Conversion rates

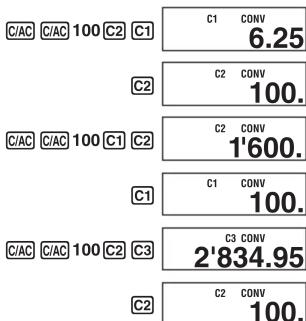

C1 (lb) = 1, C2 (oz) = 16, C3 (g) = 453.592
100 oz → ? lb (6.25)
100 lb → ? oz (1600)
100 oz → ? g (2834.95)
Conversion calculation formulas
| C2, C3 → C1A/B | C1 → C2, C3A * B | C2 → C3, C3 → C2(A/X) * Y |
| • A = Input or displayed value, B = Rate, X = C2 or C3 rate, Y = C2 or C3 rate, X ≠ Y | ||
- Due to the number of significant digits in the value being converted (A) and the conversion rate (B), conversion calculations are performed using eight digits for calculation and six digits for the conversion rate.
Typical Conversion Rates
Conversion rates are rounded values in accordance with NIST Special Publication 811 (2008).
Length
| 5. | in | ft | yard | mile | cm | m | km |
| 1 in = | 1 | 0.0833333 | 0.0277778 | 0.0000158 | 2.54 | 0.0254 | 0.0000254 |
| 1 ft = | 12 | 1 | 0.333333 | 0.0001894 | 30.48 | 0.3048 | 0.0003048 |
| 1 yard = | 36 | 3 | 1 | 0.0005682 | 91.44 | 0.9144 | 0.0009144 |
| 1 mile = | 63'360 | 5'280 | 1'760 | 1 | 160'934 | 1'609.34 | 1.60934 |
| 1 cm = | 0.393701 | 0.0328084 | 0.0109361 | 0.0000062 | 1 | 0.01 | 0.00001 |
| 1 m = | 39.3701 | 3.28084 | 1.09361 | 0.0006214 | 100 | 1 | 0.001 |
| 1 km = | 39'370.1 | 3'280.84 | 1'093.61 | 0.621371 | 100'000 | 1'000 | 1 |
Weight
| oz | lb | g | kg | |
| 1 oz = | 1 | 0.0625 | 28.3495 | 0.0283495 |
| 1 lb = | 16 | 1 | 453.592 | 0.453592 |
| 1 g = | 0.035274 | 0.0022046 | 1 | 0.001 |
| 1 kg = | 35.274 | 2.20462 | 1'000 | 1 |
Speed
| m/s | km/h | ft/s | mph | knot | |
| 1 m/s = | 1 | 3.6 | 3.28084 | 2.23694 | 1.94384 |
| 1 km/h = | 0.277778 | 1 | 0.911344 | 0.621371 | 0.539957 |
| 1 ft/s = | 0.3048 | 1.09728 | 1 | 0.681818 | 0.592484 |
| 1 mph = | 0.44704 | 1.60934 | 1.46667 | 1 | 0.868976 |
| 1 knot = | 0.514444 | 1.852 | 1.68781 | 1.15078 | 1 |
Volume
| 1 US Tea Spoon = | 4.92892 ml |
| 1 US Table Spoon = | 14.7868 ml |
| 1 US Cup = | 236.588 ml |
| 1 US fl oz = | 29.5735 ml |
| 1 US pint = | 473.177 ml |
| 1 US Quart = | 946.353 ml |
| 1 US Liquid Gallon = | 3.78541 L |
CASIO COMPUTER CO., LTD.
6-2, Hon-machi 1-chome, Shibuya-ku, Tokyo 151-8543, Japan
Marke : CASIO
Modell : MS-6CO
Kategorie : Taschenrechner
