SRT5 - Taschenlampe Nitecore - Kostenlose Bedienungsanleitung

Produkttyp	Taschenlampe
Marke	Nitecore
Modell	SRT5
Abmessungen (Länge x Durchmesser)	135 mm x 25,4 mm (Kopf), 25,4 mm (Körper)
Gewicht (ohne Batterie)	55 g
Leuchtmittel	3 x CREE XP-G2 R5 LEDs
Maximale Lichtleistung	960 Lumen
Maximale Leuchtweite	222 m
Maximale Leuchtdauer (auf niedrigster Stufe)	60 Stunden
Stromversorgung	1 x 18650 Li-Ion Akku oder 2 x CR123A
Ladeanschluss	Mikro-USB (am Akku)
Schalter	Drehring (Smart Ring) mit 5 Modi
Hauptfunktionen	Ultra-Niedrig, Niedrig, Mittel, Hoch, Turbo, Stroboskop, SOS, Beacon
Wasserdichtigkeit	IPX-8 (bis 2 m)
Stoßfestigkeit	1,5 m
Material	Aluminiumlegierung (Flugzeugqualität)
Oberfläche	Hart eloxiert (HA III)
Reinigung	Kontakte mit Alkohol reinigen; Gehäuse mit feuchtem Tuch abwischen
Sicherheitshinweise	Nicht in Wasser eintauchen; Akku nicht überladen; Fernhalten von Kindern
Ersatzteile und Reparatur	Ersatzakkus und Ladegeräte erhältlich; Reparatur nur durch Fachpersonal
Hersteller	Nitecore (System SYSMAX Innovations)
Garantie	5 Jahre (gemäß Herstellerangaben)

Häufig gestellte Fragen - SRT5 Nitecore

Welche Batterien kann ich für die Nitecore SRT5 verwenden?

Die Nitecore SRT5 ist kompatibel mit einem 18650 Li-Ion Akku (geschützt oder ungeschützt) oder zwei CR123A Primärzellen.

Wie lade ich den Akku der SRT5?

Der Akku wird über den integrierten Mikro-USB-Anschluss am Akku selbst geladen. Ein entsprechendes Ladekabel ist im Lieferumfang enthalten.

Wie schalte ich die Lampe aus?

Drehen Sie den Smart Ring auf die Position 'Aus' (OFF). Ein Klick ist nicht erforderlich, da der Ring stufenlos arbeitet.

Ist die SRT5 wasserdicht?

Ja, die Lampe ist nach IPX-8 zertifiziert, was bedeutet, dass sie bis zu 2 Meter Tiefe für 30 Minuten wasserdicht ist.

Welche Leuchtmodi bietet die SRT5?

Die Lampe verfügt über 5 Helligkeitsstufen (Ultra-Niedrig, Niedrig, Mittel, Hoch, Turbo) sowie Spezialmodi wie Stroboskop, SOS und Beacon.

Wie hoch ist die maximale Lichtleistung?

Die maximale Helligkeit beträgt 960 Lumen im Turbo-Modus, gemessen mit einem 18650 Akku.

Kann ich die Lampe auch mit CR123A Batterien betreiben?

Ja, die SRT5 akzeptiert zwei CR123A Lithium-Batterien. Beachten Sie jedoch, dass die maximale Helligkeit auf etwa 600 Lumen reduziert sein kann.

Wie reinige ich die Kontakte der Lampe?

Reinigen Sie die Kontakte regelmäßig mit einem in Isopropylalkohol getränkten Tuch, um einen optimalen Stromfluss zu gewährleisten.

Ist die SRT5 stoßfest?

Ja, das Gehäuse aus Flugzeugaluminium übersteht Stürze aus bis zu 1,5 Metern Höhe ohne Schaden.

Was bedeutet der Smart Ring?

Der Smart Ring ist ein magnetischer Drehring, der stufenlos die Helligkeit regelt und die verschiedenen Modi auswählt – ganz ohne Tasten.

BEDIENUNGSANLEITUNG SRT5 Nitecore

NITECORE®

ALL-ROUND Flashlight Expert

SRT 5 Detective

User Manual

Features

• Purpose-designed for law enforcement, hunting and tactical applications.
• The world's first line of flashlights to feature third generation SSR (smart selector ring) technology
• Smoothly and rapidly select brightness levels and function by rotating a smart selector ring
• Utilizes the latest CREE XM-L (XM-L2 T6) LED for a maximum output of up to 750 lumens
• Second generation of ‘Crystal Coating Technology’ along with ‘Precision Digital Optics Technology’ provide extreme reflector performance
• Boasts a peak beam intensity of 6,000cd and a throw distance of up to 155 meters (ANSI FL1)
• High efficiency circuit board provides up to 450 hours runtime on lowest output level
• Equipped with unique multi-colored (red and blue) tactical / signaling lights
  • Infinite brightness adjustment from 0.1 to 750 lumens
• Six rapidly switchable functions to select from
• Reverse polarity protection
• Stainless steel titanium-plated two-way clip
• Stainless steel retaining ring protects core components from damage
• Toughened ultra-clear mineral glass with anti-reflective coating
• Constructed from aero grade aluminum alloy
• Robust HAIII military grade hard-anodized
• Waterproof in accordance with IPX-8 (two meters submersible)
• Impact resistant to 1.5 meters
  • Tail stand capability

Dimensions

Length: 136mm (5.35")

Head diameter: 25.4mm (1")

Tube diameter: 24.3mm (0.96")

Weight: 77g (2.72oz)(without battery)

Accessories

Quality holster, removable clip, lanyard, spare tail cap button and spare O-ring

Battery Options

	SIZE	Nominal voltage	Compatible
Primary Lithium battery	CR123	3V	Y (Recommended)
18650 Rechargeable Li-ion battery	18650	3.7V	Y (Recommended)
Rechargeable Li-ion battery	RCR123	3.7V	Y

Output & Runtime

FL1 STANDARD	TURBO	LOWER
	750* LUMENS	0.1* LUMENS
	1h45min	450h
	1h15min	360h
	155m (Beam Distance)
	6000cd(Peak Beam Intensity)
	1.5m (Impact Resistant)
	IPX-8, 2m (Waterproof AND Submersible)

NOTICE

The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMA FL1 using one x 3.7V 2600mAh Nitecore 18650 battery and 2 x 3V 1550mAh Nitecore CR123 batteries under laboratory conditions. The data may vary slightly during real-world use due to battery type, individual usage habits and environmental factors.

*Infinite brightness adjustment varies from 0.1 to 750 lumens and is manually adjusted by rotation of the Smart Selector Ring. Subsequently, runtimes will vary anywhere from 105 minutes to 450 hours depending on chosen level of output.

NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop the ANSI/NEMA FL1 standard of measurement. Product testing data is in accordance with these internationally recognized scientific standards.

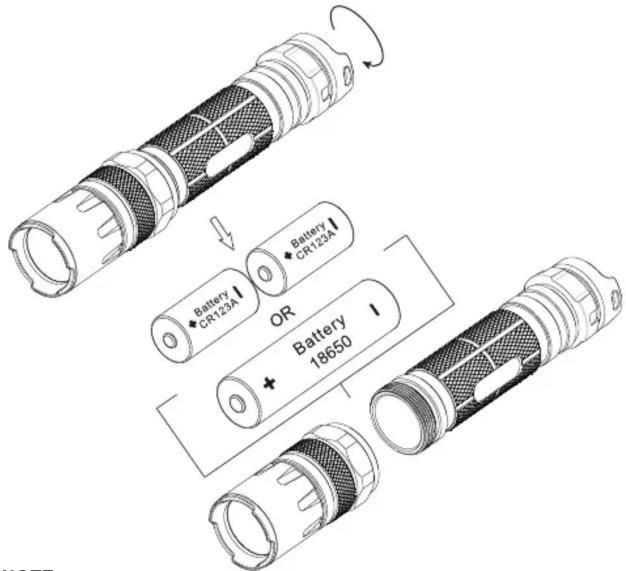

Battery Installation

Insert one 18650 battery or two CR123 batteries with the positive pole pointing forward (toward the light head).

NOTE:

1. Ensure batteries are inserted with the positive (+) end pointing to the head. The SRT5 will not operate with incorrectly inserted batteries.
2. Please do NOT light directly to the eyes, which will hurt the eyes.

Switching ON/OFF

To switch ON: Press the button on the tailcap until a "click" is heard. To switch OFF: Press the button on the tailcap a second time until a "click" is heard.

Momentary Illumination

Momentary illumination can be achieved by switching the flashlight off and then half pressing and holding the tail switch. Release switch to turn the light off.

Adjusting Output

With the light turned on, slowly rotate the Smart Selector Ring (adjacent to the bezel) in a counter-clockwise direction to cycle through the following brightness levels: beacon -> SOS -> police warning signal -> blue mode -> red mode -> lower mode -> infinite brightness modes -> turbo mode -> strobe mode. These modes may be cycled through in reverse by rotating the Smart Selector Ring in a clockwise direction.

Technical line drawing of a flashlight with internal mesh structure and directional arrows indicating motion (no text or symbols)

NITECORE®

ALL-ROUND Flashlight Expert

Note: When using the SRT5 in infinite brightness mode, runtime will increase when lower levels of output are selected. On its lowest setting, the SRT5 will run continuously for up to 450 hours and on its highest setting continuously for up to one hour and 45 minutes.

NB:

For user safety and to prevent overheating / failure, the SRT5 will automatically switch to high mode after three minutes of use in Turbo mode. Slowly rotate the Smart Selector Ring or press the tail switch again to reactivate turbo mode when needed.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.

Warranty Service

All NITECORE ^® products are warranted for quality. DOA / defective products can be exchanged for replacement through a local distributor/dealer within the 14 days of purchase. After 14 days, all defective / malfunctioning NITECORE ^® products will be repaired free of charge for a period of 18 months from the date of purchase. After 18 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. The product(s) is/are damaged through improper use.
3. The product(s) is/are damaged by leakage of batteries.

To guarantee a swift and effective customer service, Nitecore suggest you to contact the point of purchase for assistance.

For the latest information on NITECORE® products and services, please contact your national NITECORE® distributor or send an email to [e-mail]

The Nitecore official website shall prevail in case of any product data changes.

Please follow our facebook for more info: NITECORE Flashlights

Technical line drawing of a flashlight with internal mesh structure (no text or symbols)

SYSMAX Ind.

SYSMAX Industry Co., Ltd.

TEL: [phone]

FAX: [phone]

E-mail: [e-mail]

Web: www.nitecore.com

Address: Rm1407-08, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600
