MasterLiquid ML280 TR4 - PC-Lüfter COOLER MASTER - Kostenlose Bedienungsanleitung
Finden Sie kostenlos die Bedienungsanleitung des Geräts MasterLiquid ML280 TR4 COOLER MASTER als PDF.
| Produkttyp | All-in-One Wasserkühlung |
| Modell | MasterLiquid ML280 TR4 |
| Kompatibler Sockel | AMD TR4 (Threadripper) |
| Radiatorgröße | 280 mm (2 x 140 mm Lüfter) |
| Lüfterabmessungen (jeweils) | 140 x 140 x 25 mm |
| Lüftergeschwindigkeit | 600 – 1800 U/min (PWM) |
| Lüftergeräuschpegel | 6 – 30 dBA |
| Luftstrom (max.) | 120 CFM (pro Lüfter) |
| Pumpengeschwindigkeit | ~2500 U/min (PWM) |
| Pumpengeräuschpegel | < 18 dBA |
| Kühlmittel | Niedrigviskoses Kühlmittel (ungefärbt) |
| Material Kühlplatte | Kupfer |
| Material Radiator | Aluminium |
| Nettogewicht | 1,6 kg |
| Abmessungen Radiator | 311 x 137 x 28 mm |
| Stromanschluss Lüfter | 4-Pin PWM |
| Stromanschluss Pumpe | 3-Pin (Mainboard) oder SATA-Strom |
| Garantie | 2 Jahre |
| Wartung | Keine Wartung erforderlich (versiegelter Kreislauf) |
| Reinigung | Staub von Radiator und Lüftern mit Druckluft entfernen |
| Lieferumfang | Kühler, 2x Lüfter, Montagematerial, Wärmeleitpaste, Anleitung |
Häufig gestellte Fragen - MasterLiquid ML280 TR4 COOLER MASTER
Benutzerfragen zu MasterLiquid ML280 TR4 COOLER MASTER
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr PC-Lüfter kostenlos im PDF-Format! Finden Sie Ihr Handbuch MasterLiquid ML280 TR4 - COOLER MASTER und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. MasterLiquid ML280 TR4 von der Marke COOLER MASTER.
BEDIENUNGSANLEITUNG MasterLiquid ML280 TR4 COOLER MASTER


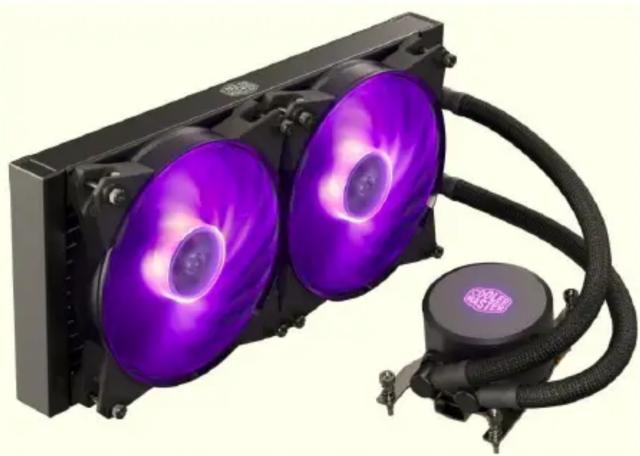

Close-up of a CPU cooler with two purple-lit fans and a black CPU socket connected by coiled cable (no visible text or symbols)
THREADRIPPER
The MasterLiquid ML280 RGB TR4 Edition all-in-one liquid CPU cooler is custom, inside and out. Exclusive for AMD Ryzen TR4 socket which features a larger contact surface area that is specifically tailored for Threadripper processors. Our low-profile dual chamber pump outperforms its single chamber predecessors in heat transfer. RGB LEDs are installed on both the pump and fans for full color customization that can be controlled through the provided controller. Kink-free, factory-sealed FEP tubing now comes sleeved for a premium look. Screw it in and experience the quiet muscle of liquid cooling without ever worrying about refills or maintenance. Enjoy the work of decades of thermal innovation.
Features Specifications & Packing Information
Exclusive Tech
Cooler Master controls quality and builds on decades of innovation with 100% in-house design and manufacturing.
Designed for AMD Ryzen Threadripper
Designed and customized for AMD Socket TR4 platform which features a larger contact surface area that is specifically tailored for Threadripper processors
Dual Dissipation
Our low-profile dual chamber pump delivers sizable performance leaps over last-gen technology.
Complete Illumination
This all-in-one liquid cooler comes with RGB LED lighting design on the pump and fans that is certified to sync with Motherboard RGB software or controlled by our controller
Include Wired RGB Controller & Splitter
Allows you customize colors and light effects.
| EAN Code | 4719512072288 |
| UPC Code | 884102037535 |
| Net weight (Kg) | 1.42 |
| Gross weight (Kg) | 2.14 |
| Package Dimension (L x W x H) | 34.9 x 25.2 x 15.2 cm |
| Carton Dimension (L x W x H) | 62.7x 36.7 x 28.5 cm |
| Unit/ Caron | 4 pcs |
| Cont. W/ Pallet | Carton/Pallet | W/O Pallet | |
| 20' 1120 | 20' N/A | ||
| 40' 2240 | 40' N/A | ||
| 40 HQ 2560 | 40 HQ N/A | ||
| 45 HQ 2816 | 45 HQ N/A | ||
| Model | MLX-D28M-A13PC-T1 | |
| CPU Socket | AMD Socket TR4 | |
| Radiator | Material | Aluminum |
| Dimensions | 318 x 137 x 27.2mm (12.5 x 5.4 x 1.1") | |
| Fan | Dimensions | 140 x 140 x 25 mm (5.5 x 5.5 x 1") |
| Quantity | 2 PCS | |
| Speed | 600 ~ 1300 RPM (PWM) ± 10% | |
| Air Flow | 79.6 CFM (Max) | |
| Air Pressure | 1.3 mmH2O (Max) | |
| MTTF | 160,000 hours | |
| Noise Level | 6 ~ 30 dBA | |
| Connector | 4-Pin (PWM) | |
| Rated Voltage | 12 VDC | |
| Pump | Dimensions | 86 x 70 x 49 mm (3.4 x 2.8 x 1.9") |
| MTTF | 70,000 hours | |
| Noise Level | < 15 dBA | |
| Connector | 3-Pin | |
| Rated Voltage | 12 VDC | |
| Warranty | 2 Years | |
| *For the latest CPU support informaon, please visit our website | ||
Feature Description
1-to-3 RGB SPLITTER (Bundled Accessory)
Allows you extend to multiple RGB devices
Allows you customize colors even without RGB Motherboard
SOCKET TR4
Designed and customized for AMD Socket TR4 platform which features a larger contact surface area that is specifically tailored for Threadripper processors
Certificated compatible with RGB motherboards. RGB function to sync with the system
BRIGHTNESS
Adjust the brightness
LIGHTING EFFECT
6 pre-set effects to select
Adjust the color base on the effect selected
