U853RW - Mikrofon Audio-Technica - Kostenlose Bedienungsanleitung
Finden Sie kostenlos die Bedienungsanleitung des Geräts U853RW Audio-Technica als PDF.
| Produkttyp | Kondensator-Mikrofon (Hängemikrofon) |
| Marke | Audio-Technica |
| Modell | U853RW |
| Richtcharakteristik | Kardioid (120° Öffnungswinkel) |
| Wandlerprinzip | Kondensator (fest geladene Rückplatte) |
| Frequenzbereich | 30 – 20.000 Hz |
| Hochpassfilter | 80 Hz, 18 dB/Oktave |
| Empfindlichkeit (bei 1 V/Pa) | -39 dB (11,2 mV) |
| Impedanz | 250 Ohm |
| Max. Schalldruckpegel | 139 dB SPL (1 kHz, 1% Klirr) |
| Dynamikumfang | 115 dB (typisch) |
| Signal-Rauschabstand | 70 dB (1 kHz bei 1 Pa) |
| Phantomspeisung | 11 – 52 V DC, 2 mA |
| Stromversorgung | Nur Phantomspeisung |
| Gewicht Mikrofon | 14 g |
| Gewicht Netzmodul | 81 g |
| Abmessungen Mikrofon | 34 mm Länge, 12,2 mm Durchmesser |
| Abmessungen Netzmodul | 92,9 mm Länge, 18,9 mm Durchmesser |
| Ausgang | Symmetrisch, 3-pol. XLRM (Pin 2 heiß) |
| Kabellänge | 7,6 m (fest verbunden) |
| Gehäusefarbe | Weiß |
| Mitgeliefertes Zubehör | Windschutz (AT8153WH), Aufhänger (AT8451WH) |
| Optionale Kapseln | UE-C (Kardioid), UE-H (Hyperkardioid), UE-O (Kugel), UE-UL (UniLine) |
Häufig gestellte Fragen - U853RW Audio-Technica
Benutzerfragen zu U853RW Audio-Technica
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Mikrofon kostenlos im PDF-Format! Finden Sie Ihr Handbuch U853RW - Audio-Technica und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. U853RW von der Marke Audio-Technica.
BEDIENUNGSANLEITUNG U853RW Audio-Technica
CARDIOID CONDENSER HANGING MICROPHONE
The U853A requires 11V to 52V DC phantom power or a 1.5V AA battery for operation. A battery need not be in place for phantom power operation.
Alkaline batteries are recommended for longest life. Remove the battery during long-term storage.
The U853R requires 11V to 52V phantom power operation only.
A uniform 120^ angle of acceptance provides well-balanced audio pickup. The microphone should be located forward of the front-most source, above the rear-most source, and "aimed" between them (Fig.1). Increasing the height of the mic above the sources will tend to equalize sound levels between them, but may also increase from the mic to the rear-most pickup should be no more than twice the distance to the front source, to maintain front-to-rear balance (Fig.1).
Width of pickup is approximately three times the distance to the closest performer. If additional mics are needed for wide sources, they should be positioned apart laterally at least three times the distance to front source, to avoid phase cancellation (Fig.2).
To orient the microphone in the proper direction, twist the housing slightly in its wire holder. (Clockwise rotation moves the microphone to the right; counterclockwise rotation moves it to the left.)
Output from the power module's XLRM-type connector is low impedance (Lo-Z) balanced. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" - positive acoustic pressure produces positive voltage at Pin 2.
At integral 80 Hz high-pass UniSteep ^® filter provides easy switching from a flat frequency response to a low-end roll-off. The roll-off position reduces the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation and mechanically coupled vibrations.
Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43^ C for extended periods. Extremely high humidity should also be avoided.
Fig.1
Fig.2
SPECIFICATIONS
| ELEMENT | Fixed-charge back plate permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 18 dB/octave |
| OPEN CIRCUIT SENSITIVITY | (re 1V at 1 Pa) |
| U853A (Phantom / Battery) | -42 dB (7.9 mV) / -43 dB (7.0 mV) |
| U853R | -39 dB (11.2 mV) |
| IMPEDANCE | |
| U853A (Phantom / Battery) | 200 ohms / 270 ohms |
| U853R | 250 ohms |
| MAXIMUM INPUT SOUND LEVEL | (1 kHz at 1% T.H.D.) |
| U853A (Phantom / Battery) | 133 dB / 123 dB SPL |
| U853R | 139 dB SPL |
| DYNAMIC RANGE (typical) | (1 kHz at Max SPL) |
| U853A (Phantom / Battery) | 109 dB / 99 dB |
| U853R | 115 dB |
| SIGNAL-TO-NOISE RATIO | |
| U853A | 70 dB, 1 kHz at 1Pa |
| U853R | 70 dB, 1 kHz at 1Pa |
| PHANTOM POWER REQUIREMENTS | 11-52V DC, 2 mA typical |
| SWITCH | |
| U853A | Off, on-flat, on-roll-off |
| U853R | Flat, roll-off |
| BATTERY TYPE (U853A) | 1.5V AA/UM3 |
| BATTERY CURRENT / LIFE (U853A) | 0.4 mA / 1200 hrs typical (alkaline) |
| WEIGHT | |
| MICROPHONE (U853A / U853R) | 14 g / 14 g |
| POWER MODULE (U853A / U853R) | 139 g / 81 g |
| DIMENSIONS | |
| MICROPHONE | 34 mm - long, 12.2 mm - diameter |
| POWER MODULE (U853A) | 84 mm(H) x 63 mm(W) x 22 mm(D) |
| (U853R) | 92.9 mm -long, 18.9 mm diameter |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type (power module) |
| CABLE | 7.6m long (permanently attached to microphone), 3.2mm diameter, 2-conductor shielded cable with TA3F-type connector. |
| OPTIONAL INTERCHANGEABLE ELE-MENTS | UE-C cardioid (120°)UE-H hypercardioid (100°)UE-O omnidirectional (360°)UE-UL UniLineTM (90°) |
| ACCESSORIES FURNISHED | |
| U853A / U853R | AT8153 two-stage foam windscreen; AT8451 steel hanger |
| U853AW / U853RW | AT8153(WH) two-stage foam windscreen; AT8451(WH steel hanger; Battery (U853AW) |
| OTHER | Battery (U853A / U853AW), AT8531 power module(U853A / U853AW), AT8538 power module(U853R / U853RW), AT8438 %"-27 stand adapter. |
Polar Pattern
radar
| Angle | Value | |---|---| | 0° | 100 | | 45° | 95 | | 90° | 90 | | 135° | 85 | | 180° | 80 | | 225° | 75 | | 270° | 70 | | 315° | 65 | | 360° | 60 |LEGEND
200 Hz
1 kHz 5 kHz
8 kHz

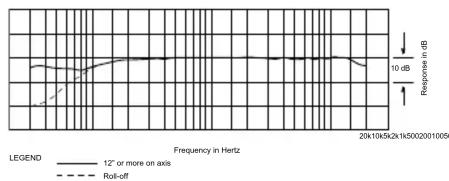

Frequency Response
line
| Frequency in Hertz | 12° or more on axis | Roll-off | | ------------------ | ------------------- | -------- | | 20k | ~10 dB | ~10 dB |
audio-technica®
Machida • Tokyo • Japan
心形指向性悬挂式电容话筒
- 设有两种颜色选择 : 黑色 U853A / U853R ，及白色 U853AW / U853RW。
U853A话筒使用 直流11V 至52V 幻象供电或一枚1.5V AA 3号电池供电操作，当使用幻象供电时，可不用安装电池。
建议使用硷性电池工作，当长期不使用电池时，请把电池取出。
U853R话筒只作 直流11V至52V幻象供电操作。
标准配置为心形指向，收音角度可为 120^ 。话筒安装时，应先决定最前及最后的声源位置，而话筒应瞄准两者之间的中央位置(图1)，然后提升话筒高度，使前后声源趋向平衡；但却可能会增加背景噪音声及回声，所以调校话筒时，应避免最后的声源距离长于最前声源的两倍(图1)，以维持前后平衡。
而与其他话筒的宽度距离，应以最前声源的大致三倍距离为最佳设定(图2)，这样做既可覆盖每点声源，又可避免话筒的相位互相抵消情况出现。
话筒附有一条悬挂弹簧，可将收音头固定调校到任何正确位置。(把收音顺时针转动，话筒会向右转；反时针转动时，话筒会左转)
低阻抗的平衡音频输出，话筒音频信号最终以卡农公头的2号及3号针脚输出，而1号针脚则为地线(屏蔽)连接。输出相位将以正相位电平设于2号针脚上。
内置高质量高通滤波电路，可由平直的频率响应，开启为于 80 Hz 以下衰减的收音效果，应高通滤波器可减低收音环境中低频噪声（如外间汽车引擎声，空调系统的风声等），房间中的回声及机械性的震动声。
把话筒暴露于高温中可能导致输出电平逐渐及永久性减弱，应避免将话筒留在日晒的地方或长时间置于温度超过 43^ 的地方，而极高湿度也应避免。
图1
图2
技术指标
| 收音头 | 固定充电背板,静电型电容式 | |
| 指向特性 | 心形单指向性 | |
| 频率响应 | 30-20,000 Hz | |
| 高通滤波 | 80 Hz, 18 dB/octave | |
| 开通灵敏度 | (以1V于1Pa) | |
| -42 dB (7.9 mV) / -43 dB (7.0 mV) | ||
| U853R -39 dB (11.2 mV) | ||
| 输出阻抗 | ||
| 优能话等 | U853A (幻象供电/电池) | 200 欧姆 / 270 欧姆 |
| U853R | 250 欧姆 | |
| 最大承受声压 | (1 kHz 于 1% T.H.D.) | |
| U853A (幻象供电/电池) 133 dB / 123 dB 声压 | ||
| U853R 139 dB 声压 | ||
| 动态范围(典型) | (1 kHz 于最高声压) | |
| U853A (幻象供电/电池) 109 dB / 99 dB | ||
| U853R 115 dB | ||
| 机噪比 | U853A | 70 dB, 1 kHz 于1Pa |
| U853R | 70 dB, 1 kHz 于1Pa | |
| 幻象供电 | 直流 11-52V,耗电 2 mA 典型 | |
| 开关 | U853A | 关闭,平直,高通滤波 |
| U853R | 平直,高通滤波 | |
| 电池种类(U853A) | 1.5V AA 3号电池 | |
| 电池耗电量 / 电池寿命(U853A) | 0.4 mA / 1200 小时(典型硷性电池) | |
| 重量 | ||
| 话筒(U853A/U853R) 14克 / 14克 | ||
| 供电模组(U853A/U853R) 139克 / 81克 | ||
| 外形尺寸 | 话筒 | 34 mm - 长, 12.2 mm - 最大值径 |
| 供电模组(U853A) | 84 mm(高) x 63 mm(宽) x 22 mm(厚) | |
| (U853R) | 92.9 mm - 长, 18.9 mm - 最大值径 | |
| 输出连接器 | 内置式3针卡农公头(供电模组) | |
| 连接线 | 7.6m长(固定装置于收音头中),3.2mm直径连接线,2蕊线连屏蔽电线,以TA3F插头连接 | |
| 可转换收音头 | UE-C 心形指向(120°)UE-H 超心形指向(100°)UE-O 全方向性(360°)UE-UL UniLineTM超指向性(90°) | |
| 附属品 | U853A/U853R | AT8153 双层海棉防风罩;AT8451 悬挂弹簧。 |
| U853AW/U853RW | AT8153(WH) 白色双层海棉防风罩;AT8451(WH) 白色悬挂弹簧。 | |
| 其他 | AT8531 双供电模组(U853A/U853AW);AT8538 供电模组(U853R/U853RW);AT8438 %"-27 话筒架转接环;电池(U853A/U853AW)。 | |
指向特性
radar
| Angle | Value | |---|---| | 0° | 100 | | 45° | 95 | | 90° | 90 | | 135° | 85 | | 180° | 80 | | 225° | 75 | | 270° | 70 | | 315° | 65 | | 360° | 60 | | 405° | 55 | | 450° | 50 | | 505° | 45 | | 550° | 40 | | 605° | 35 | | 650° | 30 | | 705° | 25 | | 750° | 20 | | 805° | 15 | | 850° | 10 | | 905° | 5 | | 950° | 0 | | 1005° | -5 | | 1050° | -10 | | 1105° | -15 | | 1150° | -20 | | 1205° | -25 | | 1250° | -30 | | 1305° | -35 | | 1350° | -40 | | 1405° | -45 | | 1450° | -50 | | 1505° | -55 | | 1550° | -60 | | 1605° | -65 | | 1650° | -70 | | 1705° | -75 | | 1750° | -80 | | 1805° | -85 | | 1850° | -90 | | 1905° | -95 | | 2000° | -100 | | 2055° | -95 | | 2100° | -90 | | 2155° | -85 | | 2200° | -80 | | 2255° | -75 | | 2300° | -70 | | 2355° | -65 | | 2400° | -60 | | 2455° | -55 | | 2500° | -50 | | 2555° | -45 | | 2600° | -40 | | 2655° | -35 | | 2700° | -30 | | 2755° | -25 | | 2800° | -20 | | 2855° | -15 | | 2900° | -10 | | 2955° | -5 | | 3000° | 0 | | 3055° | 5 | | 3100° | 10 | | 3155° | 15 | | 3200° | 20 | | 3255° | 25 | | 3300° | 30 | | 3355° | 35 | | 3400° | 40 | | 3455° | 45 | | 3500° | 50 | | 3555° | 55 | | 3600° | 60 | | Note: The last row is a duplicate of the first row to close the circle in the radar chart. The rest of the circle is empty. The values are estimated based on the current data point. There is no additional data series present in this image. The label 'A' appears twice in the image: 'A' and 'B'.声压曲线刻度5dB

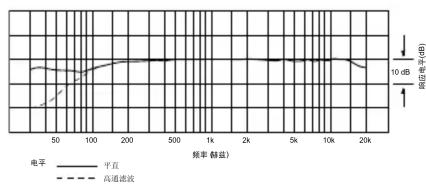

频率特性
line
| 频率 (赫兹) | 平直 (dB) | 高通滤波 (dB) | | ----------- | --------- | ------------- | | 50 | ~0.8 | ~0.3 | | 100 | ~0.9 | ~0.4 | | 200 | ~1.0 | ~0.6 | | 500 | ~1.0 | ~0.7 | | 1k | ~1.0 | ~0.8 | | 2k | ~1.0 | ~0.8 | | 5k | ~1.0 | ~0.8 | | 10k | ~1.0 | ~0.8 | | 20k | ~1.0 | ~0.8 |
audio-technica 鐵三角
Machida • Tokyo • Japan
