Produkttyp	Bluetooth® 5.0 Audio-Streaming-Modul (Erweiterungskarte)
Marke	Helix / MATCH
Modell	Match MEC BT HD
Bluetooth®-Standard	5.0 + EDR
Bluetooth®-Profile	A2DP, AVRCP, SPP
Bluetooth®-Codecs	SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX™ HD
Anzahl koppelbarer Geräte	8
Funkfrequenzbereich	2402 – 2480 MHz
Reichweite	Bis zu 10 m
Digitaler optischer Ausgang	SPDIF (96 kHz / 24 Bit oder 48 kHz / 24 Bit, abhängig von der Abtastrate des Quellgeräts)
Status-LED	Blau (Standby), Blau/Rot wechselnd (Pairing-Modus), Blau alle 2 Sek. (verbunden), Blau doppelt alle 2 Sek. (Streaming)
Kompatibilität	Helix / MATCH DSP-Geräte mit entsprechendem Steckplatz (z. B. DSP.3, DSP.4)
Signalverarbeitung	I²S direkt an den DSP, keine zusätzliche Konvertierung
Drahtlose DSP-Konfiguration	Möglich über DSP PC-Tool V5 (nur DSP-Geräte mit ACO-Plattform)
Montage	Einbau in dafür vorgesehenen Steckplatz des Geräts; Antennenanschluss mit Mutter und Unterlegscheibe befestigen
Stromversorgung	Über das Wirtsgerät (keine separate Stromversorgung erforderlich)
Zertifizierung	CE-Kennzeichnung
Entsorgung	Elektro- und Elektronik-Altgeräte gemäß lokalen Vorschriften entsorgen

Häufig gestellte Fragen - Match MEC BT HD Helix

Wie koppele ich das HEC/MEC BT HD Modul mit meinem Smartphone?

Stellen Sie sicher, dass Bluetooth auf Ihrem Smartphone aktiviert ist. Schalten Sie das Helix/MATCH-Gerät ein und drücken Sie die Control-Taste für weniger als 1 Sekunde, um den Pairing-Modus zu starten. Die Status-LED blinkt dann abwechselnd blau und rot. Suchen Sie auf Ihrem Smartphone nach Bluetooth-Geräten und wählen Sie ATF BT HD aus. Der Pairing-Modus wird nach 3 Minuten automatisch beendet.

Welche Audio-Codecs werden unterstützt?

Das Modul unterstützt die Codecs SBC, AAC, Qualcomm® aptX™ und Qualcomm® aptX™ HD für hochwertige Audioübertragung.

Kann ich mehrere Geräte gleichzeitig verbinden?

Das Modul kann mit bis zu 8 Geräten gekoppelt werden, aber es kann jeweils nur eine aktive Verbindung bestehen. Wenn ein neuntes Gerät gekoppelt wird, wird das älteste automatisch aus der Liste entfernt.

Was bedeutet die Status-LED?

Blau dauerhaft 1 Sek. an, 2 Sek. aus: Standby, keine Verbindung. Blau und rot wechselnd: Pairing-Modus. Blau alle 2 Sek. einmal blinkend: Verbindung hergestellt. Blau alle 2 Sek. doppelt blinkend: Audio-Streaming aktiv.

Wie verwende ich den optischen SPDIF-Ausgang?

Nach der Installation der Erweiterungskarte erscheint im DSP PC-Tool eine neue Matrix Digital Output Routing. Dort können Sie das unverarbeitete oder DSP-verarbeitete Signal auf den optischen Ausgang legen. Der Ausgang liefert ein unkodiertes PCM-Signal mit 96 kHz/24 Bit oder 48 kHz/24 Bit.

Kann ich die DSP-Konfiguration drahtlos durchführen?

Ja, für DSP-Geräte mit ACO-Plattform ist eine drahtlose Konfiguration über das DSP PC-Tool V5 möglich. Koppeln Sie dazu Ihr Modul mit einem PC (Bluetooth), starten Sie die Software und wählen Sie den Verbindungstyp BT aus.

Ist das Modul mit jedem Helix/MATCH DSP kompatibel?

Das Modul ist für Geräte mit dem entsprechenden HEC/MEC-Steckplatz ausgelegt. Die genaue Position des Steckplatzes finden Sie in der Anleitung Ihres DSP-Geräts (z. B. Helix DSP.3, DSP.4).

Wie setze ich das Modul zurück?

Ein manueller Reset ist nicht vorgesehen. Trennen Sie das Gerät kurzzeitig von der Stromversorgung (z. B. durch Abklemmen der Batterie). Dadurch werden alle temporären Einstellungen zurückgesetzt.

Welche Sicherheitshinweise muss ich beachten?

Trennen Sie vor der Installation die Batterie und alle Kabel vom Gerät. Lassen Sie die Installation von einem autorisierten Helix/MATCH-Händler durchführen. Verwenden Sie die Karte nur im dafür vorgesehenen Steckplatz, um Schäden zu vermeiden.

Wo finde ich die aktuelle Bedienungsanleitung?

Die Bedienungsanleitung kann kostenlos als PDF von der Website notice-facile.com heruntergeladen werden. Dort finden Sie auch Übersetzungen in verschiedene Sprachen.

BEDIENUNGSANLEITUNG Match MEC BT HD Helix

High Definition Bluetooth® 5.0 Audio Streaming Module

Congratulations!

Dear Customer,

congratulations on your purchase of this high-quality HELIX / MATCH EXTENSION CARD. We developed the BT HD based on state-of-the-art engineering and this is reflected in its exceptional quality and the impressive use of sophisticated technologies. We hope you enjoy using this product.

Yours,

AUDIOTEC FISCHER

General installation instructions for HELIX / MATCH components

To prevent damage to the unit / module and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

Before starting your installation, disconnect the battery's negative terminal and all cables from the device to prevent damage to the unit / module, fire and / or risk of injury. For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX / MATCH dealer.

Install the Extension Card only in the designated device and its specific slot. Using the module in other devices or slots can result in damage of the Extension Card, the device, the head unit / radio or other connected devices!

Technical data

Bluetooth® standard: 5.0 + EDR

Bluetooth® profile: A2DP, AVRCP, SPP

Bluetooth® codec: SBC, AAC, Qualcomm® aptXTM and Qualcomm® aptXTM HD

Number of paired devices: 8

Wireless frequency range: 2402 ~ 2480 MHz

Range: Up to 10 m

Digital optical output: SPDIF with either 96 kHz / 24 Bit or 48 kHz / 24 Bit depending on sampling rate of the device

Status LED of BT HD

Blue LED on: 1 sec,off: 2 secs, repeat	All profiles are in standby but not connected with any Bluetooth® device yet
Blue & Red LED flash alternate	Enter pairing mode
Blue LED flash every 2 sec. Device is connected
Blue LED flash twice every 2 sec.	Device is streaming

Mounting information

1. First disconnect all cables from the device.

2. Depending on the device there are two possibilities to get access to the Extension Card slot.

3. Bottom plate is bolted: untighten the screws of the bottom plate and remove it. Afterwards dismantle the appropriate side panel by removing its screws.

4. Bottom plate is not bolted: dismantle the appropriate side panel by removing its screws and pull out the bottom plate sideways.

5. Remove the nut and the washer from the antenna socket of the Extension Card.

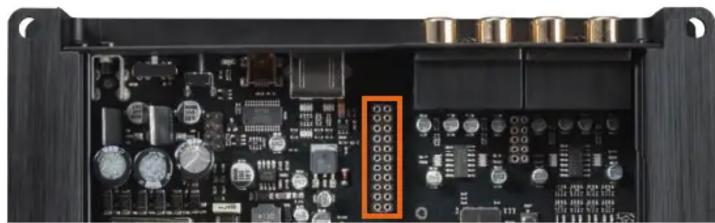

6. Insert the Extension Card into the specific slot of the device which is marked in the following picture (the picture representatively displays the Extension Card slot of the HELIX DSP.3). The exact position of the slot can be found in the manual of each device.

Interior view of an electronic device showing circuit board, capacitors, and components (no visible text or symbols)

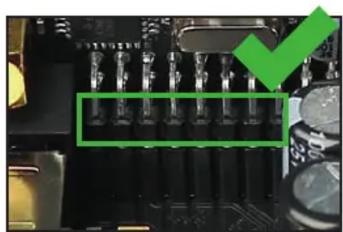

1. Make sure that the module is installed properly and all pins are fully inserted into the socket:

Close-up of electronic circuit board with a green checkmark overlay (no readable text or symbols)

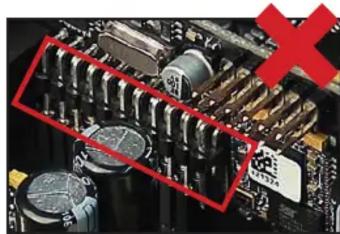

Close-up of electronic circuit boards with a red X mark overlay (no readable text or symbols)

1. If the bottom plate was bolted, fix the new side panel which is delivered with the Extension Card. Afterwards reinsert the bottom plate and fix it, too. Otherwise reinsert the bottom plate and fix the new side panel with the screws.

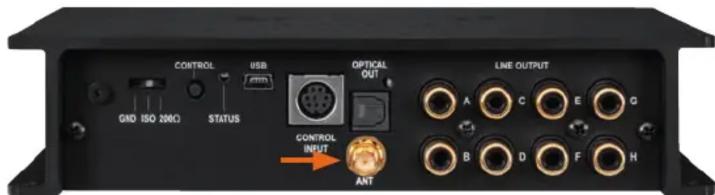

2. Put the washer and the nut on the antenna socket and bolt it to the side panel.

Caution: Do not overtighten the nut as this may damage the socket!

1. Reconnect all cables to the device.

Bluetooth®

Qualcomm® aptX™

Qualcomm® aptX™ HD

Signal routing of the Extension Card

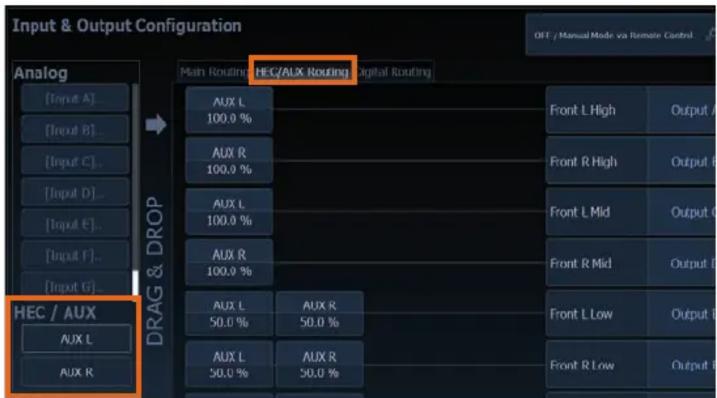

As soon as the Extension Card is installed, it is automatically detected by the device. Now you can allocate the Extension Card to the desired outputs in the "HEC (MEC) / AUX Routing" matrix.

Several new features are visible in the DSP PC-Tool after installing an Extension Card.

Pairing of the Extension Card with other Bluetooth® devices

The HEC / MEC BT HD module supports the A2DP profile featuring Qualcomm® aptX™, Qualcomm® aptX™ HD and AAC codec for maximum sound performance. The digital Bluetooth® data stream in I²S format is directly fed into the DSP without any additional signal conversion. A one-time pairing procedure is mandatory to establish a connection between the HELIX / MATCH device and your device with Bluetooth® wireless technology. Make sure that the Bluetooth® function on your device has been activated before you start the pairing process.

Important: The Status LED of the HEC / MEC BT HD module flashes alternately blue and red. After three minutes the pairing mode is left automatically if the connection has not been established.

Option a)

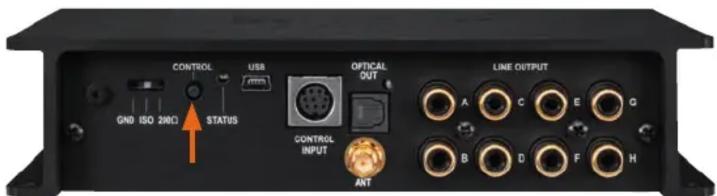

Turn on the HELIX / MATCH device and push the “control” button for less than 1 sec. in order to start the pairing mode.

The picture representatively displays the "control" button of the HELIX DSP.3

Option b)

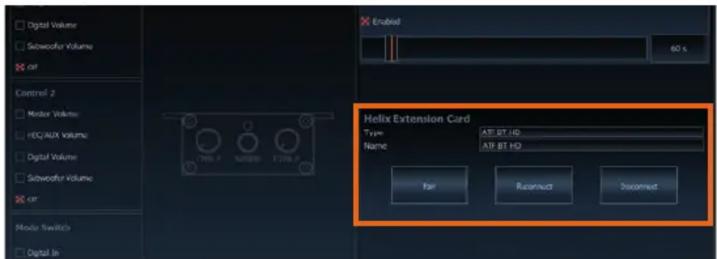

Start the pairing mode in the DSP PC-Tool software:

After the pairing mode is activated the Bluetooth® network can be found under the name "ATF BT HD".

Option c)

Start the pairing process through the CONDUCTOR or DIRECTOR remote control.

DIRECTOR: Go to the Bluetooth ^ Connect menu and push the "Pair" button.

CONDUCTOR: Switch to a Volume Control or Bluetooth Playback control menu and press the rotary knob for more than 5 seconds.

WIFI CONTROL: Go to the HEC / MEC menu and push the "Pair" button under the Bluetooth® Connect section.

Further information will be found in the corresponding user manual.

The HEC / MEC BT HD module can be paired with up to eight Bluetooth ^® devices. As soon as you try to pair a ninth device, the first one will be erased automatically from the pairing list.

The optical SPDIF output of the HEC / MEC BT HD module

The installation of the Extension Card adds as well as additional digital optical SPDIF output to your device. This output allows to transmit any unprocessed input or DSP-processed output signals to other devices.

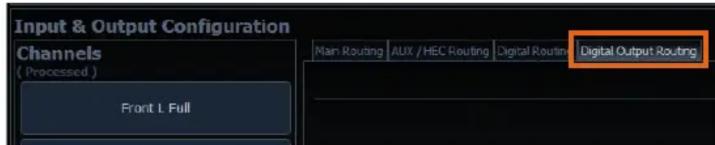

A new matrix "Digital Output Routing" appears in the "Input and Output Configuration" page in which you can make your desired settings.

The digital output delivers an uncoded stereo PCM signal with either 96 kHz / 24 Bit or 48 kHz / 24 Bit, depending on the sampling rate of the designated device.

Wireless DSP tuning – only DSP devices with ACO

The HEC / MEC BT HD also offers a wireless configuration of the DSP via the DSP PC-Tool V5 software and a PC with Bluetooth® wireless technology for all DSP devices equipped with ACO platform.

Therefore follow the subsequent steps:

1. Pair your HEC / MEC BT HD with your PC as explained on the left side.
2. Start the DSP PC-Tool software (version 5.0 or higher required).
3. Toggle the connect type button, located at the right side navigation, to "BT". The software now automatically detects the device.
4. Select the device which should be configured and click the "Connect" button. You can now start your configuration.

Warranty disclaimer

The warranty service is based on the statutory regulations. Defects and damage caused by overload or improper handling are excluded from the warranty service. Any return can only take place following prior consultation, in the original packaging together with a detailed description of the error and a valid proof of purchase.

Technical modifications and errors excepted! We accept no liability for damage to the vehicle or device defects caused by the incorrect operation of the device. This product has been issued a CE marking. This means that the device is certified for use in vehicles within the European Union (EU).
