Produkttyp	Kassettentoilette
Marke	Dometic
Modell	VGLP
Abmessungen (H x B x T)	ca. 450 x 420 x 520 mm
Gewicht	ca. 14 kg
Frischwassertankvolumen	ca. 15 Liter
Abwassertankvolumen	ca. 20 Liter
Stromversorgung	12 V Gleichstrom (optional)
Spülung	Elektrische Spülpumpe
Entleerung	Drehbares Auslaufrohr mit Verschluss
Füllstandsanzeige	Integrierte Anzeige für Abwassertank
Material	Kunststoff (PVC-frei)
Reinigung	Glatte Oberflächen für einfache Reinigung
Wartung	Regelmäßige Entleerung und Spülung
Winterfestigkeit	Nicht geeignet bei Frost (entleeren)
Sicherheit	Stabile Gummifüße, rutschfest
Zubehör	Abwassertank-Entleerungsschlauch
Garantie	2 Jahre

Häufig gestellte Fragen - VGLP DOMETIC

Wie entleere ich den Abwassertank der Dometic VGLP?

Entfernen Sie den Verschlussdeckel, schließen Sie den Abwasserschlauch an und öffnen Sie das Ventil. Spülen Sie den Tank anschließend mit klarem Wasser aus. Achten Sie darauf, dass der Tank nicht überläuft.

Kann ich die Toilette bei Frost verwenden?

Nein, bei Frostgefahr müssen Sie die Toilette vollständig entleeren und trocken lagern, da sonst das Wasser in den Tanks gefrieren und Schäden verursachen kann.

Wie reinige ich die Toilette richtig?

Verwenden Sie milde Reinigungsmittel und einen weichen Schwamm. Vermeiden Sie scheuernde oder chemische Reiniger, die das Material angreifen könnten. Spülen Sie alle Teile gründlich mit Wasser nach.

Welche Stromversorgung wird benötigt?

Die Toilette kann mit 12 V Gleichstrom betrieben werden, z. B. über eine Bordbatterie. Ein Adapter für 230 V Wechselstrom ist nicht im Lieferumfang enthalten.

Wie groß sind die Tanks?

Der Frischwassertank fasst ca. 15 Liter, der Abwassertank ca. 20 Liter. Die genauen Volumen können je nach Ausführung minimal abweichen.

Kann ich die Toilette in einem Wohnwagen oder Wohnmobil einbauen?

Ja, die Dometic VGLP ist für den Einbau in Wohnmobile und Wohnwagen konzipiert. Sie benötigt einen stabilen Untergrund und einen Anschluss an die 12-V-Versorgung.

Was mache ich bei Verstopfung?

Überprüfen Sie zuerst den Ablassmechanismus. Falls nötig, entfernen Sie den Abwassertank und reinigen Sie das Rohr mit einem dünnen Gegenstand (z. B. einem Draht). Verwenden Sie keine scharfen Chemikalien.

Gibt es eine Garantie auf die Toilette?

Ja, Dometic gewährt eine Garantie von 2 Jahren ab Kaufdatum. Bewahren Sie den Kaufbeleg auf. Schäden durch unsachgemäße Handhabung sind ausgeschlossen.

Wie wechselt man die Dichtungen?

Die Dichtungen können bei Verschleiß ausgetauscht werden. Bestellen Sie Ersatzdichtungen über den Dometic-Service. Bauen Sie die alte Dichtung aus und setzen Sie die neue ein. Achten Sie auf korrekten Sitz.

Ist die Toilette geruchsarm?

Ja, durch das geschlossene System und die integrierte Füllstandsanzeige wird Geruchsbildung minimiert. Verwenden Sie zusätzlich biologische Toilettenzusätze für beste Ergebnisse.

BEDIENUNGSANLEITUNG VGLP DOMETIC

To obtain warranty service, first contact your local dealer from whom you purchased this product or go to http://www.domestic.com for a dealer near you.

other rights which vary from state to state.

Some states do not allow limitations on the duration of an implied warranty and some states do not allow exclusions or limitations regarding incidental or consequential damages, so, the above limitations may apply to you. This warranty gives you specific legal rights, and you may have

OTHER RIGHTS

placed in commercial or business use.

family or household purposes, and ninety (90) days from the date of purchase for products

personal,

No person is authorized to change, add to, create any warranty or obligation other than that set forth herein. Impiled warranties, including those of merchantability and fitness for a particular purpose, are limited to one (7) year from the date of purchase for products used for

IMPULED WARBANETES

PURCHASE

FOR ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ONE YEAR FROM ONLY OF FOR ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ONE YEAR FROM ONLY OF FOR ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ONE YEAR FROM ONLY OF FOR ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ONE YEAR FROM ONLY OF FOR ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ONE YEAR FROM ONLY OF FOR ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ONE YEAR FROM ONLY OF FOR ANY PARTNOLTA PURPOSE ARE LIMITED TOA PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PARTNOLTA PURPOSE ARE LIMITED TO A PER OF ANY PAINTABLE WRITTEN BY UNICIPATED ABUSE, ALTERNATION OR USE OF UNAUTHORIZED COMPONENTS. ALL IMPILED BY INCENT TAXES, AUTHORITY OF USE OF UNAUTHORIZED COMPONENTS. ALL IMPILED BY PACIFIC RESIDENTIFING IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR DAMAGUS RESULTS FROM IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR DAMAGUS RESULTS FROM IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER INSTALLATION OR FOR PURCHASES CAUSED FOR IMPROPER InstallATION

EXCLUSIONS

Domestic reserves the right to replace or repair any part of this product that proves, upon inspection by Domestic, to be defective in material or workmanship. All labor and transportation costs or charges incident to warranty service are to be borne by the purchaser-user.

from the date of purchase.

Domestic Corporation, Sanitation Division warrants to the original purchaser only that this product, if used for personal, family of households, purposes, is free from defects in material and workmanship for a period of one year from date of purchase. If this Domestic product is placed in commercial or business use, it will be warranted to the original purchaser only to be free of defects in material and workmanship for a period of ninety (90) days.

Manufacturer's One-Year Limited Warranty

North America and Rest of the World:

Warranty and product liability

Customer service

There is a strong, worldwide network to assist in servicing and maintaining your sanitation system. For the Authorized Service Center near you, please call from 8:00 a.m. to 5:00 p.m. (ET) Monday through Friday.

You may also contact or have your local dealer contact the Parts Distributor nearest you for quick response to your replacement parts needs. They carry a complete inventory for the Dometic product line.

Telephone: [phone] U.S.A. and Canada 330-439-5550

International

Fax: [phone] U.S.A. and Canada 330-439-5567

International

Web site: http://www.Dometic.com

Dometic is a customer-driven, world-leading provider of leisure products for the RV, automotive, truck and marine markets. We supply the industry and aftermarket with a complete range of air conditioners, refrigerators, awnings, cookers, sanitation systems, lighting, mobile power equipment, comfort and safety solutions, windows, doors and other equipment that make life more comfortable away from home.

Dometic supplies a wide range of workshop equipment for service and maintenance of built-in air conditioners. Dometic also provides specially designed refrigerators for hotel rooms, offices, wine storage and transport and storage of medical products.

Our products are sold in almost 100 countries and are produced mainly in wholly-owned production facilities around the world.

DOMETIC

Vacuum generator instruction manual

White industrial water purifier with attached piping and control panel (no visible text or symbols)

JW Series VacuFlush® Vacuum Generator

Notes on using these instructions

Caution!

Safety Instruction: Failure to observe this instruction can cause material damage and impair the function of the device.

Note

Supplementary information for operating the device.

fig. 1 A: This refers to an element in an illustration. In this example, item A in figure 1.

General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

• Faulty assembly or connection
• Damage to the unit from mechanical influences, misuse or abuse
  • Alterations to the unit without express written permission from the manufacturer
• Use for purposes other than those described in the operating manual

Warnings

The following statements must be read and understood before installing, servicing and/or operating this product. Modification of this product may result in property damage.

Dometic recommends that a qualified technician or electrician install or service this product. Equipment damage, injury to personnel or death could result from improper installation. DOMETIC ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR DEATH TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION OF THIS PRODUCT.

Intended use

The Dometic JW series vacuum generator creates the powerful vacuum of a VacuFlush toilet system. When the toilet is flushed, the vacuum in the discharge line pulls the toilet contents into the vacuum generator, which then propels the effluent to a holding tank or other waste treatment device.

Benefits

Versatile installation. Powerful vacuum pump allows toilet to be located up to 50 ft. (15.2 m) away and 20 ft. (6.1 m) from holding tank or other waste destination.

Automatic “full tank” shut-down. When installed with holding tank that includes a “full tank” level indicator, an automatic shut-down relay will stop electrical power to the vacuum generator when the holding tank level reaches “full.” This prevents holding tank overfill which can cause damage to the toilet system.

Easy maintenance. Two-piece design allows easy access to vacuum tank interior if required.

Specifications

Materials

Pump body: glass-filled polypropylene

Pump bellows: engineered PP/PE resin

Duckbill valves: EPDM

Vacuum tank and fittings: glass-filled polypropylene

Electrical Specifications

Model	Voltage (DC)	Power Draw (amp average)	Fuse/ breaker	Flow (GPM/LPM)	Wire size	Weight (kg/lbs.)
VG4-12	12	6	10	5.1 / 19.3	follow local codes*	15.1 / 6.9
VG4-24	24	3	5	5.1 / 19.3	follow local codes*	15.1 / 6.9

* For marine applications follow ABYC wiring recommendations.
Specifications subject to change without notice.

CAUTION! ELECTRICAL HAZARD

DO NOT CONNECT JW SERIES VACUUM GENERATOR DIRECTLY TO STANDARD

RESIDENTIAL WIRING SYSTEM. JW series vacuum generator operates on 12 V DC or 24 V DC through a 10-amp or 5-amp circuit (see Electrical Specifications chart, above). For residential use, this product must be connected to a minimum 12-amp power converter with 12 V DC electrical output.

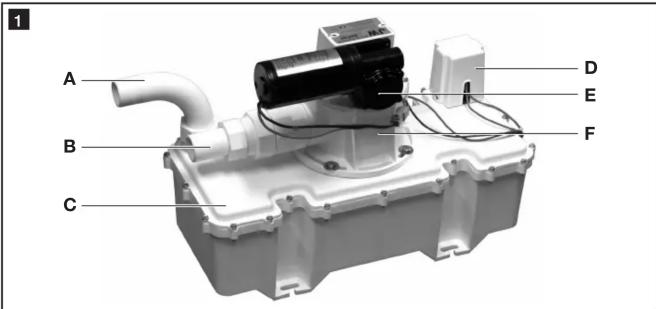

Components (fig. 1)

Ref. Description

A Inlet fitting

B Outlet fitting

C Vacuum tank

Ref. Description

D Vacuum switch

E Vacuum pump motor

F Vacuum pump body

Refer to complete parts list (packed separately) for additional information.

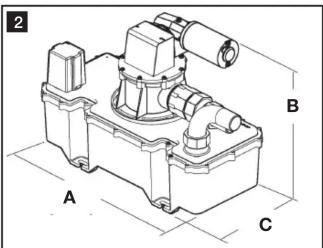

Dimensions (fig. 2)

Ref. Dimension

A 20.125 in. / 511 mm

B 14 in. / 356 mm

C 9.125 in. / 232 mm

Installation

Note

Two-toilet VacuFlush systems require a vacuum generator for each toilet.

General guidelines

1. Vacuum generator must be installed horizontally only.
2. The vacuum generator can be located up to 50 feet (15.2 m) from the VacuFlush toilet, and 20 feet (6.1 m) from the holding tank or other waste destination.
3. The vacuum generator inlet must not be located more than 6 feet (1.8 m) higher than the toilet discharge outlet.
4. The maximum head pressure on the discharge of the vacuum generator must not exceed 6 feet (1.8 m).
5. To minimize standing sewage in discharge hose, position vacuum generator inlet at same level or lower than toilet outlet where possible.

Installation and plumbing

1. Make sure the vacuum generator is properly located before proceeding. Place the vacuum generator on flat surface. Position as needed. Using a center punch, mark the four slotted holes in the pump feet. Remove vacuum generator.
2. Using a 3/16-inch (5 mm) drill bit, drill the four mounting holes. Use #14 wood screws and washers to secure vacuum generator.
3. Position pump body (fig. 1 F) to accommodate plumbing layout, if necessary, by loosening four fasteners that hold pump onto vacuum tank, rotating pump body to desired position, and retightening fasteners.
4. Spin-nut connections on inlet and outlet fittings allow easy installation and positioning of hoses. After positioning inlet fitting in proper direction to accept inlet hose from toilet, make sure to tighten spin-nut 1/2-turn past hand-tight with wrench (fig. 3 A).

Note

Use two hose clamps for each hose connection (fig. 3 B).

Note

Make sure to connect toilet discharge hose to inlet fitting of vacuum generator.

Wiring

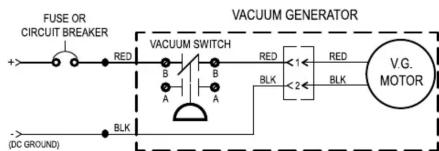

1. Wire vacuum generator according to diagram below and Electrical Specifications in VacuFlush toilet manual.
2. Pre-wired connectors (if applicable) can be cut off to complete wiring.
3. Use stranded copper wire. Protect wires with grommets or other protective devices at holes and sharp edges.
4. Do not overfuse. Overfusing the vacuum generator will result in warranty invalidation.

Caution – Pump starts automatically. Turn off power before making final electrical connection or servicing.

Note

If vacuum generator connects to electronic-flush VacuFlush toilet, refer to VacuFlush toilet wiring diagram for complete information.

Vacuum testing

1. Prime pump with water before performing vacuum test. If vacuum generator is part of compost system, make sure discharge hose from vacuum generator is not connected to compost unit during priming process.
2. POSITIVE PRESSURE TESTING IS NOT RECOMMENDED. JW series vacuum generator is designed to seal with negative pressure (vacuum), and will not hold positive pressure.

Operation

When a VacuFlush toilet is flushed, vacuum pressure created by the vacuum generator pulls waste from the toilet to the vacuum generator. The increase of ambient pressure in the vacuum tank causes the vacuum switch (fig. 1 D) to turn on power to the vacuum generator. The vacuum pump begins to create vacuum and push the effluent in the discharge line to the holding tank or other destination. After vacuum is restored in the discharge system (about 60-90 seconds, depending on the installation), the vacuum switch shuts off electrical power, and the toilet system is ready for the next flush.

Caution!

Vacuum pump starts automatically. Turn off electrical power before servicing.
