| Produkttyp | Richtmikrofon (Cardioid) |
| Modell | SG-110M |
| Marke | Andrea |
| Richtcharakteristik | Nierencharakteristik (Cardioid) |
| Frequenzgang | 100 Hz - 10 kHz |
| Anschluss | 3,5 mm TRRS-Stecker (rechtwinklig) |
| Kompatibilität | Smartphones, Tablets, Laptops mit kombinierter Audio-Buchse |
| Adapter im Lieferumfang | C-300 Adapter (TRRS auf 2x 3,5 mm) |
| Zubehör | Reisetasche, Bedienungsanleitung |
| Gehäusematerial | Kunststoff (geschätzt) |
| Abmessungen (ca.) | Länge: ca. 15 cm, Durchmesser: ca. 2 cm |
| Gewicht (ca.) | 100 g |
| Stromversorgung | Plug-in-Power über das angeschlossene Gerät |
| Leistungsaufnahme | Passiv (keine externe Stromversorgung nötig) |
| Anwendungsbereich | Sprachaufnahmen, Videokonferenzen, Diktiergeräte |
| Befestigung | Drehsockel (fest) |
| Reinigung | Mit einem trockenen, weichen Tuch abwischen |
| Lagerung | Trocken und staubfrei |
| Garantie | Siehe Website: www.andreacommunications.com/warranty |
| Kundendienst | 1-800-442-7787 (USA/Kanada) oder www.andreacommunications.com/support |
Häufig gestellte Fragen - SG-110M Andrea
Benutzerfragen zu SG-110M Andrea
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Mikrofon kostenlos im PDF-Format! Finden Sie Ihr Handbuch SG-110M - Andrea und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. SG-110M von der Marke Andrea.
BEDIENUNGSANLEITUNG SG-110M Andrea
Congratulations on your purchase of the Andrea SG-110M Microphone!
The Andrea Communications SG-110M Microphone is a cardiolid directional microphone that offers the highest quality and performance for a single element microphone.
Features Include:
• Solid rotation base.
- Small size for ease of portability.
• TRRS Right Angle Plug connector.

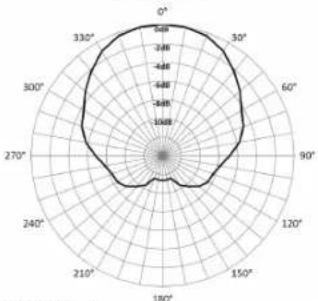

Microphone Performance (polar plots):
100HZ - 10KHz
radar
| Angle | Value | |-------|-------| | 0° | 500 | | 30° | 450 | | 60° | 400 | | 90° | 350 | | 120° | 300 | | 150° | 250 | | 180° | 200 | | 210° | 150 | | 240° | 100 | | 270° | 50 | | 300° | 0 | | 330° | 50 |C46-5489 Rev A

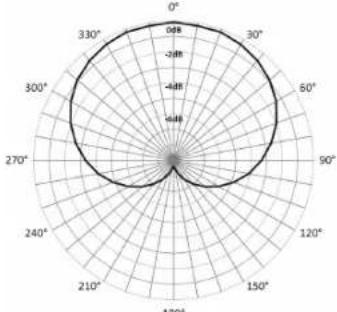

1KHz
radar
| Angle | Value | |-------|-------| | 0° | 0 | | 30° | 4 | | 60° | 4 | | 90° | 0 | | 120° | 0 | | 150° | 0 | | 180° | 0 | | 210° | 0 | | 240° | 0 | | 270° | 0 | | 300° | 0 | | 330° | 0 |COMPATIBILITY:
The Andrea SG-110M with TRRS plug is compatible with smartphones, tablets, laptops and computers with a single shared audio port. Use the included C-300 Adapter to connect to an optional Andrea USB Adapter or a computer or laptop with dual 3.5mm jacks.
To connect the Andrea SG-110M Microphone to your mobile recording device:
Plug the 3.5mm TRRS connector into the shared (combined) audio input on your recording device.
To connect the Andrea SG-110M
Microphone to an optional Andrea USB
Adapter or a computer or laptop with dual 3.5mm jacks:
Plug the 3.5mm TRRS connector of the SG-110M into the included C-300 Adapter. Then plug the C-300 Adapter into the microphone input (usually pink) on your USB Adapter, Computer or Laptop.
TROUBLESHOOTING:
Microphone does not record sound when using a voice-recording application:
A. Check all connections.
B. Check input control for proper level in software.
C. Check that microphone is not muted on the digital recording device or in the computer's microphone audio panel.
TECHNICAL SERVICE
We hope that you enjoy your Andrea SG-110M Microphone. If you have additional questions, please visit our website at: www.andreacommunications.com/support or call Andrea Communications Technical Service team at 1-800-442-7787 (USA & Canada) for assistance.
DIRECTIONAL
SHOTGUN
MICROPHONE
Package includes:
One (1) SG-110M Microphone, One (1)
C-300 Adapter, One (1) Travel Pouch and
One (1) SG-110M Microphone Publication.
WARRANTY INFORMATION
Please visit our website at:
www.andreacommunications.com/warranty
ANDREA

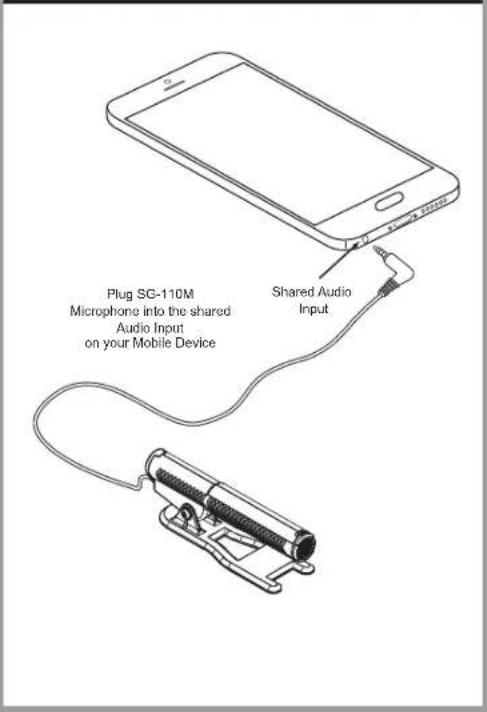

CONNECTING THE SG-110M MICROPHONE TO YOUR MOBILE DEVICE.


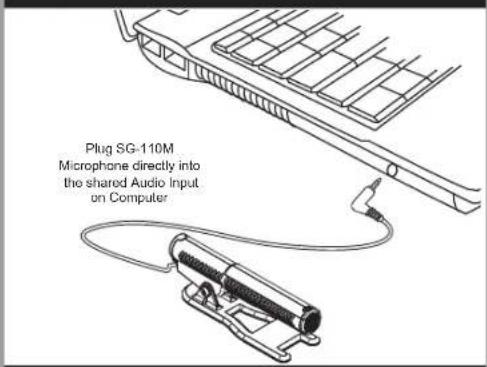

Plug SC-110M Microphone into the shared Audio Input on your Mobile Device Shared Audio InputCONNECTING THE SG-110M MICROPHONE TO YOUR COMPUTER WITH SINGLE AUDIO JACK.


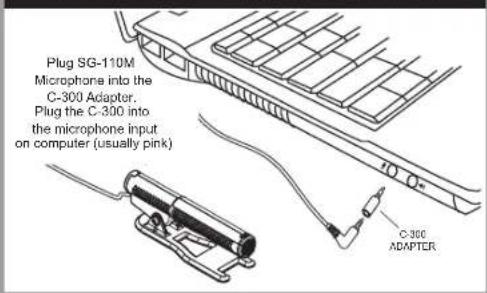

Plug SG-110M Microphone directly into the shared Audio Input on ComputerCONNECTING THE SG-110M MICROPHONE TO YOUR COMPUTER WITH DUAL AUDIO JACKS.


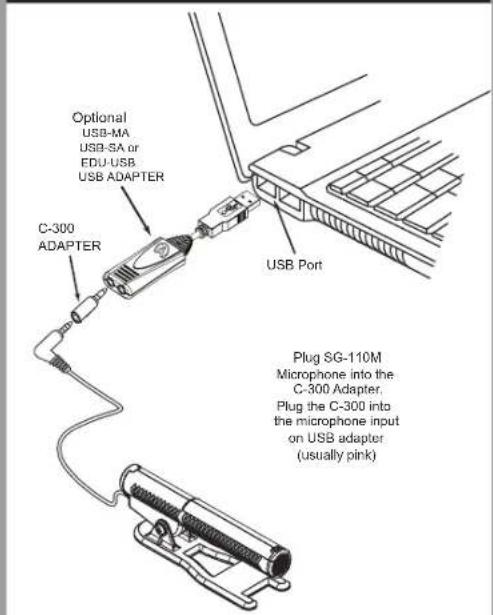

Plug SG-110M Microphone into the C-300 Adapter. Plug the C-300 into the microphone input on computer (usually pink) C-300 ADAPTERCONNECTING THE SG-110M MICROPHONE
INTO YOUR COMPUTER USING AN OPTIONAL
USB ADAPTER AND THE INCLUDED C-300 ADAPTER

