BEDIENUNGSANLEITUNG RTG-60 Royal Range
Royal Series
Models: □ RTG-12
□ RTG-18
□ RTG-24
□ RTG-36
□ RTG-48 RTG-60 □
□ RTG-72


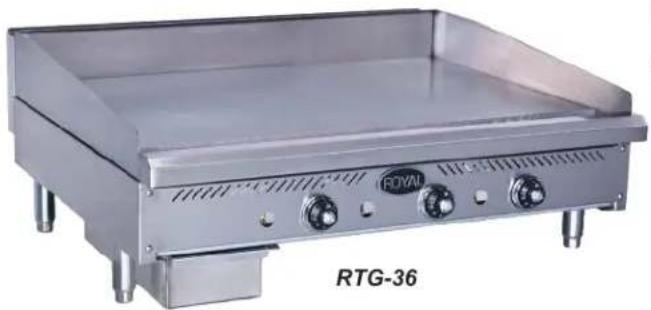

Exterior view of a stainless steel portable grater with control knobs and a Royal ROYAL logo, labeled RTG-36 (no other text or symbols visible)Gas Type: □ Natural LP
Elevation (if above 2000 ft.): ____
Standard Features
■ 11" high, Low Profile
■ Large 1½ gallon capacity S/S grease can
■ Compact heavy gauge chassis for long life
■ Stainless steel sides and front valve cover
■ Double wall panels for cooler sides
■ Aeration panels between the burners for added efficiency
■ Stainless Steel "U" shaped burner every 12", rated at 30,000 BTU/hr
■ Energy saving thermostat is adjustable from 150°-450° F
■ 1" thick griddle plate with polished cooking surface
■ Thermo control to operate every burner
■ 4" wide S/S grease trough with large drain opening for easy cleaning
■ Stainless steel tubing for burners and pilots
■ 4" high adjustable heavy duty legs included
Options and Accessories
☐ Grooved griddle (specify width: ____)
Chrome griddle plate
□ Stainless Steel Equipment Stand
□Knock Down ▲All Welded
□ 12" □8" 24" 30" □36" □48" 60" 72" □
☐ 5" swivel casters (set of four - 2 locking)
☐ 5" swivel casters (set of four - 2 locking) (60" and 72" stands)

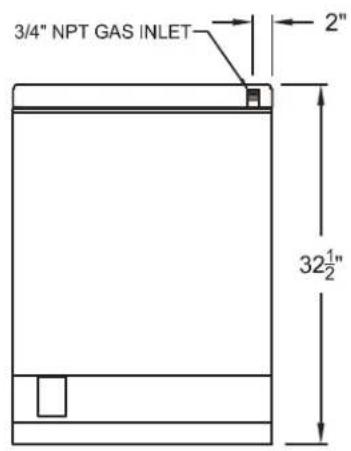

Size
| RTG-12 12” 1 | 1 30,000 145 | Ibs. | ||
| RTG-18 18” 1 | 1 30,000 185 | Ibs. | ||
| RTG-24 24” 2 | 2 60,000 250 | Ibs. | ||
| RTG-36 36” 3 | 3 90,000 360 | Ibs. | ||
| RTG-48 48” 4 | 4 120,000 475 | Ibs. | ||
| RTG-60 60” 5 | 5 150,000 590 | Ibs. | ||
| RTG-72 72” 6 | 6 180,000 710 | Ibs. |
Notes:
Gas Connection:
3/4" NPT on the right hand rear of the appliance.
The pressure regulator (supplied) is to be connected by the installer.
Specify type of gas and altitude, if over 2,000 feet, when ordering.
Gas Pressure:
| 5” W.C. Natural | Gas |
| 10” W.C. Propane |
Clearances:
| Combustible | Non-Combustible | |
| Rear 6” | 0” | |
| Sides 4” | 0” |
Due to continuing product development to ensure best possible performance, these specifications are subject to change without prior notification.
