| Produkttyp | Gasherd für gewerbliche Nutzung |
| Marke | Royal Range |
| Modell | RSP-18 |
| Abmessungen (B x T x H) | 45,7 cm x 53,3 cm x 61 cm |
| Gewicht | ca. 49,9 kg |
| Brennertyp | Gusseiserner Dreiringbrenner |
| Anzahl Brenner | 1 |
| Gesamtleistung | 119.000 BTU/h (ca. 34,9 kW) |
| Gasart | Erdgas oder Propan (umschaltbar) |
| Gasanschluss | 3/4" NPT auf der rechten Rückseite, inkl. Druckregler |
| Gasdruck (Erdgas) | 5" WC (12,7 mbar) |
| Gasdruck (Propan) | 10" WC (25,4 mbar) |
| Abstände zu brennbaren Materialien | Hinten: 43,2 cm, Seiten: 38,1 cm |
| Abstände zu nicht brennbaren Materialien | Hinten: 10,2 cm, Seiten: 0 cm |
| Gehäusematerial | Edelstahl |
| Tropfschale | Vollbreite, herausnehmbar, Edelstahl |
| Zündung | Zwei kontinuierliche Zündflammen |
| Steuerung | Manuell, zwei Regler für Innen- und Außenring |
| Optionen | Schwenkrollen (5"), Wok-Top aus Edelstahl |
| Lieferumfang | Druckregler, Bedienungsanleitung |
Häufig gestellte Fragen - RSP-18 Royal Range
Benutzerfragen zu RSP-18 Royal Range
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Nicht kategorisiert kostenlos im PDF-Format! Finden Sie Ihr Handbuch RSP-18 - Royal Range und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. RSP-18 von der Marke Royal Range.
BEDIENUNGSANLEITUNG RSP-18 Royal Range
Royal Series
Models:
□ RSP-18-18
□ RSP-18
□ RSP-18-36
□ RSP-18D-24
□ RSP-18D-36
□ RSP-24
□ RSP-18T
□ RSP-J-18
□ RMJ-13
□ RMJ-15
Elevation (if above 2000 ft.): ____
Standard Features
■ Full width, removable stainless steel drip pan to catch spills for easy cleanup
■ Compact, heavy gauge chassis for long life
■ Stainless steel sides and front valve cover
■ T - Tempura Wok Top
■ J - Jet Burner
■ Stainless steel tubing for pilots
Stock Pot Ranges:
■ Heavy, cast iron three-ring burner, rated at a total of 90,000 BTU/hr
■ Burner is equipped with two continuous pilots strategically placed for instant ignition of each section
■ Two Manual controls to operate the inner and outer rings independently for maximum flexibility of usage
■ Cast iron top grate
Mandarin Wok Ranges:
■ Non-clogging, brass burner tips rated at a combined total of 125,000 BTU/hr
Options and Accessories
□ Upgrade 13" or 15" black Wok Top to stainless steel
☐ 5" swivel casters (set of four - 2 locking)
☐ 5" swivel casters (set of six - 3 locking) for double stock pots

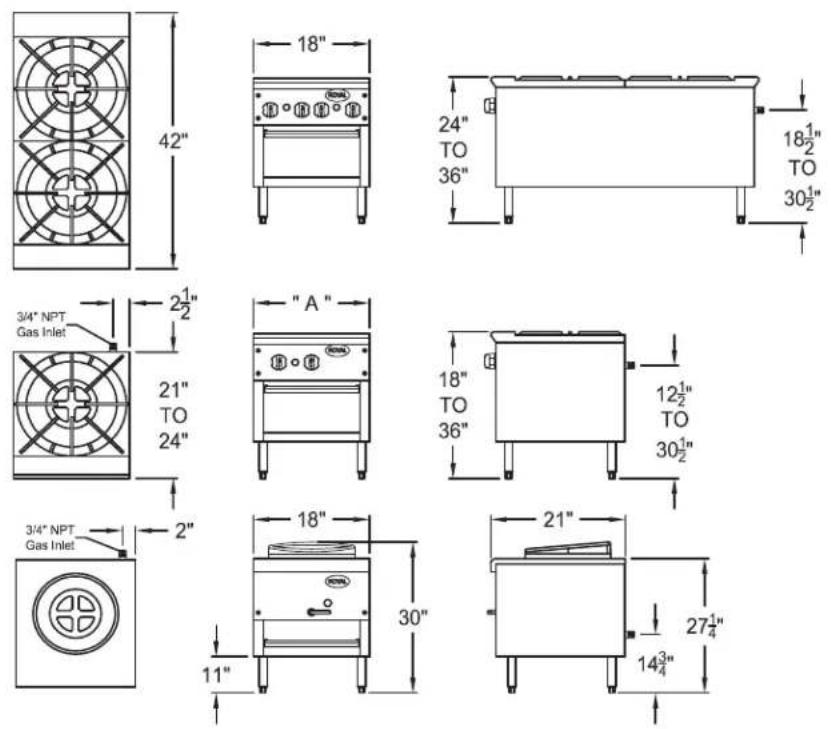

| Model Number | Width Depth | Height Burners Total | BTU Ship Weight | |
| RSP-18-18 18” | 21” 18” 1190 | 0,000 105 lbs. | ||
| RSP-18 18” 21” | 24” 1190 | 000 110 lbs. | ||
| RSP-18-36 18” | 21” 36” 1190 | 0,000 110 lbs. | ||
| RSP-18D-24 18” | 42” 24” 21 | 80,000 220 lbs. | ||
| RSP-18D-36 18” | 42” 36” 21 | 80,000 220 lbs. | ||
| RSP-24 24” 24” | 24” 24” 1190 | 000 160 lbs. | ||
| RSP-18T* 18” | 21” 24” 1190 | 0,000 135 lbs. | ||
| RSP-J-18 18” | 21” 24” 1212 | 5,000 140 lbs. | ||
| RMJ-13 18” 21” | 30” 12125,000 | 130 lbs. | ||
| RMJ-15 18” 21” | 30” 12125,000 | 135 lbs. |
Notes:
* Tempura Wok Top
- 3 Ring Burner - 2 Segments at 45,000 BTU/hr
- 18 Tip Jet Burner at 125,000 BTU/hr each
Gas Connection:
3/4" NPT on the right hand rear of the appliance.
The pressure regulator (supplied) is to be connected by the installer.
Specify type of gas and altitude, if over 2,000 feet, when ordering.
Gas Pressure:
| 5” W.C. | Natural Gas |
| 10” W.C. | Propane |
Clearances:
| Combustible | Non-Combustible | |
| Rear | 17” | 4” |
| Sides | 15” | 0” |
Due to continuing product development to ensure best possible performance, these specifications are subject to change without prior notification.
