BEDIENUNGSANLEITUNG VT100 Voice Technologies

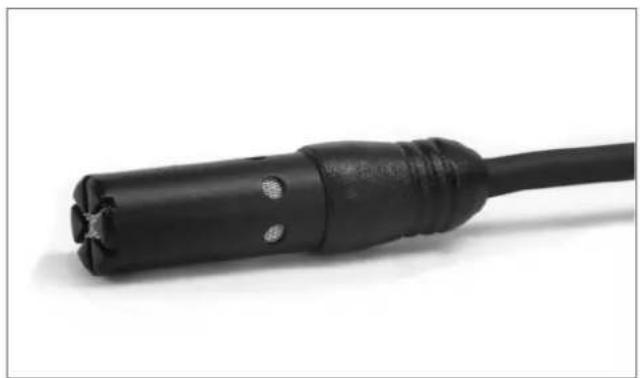

VT100 CARDIOID MICROPHONE
The Voice Technologies VT100 is a professional lavalier microphone designed for clear, accurate voice reproduction. Thanks to the cardioid characteristic the VT100 produces nearly no feedback and reduces background noise. The rotatable clip allows an exact positioning of the microphone. Ideal in noisy environments or when the talent is close to the monitor speakers.
The Voice Technologies VT100 is perfect for public address and presenters. Special feature: the small microphone capsule unit is detachable from the mounting base.
Colors: black
Application area: Stage - Public address and presenters
The Voice Technologies VT100 comes in the solid, waterproof VTO box with the following accessories::
 | WS100/8 Windscreen (special windscreen with rubber) |
| Specifications Wiring Configuration (3-wire): | |||
| Generating Element: Subminiature Cardioid Condenser | Red +VDC | ||
| Polar Pattern: Cardioid | Copper NF | ||
| Frequency Range: 100Hz - 15kHz | Green Ground | ||
| Sensitivity: -44dB ±3dB 1V/microbar (6mV/Pa) | + Resistor 10kOhm between copper and green! | ||
| Noise Level: +31.5dB SPL „A” weighted | |||
| Max. Input SPL: 130dB | Wiring Configuration (2-wire): | ||
| Impedance: 1600 Ohm | Red +VDC | ||
| Bias/+VDC: 1.3V-10V (max.) | Green + Copper | Ground/NF | |
| Colors: | black | ||
| Dimensions: | ∅ 5,3mm x 21mm | ||
| Cable: | Length 1.5m ∅ 1.5mm | ||
| Weight: | 13 g | ||
line
| x | y1 | y2 | y3 | y4 | y5 | | ---- | ------ | ------ | ------ | ------ | ------ | | 20 | -15.0 | -18.0 | -16.0 | -17.0 | -19.0 | | 50 | -14.0 | -17.0 | -15.0 | -16.0 | -18.0 | | 100 | -13.0 | -16.0 | -14.0 | -15.0 | -17.0 | | 200 | -12.0 | -15.0 | -13.0 | -14.0 | -16.0 | | 500 | -10.0 | -13.0 | -11.0 | -12.0 | -14.0 | | 1k | -8.0 | -11.0 | -9.0 | -10.0 | -12.0 | | 2k | -6.0 | -9.0 | -7.0 | -8.0 | -10.0 | | 5k | -4.0 | -7.0 | -5.0 | -6.0 | -8.0 | | 10k | -2.0 | -5.0 | -3.0 | -4.0 | -6.0 | | 20k | -15.0 | -3.0 | -1.0 | -2.0 | -4.0 |
