| Produkttyp | Elektrischer Hybrid-Wärmepumpen-Wassererhitzer |
| Modell | EE66WP30PS |
| Marke | Electrolux |
| Fassungsvermögen | 66 Gallonen (ca. 250 Liter) |
| Abmessungen (Höhe x Durchmesser) | 70-1/2 x 25-1/2 Zoll (ca. 179 x 65 cm) |
| Versandgewicht | Ca. 263 lbs (ca. 119 kg) |
| Spannung / Frequenz / Strom | 240 V, 60 Hz, 30 A |
| Energieeffizienzfaktor (Hybrid-AUTO Modus) | 2.35 |
| Heizelemente (Primär / Backup) | 4 kW / 4 kW |
| Temperaturbereich | 32 - 135 °F (einstellbar 90 - 135 °F) |
| Standardtemperatur | 120 °F |
| Betriebsmodi | Auto (Standard), Econ, Heater |
| Betriebsgeräusch (Wärmepumpe) | 48 dBA |
| Luftfilter | Ja (im Lieferumfang enthalten) |
| Anodenstab | Ja |
| Kondensatablauf | Ja, 3/4 Zoll Gewindeanschluss oben hinten |
| Zirkulationskompatibel | Ja |
| Tankmaterial | Edelstahl |
| Garantie | Lebenslange begrenzte Garantie (1 Jahr Arbeit, 5 Jahre Teile, 12 Jahre Wärmetauscher) |
| Zertifizierung | Northern Climate Tier 2 |
| Abluftventil Durchmesser | 6 Zoll (einfache Entlüftung) |
| Wasseranschlüsse | 3/4 Zoll Gewinde |
| Wasserdruckbereich | 15 - 150 psi |
| Sicherheitsventil (T&P) | Im Lieferumfang enthalten |
Häufig gestellte Fragen - Hybrid Heat Pump EE66WP30ps ELECTROLUX
Benutzerfragen zu Hybrid Heat Pump EE66WP30ps ELECTROLUX
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Chauffe-eau instantané et chauffe-eau kostenlos im PDF-Format! Finden Sie Ihr Handbuch Hybrid Heat Pump EE66WP30ps - ELECTROLUX und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. Hybrid Heat Pump EE66WP30ps von der Marke ELECTROLUX.
BEDIENUNGSANLEITUNG Hybrid Heat Pump EE66WP30ps ELECTROLUX

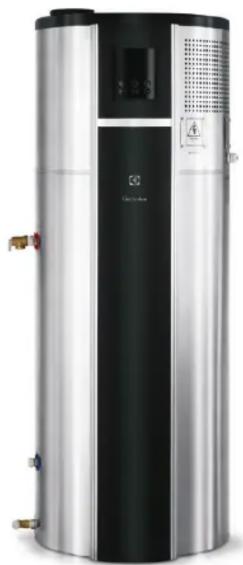

HYBRID HEAT PUMP WATER HEATER
EE66WP30PS
Electric Hybrid Heat Pump Water Heater – Single Vent


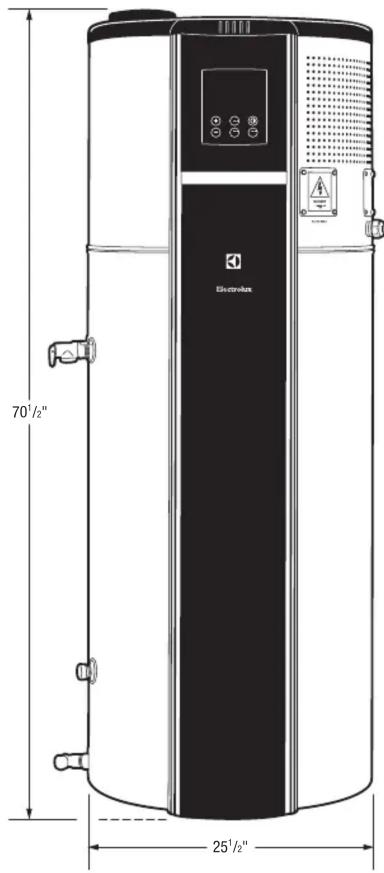

PRODUCT DIMENSIONS
| Height | 70-1/2" |
| Diameter | 25-1/2" |
MORE EASY-TO-USE FEATURES
LIFETIME LIMITED WARRANTY
Lifetime Limited Warranty supported by a 1-year labor, 5-year parts and 12-year heat exchanger warranty to provide peace of mind.
LED DIGITAL DISPLAY
Conveniently adjust temperature and operating modes with the LED digital control and display.
Available in:
Stainless (S)
signature Features
More energy efficient than standard gas tank water heaters.
PREMIUM STAINLESS STEEL
Durable premium stainless steel exterior.
Exceeds current ENERGY STAR ^® standards providing the most versatile, quiet and efficient water heater in its class.
Lasts up to 2 times longer than standard gas tank water heaters.
ELECTRIC HYBRID HEAT PUMP WATER HEATER
CONTROL PANEL FEATURES
| Mechanical Button Controls | Yes |
| LED Digital Display | Yes |
| Temperature Display Mode | °F |
PERFORMANCE
| Energy Factor (Hybrid-AUTO Mode) | 2.35 |
| First Hour Rating (Hybrid-AUTO Mode) (Gallons) | 70 |
FEATURES
| Air Filter | Yes |
| Anode Rod | Yes |
| Condensate Overflow Drain | Yes |
| Default Temperature (°F) | 120 |
| Heat Pump Ambient Temp Operating Range (Factory Default) (°F) | 32-120 |
| Heat Pump Ambient Temp Operating Range (Programmable) (°F) | 20-120 |
| Operating Modes | Auto (Default,)Econ, Heater |
| Operating Noise (Heat Pump - AUTO/ECON Mode) | 48 DBA |
| Recirculation Compatible | Yes |
| Temperature Setting Range (°F) | 90-135 |
| Warranty ^1 | Yes |
ACCESSORIES
| Vent Duct Compatible (Exhaust) | Yes – Single |
| Rigid/Smooth Interior Dryer Venting | Optional |
| T&P Relief Valve | Included |
ADDITIONAL FEATURES
| Northern Cold Climate Specification | Tier 2 |
SPECIFICATIONS
| Exhaust Vent Diameter | 6" |
| Condensation Drain Connection Size | 3/4" Threaded |
| Condensate Outlet Location | Top Rear |
| Drainage Outlet Location | Bottom Left |
| Hot Water Outlet Connection Size | 3/4" Threaded |
| Water Inlet Connection Size | 3/4" Threaded |
| Water Inlet Location | Bottom Left |
| Water Outlet Location | Middle Left |
| Water Supply Pressure Range (PSI) | 15 - 150 |
| Tank Capacity (Gallons) | 66 |
| Tank Material | Stainless Steel |
| Wiring Port Location | Top Right |
| Voltage Rating | 240V, 60Hz, 30A |
| Back-Up Heater Element Output (kW) | 4 |
| Max Current (Heater Element - HEATER Mode) (A) | 23 |
| Maximum Output (Hybrid - AUTO Mode) (kW) | 6.2 |
| Primary Heater Element Output (kW) | 4 |
| Color – | |
| Stainless Steel | S |
| Shipping Weight (Approx.) | 263 Lbs. |
^1 Lifetime limited warranty supported by a 1-year labor, 5-year parts and 12-year heat exchanger.
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
For complete Electric Hybrid Heat Pump Water Heater installation details, refer to Product Installation Guide on the web at electroluxappliances.com
PRODUCT DIMENSIONS
| Height | 70-1/2" |
| Diameter | 25-1/2" |
FOR WATER HEATING INQUIRIES, PLEASE CONTACT ELECTROLUX WATER HEATING AT 1-888-360-8557.
