CMA115 - Projektor Zubehör Chief - Kostenlose Bedienungsanleitung

Produkttyp	Deckenplatte für Videoprojektoren
Modell	CMA115
Marke	Chief (Milestone AV Technologies)
Maximale Tragfähigkeit	226,8 kg (500 lbs)
Vertikale Verstellung	In 19 mm (3/4 Zoll) Schritten
Kompatible Gewinde	1-1/2 Zoll NPT oder NPSM
Anzahl Montagepunkte	4
Montage an Holzrahmen	Geeignet für 2x6 Zoll Holz mit 5/8 Zoll Trockenbau (Schrauben nicht enthalten)
Montage an Betondecke	Für 20 cm dicke Betondecke mit entsprechenden Dübeln (nicht enthalten)
Montage an abgehängter Decke	Mit Gewindestangen und Deckenkanal (max. Spannweite 1,5 m)
Material	Stahl mit Pulverbeschichtung
Einsatzbereich	Nur für Innenräume
Sicherheitshinweis: Tragfähigkeit	Deckenstruktur muss mindestens 5-faches Gesamtgewicht tragen können
Sicherheitshinweis: Montage	Nicht an Wänden, schrägen Decken oder im Außenbereich montieren
Reinigung	Mit trockenem Tuch abwischen
Wartung	Regelmäßige Überprüfung aller Befestigungen und Schrauben
Kompatibles Zubehör	CMA151 Adapter (1-1/2 auf 1 Zoll NPT)
Gewicht (ca.)	2,5 kg

Häufig gestellte Fragen - CMA115 Chief

Wie viel Gewicht kann die Chief CMA115 Deckenplatte tragen?

Die maximale Tragfähigkeit beträgt 500 lbs (226,8 kg). Es ist jedoch sicherzustellen, dass die Deckenstruktur mindestens das Fünffache des Gesamtgewichts tragen kann.

Kann ich die CMA115 an einer Wand montieren?

Nein, die CMA115 ist ausschließlich für die Montage an der Decke vorgesehen. Eine Montage an Wänden oder schrägen Decken ist nicht zulässig und kann zu schweren Verletzungen führen.

Welche Deckenarten sind für die Montage geeignet?

Die Halterung kann an Holzrahmen (2x6 Zoll mit Trockenbau), massiven Betondecken (20 cm) oder abgehängten Decken mit Deckenkanal montiert werden. Für jede Art sind spezifische Befestigungsmaterialien erforderlich (nicht im Lieferumfang).

Welches Gewinde hat die Verlängerungssäule für die CMA115?

Die Deckenplatte ist für 1-1/2 Zoll NPT- oder NPSM-Gewinde nach ANSI/ASME B1.20.1 (Schedule 40, Mindestwandstärke 0,154 Zoll Aluminium oder Stahl) ausgelegt.

Sind Schrauben und Dübel im Lieferumfang enthalten?

Nein, die benötigten Schrauben, Dübel, Gewindestangen und Muttern sind nicht im Lieferumfang enthalten. Sie müssen je nach Deckenart separat erworben werden. Details finden Sie in der Installationsanleitung.

Wie reinige ich die CMA115 Deckenplatte?

Zur Reinigung ein trockenes oder leicht feuchtes Tuch verwenden. Vermeiden Sie aggressive Reinigungsmittel, um die Pulverbeschichtung nicht zu beschädigen.

Kann ich die Höhe des Projektors nach der Montage verstellen?

Ja, die CMA115 ermöglicht eine vertikale Anpassung in 3/4-Zoll-Schritten (19 mm). Dies erfolgt durch die Verwendung von Gewindestangen und entsprechenden Muttern.

Ist die CMA115 für den Außenbereich geeignet?

Nein, die Halterung ist nur für Innenräume bestimmt. Eine Verwendung im Freien kann zu Korrosion und Materialversagen führen.

Wo finde ich die genauen Abmessungen der CMA115?

Die genauen Abmessungen sind in der Montageanleitung als Maßzeichnung enthalten. Die Anleitung steht als PDF auf der Website zur Verfügung.

Welche Sicherheitshinweise muss ich bei der Installation beachten?

Wichtig: Die Deckenstruktur muss mindestens das Fünffache des Gesamtgewichts (Halterung + Projektor) tragen können. Verwenden Sie nur die angegebenen Befestigungsmaterialien und ziehen Sie alle Schrauben mit dem empfohlenen Drehmoment an. Die Halterung darf nicht an schrägen Decken oder Wänden montiert werden.

BEDIENUNGSANLEITUNG CMA115 Chief

INSTALLATION INSTRUCTIONS

Ceiling Plates

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT SAFETY INSTRUCTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the CMA mount does not exceed 500 lbs (226.8 kg).

NOTE: The weight capacity of the CMA mounts may be LIMITED to the lowest weight capacity of any other component located between the ceiling plate and the projector/display.

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is damaged. Return the mounting system to a service center for examination and repair.

WARNING: Do not use this product outdoors.

NOTE: CMA105, CMA110, CMA115 are intended to be used with a 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness aluminum - ASTM B221) threaded extension column (not included).

IMPORTANT ! : These CMA mounts are designed to be:

• mounted to a 2" x 6" wood framework ceiling covered with 5/8" drywall;
• mounted to an 8" concrete ceiling using either 1/4" x 2-1/2" lag bolts for Togger AF8 anchors (not included), or 5/16" x 2-1/2" lag bolts for Fischer UX10 concrete anchors (not included);
• suspended from four 3/8" diameter (minimum) Grade 2 or better threaded rods with 16 threads per inch (not included) which are secured to a framing channel (spanning a maximum of 5 feet --not included) by Grade 2 or better 3/8" channel nuts (not included).

NOTE: These CMA mounts provide vertical adjustments in 3/4" increments.

NOTE: CMA105, CMA110 and CMA115 may be used with UL Listed CMA151 1-1/2" to 1" NPT Adapter Accessory.

WARNING: Do NOT attach to vertical mounting surfaces such as walls or angled ceilings!

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

DIMENSIONS (continued)

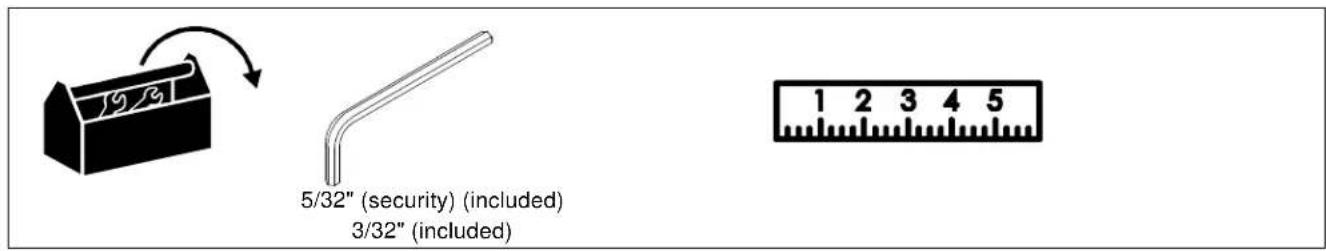

TOOLS REQUIRED FOR INSTALLATION

PARTS

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

INSTALLATION AND ASSEMBLY

WARNING: Do NOT attach to vertical mounting surfaces such as walls or angled ceilings!

WARNING: IMPROPER INSTALLATION CAN LEAD TO LIFT FALLING CAUSING SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installer's responsibility to make certain the structure to which the mount is being attached is capable of supporting five times the weight of the CMA mount and all attached equipment. Reinforce the structure as required before installing the mount.

NOTE: The following instructions assume a suitable mounting structure and surface exists prior to installation.

Installing to a Wood Framework (Joists)

NOTE: These CMA mounts are designed to be mounted to a 2" x 6" wood framework ceiling covered with 5/8" drywall.

1. Use 5/16-18" x 2-1/2" (minimum) Grade 2 lag screws (not included) to secure CMA mount to the joists or wood framework, using the bolt holes noted. (See Figure 1)

NOTE: If using only two bolt holes for mounting, two opposing holes must be used.

Installing to a Suspended Ceiling

NOTE: These CMA mounts may be suspended from four 3/8" diameter (minimum) Grade 2 or better threaded rods

with 16 threads per inch (not included) which are secured to a framing channel (spanning a maximum of 5 feet--not included) by Grade 2 or better 3/8" channel nuts (not included).

1. Insert the rods into the four bolt holes in the CMA mount. (See Figure 1)
2. Secure the threaded rods to the CMA mount with Grade 2 or better 3/8" jam nuts (not included) and washers (one of each on inside and one of each on outside--not provided).

Installing to a Solid Concrete Ceiling Structure

NOTE: These CMA mounts may be mounted to an 8" concrete ceiling using either 1/4" x 2-1/2" lag bolts for Togger AF8 anchors (not included), or 5/16" x 2-1/2" lag bolts for Fischer UX10 concrete anchors (not included)

WARNING: Anchors (not included) must be installed into structurally sound solid concrete. Installation into hollow concrete block, mortar, or concrete that exhibits cracking, spalling, or other defects may result in failure of anchor and serious personal injury or damage to equipment.

1. Use either 1/4" x 2-1/2" lag bolts for Togger AF8 anchors (not included), or 5/16" x 2-1/2" lag bolts for Fischer UX10 concrete anchors (not included) to secure CMA mount into solid concrete ceiling. (See Figure 1)
2. Place CMA mount over anchors, placing bolt holes in CMA mount over anchors.
3. Secure CMA mount to ceiling using four Grade 2 flat washers (not included) and four Grade 2 nuts (not included) tightened over anchors.

CMA105

CMA115

CMA110
Figure 1

Attaching Column to CMA Mount (non-security)

1. Install 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum - ASTM B221) threaded extension column (not included) into threaded collar until tight, with a minimum of four threads engaged. (See Figure 2)
2. Install #10-24 1/4" set screw (B) into hole on ceiling plate (A) to secure pipe to mount. (See Figure 2)

Figure 2

1. Install the ceiling mount and projector to the CMA mount using installation instructions included with the ceiling mount.

Attaching Column to CMA Mount (security)

1. Install 1-1/2" NPT or NPSM following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness steel or aluminum - ASTM B221) threaded extension column (not included) into threaded collar until tight, with a minimum of four threads engaged. (See Figure 3)
2. Install #10-24 1/4" button head security screw (C) through security spinner (D) and into hole on ceiling plate (A) to secure pipe to mount. (See Figure 3)

Figure 3

1. Install the ceiling mount and projector to the CMA mount using installation instructions included with the ceiling mount.

CMA105-110-115

Installation Instructions
