M5-800X4 - Empfänger Rockford Fosgate - Kostenlose Bedienungsanleitung

Produkttyp	Verstärker (4-Kanal)
Marke	Rockford Fosgate
Modell	M5-800X4
Abmessungen (B x H x T)	305 mm x 55 mm x 160 mm
Gewicht	1,9 kg
Stromversorgung	12 V DC (Fahrzeugbordnetz)
Nennleistung (RMS)	4 x 75 W bei 4 Ω, 4 x 150 W bei 2 Ω
Maximale Leistung	4 x 200 W
Frequenzgang	20 Hz – 20 kHz
Eingangsimpedanz	20 kΩ
Signal-Rausch-Verhältnis	> 100 dB
THD+N	< 0,01 %
Eingänge	4 x RCA (Cinch), Hochpegeleingänge
Ausgänge	4 x Lautsprecherklemmen
Frequenzweiche	Hochpass/Tiefpass/Fullrange, variable Trennfrequenz
Subsonik-Filter	Ja, 15 Hz / 25 Hz / 35 Hz
Schutzschaltungen	Kurzschluss, Überhitzung, Unterspannung
Material	Aluminium-Druckguss-Chassis, marinebeständig
Wasserschutz	IPX6 (spritzwassergeschützt)
Zubehör im Lieferumfang	Montageschrauben, Bedienungsanleitung, Fernbedienungskabel
Wartung & Pflege	Gehäuse mit feuchtem Tuch abwischen, keine aggressiven Reiniger
Sicherheitshinweise	Nur in 12-V-Systemen verwenden, fachgerechte Installation erforderlich
Ersatzteile & Reparierbarkeit	Ersatzteile über autorisierte Händler, Reparatur durch Fachpersonal

Häufig gestellte Fragen - M5-800X4 Rockford Fosgate

Welche Leistung hat der Rockford Fosgate M5-800X4 Verstärker?

Der M5-800X4 liefert 75 W RMS pro Kanal bei 4 Ω und bis zu 150 W RMS bei 2 Ω. Die maximale Leistung beträgt 200 W pro Kanal.

Kann ich den Verstärker in einem Boot verwenden?

Ja, der M5-800X4 ist marinebeständig (IPX6) und für den Einsatz in feuchten Umgebungen wie Booten geeignet.

Welche Art von Lautsprechern kann ich anschließen?

Der Verstärker unterstützt Lautsprecher mit 2 Ω bis 8 Ω Impedanz. Er kann 4 Lautsprecher an den einzelnen Kanälen oder gebrückt für Subwoofer betrieben werden.

Wie schließe ich den Verstärker an mein Autoradio an?

Verwenden Sie die RCA-Eingänge für Vorverstärkerausgänge oder die Hochpegeleingänge für Lautsprecherkabel. Ein Fernbedienungskabel (blau) ist erforderlich.

Hat der Verstärker eine Frequenzweiche?

Ja, der M5-800X4 verfügt über eine einstellbare Hochpass/Tiefpass/Fullrange-Frequenzweiche mit variabler Trennfrequenz und Subsonik-Filter.

Wie schwer ist der Verstärker?

Der Verstärker wiegt ca. 1,9 kg und hat kompakte Abmessungen von 305 mm x 55 mm x 160 mm.

Welche Schutzschaltungen sind integriert?

Der Verstärker schützt vor Kurzschluss, Überhitzung und Unterspannung. Eine LED zeigt den Betriebszustand an.

Kann ich den Verstärker mit einer 8-Ohm-Lautsprecherlast betreiben?

Ja, der Verstärker arbeitet stabil mit 8 Ω Lautsprechern, liefert dann aber weniger Leistung (ca. 40 W RMS pro Kanal).

Ist eine Fernbedienung im Lieferumfang enthalten?

Nein, eine separate Bass-Fernbedienung ist nicht enthalten, aber es ist ein kabelgebundener Fernbedienungseingang vorhanden (optionales Zubehör).

Wie reinige ich den Verstärker am besten?

Reinigen Sie das Gehäuse mit einem weichen, feuchten Tuch. Verwenden Sie keine aggressiven Reinigungsmittel oder Druckwasser, um die Dichtungen nicht zu beschädigen.

BEDIENUNGSANLEITUNG M5-800X4 Rockford Fosgate

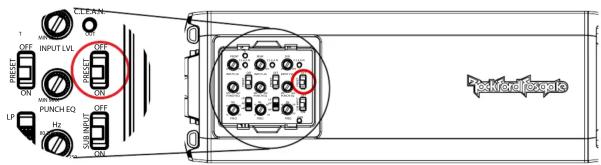

The PRESET switch disables the control panel and sets this amp for the best sound to be used with your ROCKFORD FOSGATE stage kit audio system. Turn the switch OFF to manually adjust this amp.

PRESET SETTINGS

M5-800X4

Rockford Fosgate Stages 3 & 4 SXS kits

Front Level - 1 O'Clock

Rear Level - 3 O'Clock

Front/Rear EQ - MIN

Input Switch - 4CH*

Front/Rear Crossover - 80Hz

Front X-over Switch - HF

Rear X-over Switch - LP

* Input switches are not controlled via preset switch.

M5-1000X1

Sub Level - 3 O'Clock

Punch EQ - MIN

Sub X-Over Switch - 80Hz

Front/Rear/Sub Punch EQ - MIN

Front/Rear/Sub Crossover - 80Hz

Front/Rear X-over Switch - HP

Sub Input - ON*

Input Switch - 2CH*

M5-1500X5

Rockford Fosgate Stage 5 SXS kit

Front /Rear Level - 1 O'Clock

Sub Level - 3 O'Clock

Front/Rear/Sub Punch EQ - MIN

Front/Rear/Sub Crossover - 80Hz

Front/Rear X-over Switch - HP

Sub Input - ON*

Input Switch - 2CH*

Technical line drawing of a mechanical component with labeled dimension C (no text or symbols beyond label)

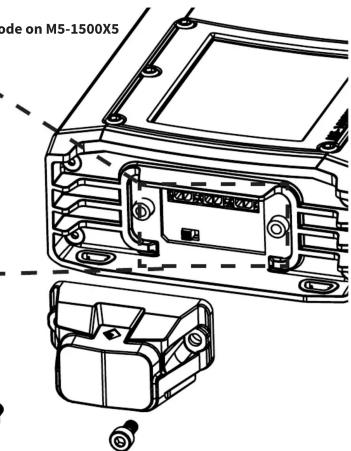

How to adjust 2 channel mode or 4 channel mode on M5-1500X5

The M5-1500x5 comes in 2 channel mode.

1. Using the included 3mm wrench, remove the 2 screws
   holding the input wire harness on the control panel side
   of the amp.
2. Pull the harness straight out.

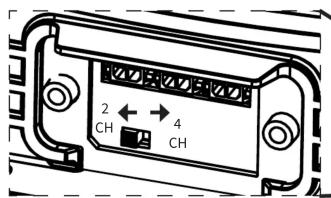

3. Flip switch to the right for 4 channel mode.
4. Re-install the harness. Be sure that the gaskets and
   O-rings are not damaged before re-installing the harness

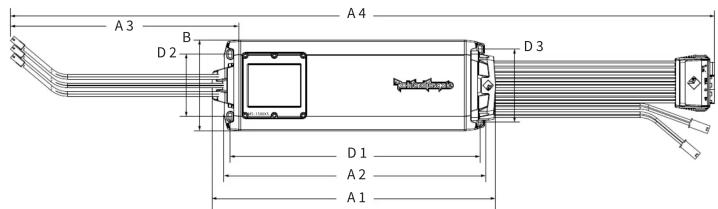

Model	M5-800X4	M5-1000X1	M5-1500X5
A1 - Overall Amplifier Length	9.7" (245.9mm)	9.7" (245.9mm)	13.4" (339.7mm)
A2 - Chassis Length	8.4" (213mm)	8.4" (213mm)	12.3" (311.4mm)
A3 - Harness Length (Input/Output are the same length)	12" (304.8mm)	12" (304.8mm)	12" (304.8mm)
A4 - Total Length of Amplifier	33.7" (855.5mm)	33.7" (855.5mm)	37.4" (949.3mm)
B - Chassis Width	4.25" (108.1mm)	4.25" (108.1mm)	4.25" (108.1mm)
C - Chassis Height	1.7" (42.7mm)	1.7" (42.7mm)	1.7" (42.7mm)
D1 - Mounting Length	7.8" (198.7mm)	7.8" (198.7mm)	11.8" (299.2mm)
D2 - Mounting Width	2.9" (74.5mm)	2.9" (74.5mm)	2.9" (74.5mm)
D3 - Mounting Width (Input side, M5-1500X5 ONLY)	N/A	N/A	3.4" (86.5mm)

numbers, not inflated marketing ratings.

Power rate

CTA2006

What is the 1px testing method it is the ranking given after passing the testing method to show that this product will withstand directors for at least 3 minutes. A 0.5" (2.5mm) nozzle with 15 ps (100 kpa) outputting 100 liters per min of water from a distance of 9.8 (3 meters) from all A 0.5" (2.5mm) nozzle with 15 ps (100 kpa) outputting 100 liters per min of water from a distance of 9.8 (3 meters) from all

Dynamic Power indicates actual, usable power delivered by the amplifier to the speakers when listening to music. Dynamic power rankings are based on CT-A-2006 industry standards. Dynamic power has been provided to indicate the actual RMS power output performance of the amplifier in the real world.

CTA-2006 Dynamic Power Rating	125W x 4 @ 40hm 200W x 4 @ 20hm 100W x 4 / 600W x 1 @ 20hm 100W x 1 @ 30hm (Sub Only) 400W x 2 @ 40hm Braded
CTA-2006 Continuous Power Rating	100W x 4 @ 40hm 200W x 2 @ 400nm Braded 400W x 2 @ 400nm Braded
THD @ Rated Power	<1.0% - <1.0%
Singular to Noise Ratio	>105dB 110dB >105dB 4CH/ >85dB Sub
Frequency Response	10HZ - 50HZ/4 + /- TDB 30HZ - 245HZ + /- TDB
MIN/MAX Input Voltage	150mV - 21vrms 150mV - 12Vrms 150mV - 12Vrms
Low-pass Crossover Frequency	50-250HZ @12dB Per Octave
High-pass Crossover Frequency	50-250HZ @12dB Per Octave
Punctal ED	YES
Signal Sense/DC Offset Turn On	YES
Signal Sense/DC Offset Turn On	YES
Signal Sense/DC Offset Turn On	YES
