BEDIENUNGSANLEITUNG NoteBox 16 Leba

Children in a classroom setting, one girl using a tablet while others observe (no visible text or symbols)

NoteBox 16 tablets

NoteBox 16 tablets is a compact storage and charging solution for 16 tablets.

NoteBox 16 tablets is a compact and convenient storage box that can hold up to 16 tablets, iPads or similar devices.

Tablets can be charged inside the locked Notebook. Either via 16 power outlets or 16 USB A ports.

It's easy to hangNoteBox up in the classroom, staff room or office. Placement of NoteBox is flexible. The compact storage boxes can be placed on a table or hung on the wall. It is also possible to stack the boxes as needed.

NoteBox has a secure cable system that prevents cables from getting lost.

Interior view of a black server rack with red screwdrivers and ventilation slots (no text or symbols visible)

Black rectangular electronic device with a circular button and ventilation grille (no visible text or symbols)

NoteBox 16 tablets

SOLUTIONS

• Designed for storing and charging up to 16 tablets, iPads or similar devices.
• The sturdy box with adjustable partitions protects the devices and provides flexibility in terms of device size with or without a cover.
• The electronics compartment at the rear of the box with a fixed back plate protects against unauthorised access.
  • The cable system ensures that the cables do not disappear.
• The box can be placed on a table and stacked, or mounted on the wall as required.
• NoteBox comes with a key lock as standard, and ensures that the devices are kept secure.

DEVICES

Tablets, iPads and similar devices with or without a cover.

Designed for tablets, iPads and similar devices up to 30 mm thick (see the compartment dimensions on page 3).

VARIANTS

1. NoteBox 16 compartments without power

2nd NoteBox 16 compartments with 16 power outlets

1. NoteBox 16 compartments with 16 USB ports

OPTIONAL EXTRA

NoteBox feet for "table solution" NoteBox wall bracket

ITEM NUMBERS

NoteBox 16 compartment with 16 power outlets

Item no. NBOX-B-16-SC

NoteBox 16 compartment with 16 USB ports Item no. NBOX-B-16USB-SC

NoteBox feet for the "table solution" Item no. NBOX-FEET

NoteBox wall bracket Item no. NBOX-B-W-KIT

Interior view of a black server room with multiple screwdrivers and ventilation slots (no visible text or labels)

3

Interior view of a computer case with multiple electronic devices and hanging cables (no visible text or symbols)

1

Close-up of a black electrical outlet with a switch and indicator lights, mounted on a metal surface (no visible text or symbols)

Stacked black rectangular electronic components with circular buttons (no visible text or symbols)

5

1. Storage and charging of up to 16 tablets.

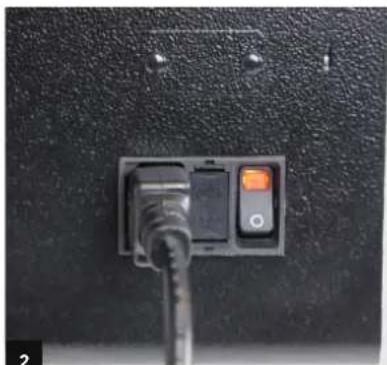

2. On/off switch function on the outside.
3. Charging via NoteCharge USB A ports or 16 power outlets.

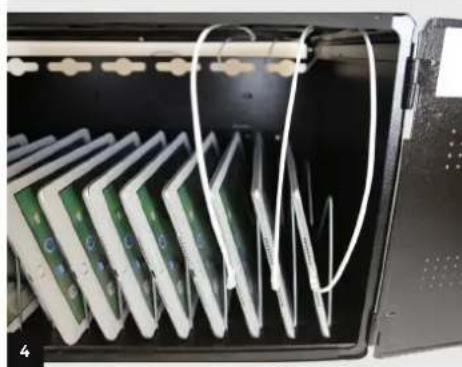

4. Cable system (cables not included).
5. Two NoteBox 16 stacked.

leba-innovation.com

Notebox 16 Technical specifications

EXTERIOR DIMENSIONS OPTIONS

Width (including handle) 580 mm

Depth 460 mm

Height 320 mm

WEIGHT 13 kg

DIMENSIONS SHELVES 16 pcs.

Width 30 mm

Depth 310 mm

Height 285 mm

CONNECTING CABLE 1.8 metre cable max 16 AMP. EU/DK/UK Extra-long 3 m cable

VENTILATION 50x50 USB fan (optional extra)

ELECTRONICS

Main panel 230V 50/60Hz 10A in 10A out max 2500 W

Power panel 16 socket Schuko panel USB NCHARGER 10 ports 5V 2.4AMP

LOCKING SYSTEM FRONT 3 point locking system with a key

LOCKING SYSTEM REAR Standard key lock

Wall bracket (optional extra) max 25 kg (screws for the wall not included)

PACKAGING Honeycomb recycled cardboard

WEIGHT PACKED 15 kg

DISPOSAL According to local regulations
