BEDIENUNGSANLEITUNG FZ63 YS

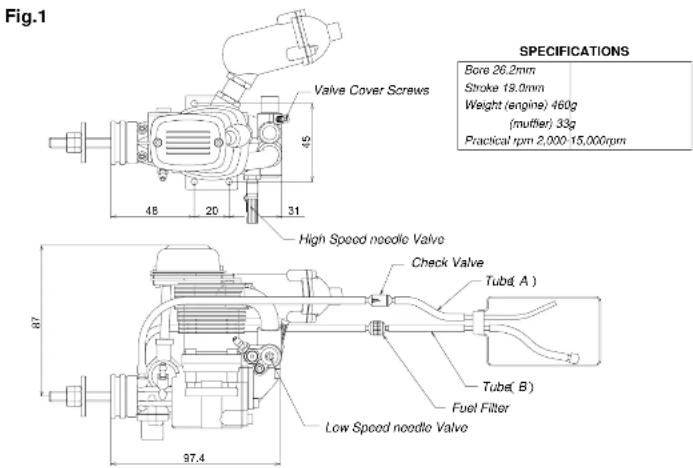

Fig.1 SPECIFICATIONS Bore 26.2mm Stroke 19.0mm Weight (engine) 460g (muffler) 33g Practical rpm 2,000-15,000rpm Valve Cover Screws 48 20 31 High Speed needle Valve Check Valve Tube(A) Tube(B) Fuel Filter Low Speed needle Valve 87 97.4

FEATURES

The FZ63 is the most powerful 4 cycle engine of its size and was developed for sport flying as well as power demanding aerobatics.

• Supercharge • Eval injected

• Regulated and pressurized fuel system

• Moller

The pressurized fuel and injection system makes throttle response superior and is unaffected by tank level.

GLOW PLUG

Select the most appropriate plug from those designed specifically for 4 cycle engines. Glow plug selection greatly affects the maximum engine output and low idle. We recommend the YS #4.

INSTALLATION

1. Connect the engine to the tank as shown in fig 1. Since high pressure is applied to the tank, tighten all connections carefully. Care must be taken to prevent pressure leakage due to under tightening of the check valve or by kinking the fuel lines.

2. Always use a fuel filter. We recommend the YS fuel filter.

3. Match the direction of the check valve arrow fig. 1 with the arrow facing to wards the tank.

PROPELLER INSTALLATION

Due to the high torque of the F263 engine, we have equipped it with a double lock system for safety.

1. Mount the propeller and tighten the rear nut. Next, tighten the front nut as shown in Fig.1.

2. Select a good quality propeller that will turn in the 9,000 to 12,000 rpm range. We recommend sizes 11x7-11x9,12x6-12x8.

START UP

1. Remove tube B from the filter: remove tube A from the check valve, then till the tank. (CAUTION: If tank is filled or under pressure remove tube A first, then tube B. Fuel will eject if tube B is removed while the tank is pressurized.)

2. Open the nasole valve 2 1/2 turns from the fully closed position.

3. Open the throttle fully and slowly turn the propeller 10 times. This primes the system by pressurizing the tank and sending fuel to the carburetor.

4. Close the throttle to the idle position and connect the glow plug battery. The engine is now ready for starting.

DO NOT ATTEMPT TO START FULL THROTTLE, AS THIS IS VERY DANGEROUS.

BREAK IN

To maximize engine performance and increase durability, please follow this break-in procedure:

1. Use the same size (or slightly smaller) propeller than you intend to use in flying.

2. Use a good quality fuel which contains 15-30% nitromethane and oil content of 20-24%. Synthetic or castor oil can be used, or a combination of synthetic and castor. Do not use four cycle fuel due to low oil content.

3. The needle valve should be set so that the engine is running at a rich setting. Run the engine approximately 20 minutes with this setting.

4. Mount the engine to the model and fly ten times with this setting. This concludes the break-in procedure, it is advisable to always use a slightly rich setting to keep the moving parts lubricated, even after the break-in period.

HIGH SPEED ADJUSTMENT

1. Adjustment of high speed is done by the carburetor needle valve. When the needle valve is turned clockwise, the mixture is leaner. When it is turned counterclockwise, the mixture is richer. A good starting position for the high speed needle valve is 2 1/2 turns open from the fully closed position.

2. When the engine is started, open the throttle gradually. Next, find the peak position (highest RPM) by adjusting the needle valve. Then the needle valve should be opened approximately 1/8 of a turn from full RPM to achieve best performance. The engine may stop if the throttle is opened to full immediately after starting. Wait until the engine temperature rises and then open the throttle slowly.

3. For lying, it is advisable to use a slightly richer mixture setting. By using a richer mixture, the engine temperature is maintained and RPM stability improves.

LOW SPEED ADJUSTMENT

This engine is equipped with a new low speed needle valve to adjust the mixture from low to mid throttle. This needle valve is located on the side of the throttle barrel opposite the throttle arm (Fig. 1).

1. Open the low speed needle to 1 turns from fully closed position.

2. The low speed needle valve should be set after the high speed needle valve has been adjusted. Close the throttle gradually to a idle (approximately 2500rpm). Let it idle for 20 to 30 seconds and then slowly advance the throttle. The adjustment is satisfactory at low speed if transition is smooth at this time.

3. If the engine is running cough on idle, the low speed mixture is rich. If the engine starts to speed up and dies on idle or starts to detonate, when advancing the throttle, the mixture is lean. Turn the low speed needle valve clockwise to richen and counterclockwise for a leaner mixture (note that the direction of the low speed needle valve is opposite the high speed needle valve). Adjustments to the low speed needle valve should be 1/8 to 1/4 of a turn increment at a time to achieve smooth throttle response.

IMPORTANT! The regulator adjusting screw on this engine is factory set. No further adjustments are necessary. If for some reason you have to disassemble the regulator assembly, the regulator adjusting screw should be set flush with the regulator body.

TAPPET CLEARANCE ADJUSTMENT

1. Tappet clearance is factory preset. No adjustment is necessary until after 1 hour of operation (including break-in period).

2. Clearance adjustment should be done when the engine is cool. When the engine temperature is high, clearance is higher due to thermal expansion.

3. The proper clearance setting should be at 0.04 0.1mm. The adjustment is achieved by loosening the locknut (fig.2) and turning the adjusting screw. Tighten the locknut after the adjustment is achieved. Alter the initial 1 hour adjustment, this procedure should be performed a few every 2 hours of use.

Fig.2

CAM GEAR TIMING ADJUSTMENT

If for some reason you have to disassemble your engine, please follow these important steps on reassembling the can gear.

1. Remove the carburetor and backplate assembly. Notice the impression made on the crankshaft counterweight. Position it directly straight down or in line with the case outer seam line.

2. When reinstalling the cam gear, the side with a point mark should be facing the opening of the gear box. Note that it should also be mounted with the point mark located towards the top of the engine just below the cam followers.

DIAPHRAGM AND CHECK VALVE DISASSEMBLY

Diaphragm

1. Remove the adjustment screw of the valve, and then remove the inside valve and spring.

2. Clean the inside with alcohol or appropriate cleaner. Reassembly.

3. Screw in the regulator screw until flush with the diaphragm body.

Check valve

1. Open the valve by rotating the body countercloswise.
2. Reassemble the check valve carefully.

IMPORTANT! Silicone rubber is used in many parts of the YS engine. Use only glow fuel or methanol for cleaning. Gasoline and other volatile solutions will damage the silicone if used.

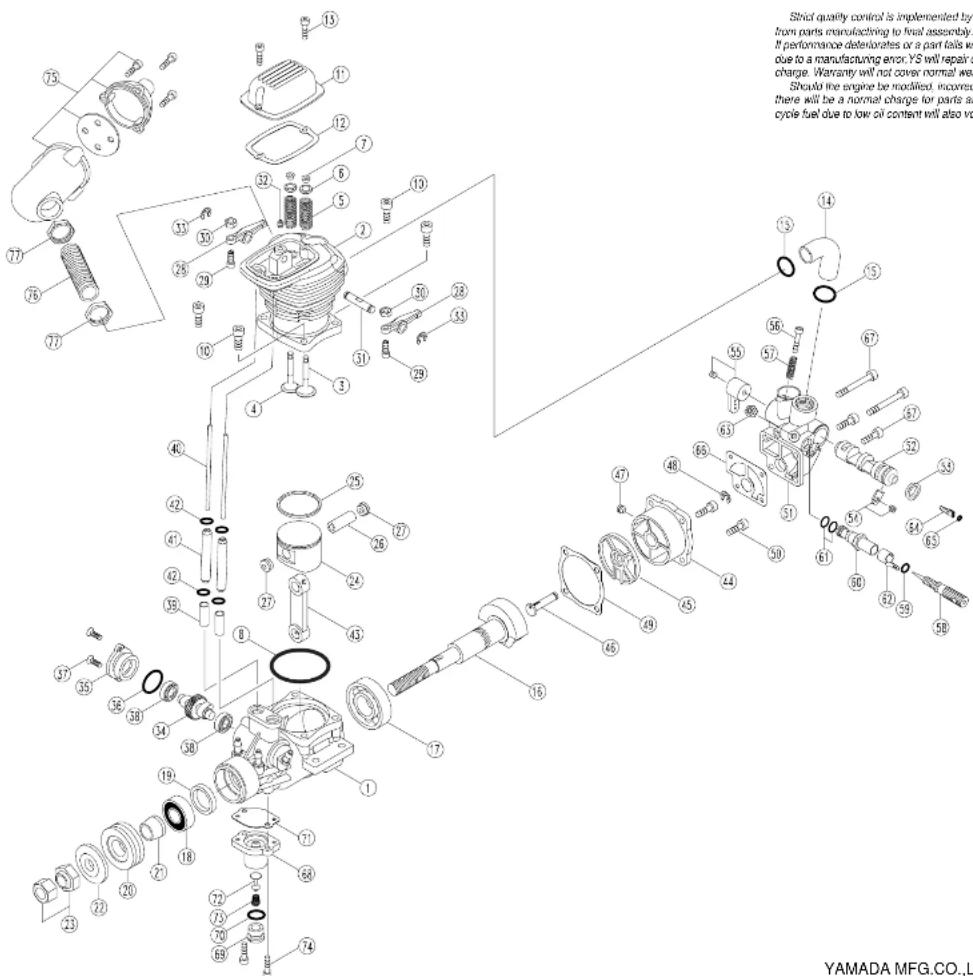

#	PART #	DESCRIPTION	QTY
1	F5101 Container 1
	F6102A Cylinder Head Assembly
2	F6102 Cylinder Head & Liner 1
3	F6103 Intake Valve 1
4	F6104 Exhaust Valve 1
5	F6105 Valve Sticking Set 2
6	F6106 Spring Retainer Set 2
7	F6107 Valve Sticking Retainer Clips 4
8	F6108 Cylinder O-ring 1
10	F6110 Mid Cap Screws		4
11	F6111 Valve Cover		1
12	F6112 Valve Cover Gasket		1
13	F6113 Valve Cover Screws		2
14	F6114 Intake Pipe		1
15	F6115 Intake Pipe O-ring		2
16	F6116 Checkshell		1
17	F6117 Rear Bearing		1
18	F6118 Front Bearing		1
19	F6119 Front Bearing Oil Seal		1
20	F6120 Outer Washer		1
21	F6121 Outer Washer Retainer		1
22	F6122 Propeller Retainer		1
23	F6123 Propeller Nut Set		2
24	F6124 Piston		1
25	F6125 Piston Ring		1
26	F6126 Wha Pin		1
27	F6127 Wha Pin Retainer		2
28	F6128 Rodler Arm Set		2
29	F6129 Topso Adjusting Screw Set		2
30	F6124 Topso Adjusting Lock Nut		2
31	F6125 Rodler Arm Shaft		1
32	F6126 Rodler Arm Screw		1
33	F6127 E Ring Set 2
34	F6134 Cam Gear		1
35	F6135 Cam Gear Cover		1
36	F6136 Cam Gear Cover O-ring		1
37	F6137 Cup Valve		2
38	F6138 Cam Gear Bearing Set		2
39	F6139 Cam Circulars Set		2
40	F6140 Push Rods		2
41	F6141 Push Rod Covers		2
42	F6142 Push Rod Cover O-ring		4
43	F6143 Citn Rod		1
44	F6144A Back Plate Assembly
45	F6144 Back Plate		1
46	F6145 Disc Valve		1
46	F6146 Disc Valve Pin		1
47	F6129 Disc Valve Set Screw		1
48	F6149 Back Parts Set		1
50	F6150 Back Plate Screws		2
51	F6151 Cartunetor Assembly
51	F6151 Carcupetor Body		1
52	F6152 Throttle Barrel 1
53	F6153 Throttle Barrel Seal		1
54	F6124 Throttle Barrel Retainer		1
55	F6126 Whole Arm Set
56	F6128 Throttle Stop Screw		1
57	F6129 Throttle Stop Spring
F6150S Neutral Valve Assembly
58	F6158 Neutral Valve
59	F6146 Neutral Valve O-ring		1
60	F6155 Neutral Solter		1
61	F6156 Neutral Solter O-ring		2
62	F6157 Neutral Valve Detent		1
63	F6162 Fuel Nipple		1
64	F6166 Low Speed Mettle Valve
65	F6167 Low Speed Mettle Valve O-Ring		1
66	F6164 Carburetor Gauge		1
67	F6165 Carburetor Screws		1
	F6166A Regulator Assembly		4
68	F6166 Regulator Body
69	F6145 Regulator Adjusting Screw		1
70	F6146 Regulator Adjusting Screw O-ring		1
71	F6169 Deep Shaw		1
72	F6158 Regulator Plunger		1
73	F6171 Plunger Spring
74	F6172 Regulator Screw Set		2
75	F6173S Motitor Set
76	F6173A Multi-Assembly		1
77	F6174 Elastel Pipe		1
77	F6175 Rock Wall		2
	F6180 Glacker Set		3
	F6182 O-Ring Set		11

Strict quality control is implemented by from parts manufacturing to final assembly. It performance deteriorates or a part fails will due to a manufacturing error. YS will repair a charge. Warranty will not cover normal was Should the engine be modified, incorrect there will be a normal charge for parts an cycle fuel due to low oil content will also vol YAMADA MFG.CO.,L

WARRANTY

Strict quality control is implemented by our factory in all phases, from parts manufacturing to final assembly.

If performance deteriorates or a part falls within one year of purchase due to a manufacturing error, YS will repair or replace the engine at no charge. Warranty will not cover normal wear.

Should the engine be modified, incorrectly assembled or abused, there will be a normal charge for parts and labor. The use of four cycle fuel due to low oil content will also void warranty.

YAMADA MFG.CO.,LTD

67 Tsuchitori Inuyama Aichi 484-0917 JAPAN
