CK530 - Tastatur COOLER MASTER - Kostenlose Bedienungsanleitung

Produkttyp	Mechanische Gaming-Tastatur (Tenkeyless)
Marke	Cooler Master
Modell	CK530
Schaltertyp	Gateron (Rot, Blau, Braun)
Material	Kunststoff / Aluminium (gebürstet)
Farbe	Gunmetal Black
Beleuchtung	RGB (per-Taste, 16,7 Mio. Farben)
Abfragerate	1000 Hz
Antwortzeit	1 ms
MCU	32-Bit ARM Cortex M3
On-Board-Speicher	512 KB
On-the-Fly-Steuerung	Ja (Beleuchtung, Makros, Multimedia)
Multimediatasten	Über FN-Taste
Kabel	Fest angebracht, gummiert, 1,8 m
Anschluss	USB 2.0
Abmessungen (L x B x H)	380 x 135 x 40 mm
Gewicht (ohne Kabel)	749 g
Garantie	2 Jahre
Layout	Standard (Tenkeyless, standardisierte Bodenreihe)
Key Rollover	Hybrid (automatisch 6KRO/NKRO)
Software	Portal-Software zur Feinabstimmung
Lebensdauer Switches	≥ 50 Millionen Klicks
Reinigung	Mit einem leicht feuchten Tuch abwischen; keine aggressiven Reiniger
Sicherheit	Windows-Taste deaktivierbar (On-the-Fly)
Ersatzteile & Reparierbarkeit	Standard-Keycaps austauschbar; Switches nicht lötsbar (Gateron)
Kompatibilität	Windows, Mac (eingeschränkte Software), Linux (Grundfunktionen)

Häufig gestellte Fragen - CK530 COOLER MASTER

Welche Schaltervarianten gibt es für das Cooler Master CK530?

Wie kann ich die RGB-Beleuchtung anpassen?

Ist die Tastatur programmierbar?

Welche Abmessungen und welches Gewicht hat das CK530?

Unterstützt die Tastatur N-Key-Rollover?

Kann ich die Tastenkappen austauschen?

Wie reinige ich die Tastatur richtig?

Was ist die Garantiezeit?

Funktioniert die Software auch unter macOS?

Wie deaktiviere ich die Windows-Taste während des Spielens?

BEDIENUNGSANLEITUNG CK530 COOLER MASTER

NO-NONSENSE, NO COMPROMISE

Black computer keyboard with glowing blue and red lights, no visible text or symbols on the main body

Get a straightforward keyboard that performs well on the battlefield with the CK530 Gaming Mechanical Keyboard. A portable, tenkeyless format allows you to take your gear without sacrificing features or performance. Mechanical switches rated for 50 million clicks will guarantee your keyboard will stay combat-ready during all your long-lasting skirmishes. On-the-Fly Controls allow customization of your settings like RGB lighting and macros in real time, while software lets you get even further customization. Simply put, the CK530 is a capable tool that gets the job done.

FEATURES SPECIFICATIONS & PACKING INFORMATION

• Brushed Aluminum Design - Curved top plate, floating keycaps, and minimalistic design built with functionality in mind
• Mechanical switches rated for a 50 million+ lifepan to never let you down in the heat of battle.
• RGB Backlighting - Per-key LEDs with multiple lighting modes and effects to highlight all your dominating killstreaks.
• On-the-Fly Controls - Make real-time adjustments to lighting and macros with no software necessary, including Windows Lock On/Off to prevent getting kicked out of the game when the Windows Key is accidentally pressed.
• Easy-to-use Software - Map 16.7 million colors to any key, customize lighting modes, and fine-tune macros
• Hybrid Key Rollover with automatic switching between 6KRO and NKRO to ensure legacy compatibility and that always every press is registered.
• Standard Layout for those Pro users interested in custom keycaps, the CK530 features a standard sizes layout and bottom row!

P roduc t N ame	C K5 30
P roduc t N umber	CK-530-GKGR1-** (Red s witch)CK-530-GKGL1-** (Blue Switch)CK-530-GKGM1-** (Brown s witc h)
Switc h T ype	Gateron
M aterial	P las tic/ A luminum
C olor	Gunmetal Black
LE D C olor	RGB
P olling Rate	1 0 0 0 Hz
Res ponse Rate	1 ms / 1 0 0Hz
M C U	3 2 bit A RMC ortex M 3
O n board M emory	5 1 2 KB
O n-the-fly s ystem	Yes , for M ulti-media, M acroRec ording and L ighting c ontrol
M ulti-media Keys	T hrough FN
Smart c able manager	N/A
Wris t res t	N/A
C able	Fixed Rubberized 1 .8 m
Software Support	Yes , through P ortal
C onnector C able	U SB 2 .0
C able L enngth	1 .8 m
Dimens ions	3 8 0 * 1 35* 4 0mm (L *W*H)
P roduc t Weight(without c able)	749 g
Warranty	2 years

Net weight	749g
Gross weight	1038g
Package Dimensions (L x W x H)	394 * 190* 48mm (L*W*H)
Carton dimension (L x W x H) / Units	540 * 415 * 208 mm (L* W* H)	10
Carton / Pallet	36

Cont. W/ Pallet Carton/ Pallet		W/O Pallet
20' 3600pcs 36 carton N/A
40' 8640pcs 36 carton N/A
40 HQ	9600pcs 40 carton N/A

FEATURE HIGHLIGHT

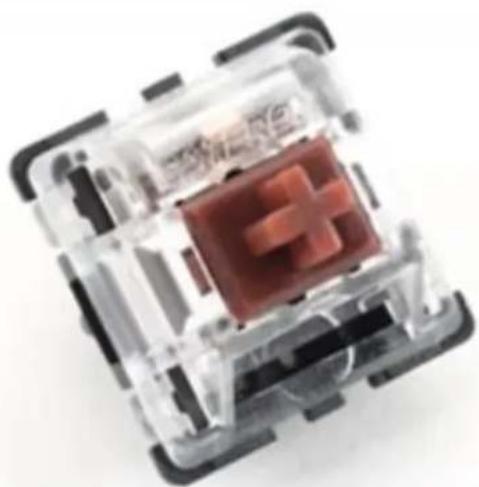

Close-up of a transparent mechanical component with a red internal symbol (no readable text or symbols)

Mechanical Switches - Durable switches rated for 50 million clicks

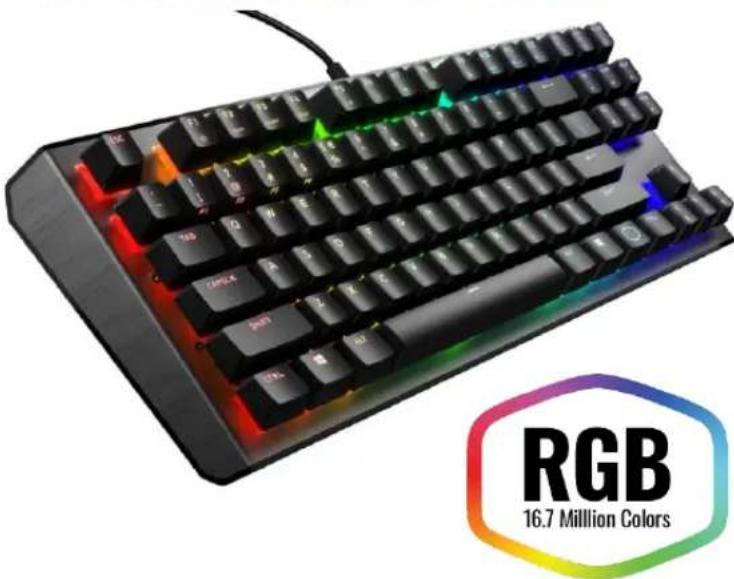

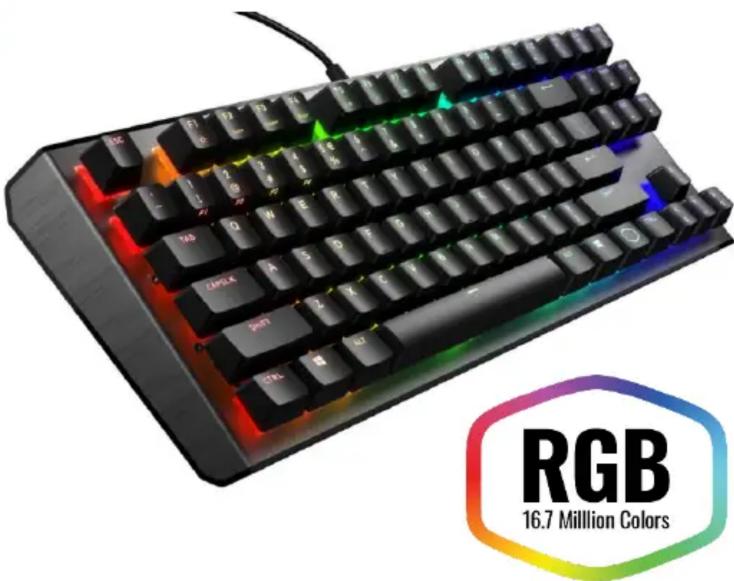

RGB

16.7 Million Colors

RGB Backlighting - Per-key LEDs with multiple lighting modes and effects to highlight all your dominating killstreaks

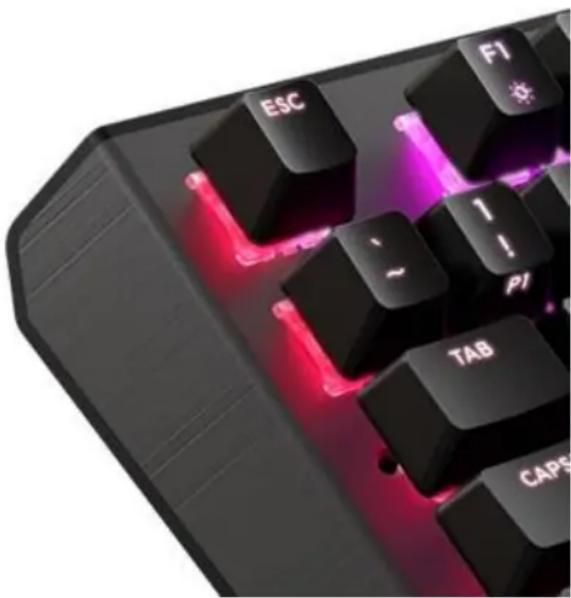

Close-up of a black computer keyboard with illuminated keys and a red LED indicator (no readable text or symbols)

Brushed Aluminum Design - Curved top plate, floating keycaps, and minimalistic design built with functionality in mind

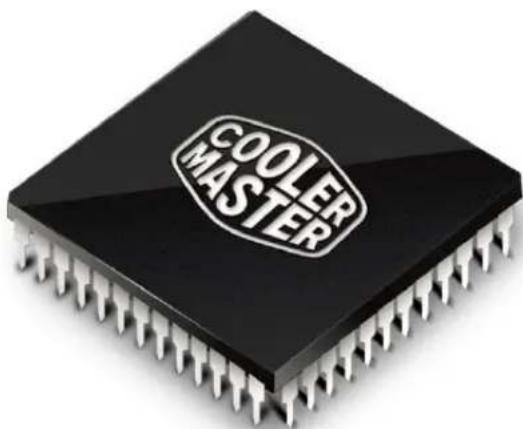

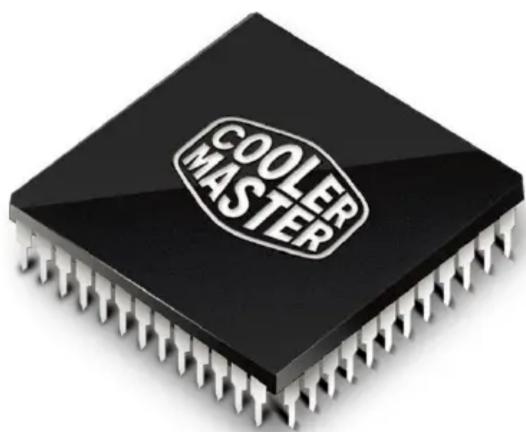

Close-up of a black integrated circuit chip with a white 'COOLER MASTER' logo on its surface (no additional text or symbols visible)

On-the-Fly Controls - Make real-time adjustments to lighting and macros with no software necessary

EAN & UPC INFORMATION

Itemcode	EAN	UPC
CK-530-GKGR1-US	4719512075623	884102048111
CK-530-GKGR1-UK	4719512075838	884102048326
CK-530-GKGR1-TU	4719512075821	884102048319
CK-530-GKGR1-TC	4719512075814	884102048302
CK-530-GKGR1-TA	4719512075807	884102048296
CK-530-GKGR1-SW	4719512075791	884102048289
CK-530-GKGR1-SP	4719512075784	884102048272
CK-530-GKGR1-RU	4719512075777	884102048265
CK-530-GKGR1-PT	4719512075760	884102048258
CK-530-GKGR1-ND	4719512075753	884102048241
CK-530-GKGR1-KR	4719512075746	884102048234
CK-530-GKGR1-JP	4719512075739	884102048227
CK-530-GKGR1-IT	4719512075722	884102048210
CK-530-GKGR1-HU	4719512075715	884102048203
CK-530-GKGR1-GR	4719512075708	884102048197
CK-530-GKGR1-FR	4719512075692	884102048180
CK-530-GKGR1-DE	4719512075685	884102048173
CK-530-GKGM1-US	4719512075647	884102048135
CK-530-GKGM1-UK	4719512075999	884102048487
CK-530-GKGM1-TU	4719512075982	884102048470
CK-530-GKGM1-TC	4719512075975	884102048463
CK-530-GKGM1-TA	4719512075968	884102048456
CK-530-GKGM1-SW	4719512075951	884102048449
CK-530-GKGM1-SP	4719512075944	884102048432
CK-530-GKGM1-RU	4719512075937	884102048425
CK-530-GKGM1-PT	4719512075920	884102048418
CK-530-GKGM1-ND	4719512075913	884102048401
CK-530-GKGM1-KR	4719512075906	884102048395
CK-530-GKGM1-JP	4719512075890	884102048388
CK-530-GKGM1-IT	4719512075883	884102048371
CK-530-GKGM1-HU	4719512075876	884102048364
CK-530-GKGM1-GR	4719512075869	884102048357
CK-530-GKGM1-FR	4719512075852	884102048340
CK-530-GKGM1-DE	4719512075845	884102048333
CK-530-GKGL1-US	4719512075630	884102048128
CK-530-GKGL1-UK	4719512076156	884102048647
CK-530-GKGL1-TU	4719512076149	884102048630
CK-530-GKGL1-TC	4719512076132	884102048623
CK-530-GKGL1-TA	4719512076125	884102048616
CK-530-GKGL1-SW	4719512076118	884102048609
CK-530-GKGL1-SP	4719512076101	884102048593
CK-530-GKGL1-RU	4719512076095	884102048586
CK-530-GKGL1-PT	4719512076088	884102048579
CK-530-GKGL1-ND	4719512076071	884102048562
CK-530-GKGL1-KR	4719512076064	884102048555
CK-530-GKGL1-JP	4719512076057	884102048548
CK-530-GKGL1-IT	4719512076040	884102048531
CK-530-GKGL1-HU	4719512076033	884102048524
CK-530-GKGL1-GR	4719512076026	884102048517
CK-530-GKGL1-FR	4719512076019	884102048500
CK-530-GKGL1-DE	4719512076002	884102048494
