BEDIENUNGSANLEITUNG MiniCMIT Schoeps

1 Download Instructions

More information and full instructions can be downloaded here

www.rycote.zendesk.com/hc/en-us/articles/207948165-Cyclans-User-Guide

2 Removing windshield from the suspension

2 Use release tabs to separate the two sections of the windshield

rate the two eld om on

1 Undo safety catches on both sides
3 Pull windshield away from lower & upper suspension

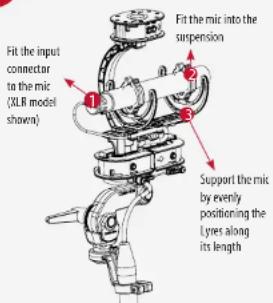

3 Fitting microphone

Fit the input connector to the mic (XLR model shown) Fit the mic into the suspension Support the mic by evenly positioning the Lyes along its length

The Lyres can be moved or replaced using the hex key supplied.

4 Fitting windshield to suspension

1 Ensure safety catches are in the open position on both sides 2 Fit both sides of the windshield to the

2 Fit both sides of the windshield to the upper & lower basket suspension pods

3 Rotate the four safety catches into closed position

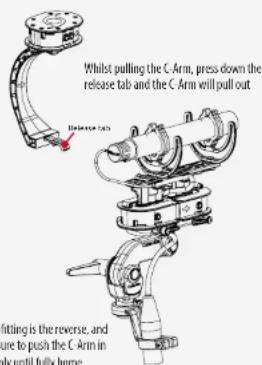

5 Removing and refitting the C-Arm

Whilst pulling the C Arm, press down the release tab and the C Arm will pull out Release tab Sitting is the reverse, and ure to push the C Arm in ly until fully horse

If the suspension is needed in a restricted space, like a ceiling shot, the suspension can be used without the C-Arm fitted.

Cyclone

Advanced Windshield System

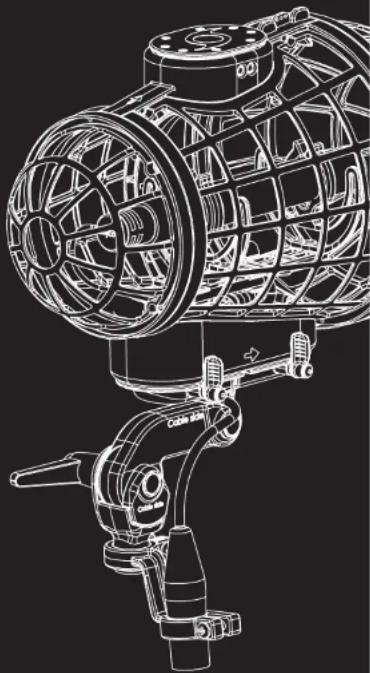

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Quick Start Guide

SMALL

Quick Start Guide

Cyclone Small

Thank you for choosing the Cyclone Windshield! The following Quick Start Guide provides you with the basics to get you started.

Full details about this product are available on our website, where you can also download more detailed instructions.

Overview

Quick. Clear. Consistent.

The Cyclone Small premium microphone windshield system delivers outstanding performance for small diaphragm condenser and short shotgun microphones alike.

Key Features

• Superb acoustic transparency - the open shell structure with no parallel surfaces greatly reduces room-tone effects & provides a clean frequency response;
• Massive wind noise reduction asymmetric basket covered with 3D-Tex® material provides enormous benefits in terms of surface turbulence & acoustic impedance. An optional Cyclone Windjammer can be used for the most extreme weather conditions;
• Advanced shock isolation with industry leading Rycote Iyre® microphone suspension and exclusive Floating Basket Suspension (Pat. Pending) with built-in Lyre technology, for additional vibration isolation between basket and pole;
• The detachable Offset Link bracket, included with Cyclone Small models, provides mic-axis articulation for ideal microphone placement.
• Quick & Easy - unique Z Locking System with magnetic locking for instant windshield removal/attachment;
• Lightweight, curable construction & materials - to withstand extreme field use.

Basket View

Technical diagram of a mechanical assembly with numbered components

1. Release Tabs
2. Windshield, Right
3. Safety Catch
4. Boom Adaptor
5. Neutrik XLR 3-Pin male
6. XLR Holder
7. Windshield, Left
8. Basket Suspension (top)

Suspension View - XLR model

Labeled diagram of a mechanical assembly with numbered components for identification

1. Lyre
2. Basket Suspension (lower)
3. Safety Catch
4. Neutrik XLR 3-Pin male
5. XLR Holder
6. Boom Adaptor
7. Offset Link
8. Rycote Short XLR
9. C-Arm
10. Basket Suspension (upper)

Specifications

The Cyclone Small is available in three different model variants: XLR, LEMO and MZL.

Cyclone Windshield Kit, Small (XLR) 089103

Mic Lengths: 75 mm - 160 mm Mic Diameters: 19 mm - 25 mm Max. Weight of Mic: 110 grams Mic Connector: XLR3-pin Female Output Connector: XLR3-pin Male

Overall length: 297 mm (11.7 inch) Body length: 142 mm (5.6 inch) Max. Diameter: 157 mm (6.2 inch) Height: 230 mm (9 inch) Weight: 568 g (20 oz)

Compatibility

DPA 4017C, 4018C

Neumann KM100 Series

Schoeps CMC Series Sennheiser MK18040*, MKH8050* MK150

Cyclone Windshield Kit, Small (LEMO)

089104

The details for this LEMO version of the Cyclone Small are as-per the XLR version noted above (albeit with a marginal weight saving, based on the use of the LEMO connector). This version of the Cyclone Small comes fitted with a LEMO microphone connector, for use with the Schoeps CCM series of microphones.

Compatibility

Schoeps CCM Series

Cyclone Windshield Kit, Small (MZL)

089105

The details for this M/I version of the Cyclone Small are as per the XL B version noted above. This version of the Small Cyclone comes fitted with an M/I microphone connector.

Compatibility

Sennbreiser MKH2050*

All weights & dimensions are approximate

What's in the box?

• Cyclone Windshield System
• Cyclone Cable (fitted)
• Hex key driver, for adjustment of 1yres
• Offset Tirk Adaptor Plates
- Quick Start Guide
- Bycote Sticker

Optional Accessories

• Cyclone Windjammer, Small (029103)
• Extension handle (037301)
• Cyclone w/TacIT cable, XLR 3f (017034)

Removing the Offset Link

You may prefer to remove the Offset Link and re-attach the boxor adaptor directly to the base of the lower suspension assembly (using the Offset Link Adaptor Plates provided). Detailed instructions are provided in the Cyclone User Guide, which you can access on our website at https://rycote.zendesk.com/hc/en-us/articles/207948165-Cyclone-User-Guide or scan the QR code overleaf.

(* Our recommendation for the Sennheiser MIG 18040/8050 is the Cyclone Small (XLR) model, based on the use of the Sennheiser MZX module with these microphones. If you wish to use either of these mics without the MZX module attached, they will then be compatible with the Cyclone Small (MZL).
