BEDIENUNGSANLEITUNG TC25 Earthworks
TC25
Omni High Definition
Microphone™
for Loud Sources
User's Guide
Product Registration
To help you get the most out of your Earthworks purchase, please take a moment and register your product with us online at earthworksaudio.com/register.
Service & Repair
If you have any problems with your Earthworks products, please contact our Service & Repair Department.
Email: returns@earthworksaudio.com
Telephone: (603) 654-2433, ext. 119


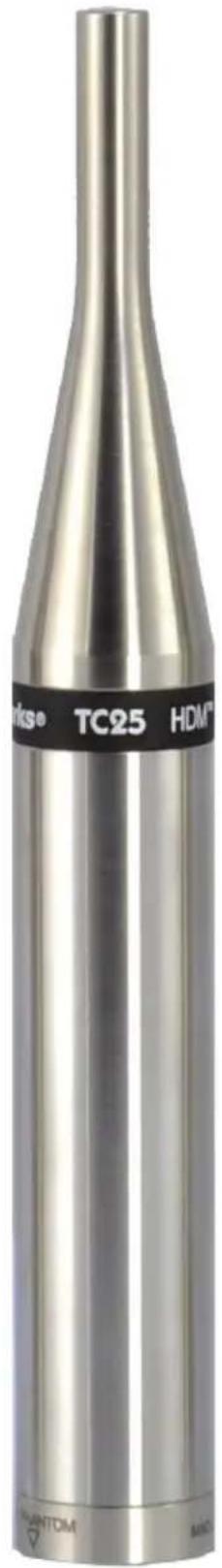

Warks® TC25 HDM® HUANTOMDescription
The Earthworks TC25 is an omnidirectional (pressure) pre-polarized condenser microphone directly coupled to a dedicated wideband, low output impedance preamplifier. The TC25 requires a standard 24-48V phantom power supply. It features a linear free-field frequency response from 9Hz to 25kHz, fast impulse response, very low handling noise, uniform polar pattern, and very high SPL handling capabilities. It exhibits no proximity effect.
Applications
The Earthworks TC25 is easy to operate. Connect the microphone to a microphone preamplifier supplying 24-48V phantom power using a standard XLR microphone cable. Please allow up to one minute for the microphone to settle. Plugging in the microphone "hot" (phantom power already present at the input) will not damage the microphone, and is actually preferred for faster settling. It is normal for any phantom powered mic to "pop" when plugged in or powered up. Make sure to mute the signal to speakers or headphones when phantom power is first applied.
The TC25 is designed specifically for drums and percussion. The TC25 has a brilliance that is ideal for drum overheads, percussion, Leslie speakers, guitar and bass. This versatile microphone is great for general studio use and is an exceptional value. It has no handling noise, no proximity effect, and is very forgiving in terms of placement.
A mounting clip is included with the microphone. This microphone has no removable parts.
Care of Microphone
The Earthworks TC25 microphone is a precision instrument designed and built to provide years of excellent performance. Following these simple rules will help to protect your investment in the TC25:
- Avoid touching the front protective screen.
- Never attempt to disassemble the microphone – it cannot be opened.
- Avoid extreme heat and condensing humidity. Allow the microphone to warm up in the case when bringing it in from the cold weather.
- Rough handling may damage the microphone even if no visible marks are left.
- When not in use keep the TC25 in its case.
Specifications
Frequency response: 9Hz to 25kHz +1/-3dB
Polar Pattern: Omnidirectional
Sensitivity: 8mV/Pa (Typical)
Power Requirements: 24-48V Phantom, 10mA
Peak Acoustic Input: 150dB SPL
Output: XLR-3
Output Impedance: 65Ω, balanced between pins 2 & 3
Minimum Load: 600Ω btw. pins 2 & 3
Noise: 26dB, A equivalent
Dimensions L x D: 165 x 22 mm (6.5 x .860 in.)
Weight: 160g (.35lb)
Specifications are subject to change without notice.
line
| Frequency | Value | | --------- | ----- | | 10 | 0 dB | | 100 | 0 dB | | 1k | 0 dB | | 10k | 0 dB | | 20k | 0 dB | | 25k | 0 dB |Frequency in Hz
Frequency Response of TC25 (typical)
line

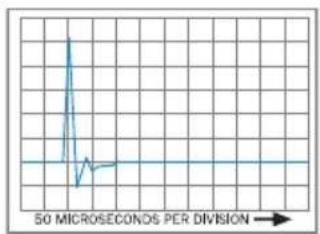

| Time (Microseconds) | Value | | ------------------- | ----- | | 0 | 100 | | 50 | 0 | | 100 | 50 | | 150 | 20 | | 200 | 10 | | 250 | 5 | | 300 | 2 | | 350 | 1 | | 400 | 0 | | 450 | 0 | | 500 | 0 |Impulse Response of TC25 (typical)
radar
| Angle | 1K | 5K | 10K | 20K | |---|---|---|---|---| | 0° | 100 | 100 | 100 | 100 | | 90° | 100 | 100 | 100 | 100 | | 180° | 100 | 100 | 100 | 100 | | 270° | 100 | 100 | 100 | 100 |Polar Response of TC25 (typical)
