Elate Carbon Installation Guide Elate Carbon / Pro 52, 62, 53, 63, 93, 52A, 62A, 53A, 63A, 93A Components Alto tweeter, MT450, MW5, MW6, MW9, MM3, MXT280C, MXT380C

Elate Carbon Installation Guide

Elate Carbon / Pro

52, 62, 53, 63, 93, 52A, 62A, 53A, 63A, 93A

Components

Alto tweeter, MT450, MW5, MW6, MW9, MM3, MXT280C, MXT380C

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Elate Carbon speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at:

www.morelhifi.com

Elate Carbon Components

Elate Carbon MW5, MW6, and MW9 Woofer

MT450 Tweeter

MXT380c/MXT280c Crossover

Technical line drawing of a device housing with labeled terminals and internal components (no readable text or symbols)

Alto Tweeter (PRO line only)

MM3 Midrange

Woofer, Midrange and Alto Tweeter mounting

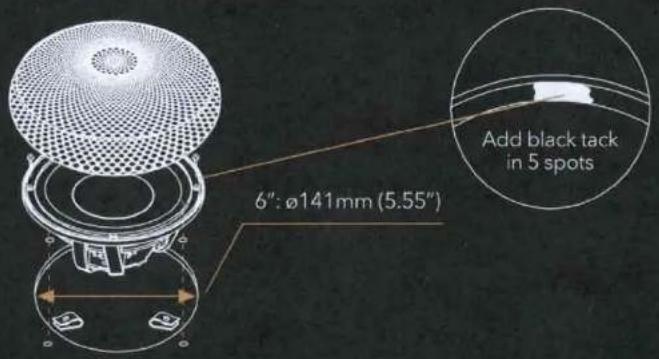

MW6 woofer

Add black tack in 5 spots 6": Ø141mm (5.55")

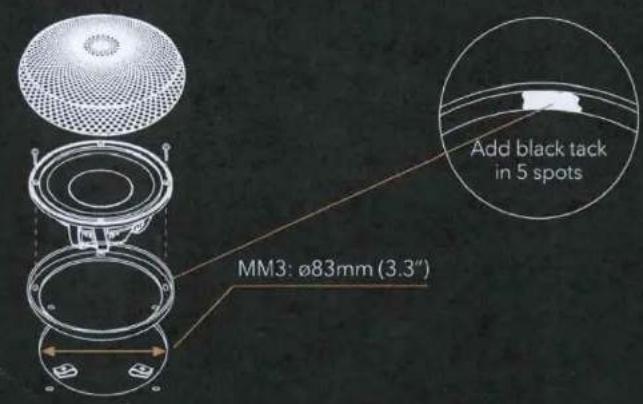

MM3

Add black tack in 5 spots MM3: ø83mm (3.3")

MW5 and MW9 woofer

5": ø122mm (4.80") 9": ø192mm (7.56")

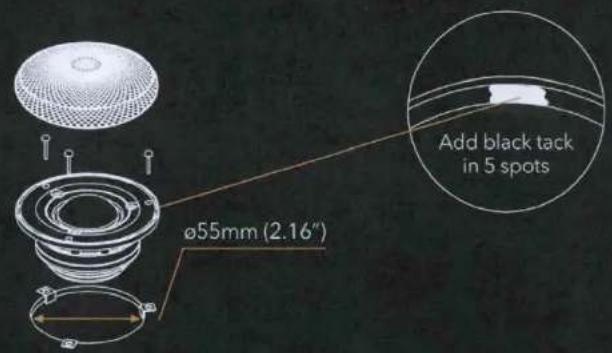

Alto Tweeter

Add black tack in 5 spots ø55mm (2.16")

MT450 Tweeter and Crossover Mounting

MT450 Flush Mount

MT450 Surface Mount

①

3

m = 311

1

Diagram of a mechanical assembly with gears and a base plate (no text or labels)

②

3

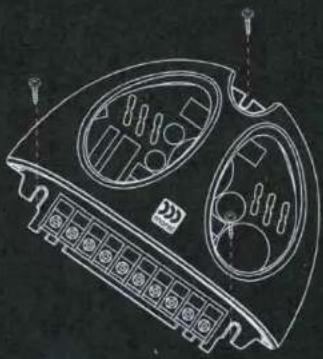

Crossover mounting

Technical line drawing of a car dashboard with vent, buttons, and screw terminals (no text or labels)

Crossover Connections

2-WAY Systems Crossover

1
Standard wire connection/ With bridged jumpers

Technical diagram of a device with labeled components and wiring connections

②
Bi wire connection/ No bridged jumpers

Technical diagram of a device with labeled components and wiring connections

③
Bi Amp connection/ No bridged jumpers

Technical diagram of a device with labeled components and wiring, showing connections between ports and terminals.

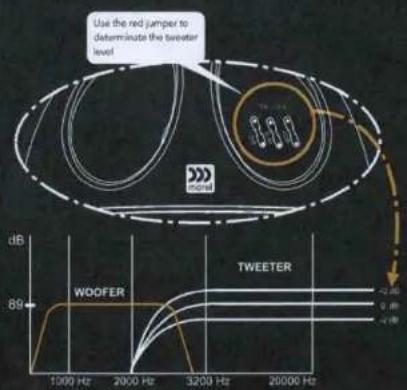

2-WAY Crossover Alignment System

Use the red jumper to determinate the tweeter level WOOFER TWEETER dB 89 1000 Hz 2000 Hz 3250 Hz 20000 Hz

3-WAY Systems Crossover

①
Standard wire connection/ With bridged jumpers

Diagram of a car electrical panel with labeled components and connections

②
Bi wire connection/ No bridged jumpers

Diagram of a vehicle electrical panel with labeled components and connections

③

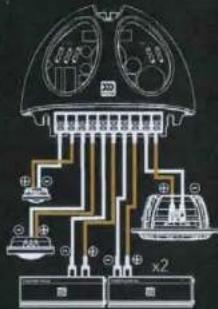

Bi Amp connection/ No bridged jumpers

Electrical wiring diagram showing connections between two devices with labeled terminals and components

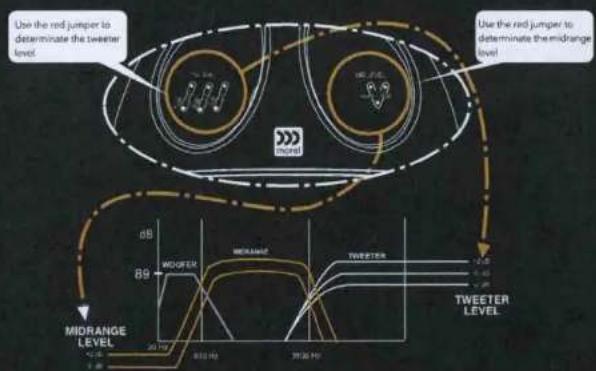

3-WAY Crossover Alignment System

Use the red jumper to determinate the tweeter level. Use the red jumper to determinate the midrange level. Midrange LEVEL TWEETER LEVEL MIDRANGE LEVEL 88 89 20 10 0 0 0 30 20 10 MUSFER MUSANGE TWEETER 2.50 2.40 2.30 2.20 2.10 2.00 1.90 1.80 1.70 1.60 1.50 1.40 1.30 1.20 1.10 1.00 0.90 0.80 0.70 0.60 0.50 0.40 0.30 0.20 0.10 0.05 0.02 0.01

Specifications

WOOFERS	ELATE CARBON MWS	ELATE CARBON MW6	ELATE CARBON MW9
Nominal Impedance (ohm)	4	4	4
Power Handling Wrms	160	180	200
Max. Trans. Power Handling Wrms	1000	1000	1000
Sensitivity (2.63 V/1M) dB	85	87	89
Frequency response Hz	40.5000	30-4000	25-3000
Resonant Freq. Ts Hz	64.4	45	44
Voice Coil Diameter mm (inch)	75(3)	75(3)	75(3)
Voice Coil Height mm (inch)	14.50 (0.57)	14.50 (0.57)	14.50 (0.57)
Voice Coil Type/Former	Titanium	Titanium	Titanium
Voice Coil Wire	Hexatech aluminium	Hexatech aluminium	Hexatech aluminium
DC Resistance (ohm)	3.6	3.6	3.6
Voice Coil Induct @1 kHz (mH)	0.615	0.615	0.615
Magnet System	Neodymium	Neodymium	Neodymium Double magnet rear vented
HE-Magnetic Gap Height mm (inch)	5(0.20)	5(0.20)	5(0.20)
B-Flux Density (T)	0.66	0.75	0.74
BL Product/BXL	5.15	6.51	5.15
Max. Linear Ex/Xmax mm (inch)	±4.75mm (0.18)	±4.75mm (0.18)	±4.75mm (0.18)
Suspension Compliance CMS - mm/N	0.35	0.67	0.36
Electrical Q Factor QES	0.63	0.47	0.61
QTS	0.56	0.43	0.56
QMS	4.15	7.19	6
Mech. Resistance RMS-N-S/M	1.32	1	1.2
Moving Mass MMS - gr/ounce	17(0.59)	18(0.63)	30(1.05)
Equity, Can Air Load VAS-L (cu/hr)	4.5(0.6)	13.3(0.47)	30.9(1.1)
Effective Piston Area SD sq cm (sq inch)	90(13.95)	120(18.6)	219(33.95)
Cone Type	Triple Layer Cone (TLC)	Triple Layer Cone (TLC)	Triple Layer Cone (TLC)
Cone Material	Carbon Fibre composite	Carbon Fibre composite	Carbon Fibre composite
Unit Diameter mm (inch)	135 (5.25)	165(6.50)	222(8.75)
Mounting Depth mm (inch)	60 (2.36)	61 (2.40)	71 (2.80)
Mounting Cutout	120 (4.72)	141 (5.55)	192 (7.56)
Net Weight Kg (lb)	1.05 (2.31)	1.18 (2.60)	1.42 (3.13)

CROSSOVERS	MXT280C	MXT380C
Crossover Point	W: 2500Hz/12dB T: 2500Hz/12dB	W: 450Hz/12dB M: 450Hz/12dB 2700Hz/12dB T: 2700Hz/12dB
Crossover Controls	Tweeter +/- 2dB	Tweeter +/- 2dB Mid 0/- 2dB
Wiring Options	Bi wire / Bi amp.	Bi wire / Bi amp

* Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice

MIDS & TWEETERS	ELATE CARBON MM3	MT450	ALTO
Nominal Impedance (ohm)	4	6	6
Power Handling Wims	120	130	220
Max. Trans. Pow Handling Wims (10ms)	400	350	1000
Sensitivity (2.83 V/1M) dB	87	91	91
Frequency Response Hz	40-6000	1400-25000	1400-25000
FS Hz	88	1000	900
Voice Coil Diameter mm (inch)	54 (2.125)	28 (1.25)	28 (1.125)
Voice Coil Former	Aluminium	Aluminium	Aluminium
Voice Coil Wire	Hexatech aluminium	Hexatech aluminium	Hexatech aluminium
DC Resistance ohm	3	5.2	5.2
Magnet System	Double magnet rear vented	Neodymium Rear Vented	Neodymium rear chamber underhung
Dome Type	One-piece formed	Aouflex hand coated soft dome	Aouflex hand coated soft dome
Dome Material	DPC	Silk	Silk
Unit Diameter mm (inch)	100 (3.90)	43.00 (1.69)	67.00 (2.6)
Mounting Dept mm (inch)	38 (1.50)	13.00 (0.5)	32.00 (1.25)
Mounting Cutout mm (inch)	83 (3.3)	46.00 (1.81)	55 (2.16)
Net Weight Kg (lb)	0.38 (0.84)	0.07 (0.15)	0.35 (0.77)

Active Configuration

Setting up the Elate Carbon system using an external electronic crossover network may vary on the processor itself, the car cabin acoustic attributes, and mounting location of the drive units. Choosing proper crossover points and slopes can greatly affect the system performance.

The following guidelines should be used to assure each drive unit in the system performs to the highest level. The Optimal Crossover Point/Slope guide should be used for most vehicle applications. Advanced users may refer to the Recommended Crossover Range/Minimum Slope guide for fine system tuning.

Elate Carbon: 53A,63A,93A

Optimal Crossover Point//Slope

Tweeter highpass: 3300Hz/12dB

Midrange lowpass: 3300Hz/12dB

Midrange highpass: 450Hz/12dB

Woofer lowpass: 450Hz/12dB

* Woofer highpass 40Hz/12dB

The quick brown fox jumps over the lazy dog.

Recommended Crossover Range/Minimum Slope

Tweeter highpass: 18000Hz-4000Hz/12dB

Midrange lowpass: 18000Hz-4000Hz/6dB

Midrange highpass: 300Hz-750Hz/12dB

Wooferlowpass: 350Hz-750Hz/6dF

* Woofer highpass: 40Hz, 80Hz/12dB

Wacker Highpass: 10% Series 125

* When used with an active subwoofer system.

Elate Carbon: 52A, 62A, 92A

Optimal Crossover Point//Slope

Tweeter highpass: 2000Hz/12dB

Woofer lowpass: 1800Hz/12dB

* Wooler highpass: 60Hz/12dB

Reccomended Crossover Range/Minimum Slope

Tweeter highpass:18000Hz-3000Hz/12dB

Woofer lowpass: 18000Hz-3000Hz/6dB

*Woofer highpass 40Hz-80Hz/12dB

Wishing you many years of sound enjoyment!

Morel, Ness Ziona, 70400 Israel.

Tel: [phone]

Fax:[phone]

E-mail: [e-mail]

Morel America, Chandler, AZ, USA

Toll free number:1-877-667-3511

Fax:[phone]

E-mail: [e-mail]

www.morelhifi.com
