Hybrid Installation Guide Hybrid 42, 52, 53, 62, 63 Hybrid Integra 42, 52, 62 Components MW4MKII, MW5MKII, MW6MKII, MT300, CDM700, MXR240.4, MXR250.4i, MXR300.4

Hybrid

Installation Guide

Hybrid

42, 52, 53, 62, 63

Hybrid Integra

42, 52, 62

Components

MW4MKII, MW5MKII,

MW6MKII, MT300,

CDM700, MXR240.4,

MXR250.4i, MXR300.4

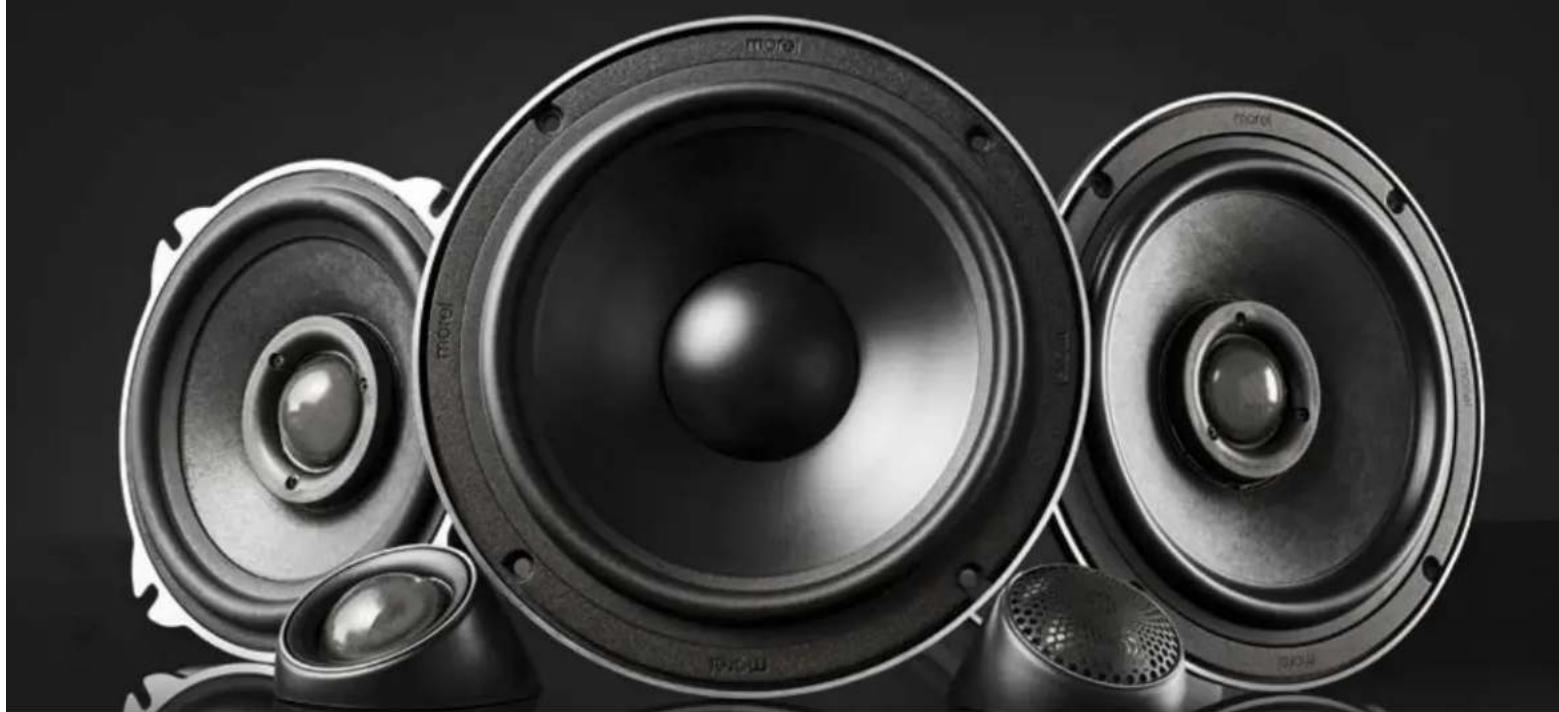

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Hybrid speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at www.morelhifi.com

Black-and-white photo of multiple audio speakers with visible sound waves and speaker heads (no text or symbols)

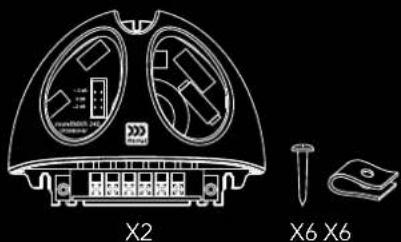

Hybrid Components

Hybrid 4", 5.25", 6.5" Woofer

X8 X8

X8

Hybrid 4", 5.25", 6.5" Integra

X8 X8

MT300 Tweeter

CDM700 Midrange

MXR240.4/250.4i/300.4

X2 X6 X6

Hybrid Woofer/Integra, Tweeter, Crossover mounting

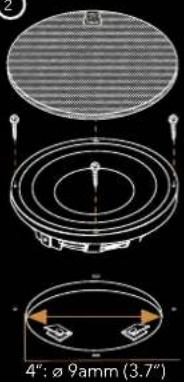

Unit 4"

Use the screw clips in any combination, with or without plastic frame. These clips can be used either way up or down depending on the installation requirement.

Pure technical diagram of pipe connections without any text, numbers, or symbols

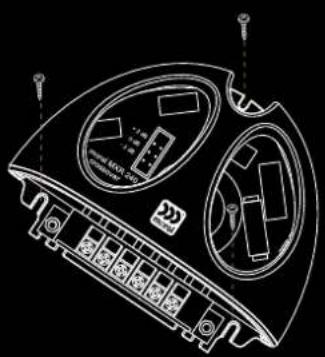

Crossover mounting

4": Ø 94mm (3.7")

MT300 Tweeter

2

4": Ø 9amm (3.7")

Flush Mount

Technical line drawing of a car dashboard with control panels and buttons (no text or symbols)

3

1
Surface Mount

2

3

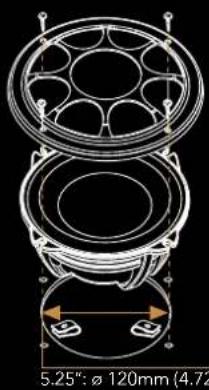

Unit 5.25", 6.5"

5.25": Ø 120mm (4.72)

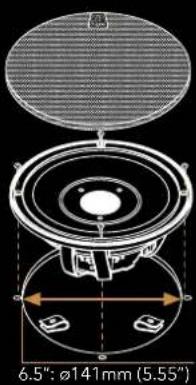

6.5": Ø141mm (5.55")

CDM700 Midrange

Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up or down depending on installation requirements.

3.5":ø75.5mm(2.97")

2-WAY System

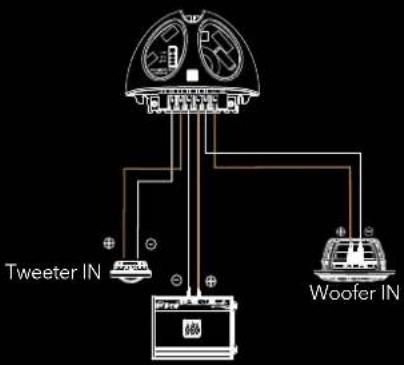

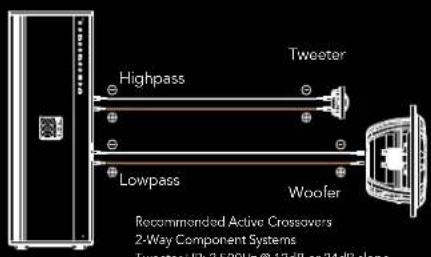

2-WAY System Wiring

ACTIVE SET UP

Highpass Lowpass Tweeter Woofer Recommended Active Crossovers 2-Way Component Systems Tweeter HR: 3.500Hz @ 13dB or 74dB slope

Recommended Active Crossovers
2-Way Component Systems
Tweeter HP: 2,500Hz @ 12dB or 24dB slope
Woofer LP: 2,500Hz @ 12dB or 24dB slope

PASSIVE SET UP

Tweeter IN Woofer IN

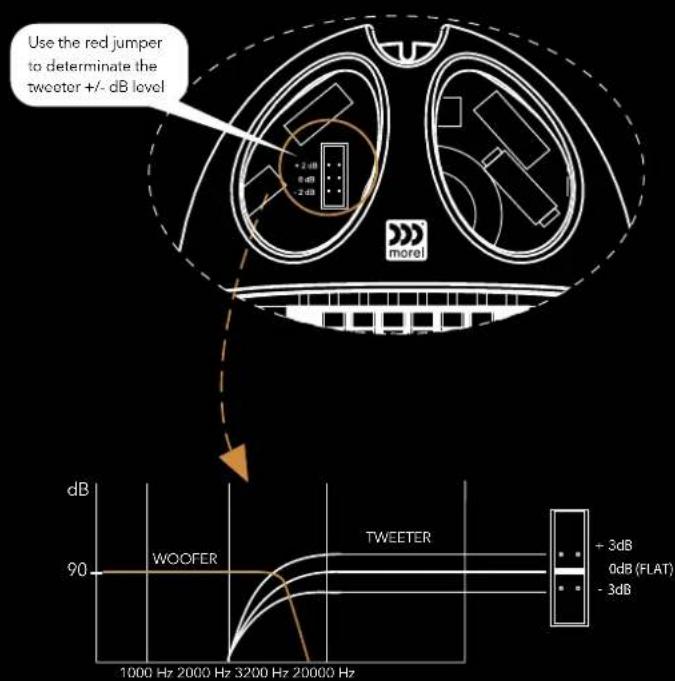

2-WAY System Alignment

Use the red jumper to determinate the tweeter +/- dB level + 2 dB 8 dB - 2 dB more! dB WOOFER 90 TWEETER - 3dB 0dB (FLAT) - 3dB 1000 Hz 2000 Hz 3200 Hz 20000 Hz

3-WAY System

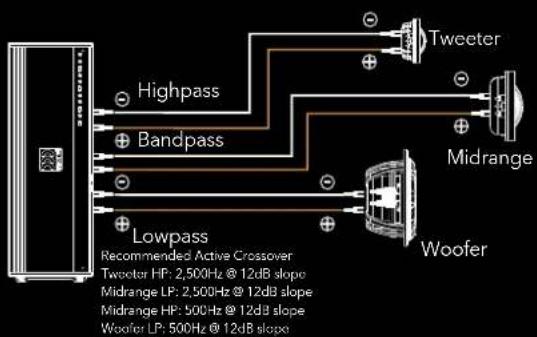

3-WAY System Wiring 3-WAY System Alignment

ACTIVE SET UP (Outputs must be filtered)

PASSIVE SET UP

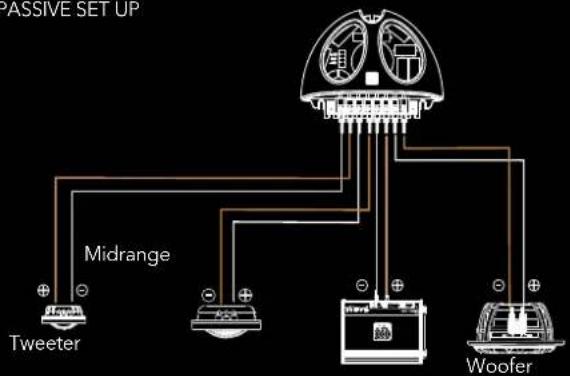

PASSIVE SET UP Midrange Tweeter Woofer

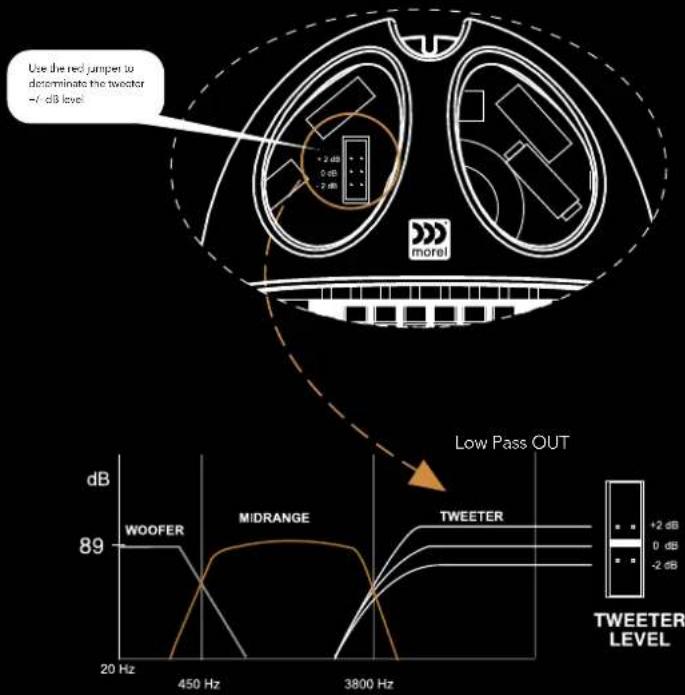

Use the red jump to determinates the tweeter -1 dB level WOOFER MIDRANGE TWEETER Low Pass OUT dB 89 20 Hz 450 Hz 3800 Hz +2 dB 0 dB -2 dB TWEETER LEVEL

Integra System

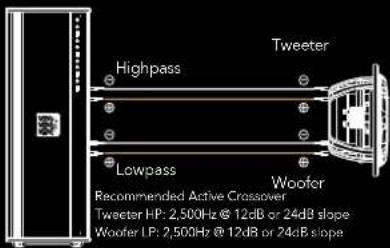

Hybrid Integra System Wiring

ACTIVE SET UP

Highpass Tweeter Lowpass Woofer Recommended Active Crossover Tweeter HP: 2,500Hz @ 12dB or 24dB slope Woofer LP: 2,500Hz @ 12dB or 24dB slope

PASSIVE SET UP

Tweeter Woofer

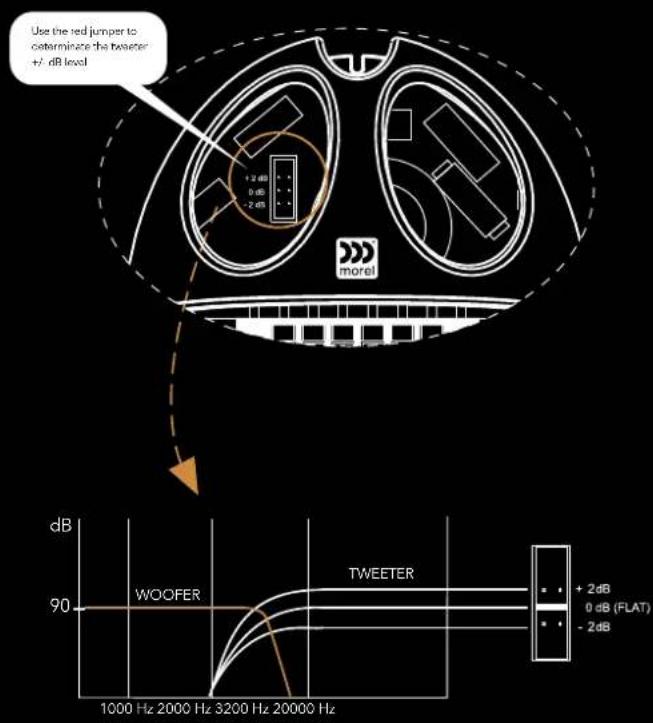

Hybrid Integra System Alignment

Use the red jumper to determine the twieter +/- dB level +2 dB 0 dB -2 dB WOCFER TWEETER 90 + 2dB 0 dB (FLAT) - 2dB 1000 Hz 2000 Hz 3200 Hz 20000 Hz

Specifications

DRIVER UNIT HYBRID MW4MKII HYBRID MW5MKII HYBRID MW6MKII HYBRID INTEGRA 42 HYBRID INTEGRA 52 HYBRID INTEGRA 62

Nominal Impedance (Ohms)	4	4	4	4	4	4
Power Handling Wims	100	120	140	80	90	100
Max. Trans.Pwr Handling Wims	300	500	600	250	250	300
Sensitivity (2.83V/1M)	89 dB	90dB	91 dB	89dB	90dB	91dB
Frequency Response Hz	50-4200	45-3000	35-3000	80-5000	70-3800	65-3300
Resonant Freq. Fs Hz	82	56	45	92	82	75
Voice Coil Diameter mm (inch)	54 (2.1)	54 (2.1)	54 (2.1)	54 (2.10)	54 (2.1)	54 (2.1)
Voice Coil Height mm (inch)	10.50 (0.41)	10.50 (0.41)	11 (0.47)	-	-	12
Voice Coil Type/ Former	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Voice Coil Wire	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum	HexatechTM aluminum
DC Resistance (Ohms)	3.2	3	3	3	3.3	3.3
Voice Coil Induct. @1 kHz (MHz)	0.21	0.21	0.22	0.17	0.26	0.31
Magnet System	Hybrid rear vented	Hybrid rear vented	Hybrid rear vented	Neodymium	Neodymium	Neodymium
HE-Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)	4 (0.16)	4 (0.16)	5 (0.20)	5 (0.20)
B-Flux Density (T.M.)	0.83	0.83	0.83	0.9	0.9	0.85
BL Product/BXL	4.16	4.2	4.2	3.97	5.16	4.65
Max. Linear Ex./Xmax mm (inch)	7±3.5 (0.28±0.14)	7±3.5 (0.28 ± 0.14)	7±3.5 (0.28±0.14)	4±2 (0.16±0.08)	5.50±2.75 (0.22±0.11)	7±3.5 (0.28±0.14)
Suspension Compliance CMS - mm/N	0.57	0.78	1.1	0.66	0.6	0.42
Electrical Q Factor QES	0.63	0.59	0.56	0.45	0.39	0.67
QTS	0.46	0.45	0.44	0.36	0.32	0.54
QMS	1.74	1.8	2.08	1.72	1.85	2.86
Mech Resistance RMS - Ohm/meter	1.98	1.96	1.5	1.44	1.7	1.52
Moving Mass MMS - gr/ ounce	6.8	9.9	11	4.4	6.11	8.12
Equiv. Can Air Load VAS - L (cu.ft)	3.17 (0.11)	8.87 (0.31)	21 (0.74)	1.40 (0.04)	2.72 (0.37)	3.80 (0.13)
Effective Piston Area SD sq.cm (sq. inch)	64 (9.92)	90 (13.95)	119 (18.45)	39 (6.04)	57 (8.83)	80 (37.8)
Cone Type	One-piece formed	One-piece formed	One-piece formed	Formed Paper	Formed Paper	Formed Paper
Cone Material	DPC	DPC	DPC	Composite cellular fiber	Composite cellular fiber	Composite cell. fiber
Unit Diameter mm (inch)	109(4.3)	135 (5.25)	165 (6.50)	109(4.3)	135 (5.25)	165 (6.5)
Mounting Depth mm (inch)	28.5 (112)	60 (2.36)	61 (2.40)	30 (1.2)	60 (2.36)	61 (2.40)
Mounting Cutout mm (inch)	93 (3.6)	120 (4.72)	141 (5.55)	93 (3.6)	120 (4.72)	141 (5.55)
Net Weight Kg (lb)	0.53 (1.1716)	0.60 (1.32)	0.60 (1.32)	0.50 (1.10)	0.60 (1.32)	0.75 (1.65)

TWEETER / MIDRANGE MT300 CDM700 CROSSOVERMIXBR80.4

Nominal Impedance (Ohm)	6	4	8
Power Handling (WRms)	130	90	100
Max Transient Power Handling W (10ms)	350	180	300
Sensitivity (2-83V/1M) dB	93	90.5	90
Frequency Response Hz	1600-25000	1800-20000	600-6000
FS Hz	1200	1000	480
Voice Coil Diameter mm (inch)	28 (1.125)	25 (1)	54 (2.125)
Voice Coil Former	Aluminum	Copper	Aluminum
Voice Coil Wire	HexatechTM Aluminium	Neodymium	HexatechTM Aluminium
DC Resistance Ohm	5.2		3.5
Magnet System	Double Magnet Neodymium		Neodymium Rear Vented
Dome Type	AcuflexTM Hand Coated Soft Dome		Coated Soft Dome
Dome Material	Silk		Silk
Unit Diameter mm (inch)	43.00 (1.69)		88.00 (3.50)
Mounting Depth mm (inch)	13.20 (0.52)		21.00 (0.83)
Mounting Cutout mm (inch)	47.00 (2.00)		75.50 (2.97)
Net Weight Kg(lb)	0.067 (0.134)		0.25 (0.55)

MXR240.4 MXR250.4i

Crossover Point	W: 2200Hz / 18dB	2200Hz / 12dB	W: 500Hz / 12dB
	T: 2200Hz / 12dB		M: 18dB/ 2200Hz/ 12dB
			T: 2200Hz / 12dB
Crossover Controls	Tweeter+/- 3dB	Tweeter+/- 2dB	Tweeter+/- 2dB
Wiring Options	N/A	N/A	N/A
