BEDIENUNGSANLEITUNG ES-852K11H ZKTeco
ES-852K11/12/13H | EZ series

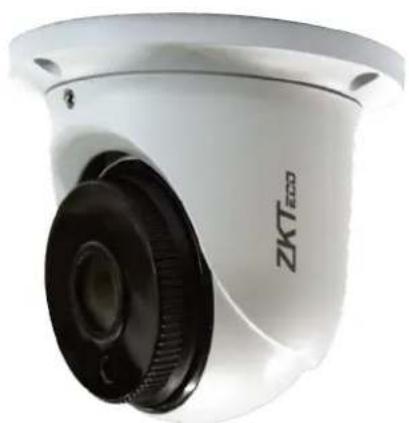

2MP IR Eyeball Network Camera
· H.265+ Dual-stream Encoding
· IR Effective Range 10\~20m
· High Quality Optical Lens 3.6mm/6mm optional
· Multiple Web Browser Supported, IE/Safari/Chrome/Firefox
· P2P Cloud Function By Mobile App (AntarView Pro)
· Lightning Protection Up to 6KV
· IP67 Ingress Protection
• Built-in PoE
EZ series 2MP IP cameras are cost-efficient solution which powered by smart H.265+ and advanced cutting-edge image sensor for video monitoring.
Cloud function is built-in for every device, which is more convenient and flexible for real-time and remote viewing.
Functions
H.265+
Delivering high quality video with up to 70% lower bandwidth. H.265+ is the evolutionary optimization of H.265 and traditional H.264.
The Smart H.265+ includes a series of encoding strategy such as Dynamic ROI and smart 2D&3D noise reduction, etc. to save up to 70% bandwidth and storage.
Protection
With precise mechanical and rugged casing design, it stands against water and dust with industrial IP67 rank.
Supports ±30% input voltage tolerance, it could work safely in extreme unstable power condition.
With working temperature range -30^ to +60^ , it works well in a variety of harsh outdoor environments.
Technical Parameters
Camera
| Models | ES-852K11H | ES-852K12H | ES-852K13H |
| Image Sensor | 1/2.7" 2MP Image Sensor | ||
| Min. Illumination | 0.08Lux/F2.0 (color)0 Lux with IR on | ||
| Effective Pixel | 1920(1)* 1080(V) | ||
| Flash | 16MB |
| S/N Ratio | More than 52dB |
| IR Distance | 10~20m |
| IR LED No. | 1 |
Lens
| Focal Lengths | 2.8mm | 3.6mm 6mm | 99.6° 90.5° 60° |
| Aperture | F2.0 | ||
| FOV |
Video
| Compressions | 11.265/11.264 |
| Resolutions | 1080P(1920*1080)/1.3MP(1280*960)/720P(1280*720)Q720P(640*360)/CIF(352*288) |
| Bit Rate Control | CBRAVBR |
| Bit Rates | 16Kbps-4Mbps |
| Streaming | Dual stream |
| Frame Rates | Main stream: 1920*1080(1~20fps) |
| Sub stream: 704*576(1~25/30fps) | |
| Digital Zoom | 12x |
| Audio Compression | G.711u |
| WDR | DWDR |
| Day/Night | Auto ICR |
| White Balance | Supported |
| Defog | Supported |
| Noise Reduction | 3D DNR |
| Mirror | Supported |
| Flip | Supported |
| BLC | Supported |
| ROI | Support 4 fixed region for main stream and sub stream separately |
| Anti-flicker | Supported |
| Privacy Mask | 4 Areas |
Alarm & Audio
| Video Detections | Motion Detection, Video Shelter |
| Audio | N/A |
| IVA | N/A | 52° |
Network
| Ethernet | 1 RJ-45 port(10/100Mbps) |
| Protocols | TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP,DNS, DDNS, FTP, NTP, PPPoF, UPNP, SMTP, SNMP |
| Onvif | Onvif Profile S |
| Max. Online User | 2 |
| Web Browsers | IE/Firefox/Chrome/Safari |
| VMS | AntarVis 2.0 |
| Mobile App | AntarView Pro |
| Platforms | Mac OS/ Windows/iOS/Android |
General
| Working Temperature | -30°C~+60°C |
| Working Humidity | 10~90% |
| Power Supplies | PoE, IEEE802.3af |
| DC12V±10% | |
| Power Consumption | <3W |
| Ingress Protection | IP67 |
| Dimensions | 102*93.2mm |
| Net Weight | 0.36KG |
| Gross Weight | 0.44KG |
Ordering Information
| Type Part Number Description | ||
| ES-852K11H | 2MP Network Camera(2.8mm Lens) | |
| 2MP Camera | ES-852K12H | 2MP Network Camera(3.6mm Lens) |
| ES-852K13H | 2MP Network Camera(6mm Lens) | |

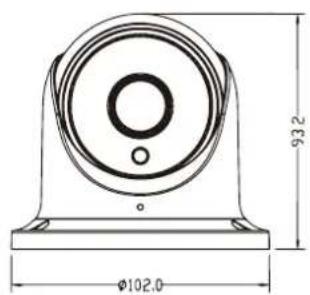

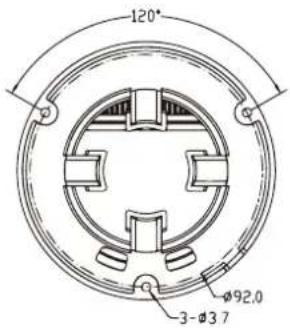

Dimensions (mm)

