BEDIENUNGSANLEITUNG PCAM-360 EchoMaster


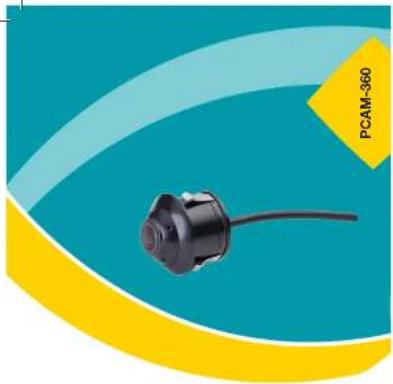

Close-up of a black cylindrical device with a cable, set against a teal and yellow background (no visible text or symbols)Adjustable Angle Side, Front or Rear Mount Camera

ECHOMASTER PRO
Introduction
Thank you for purchasing your EchoMaster Pro automotive camera.
This manual covers the following part numbers
PCAM-360-P
PCAM-360-N
EchoMaster Pro cameras are designed to improve safety during driving by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle. They will also improve vehicle maneuvering capability by displaying blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of this manual before fitting or using your EchoMaster Pro Camera. Choose a suitable mounting place dependent on the application. Ensure that there are no wiring harnesses or hoses/pipes located behind this panel before drilling.
Key Features
1/4" CMOS Sensor
Operates at 0.3 LUX
IP67 Rated
170° Viewing Angle
▶ Selectable Image (mirrored/non-mirrored)
Specification
| PCAM-360-P | PCAM-360-N | ||
| Sensor Type | 1/4" CMOS | |
| LEDs | 0 | |
| Illumination | 0.3 LUX | |
| Viewing Angle | 170 degrees | |
| Mirror Image | YES | |
| Normal View | YES | |
| Water/Debris-Proof | IP67 | |
| Audio | NO | |
| Power Supply | 9-16V DC | |
| Current | <50mA | |
| Working Temperature | -30°C - +70°C | |
| Dimensions (mm) | D (21) x W (25) x H (25) | |
| System | PAL NT3C | |
| TV Lines | 420 420 | |
| Resolution | 648 x 488 648 x 488 | |
Echomaster.com Echomaster is a Power Brand of AAMP Global
15500 LUNAVARI DIWA, SUO 202 Clearwater, Florida 63570
(£dun) 100% expodusene (L) - temp - (S) 100% expodusquodins - temp
ECHOMASTER

Box Contents
Camera
Manual
Mounting Hardware
Hole Saw
Harness
Angle Adjustment Tool
Dimensions (mm/in)


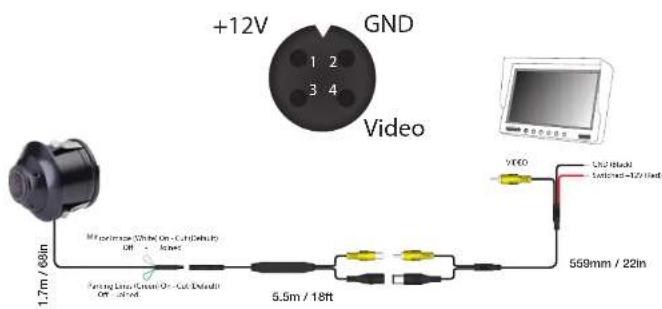

φ25 φ22 13.5 / 0.63 217.0.83Wiring Diagram & Pin Out
