BEDIENUNGSANLEITUNG PCAM-IRF EchoMaster


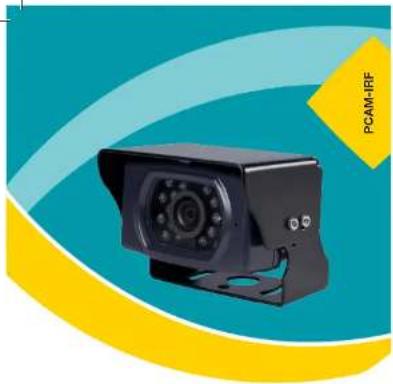

Black surveillance camera with circular lens and mounted sensor array, displayed against a teal and yellow gradient background (no text or symbols on device)IP67 Commercial Camera with Night Vision User Manual

ECHOMASTER PRO
Introduction
Thank you for purchasing your EchoMaster Pro automotive camera.
The following part numbers are supported:
PCAM-IRF-P PCAM-IRF-N
EchoMaster cameras are designed to improve safety during driving by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle. They will also improve vehicle maneuvering capability by displaying blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of this manual before fitting or using your EchoMaster Camera. Choose a suitable mounting place dependent on the application. Ensure that there are no wiring harnesses or hoses/pipes located behind this panel before drilling.
Key Features
1/3" CCD Sensor
Operates at OLOX
18 IR LEDs
IP67 Rated
120 Degree Viewing Angle
Specifications
| PCAM-IRF-P I PCAM-IRF-N | ||
| Sensor Type | 1/3" CCD | |
| LEDs | 18 | |
| Illumination | 0 LUX | |
| Viewing Angle | 120 degrees | |
| Mirror Image | YES | |
| Normal View | No | |
| Water/Debris-Proof | IP67 | |
| Audio | YES | |
| Power Supply | 12V DC | |
| Current | <120mA | |
| Working Temperature | -20°C - +70°C | |
| Dimensions (mm) | D (68) x W (80) x H (61) | |
| System | PAL NTSC | |
| TV Lines | 480 N/A | |
| Resolution | 628 x 582 N/A | |
Echomaster.com
Echomaster is a Power Brand of A&M Global

ene - (external university global.com Europe)
(5) - 100 eqo#d#w##qucdns - 1896
Clearwater, Panama 33760
5500 LUTMIRVE DRUG. SUITE 202
08p
ECHOMASTER

Box Contents
Camera
Brackel
Hara-Mawari
User Manual
Willing Harness
Dimensions

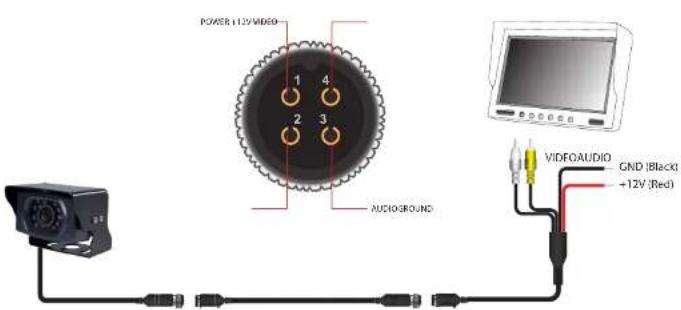

Wiring Diagram & Pin Out
