BEDIENUNGSANLEITUNG Walkman WM-FX303 SONY

WALKMAN

Radio Cassette Player

WM-FX301/303

Operating Instructions

WALKMAN is a trademark of Sony Corporation.

Sony Corporation © 1994

Printed in Malaysia

OWNER'S RECORD

The model number is located at the rear and the serial number is located inside the cassette holder. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ____

Serial No. ____

Featuring

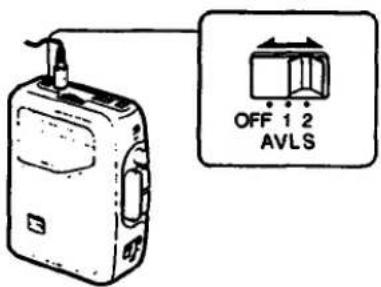

AVLS (Automatic Volume Limiter System)

The AVLS selector allows you to limit the maximum volume of your Walkman personal stereo without degrading the sound quality.

• When the AVLS selector is set to either position 1 or 2, (around 95dB and 85dB, respectively) the volume will be kept at a moderate level without the degradation of the sound quality, even if you attempt to turn the volume up higher.
• When the AVLS selector is set to either position 1 or 2, the playback sound may be distorted or unstable according to the music (especially the bass boosted part). If this happens, turn down the volume.
• When the AVLS selector is turned off, you will be able to enjoy the full volume capability of your Walkman personal stereo.

OFF 1 2 AVLS

Getting Started

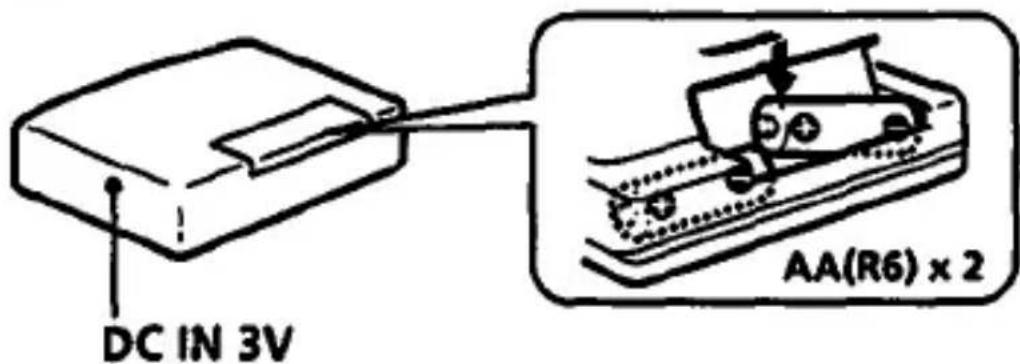

Using with Batteries

Insert two AA (R6) batteries in correct polarity.

DC IN 3V AA(R6) x 2

Notes

- When you are not going to use your Walkman for a long time, remove the batteries to prevent damage from battery leakage and corrosion.

- When the sound becomes unstable or cannot be heard, replace the old batteries with new ones.

Using External Power Sources

You can connect the following external power sources through the DC IN 3 V jack located on the bottom. (When you plug a cord into the DC IN 3 V jack, the internal batteries are automatically bypassed.)

•House current using an AC-E30L AC power adaptor
- 12 V car battery using a DCC-E130L car battery cord

Note

Use only the recommended AC-E30L AC power adaptor (not supplied). Do not use any other AC power adaptor.

Pure electrical circuit lines without any symbols

Polarity of the plug

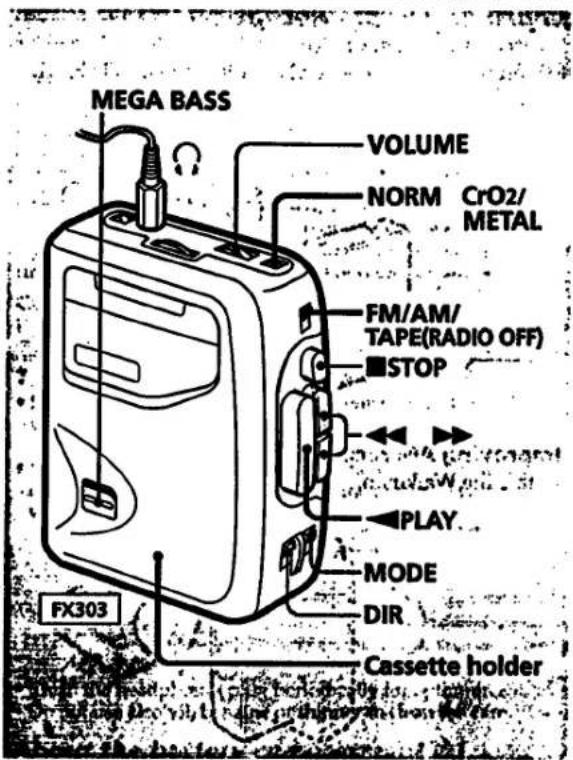

Playing Cassettes

MEGA BASS VOLUME NORM CrO2/METAL FM/AM/TAPE(RADIO OFF) ■STOP PLAY MODE DIR Cassette holder FX303

1 Insert a cassette.

2 Set the FM/AM/TAPE selector to TAPE.

3 Select NORM or CrO2/METAL mode to match the tape type.

4 Press PLAY.

Operating the Cassette Player

To wind the tape	Press ◀◀ or ▶▶.
To change sides	Set the DIR switch.
To play both sides once	Set MODE to ➔.
To play both sides repeatedly	Set MODE to ⇌.
To adjust the volume	Set the VOLUME control.
To stop	Press ■ STOP.

Note on the DIR switch

When the MODE switch is set to , the DIR switch turns automatically at the end of a cassette. If the switch does not turn automatically, check to make sure the MODE is properly set (see above). If the DIR switch still does not turn, the batteries are weak. Replace them with a new set of batteries.

Notes on playing cassettes

• Do not use cassettes longer than 90 minutes except for long continuous playback.
• If the tape is playing but no sound comes out, the batteries may be weak. Replace all batteries with new ones.
• If your Walkman has not been used for a long time, run the Walkman for a few minutes before inserting a cassette.
• Do not wind the headphones cord around the Walkman. The buttons may be kept pressed, causing unnecessary battery usage.

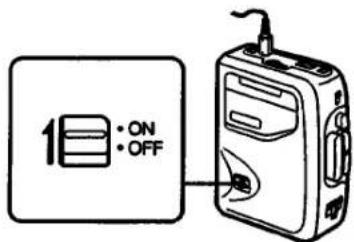

Using MEGA BASS (FX303 only)

Set the MEGA BASS switch to ON to produce deep and powerful sound.

1 ON OFF

When using MEGA BASS

If the AVLS selector is set to 1 or 2, the MEGA BASS effect is reduced.

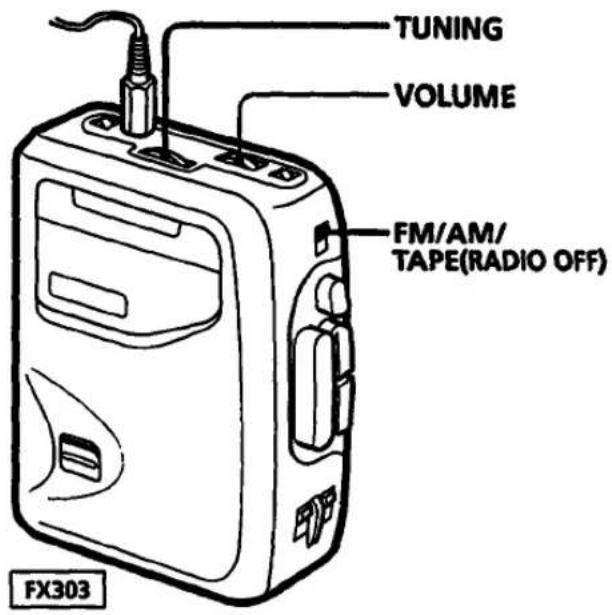

TUNING VOLUME FM/AM/ TAPE(RADIO OFF) FX303

1 Set the FM/AM/TAPE selector to AM or FM.

2 Tune in the desired station.

To adjust the volume	Set the VOLUME control.
To turn off	Set the FM/AM/TAPE selector to TAPE (RADIO OFF).

Note

If you have inserted a cassette with a metallic shell or label and radio reception interference occurs, remove the cassette.

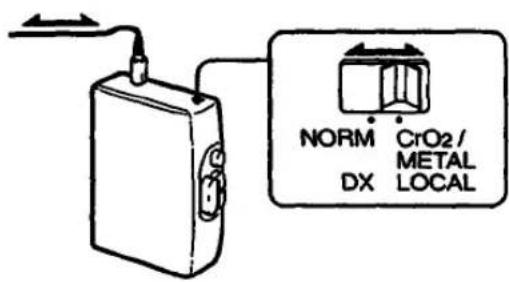

Improving Radio Reception Improving FM reception

Extend the headphones cord or adjust the DX/LOCAL selector.

NORM CrO2/ METAL DX LOCAL

Improving AM reception Rotate the Walkman.

Diagram of a closed box with bidirectional arrows indicating rotation or movement (no text or symbols)

Specifications

Radio Frequency

FM: 87.6 - 108 MHz

AM: 530 - 1,710 kHz

Power Requirements

3 V DC Batteries AA (R6) × 2

External DC 3 V power sources

Battery Life

(approximate hours when using the batteries specified below)

Battery	Playback	Radio
Sony Alkaline AM3 (N)	8 hours	30 hours
Sony SUM-3 (NS)	4 hours	15 hours

Dimensions

FX301: 93.9 x 118.5 x 34.9 mm (w/h/d)

(3 1×4%×1×in.) incl. projecting parts

FX303: 93.9 x 118.5 x 35.9 mm (w/h/d)

(3 x 4 % x 1 % in.) incl. projecting parts

Mass 205g (7.3 oz) incl. batteries

Supplied Accessories

• Stereo headphones (1)

- Belt clip (1)

Optional Accessories

• AC power adaptor AC-E30L.

• Car battery cord DCC-E130L

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Precautions

Notes on headphones

Concerning Road Safety

Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Do not use headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

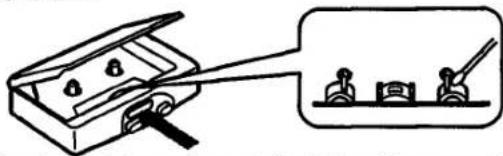

Taking Care of Your Walkman

• Do not expose the Walkman to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock. Never leave the Walkman in a car parked in the sun.
• Prolonged use may contaminate the tape head. If sound drop-out or excessive noise occurs, clean the head and tape path with alcohol.

Simple line drawing of a switch mechanism with a magnified inset showing two terminals (no text or symbols)

• Clean the headphones plug periodically for optimum sound.
• Do not use alcohol, benzine or thinner to clean the case.

About the battery compartment lid

If the battery compartment lid is detached by an accidental drop, excessive force, etc., attach it as illustrated in the numbered order.

If you have any question or problem concerning your Walkman, please consult your nearest Sony dealer.

Using the Belt Clip

With the supplied belt clip, you can wear your Walkman on a belt for convenient use.

Removing the belt clip

Lift the tab slightly and push down with your finger to remove the belt clip from the Walkman.

Attaching the belt clip

Align the belt clip with the grooves on the back of the Walkman and slide the belt clip up until you hear a click, to firmly attach it to the Walkman.
