BEDIENUNGSANLEITUNG Walkman WM-GX302 SONY

WALKMAN

Radio Cassette-Corder

WM-GX300/302

Operating Instructions

WALKMAN is a registered trademark of Sony Corporation.

Sony Corporation © 1994

Printed in China

OWNER'S RECORD

The model number is located at the left side and the serial number is located inside the cassette holder. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ____

Serial No. ____

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Getting Started

Using with Battery

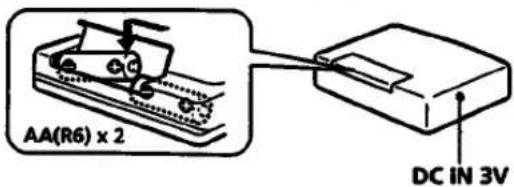

Insert two AA (R6) batteries in correct polarity.

AA(R6) x 2 DC IN 3V

Notes on battery

• When you do not use your Walkman for a long time, remove the battery to avoid any damage caused by battery leakage and subsequent corrosion.
• When the battery becomes weak, the BATT indicator will dim and the sound will be distorted or unstable. In such a case, replace both batteries.
• Concerning the battery life, see "Specifications".

About the battery compartment lid

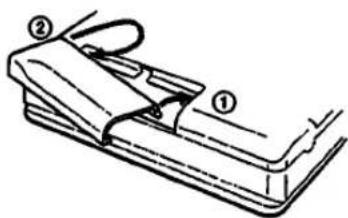

If the battery compartment lid is detached by an accidental drop, excessive force, etc., attach it as illustrated in the numbered order.

Technical diagram showing a mechanical component with labeled parts ① and ②, likely illustrating a folding or assembly process.

Using External Power Sources

You can connect the following external power sources through the DC IN 3 V jack located on the bottom. (When you plug a cord into the DC IN 3 V jack, the internal batteries are automatically bypassed.)

• House current using an AC-E30L AC power adaptor
• 12 V car battery using a DCC-E130L car battery cord

Note

Use only the recommended AC-E30L

AC power adaptor (not supplied).

Do not use any other AC power adaptor.

Playing Cassettes

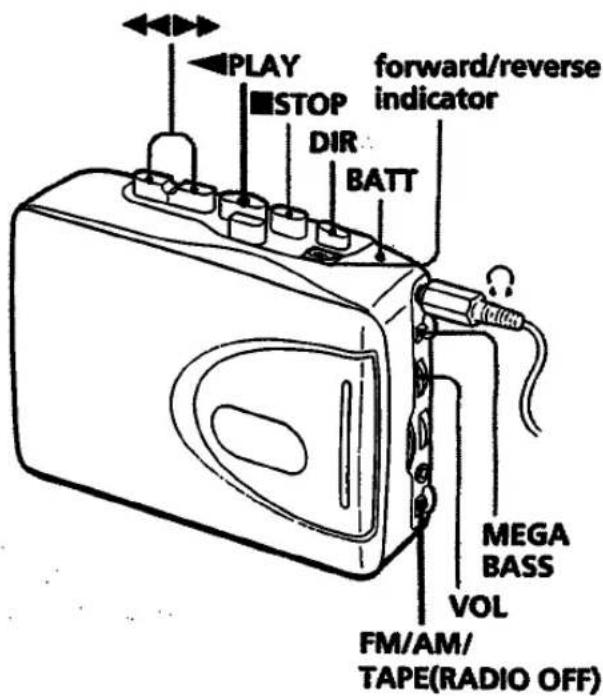

PLAY STOP forward/reverse indicator DIR BATT MEGA BASS VOL FM/AM/ TAPE(RADIO OFF)

1 Set the FM/AM/TAPE selector to TAPE.

2 Insert a cassette.

Line drawing of a briefcase with an open lid and internal components, showing an upward arrow indicating motion (no text or symbols)

3 Set the NORM/CrO2/METAL switch to match the tape type.

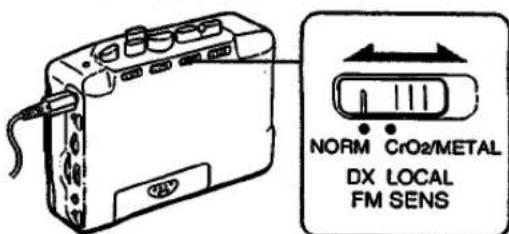

NORM CrO2/METAL DX LOCAL FM SENS

4 Press ◀ PLAY.

Listening to the Radio

Operating the Cassette Player

To stop	Press ■ STOP.
To wind the tape	Press ◀◀ or ▶▶.
To change sides	Press DIR.
To adjust the volume	Set the VOL control.

Note on the tape transport direction

The tape transport direction changes automatically at the end of a side, and the tape plays both sides repeatedly.

The forward/reverse indicator shows current side.

Notes on playing cassettes

• Do not use cassettes longer than 90 minutes except for long continuous playback.
• If your Walkman has not been used for a long time, run the Walkman for a few minutes before inserting a cassette.
• Do not wind the headphones cord around the Walkman. The buttons may be kept pressed, causing unnecessary battery usage.
• Do not open the cassette holder while the tape is running.

Using MEGA BASS

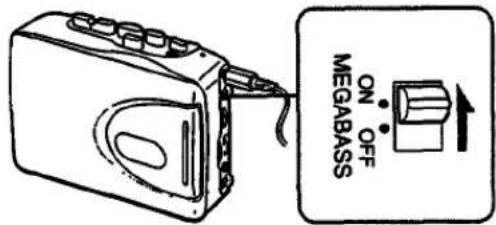

Set the MEGA BASS switch to ON to produce deep and powerful sound.

ON OFF MEGABASS

Listening from the Built-in Speaker (GX302 only)

Set the SPEAKER switch to ON.

When using the built-in speaker, no sound comes through the headphones.

OFF ON SPEAKER

Note

When using the built-in speaker, MEGA BASS does not function.

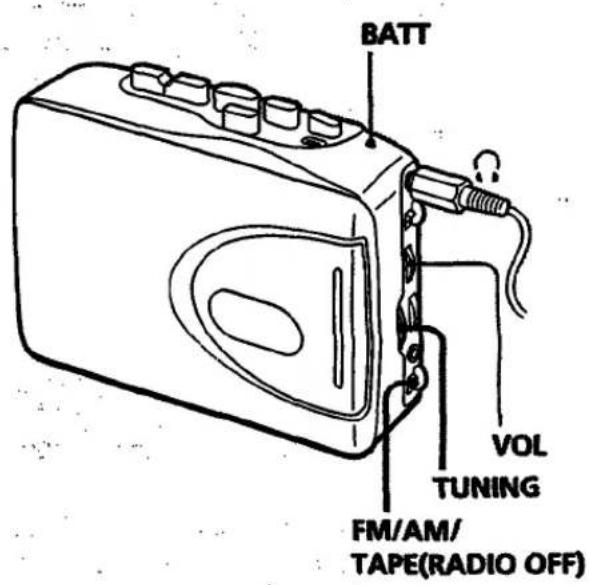

BATT VOL TUNING FM/AM/ TAPE(RADIO OFF)

1 Set the FM/AM/TAPE selector to FM or AM.

2 Tune in the desired station.

To tune off	Set the FM/AM/TAPE selector to TAPE (RADIO OFF).
To adjust the volume	Set the VOL control.

Note

If you have inserted a cassette with a metallic shell or label, and interference in radio reception occurs, remove the cassette.

Improving Radio Reception

Improving FM reception

Extend the headphones cord or adjust the FM SENS switch.

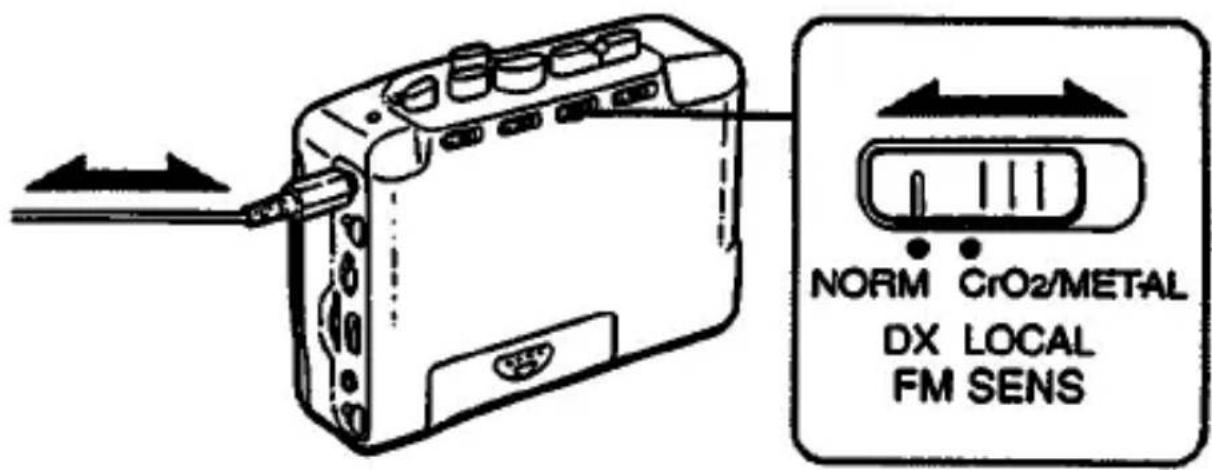

NORM CrO2/METAL DX LOCAL FM SENS

Improving AM reception

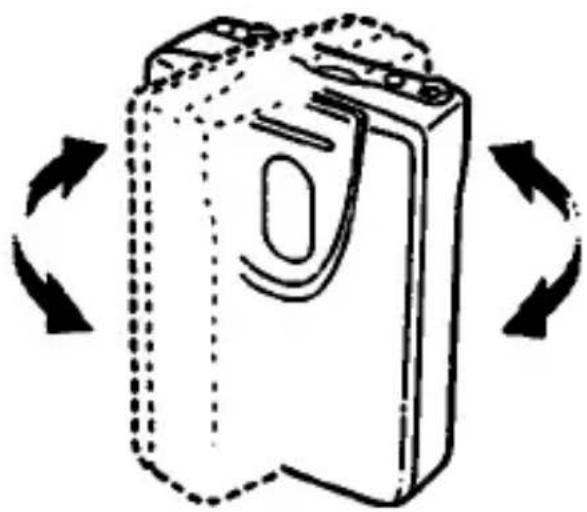

Rotate the Walkman.

Diagram of a washing machine with bidirectional arrows indicating circulation (no text or symbols)

Recording

Use new batteries. And use only TYPE I (normal) tapes.

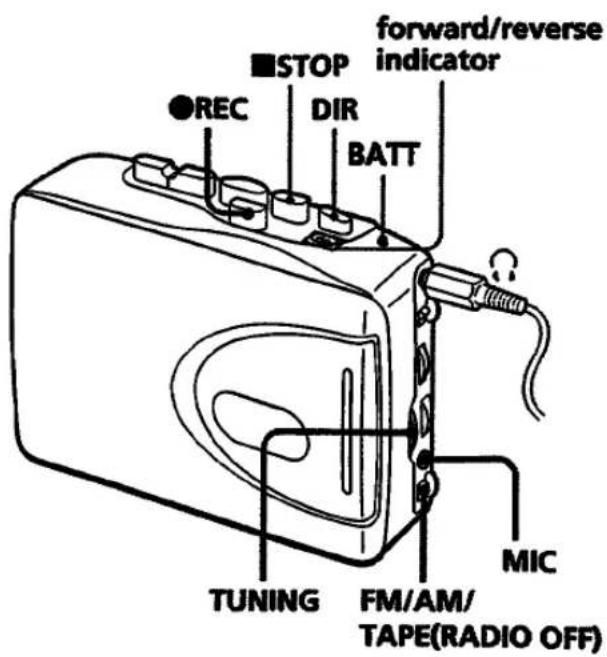

■STOP forward/reverse indicator ●REC DIR BATT TUNING FM/AM/ TAPE(RADIO OFF) MIC

Recording from the Radio

1 Insert a cassette with the side you want to record on facing up.

Make sure the forward/reverse indicator shows (forward).

Line drawing of an open electronic device with ports and a handle, showing internal components (no text or symbols)

2 Set the FM/AM/TAPE selector to FM or AM.

When recording FM programs, make sure the headphones are plugged in as they serve as an antenna.

3 Tune in the desired station.

4 Press ● REC.

Recording with the Supplied Microphone

1 Insert a cassette with the side you want to record on facing up.

Make sure the forward/reverse indicator shows (forward).

Line drawing of an open device with arrows indicating direction (no text or symbols)

2 Set the FM/AM/TAPE selector to TAPE.

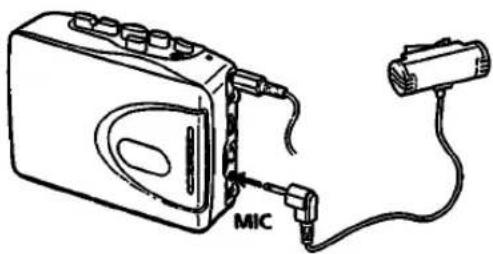

3 Connect the Microphone to MIC jack.

MIC

4 Direct the microphone toward the sound source and press ● REC.

To stop recording

Press ■ STOP.

Using the AVLS

The recording level is adjusted automatically

Adjusting the volume or setting MEGA BASS and AVLS will not affect the recording level. However, these controls will change the sound levels you hear.

To reduce noise while recording AM programs

Set the ISS (Interference Suppress Switch) to the position that reduces noise the most.

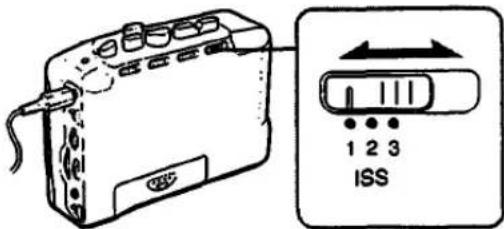

ISS 1 2 3

To record on the other side of the cassette

Make sure that the recording is stopped, then open the cassette holder and turn over the cassette. In this unit, recording functions on the forward side only.

Using the supplied microphone stand

To prevent a tape from being accidentally recorded over

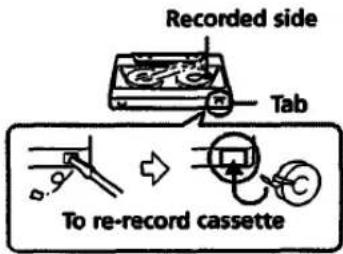

Break off the tabs from side A and/or B. To reuse the tape for recording, cover the tab hole with adhesive tape.

Recorded side Tab To re-record cassette

Notes on recording

• Do not use a CrO_2 (TYPE II) or metal (TYPE IV) tape, otherwise the sound may be distorted when you play back the tape, or the previous recording may not be erased completely.
• When recording with the microphone, do not place it near a lamp cord or a fluorescent lamp to avoid interference noise.
• If a howling effect occurs, turn down the volume.
• When recording with the microphone, the sound to be recorded cannot be heard through the built-in speaker (GX302).

AVLS (Automatic Volume Limiter System)

The AVLS selector allows you to limit the maximum volume of your Walkman personal stereo without degrading the sound quality.

• When you set the AVLS selector to 1 or 2 (around 95 dB and 85 dB respectively), the maximum volume is kept down to protect your ears.
• When the AVLS selector is set to either position 1 or 2, the playback sound may be distorted or unstable according to the music (especially the bass boosted part). If this happens, turn down the volume.
• When the AVLS selector is turned off, you will be able to enjoy the full volume capability of your Walkman personal stereo.

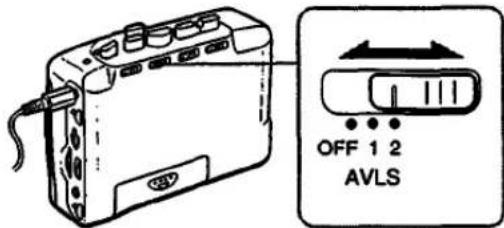

OFF 1 2 AVLS

Using the Belt Clip

With the supplied belt clip, you can wear your Walkman on a belt for convenient use.

Removing the belt clip

Lift the tab slightly and push down with your finger to remove the belt clip from the Walkman.

Diagram showing a device transitioning from a single door to a multi-door door, with directional arrow indicating process flow.

Attaching the belt clip

Align the belt clip with the grooves on the back of the Walkman and slide the belt clip up until you hear a click, to firmly attach it to the Walkman.

Precautions

Notes on Headphones

Concerning road safety

Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Do not use headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

Taking Care of Your Walkman

• Do not expose the Walkman to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock. Never leave the Walkman in a car parked in the sun.
• Prolonged use may contaminate the tape head. If sound drop-out or excessive noise occurs, clean the head and tape path with alcohol.

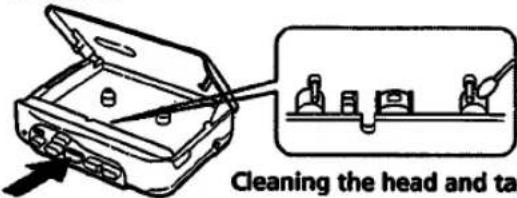

Cleaning the head and tape

• Clean the headphones plug periodically for optimum sound.
• Do not use alcohol, benzine or thinner to clean the case.

If you have any question or problem concerning your Walkman, please consult your nearest Sony dealer.

Specifications

Radio Frequency

FM: 87.6 - 108 MHz AM: 530 - 1,710 kHz

Power Requirements

3 V DC Batteries AA (R6) x 2 External DC 3V power sources

Battery Life

(approximate hours when using the batteries specified below)

	Sony alkaline AM3 (N)		Sony SUM-3 (NS)
	GX300	GX302	GX300	GX302
Playback	8	6	4	3
Radio	30	30	15	15
Mic recording	5	5	2.5	2.5
Radio recording	4	4	2	2

Dimensions

119.8 x 93.7 x 38.9 mm (w/h/d) (4 ¾ x 3 ¾ x 1% in.) incl. projecting parts

Mass GX300: 215 g (7.6 oz) incl. batteries GX302: 225 g (8 oz) incl. batteries

Supplied Accessories

Stereo headphones (1), Stereo microphone (1) microphone stand (1), Belt clip (1)

Optional Accessories

AC power adaptor AC-E30L Car battery cord DCC-E130L

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.
