WALKMAN

Radio Cassette Player

wm-FX21/22/23/24

Operating Instructions

WALKMAN is a trademark of Sony Corporation.

Sony Corporation © 1993

Printed in Malaysia

OWNER'S RECORD

The model number is located at the rear and serial number is located inside the cassette holder. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. ____

Serial No. ____

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

Featuring

AVLS (Automatic Volume Limiter System)

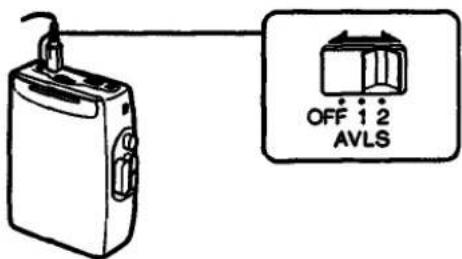

The AVLS selector allows you to limit the maximum volume of your WALKMAN personal stereo without degrading the sound quality.

• When the AVLS selector is set to either position 1 or 2 (around 95 dB, 85 dB respectively), the volume will be kept at a moderate level without the degradation of the sound quality, even if you attempt to turn the volume up higher.
• When the AVLS selector is set to either position 1 or 2, the playback sonud may be distorted or unstable according to the music (especially bass boosted part). If this happens, turn down the volume.
• When the AVLS selector is turned off, you will be able to enjoy the full volume capability of your WALKMAN personal stereo.

OFF 1 2 AVLS

Getting Started

Using with Batteries

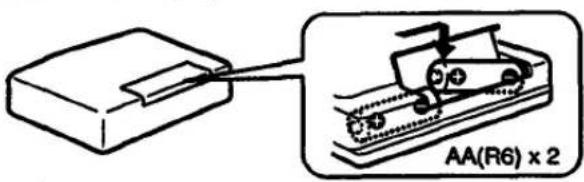

Insert two AA (R6) batteries in correct polarity.

AA(R6) x 2

Notes

• When you are not going to use your Walkman for a long time, remove the batteries to prevent damage from battery leakage and corrosion.
• When the sound becomes unstable, replace the old batteries with new ones.

Using External Power Sources

You can connect the following external power sources through the DC IN 3 V jack located on the bottom. (When you plug a cord into the DC IN 3 V jack, the internal batteries are automatically bypassed.)

• House current using an AC-E30L AC power adaptor
• 12 V car battery using a DCC-E130L car battery cord

Note

Use only the recommended AC-E30L AC power adaptor (not supplied). Do not use any other AC power adaptor.

Polarity of the plug

Using With a Rechargeable Battery (FX22 only)

Before using, charge the rechargeable battery with the supplied charger. With the rechargeable battery, a tape can be used for 2.5 hours and the radio for 9.5 hours in a one-time charge.

Charging time varies according to the remaining amount of power (approx. 4 hours).

Open the battery compartment lid and insert the rechargeable battery after charging.

Simple line drawing of a toy car on a rectangular base (no text or symbols)

Notes

• The name plate indicating operating voltage, power consumption, etc. is located on the bottom exterior of the charger.
  • The battery may become warm during charging.
• Use only the rechargeable battery NC-AA (WM) with the supplied battery charger.
• Do not short circuit the battery connecting points of the unit when the rechargeable battery is installed.
• If the rechargeable battery is new or it has not been used for a long time, it may not be charged completely. (The playing time is shorter.)
  The battery will be charged completely after it is used several times.

Playing Cassettes

VOLUME NORM CrO2/ METAL TAPE(RADIO OFF)/ AM/FM STOP PLAY Cassette holder FX24

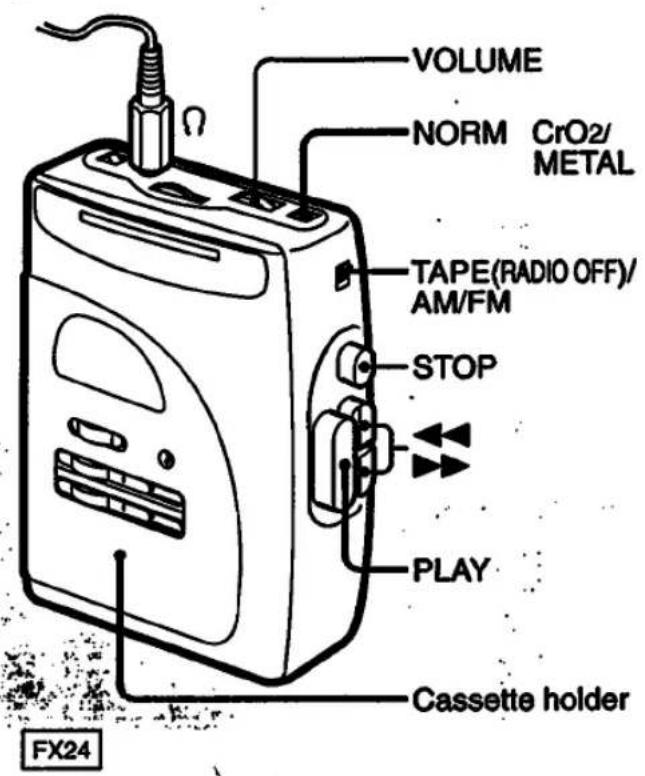

1 Insert a cassette.

Diagram of a door with an arrow indicating rotation or movement, no text or symbols present

2 Set the TAPE/AM/FM selector to TAPE.

3 Select NORM or CrO2/METAL mode to match the tape type.

4 Press PLAY.

PLAY

Operating the Cassette Player

To stop	Press ■STOP.
To wind the tape	Press ▶▶ or ◀◀.
To adjust the volume	Set the VOLUME control.

Notes on playing cassettes

• Do not use cassettes longer than 90 minutes except for long continuous playback.
  • If your Walkman has not been used for a long time, run the Walkman for a few minutes before inserting a cassette.
• Avoid winding the headphones cord around the Walkman. The buttons may be kept pressed, causing unnecessary battery usage. (FX24)

Using MEGA BASS (FX23/24 only)

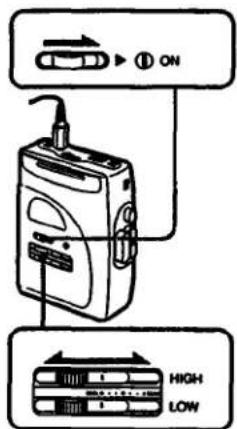

Set the MEGA BASS switch to ON to produce deep and powerful sound.

And set the HIGH and LOW control to adjust the tone level. (FX24)

FX23

Diagram showing a device with an ON/OFF switch and directional arrow, likely illustrating a physical or electrical setup.

FX24

ON HIGH LOW

Note

If the AVLS selector is set to 1 or 2, the MEGA BASS effect is reduced.

Listening to the Radio

TUNING VOLUME TAPE(RADIO OFF)/AM/FM FX24

1 Set the TAPE/AM/FM selector to AM or FM.

2 Tune in the desired station.

To turn off	Set the TAPE/AM/FM selector to TAPE.
To adjust the volume	Set the VOLUME control.

Note

If you have inserted a cassette with a metallic shell or label and radio reception interference occurs, remove the cassette.

Improving Radio Reception

Improving FM reception

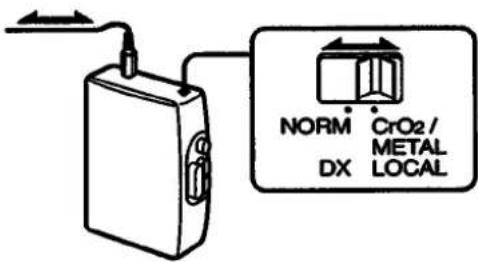

Extend the headphones cord or adjust the DX/LOCAL selector.

NORM CrO2/ METAL DX LOCAL

Improving AM reception

Rotate the Walkman.

Diagram of a device with bidirectional arrows indicating rotation or movement (no text or symbols)

Using the Belt Clip

With the supplied belt clip, you can wear your Walkman on a belt for convenient use.

Removing the belt clip

Lift the tab slightly and push down with your finger to remove the belt clip from the Walkman.

Attaching the belt clip

Align the belt clip with the grooves on the back of the Walkman and slide the belt clip up until you hear a click, to firmly attach it to the Walkman.

Precautions

Notes on headphones

Road Safety

Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in many areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations.

Preventing hearing damage

Avoid using headphones at high volume. Hearing experts advise against continuous, loud and extended play. If you experience a ringing in your ears, reduce volume or discontinue use.

Caring for others

Keep the volume at a moderate level. This will allow you to hear outside sounds and to be considerate to the people around you.

Taking Care of Your Walkman

• Avoid exposing the Walkman to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock. Never leave the Walkman in a car parked in the sun.

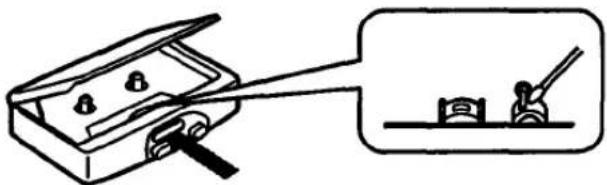

• Prolonged use may contaminate the tape head. If sound drop-out or excessive noise occurs, clean the head and tape path with alcohol.

Simple line drawing of a switch mechanism with a magnified inset showing the lever (no text or symbols)

• Clean the headphones plug periodically for optimum sound.
• Do not use alcohol, benzine or thinner to clean the case. If you have any question or problem concerning your Walkman, please consult your nearest Sony dealer.

Specifications

Radio Frequency

FM: 87.6 - 108 MHz

AM: 530 - 1.710 kHz

Power Requirements

3 V DC Batteries AA (R6) x 2

External DC 3 V power sources

Battery Life

(approximate hours when using the batteries specified below)

Battery	Playback	Radio
Sony Alkaline AM3 (N)	7 hours	30 hours
Sony SUM-3 (NS)	3.5 hours	15 hours
Rechargeable battery NC-AA (WM) (Full charge)	2.5 hours	9.5 hours

Supplied Accessories

• Stereo headphones (1)
• Belt clip (1)
• Rechargeable battery (2) (FX 22 only)
• Battery charger (1) (FX 22 only)

Optional Accessories

• AC power adaptor AC-E30L
• Car battery cord DCC-E130L

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.
