RAK-SSL122WH - Fernbedienung TECHNICS - Kostenlose Bedienungsanleitung

Typ	Fernbedienung
Marke	Technics
Modell	RAK-SSL122WH
Farbe	Weiß (WH)
Stromversorgung	2 x UM-4 «AAA», IEC R03 (1,5 V) oder entsprechende Batterien
Batterielebensdauer	Ca. 1 Jahr
Reichweite	Max. 7 m (23 ft.) im Winkel von 60° vor dem Sensor
Funktionen	Ein/Aus, Ladenfach öffnen/schließen, Disc-Wahl, Titelwahl, Play/Pause/Stopp, Zufallswiedergabe (1 Disc/alle Discs), Spiralspiel, Programmierung, Wiederholung, ID-Scan, Zeitanzeige, Suche
Reinigung	Übertragungsfenster und Sensor staubfrei halten
Sicherheitshinweise	Batterien nicht mischen, alte und neue oder verschiedene Typen; keine wiederaufladbaren; korrekte Polarität; bei Undichtigkeit reinigen; außerhalb der Reichweite von Kindern aufbewahren
Entsorgung	Verbrauchte Batterien nicht im Hausmüll entsorgen
Kompatibilität	Technics CD-Wechsler
Lieferumfang	Fernbedienung, Batterien (2 x AAA)
Betriebstemperatur	Nicht spezifiziert, jedoch vor direkter Sonneneinstrahlung und starker Wärmequelle schützen
Abmessungen	Nicht angegeben (typische Fernbedienungsgröße)

Häufig gestellte Fragen - RAK-SSL122WH TECHNICS

Wie lege ich die Batterien in die Fernbedienung RAK-SSL122WH ein?

Welche Reichweite hat die Fernbedienung?

Kann ich wiederaufladbare Akkus verwenden?

Wie programmiere ich eine Titelliste?

Was mache ich, wenn die Fernbedienung nicht funktioniert?

Wie schalte ich den Zufallsmodus ein?

Wie überspringe ich eine Disc?

Wie reinige ich die Fernbedienung?

Wie lange halten die Batterien?

Kann ich die Fernbedienung für andere Geräte verwenden?

BEDIENUNGSANLEITUNG RAK-SSL122WH TECHNICS

Technics

How to use the remote control transmitter RAK-SL122WH

P PC E EB GC GN

Before use

Battery installation

Insert the batteries included with this unit as shown below.

When you need to replace these batteries Use two UM-4 "AAA", IEC R03 (1.5 V) or equivalent batteries. (Refer to "Battery notes" on the page at left.)

Method for use

Use the remote control within 60 degrees and within 7 meters (23 ft.) facing directly toward the changer's remote control signal sensor.

Note

Be sure the transmission window and the unit's sensor are free from dust. Excessive dust might affect performance.

The operation may not be correct if direct sunlight or another strong light source strikes the receiving sensor of this unit. If there is a problem, place the unit away from the light source.

RQT2335-P

For details about each function, refer to the operating instructions for the main unit.

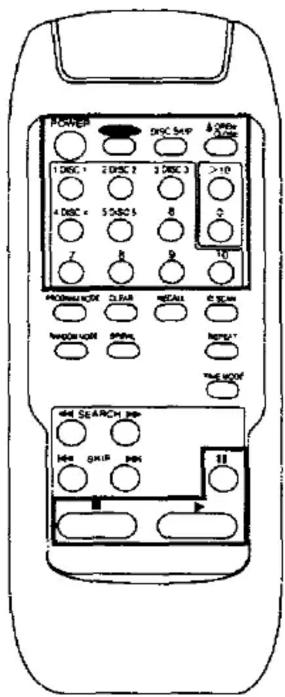

Basic operation
	To OFF/ON the main unit	POWER
	To open/close the loading drawer	△OPEN CLOSE
	To rotate the carousel	DISC SKIP
	To select the desired disc number
	To select the desired track number
	To start play
	To stop play temporarily	Press ▶ button to resume play
	To stop play

Random/spiral play
	To start one disc/full random play	RANDOM MODE○ Each time the button is pressed, the random mode will change in the following order:
	To start spiral play	SPRAL○ To cancel spiral mode, press this button again.
	To stop random/spiral play	Random/spiral mode is also canceled at the same time.
Program/delete play
	To start program/delete play	1 PROGRAM MODE Select program or delete mode. Each time the button is pressed, the program/delete mode will change in the following order: Program → Delete → (off)2 LISC 10SC1 20SC2 30SC3 Select the disc number3 10SC1 20SC2 30SC3 >10 Repeat steps 2 and 3 until you have completed the desired entry.40SC4 50SC5 6 07 8 9 104 Start play.
	To check the entered contents	RECALL The selections entered are displayed one by one each time this button is pressed.
	To clear a single item of the entered contents	CLEAR Only the selection which is currently displayed is cleared.
	To clear all entered contents	(In the stop mode)■
	To cancel program/delete mode	(In the stop mode)PROGRAM MODE Press twice in program mode.Press once in delete mode.

Other functions
		To skip discs	DISC SKIP
		To skip tracks
		To search for a desired place	(In the play or pause mode)SEARCH
		To start ID scan	ID SCANTo cancel ID scan, press this button again.
		To repeat play	REPEATTo cancel repeat mode, press this button again.
		To select time mode	TIME MODE

Battery notes

Do not mix old and new batteries, or batteries of different types (carbon and alkaline, etc.).

Always remove old, weak or worn-out batteries promptly and dispose of them properly.

The average battery life is about one year.

Although the battery life varies depending on how often the device is used, you should generally replace the batteries about once a year.

The batteries should be replaced if commands from the remote control transmitter do not operate the unit even when transmitter is held close to the front panel.

Never subject batteries to excessive heat or flame, do not attempt to disassemble them; and be sure they are not short-circuited.

If you will not use the remote control for a long period of time, remove the batteries and store them in a cool, dark place

If a battery leaks, remove all batteries and dispose of them properly. Thoroughly clean the battery compartment before inserting new batteries

If the leaking electrolyte comes into contact with skin or clothes, flush with water immediately

Keep batteries out of reach of children.

Do not use rechargeable (nickel-cadmium) type batteries.

Do not attempt to recharge alkaline or carbon batteries.

Do not dispose of used batteries in household rubbish.

Troubleshooting guide

Problem	Probable cause(s)	Suggested remedy
Remote control does not operate correctly.	The batteries have run out.	Replace batteries with new ones.
	There is an obstruction between the remote control and the changer.	Remove the obstruction.
	The batteries are inserted incorrectly.[The (+) and (−) polarities are reversed]	Reinsert batteries so that the polarities are correct.
