BEDIENUNGSANLEITUNG Brice 28107/30/31 Lucide

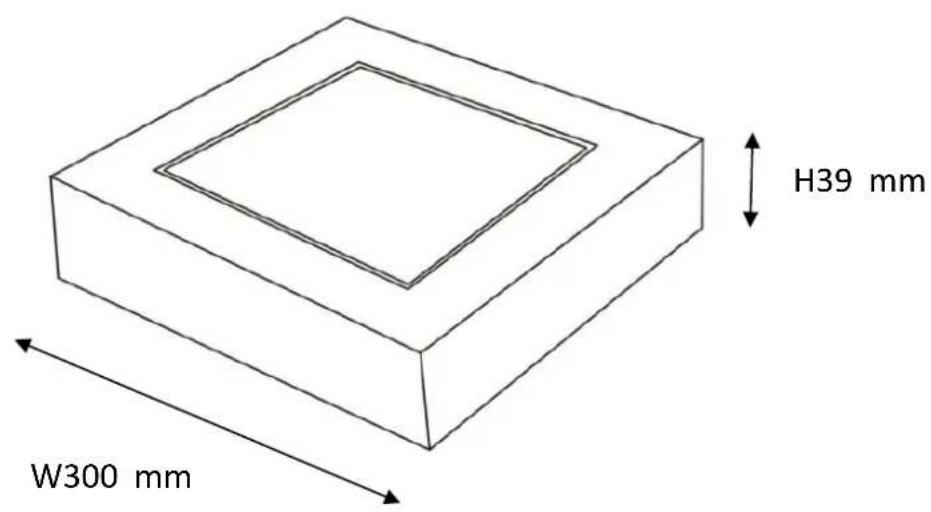

Line drawing of the item


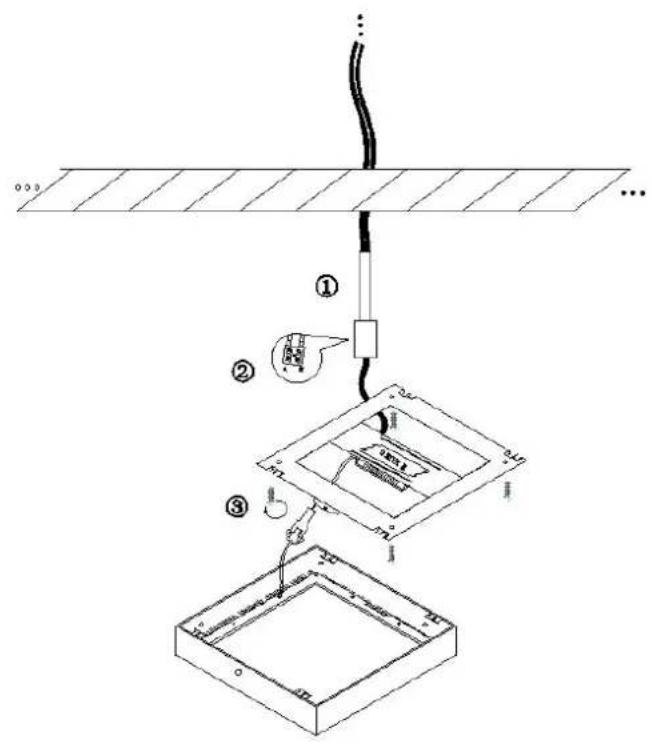

Technical diagram showing three-step installation of a microchip with labeled components and wiring connections


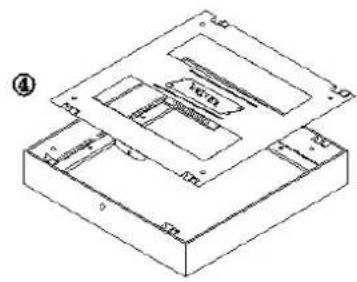

Isometric technical diagram of a layered electronic or mechanical component with no visible text or symbols


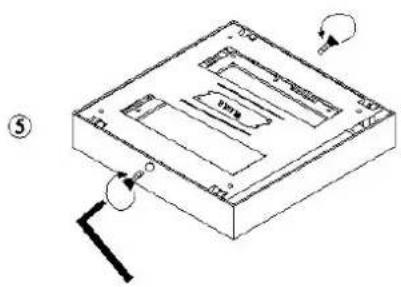

⑤
| materials used: | Die-casting Aluminum | |
| color: | Matt white | |
| dimmable and how is the fixture dimmable: | Triac dimmable | |
| size: | Height: | 39mm |
| Length: | 300mm | |
| Width: | 300mm | |
| Net Weight: | 1.36kg | |
| power requirements: | 220-240V/~50Hz | |
| bulb type and Wattage Range: | SMD3528 30W | |
| number of bulbs: | 288pcs | |
| IP degree: | IP40 | |
EES label
Bisschoppenhoflaan 145
2100 Deurne
Belgium
info@lucide.be
tel: +32 (0)3 366 22 04
www.lucide.be
