BEDIENUNGSANLEITUNG Colour-Touch Lucide

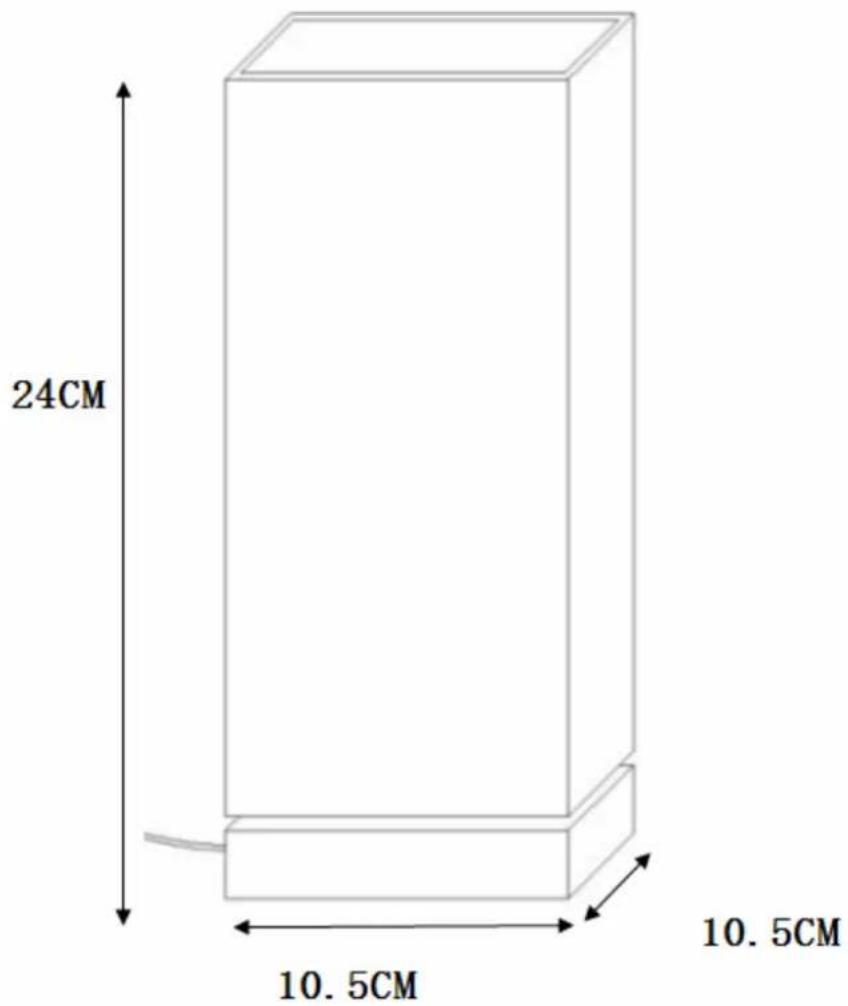

Line drawing of the item (with outline dimensions)

24CM 10.5CM 10.5CM

Installation drawing (the same as it in its instruction manual)

Diagram showing mechanical assembly with labeled parts and cross-sectional views

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including 'NL' and circular insets.

Simple line drawing of a rectangular prism with no text or symbols

Technical details

materials used: Metal+ glass
color:	红、白、绿、紫
dimmable and how is the fixture dimmable:
size: Height:	24cm
Length:	10.5cm
Width:	10.5cm
Net Weight:	0.9KGS
power requirements:	220-240V~50Hz
bulb type and maximum Wattage:	E14 MAX.40W
number of bulbs:	1xE14
IP degree:	IP20

EES label (only one in English, vertical)

71529/01 LUCIDE This luminaire is compatible with bulbs of the energy classes: A++ A+ A B C D E 874/2012

Lucide NV

Bisschoppenhoflaan 145

2100 Deurne

Belgium

[e-mail]

tel: [phone]

www.lucide.be
