Portable PowerBank 4H03 - Externe Batterie GP BATTERIES - Kostenlose Bedienungsanleitung

Produkttyp	Externe Batterie (PowerBank)
Marke	GP Batteries
Modell	Portable PowerBank 4H03 (GP4H03)
Batterietechnologie	NiMH (lithiumfrei)
Kapazität	3800 mAh / 13,68 Wh
Eingangsspannung / -strom	DC 5 V / 1 A
Ausgangsspannung / -strom	DC 5 V / 1,5 A
Ladezeit (ca.)	5 Stunden bei 5 V / 0,8 A
Abmessungen (L × B × H)	97 × 59,4 × 22,8 mm
Gewicht (ca.)	222 g (±5 g)
LED-Anzeige	Grün: 20–100 % (voll), Rot: 0–19 % (laden), Grün blinkt: lädt, Rot blinkt: Fehler
Sicherheitsfunktionen	Überentladung, Überladung, Überstrom, Kurzschluss, Temperatur, Schnellladung
Kompatible Geräte	Apple iPhone, Samsung Mobilgeräte, USB-betriebene Elektronik
Smartphone-Ladungen (ca.)	Bis zu 1,5 Mal (abhängig vom Gerät)
Betriebstemperatur	0 °C bis 40 °C
Reisesicherheit	IATA-konform (TRAVO SAFE)
Besonderheiten	Lithiumfrei – keine reaktiven Lithiumverbindungen
Hersteller	GPI International Ltd.

Häufig gestellte Fragen - Portable PowerBank 4H03 GP BATTERIES

Wie lade ich die PowerBank auf?

Wie überprüfe ich den Akkustand?

Kann ich die PowerBank während des Ladens selbst nutzen?

Ist die PowerBank für Flugreisen geeignet?

Welche Geräte kann ich laden?

Wie lange hält eine volle Ladung?

Was bedeuten die LED-Anzeigen?

Ist die PowerBank wasserdicht?

Enthält die PowerBank Lithium?

Wie entsorge ich die PowerBank?

BEDIENUNGSANLEITUNG Portable PowerBank 4H03 GP BATTERIES

Two cylindrical black batteries with visible internal components and a label on the front (no readable text or symbols)

Model No.: GP4H03

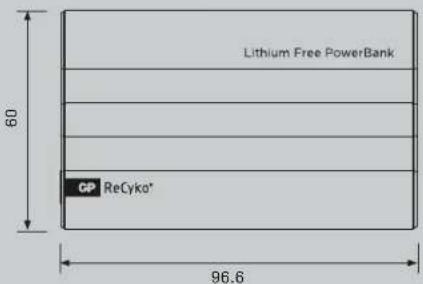

Lithium Free PowerBank 60 CP ReCyko* 96.6

Unit: mm

TRAVO SAFE

Safe for travel, fully complied with IATA Dangerous Goods Regulations

• Lithium Free* PowerBank
- Powered by the new generation ReCykδ NiMH rechargeable batteries, a safer alternative to lithium batteries
• Extra Safety Protections
- Over-discharge voltage
- Over-charge voltage
- Over-current
- Short circuit
- Temperature

- Fast charging

* Do not contain any reactive lithium that takes place in chemical reaction

GP ReCyko+ PowerBank

Specifications :

• Battery Rating : NiMH 3.6V 3800mAh / 13.68Wh
- Input: D.C. 5V / 1A
• Output : D.C. 5V / 1.5A
• LED Indication (Charging & Discharging the ReCyko+ PowerBank)
- Green LED on : 20 - 100%, no need for recharging
- Red LED on : 0 - 19%, may need to be charged
- Green LED slow flashing : Charging
- Red LED fast flashing : Error
- Discharging / Press Button : Battery strength LED indicator remark
• Dimensions : 97 (L) x 59.4 (W) x 22.8 (H) mm
• Weight : 222g +/- 5g (approx.)

Application:

Charge Apple iPhone, Samsung mobiles and USB powered electronic devices

Charge smartphone up to 1.5 times*

Recharging Time : 5 hr (approx.) at input voltage 5V, average input current = 0.8A

Operation Temperature : 0°C to 40°C

# GP laboratory test, results may vary under different operation conditions

Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.

Copyright@ GPI International Ltd.- All rights reserved

Two cylindrical battery packs with visible internal components and a green logo on the side (no readable text or symbols)

Model No.: GP4H03

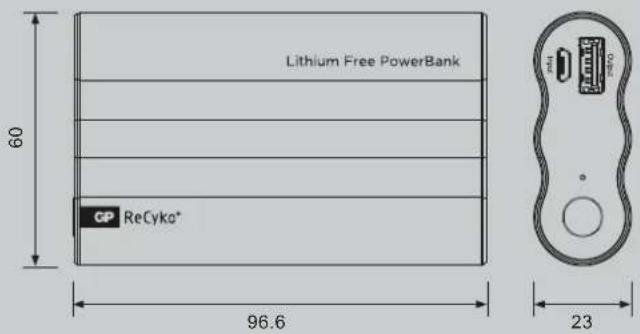

Lithium Free PowerBank 60 96.6 23

Unit: mm

TRAVO SAFE

Safe for travel, fully complied with IATA Dangerous Goods Regulations

• Lithium Free* PowerBank
- Powered by the new generation ReCyko+ NiMH rechargeable batteries, a safer alternative to lithium batteries
• Extra Safety Protections
- Over-discharge voltage
- Over-charge voltage
- Over-current
- Short circuit
- Temperature
- Fast charging
* Do not contain any reactive lithium that takes place in chemical reaction

GP ReCyko+ PowerBank

Specifications :

• Battery Rating : NiMH 3.6V 3800mAh / 13.68Wh
- Input : D.C. 5V / 1A
• Output : D.C. 5V / 1.5A
• LED Indication (Charging & Discharging the ReCyko+ PowerBank)
- Green LED on : 20 - 100%, no need for recharging
- Red LED on : 0 - 19%, may need to be charged
- Green LED slow flashing : Charging
- Red LED fast flashing : Error
- Discharging / Press Button : Battery strength LED indicator remark
• Dimensions : 97 (L) × 59.4 (W) × 22.8 (H) mm
• Weight : 222g +/- 5g (approx.)

Application:

Charge Apple iPhone, Samsung mobiles and USB powered electronic devices

Charge smartphone up to 1.5 times ^#

Recharging Time : 5 hr (approx.) at input voltage 5V, average input current = 0.8A

Operation Temperature : 0°C to 40°C

4 GP laboratory test, results may vary under different operation conditions.

Manufacturer reserves the right to alter or amend the design, model and specification without prior notice,

Copyright@ GPI International Ltd.- All rights reserved
