Produkttyp	Dunstabzugshaube
Marke	Exquisit
Modell	UBH20MI
Einbauart	Wandhaube / Unterbauhaube
Breite	60 cm
Tiefe	50 cm
Höhe (ohne Kamin)	15 cm
Gewicht	ca. 10 kg
Netzspannung	230 V / 50 Hz
Motorleistung	130 W
Max. Luftleistung (Abluft)	350 m³/h
Geräuschpegel (max.)	62 dB(A)
Beleuchtung	LED, 2× 1,5 W
Steuerung	Drucktasten
Anzahl der Stufen	3 Stufen + Intensivstufe
Fettfilter	Aluminium, waschbar
Aktivkohlefilter	Nachrüstbar (Umluftbetrieb)
Abluft- / Umluftbetrieb	Beide möglich
Energieeffizienzklasse	B
Jährlicher Energieverbrauch	34 kWh/Jahr
Sicherheit	Überhitzungsschutz, Motorschutz
Lieferumfang	Haube, Montagematerial, Bedienungsanleitung

Häufig gestellte Fragen - UBH20MI Exquisit

Wie reinige ich die Fettfilter der Exquisit UBH20MI?

Die Aluminium-Fettfilter können Sie von Hand oder in der Spülmaschine reinigen. Verwenden Sie ein mildes Reinigungsmittel und spülen Sie sie gründlich ab. Lassen Sie sie vollständig trocknen, bevor Sie sie wieder einsetzen.

Kann ich die Dunstabzugshaube im Umluftbetrieb verwenden?

Ja, die Exquisit UBH20MI kann sowohl im Abluft- als auch im Umluftbetrieb betrieben werden. Für den Umluftbetrieb benötigen Sie einen Aktivkohlefilter, der separat erhältlich ist.

Wie wechsle ich die LED-Beleuchtung?

Die LED-Leuchten sind fest verbaut und können nicht einzeln ausgetauscht werden. Bei Defekt wenden Sie sich bitte an den Kundendienst oder eine Fachkraft.

Welche Abluftschlauchgröße wird benötigt?

Der Anschlussdurchmesser beträgt 150 mm. Verwenden Sie einen flexiblen oder starren Abluftschlauch mit passendem Querschnitt.

Warum läuft die Haube nicht mehr an?

Prüfen Sie zuerst die Stromversorgung und ob der Sicherungsschalter ausgelöst hat. Falls beides in Ordnung ist, könnte der Motor defekt sein – kontaktieren Sie den Kundendienst.

Wie oft muss der Aktivkohlefilter gewechselt werden?

Der Aktivkohlefilter sollte je nach Nutzungshäufigkeit alle 3 bis 6 Monate ausgetauscht werden. Ein gesättigter Filter riecht unangenehm und verringert die Leistung.

Kann ich die Dunstabzugshaube selbst installieren?

Die Installation sollte von einer qualifizierten Fachkraft durchgeführt werden, besonders der elektrische Anschluss und der Abluftanschluss. Beachten Sie die örtlichen Bauvorschriften.

Welche Lautstärke ist normal?

Im Normalbetrieb liegt die Geräuschentwicklung zwischen 45 und 62 dB(A), je nach Leistungsstufe. Die Intensivstufe ist lauter, aber nur kurzzeitig vorgesehen.

Was tun, wenn die Haube vibriert?

Überprüfen Sie die Befestigung an der Wand und ob alle Schrauben fest sind. Auch ein verstopfter Fettfilter kann Vibrationen verursachen.

Gibt es Ersatzteile für die Exquisit UBH20MI?

Ja, Ersatzteile wie Fettfilter, Aktivkohlefilter und Bedienelemente sind über den Kundendienst oder Fachhändler erhältlich. Das Modell ist reparaturfreundlich.

BEDIENUNGSANLEITUNG UBH20MI Exquisit

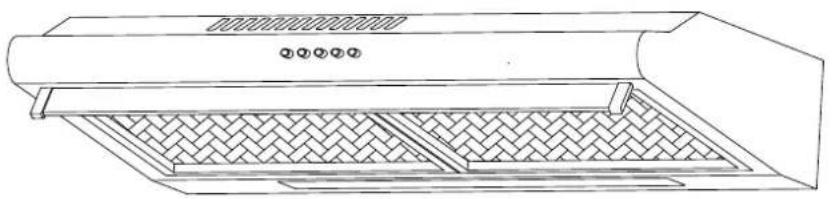

Cooker Hood Model UBH20MI

Line drawing of a kitchen air conditioner unit with mesh grille and ventilation slots (no text or symbols)

Instruction Book

Information and advice

In certain circumstances electrical appliance may be a danger hazard.

A) There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
B) Do not check the status of the filters while the cooker hood is operating.
C) Do not touch the light bulb within half an hour after appliance use.
D) Do not flambe under the cooker hood.
E) Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard
F) Constantly check food frying to avoid that the overheated oil may become a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.

Know your cooker hood

Please read these instructions before using your cooker hood

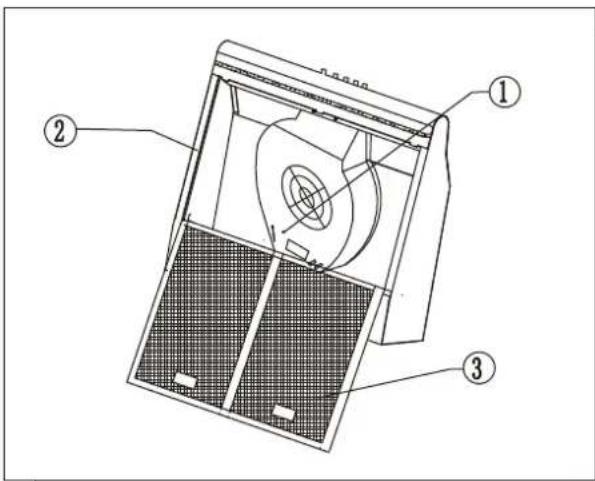

Technical diagram of a device with labeled components, showing internal structure and parts numbered 1, 2, and 3.

1. Air duct assembly 2. Main body
2. Filter assembly

Also included:

*Damper flap
*User instructions

i

Information

Congratulations on the purchase of our Cooker hood, which is designed to include many superior features that permit you the fullest expression of your living. Before installing and/or using the cooker hood carefully read all the instructions.

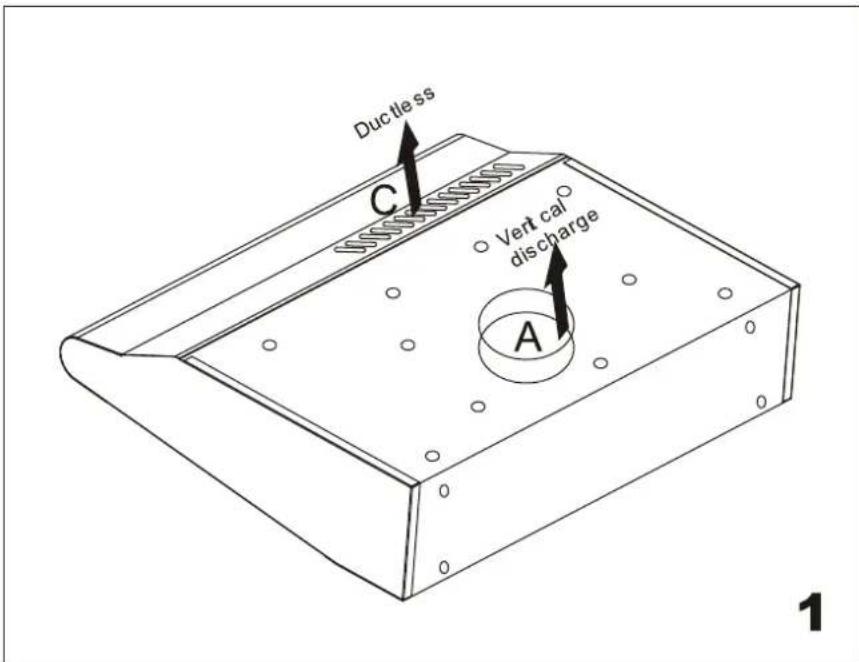

Selection of Venting Direction

Fully convertible for vertical, horizontal or ductless operation.

Ductless C Vent cal discharge A 1

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Regulations concerning the discharge of air have to be fulfilled.

A

2

Vertical discharge

Vertical is the most common.

If you select this venting direction, you only need to open the ducting knockout A. Remove the ducting knockout by inserting a Flat head screwdriver under one end and prying it up. Then snip or break the attachment points by tin snips. You must make sure that the ducting knockout B is not removed.

Ductle ss C

3

Ductless

In a ductless installation the air is re-circulated back into the kitchen. If you do not anticipate heavy cooking this method will be preferred. It will not be necessary to remove any duct knockouts, you only need chose knockout C. You should use filters to help remove cooking odors. These filter must be washed and replaced at regular intervals.

i

Information

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

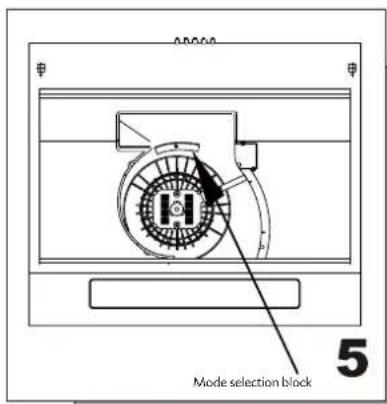

Mode selection block 5

To select recirculation mode, remove the mode block at the position indicated in fig 6, and to select ducted operation, insert mode block into the position indicated in fig 5.

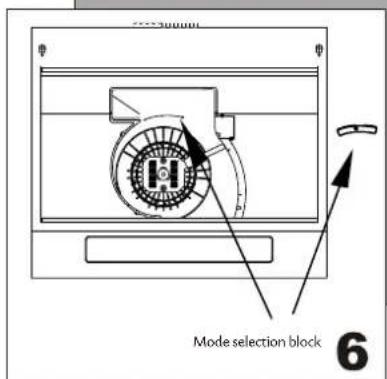

Mode selection block 6

Information

Ductless fans must always be vented to the outdoors.

Installation

Ensure the power has been turned off before beginning this installation.

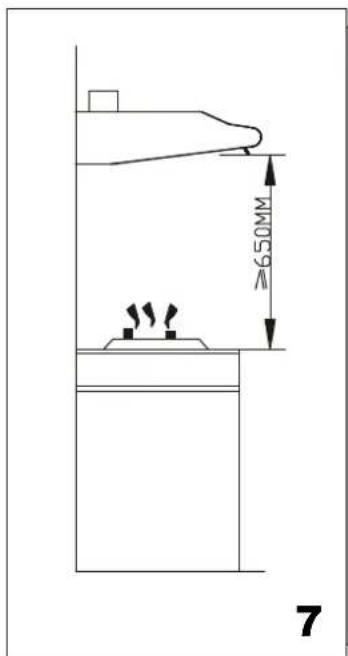

≥650MM 7

To install this hood you will require two assistants.

You will need the following tools and material to complete this installation: *Drill*Flat head screwdriver*Phillips head screwdriver or cordless drill and Phillips head bit*Tin snips*3/8" nut driver or ratchet with extension*measuring tape*hand saw or jig saw*electrical tape*duct tape

1. Remove the range hood from the carton.
2. Lay the hood upside down on a table covered with cardboard or paper to prevent scratching of the table or hood.
3. Hood installation should be within 0.8m radius range.
4. We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

Information

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

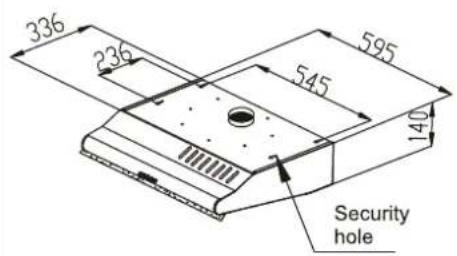

336 236 545 595 140 Security hole

8

1. According to the figure, make sure the position of hood in the cabinet. The wood strips should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood. The extent of screwing should be convenience to the next installation.

2. Hang the hood and let it's 4 key holes aim at screws, the 4 screws should be in the narrow parts of key holes. Screws should be fasten firmly, make sure that the installation between the hood and cabinet is enough fasten.

3. Install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

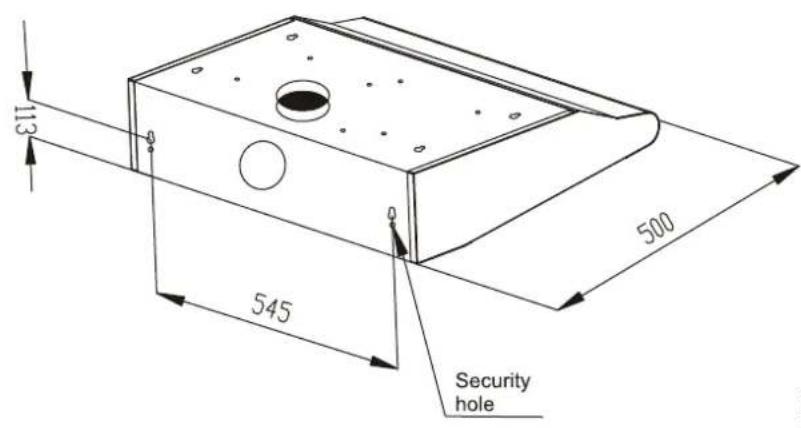

113 545 500 Security hole

If the installation surface in cabinet don't adapt to install the cooker hood, then as per FIG. 5, fix the position of cooker hood on the wall. On the wall, install 2 screws (supplied) according to the relative position of 2 key holes on the back of hood. The extent of screwing should be convenience to the next installation. Also install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

The cooker hood must be installed and connected to flues where other appliances are installed and which run off other energy supplied different to electricity (water heaters boiler cookers (range/agas) etc.).

Hood Using Method

Turn the hood ON when cooking at high heat or when cooking flaming foods.

Simple line drawing of a boat hull with a small rectangular object on top, labeled '10' (no text or symbols on the diagram itself)

0 1 2 3 11

E14 40W×1MAX 12

1. Adjust the knob to be right position.
2. Insert the power plug firmly.

Press the the switch of light to be on, the bulbs light on. Otherwise the bulbs don't work. When press the push button "1": on, the motor runs at low speed. When press the push button "2" on, the motor runs at middle speed. When press the push button "3" on, the motor runs at high speed. When press the push button "0" on, the motor stops running.

Replacing Bulb: Removing the bulb that need to be replaced, then reinstall the new bulb. The power of bulb must not be more than 28W.

Information

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

Cleaning Instructions

Disconnect range hood from power supply before cleaning or servicing.

1. Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood.
2. Do not use harsh alkalis or abrasives.
3. Avoid the use of scouring powers or dishwasher compounds.
4. Grease filter may be washed using mild soap or detergent. (heavy grease build-up may not be cleaned easily and the filter may require replacement)
5. Charcoal filters cannot be cleaned and must be replaced regularly.

Information

When cleaning, water must not inter into motor, control switch etc. electrical parts.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.
